Stable Performance Pharmaceutical Glass / Plastic Vial Liquid Powder Filling Capping Sealing Production Line

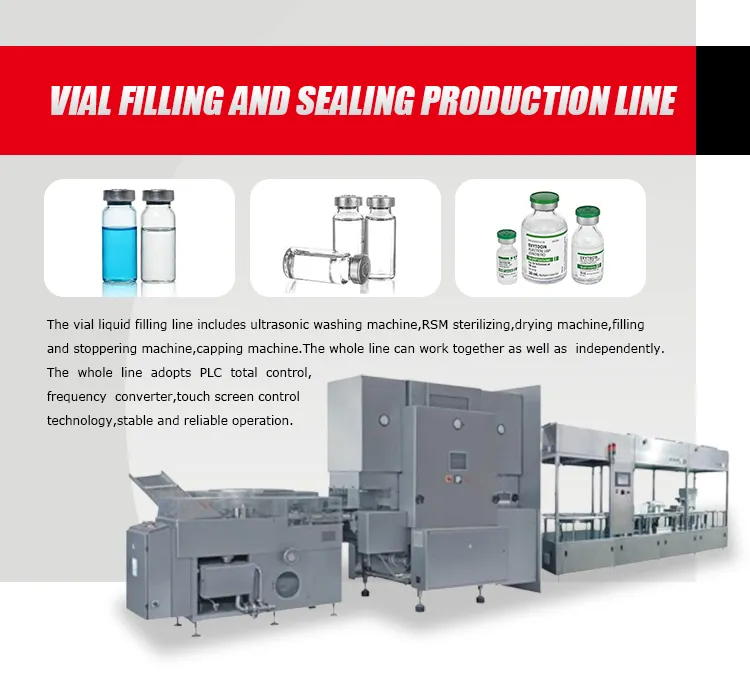

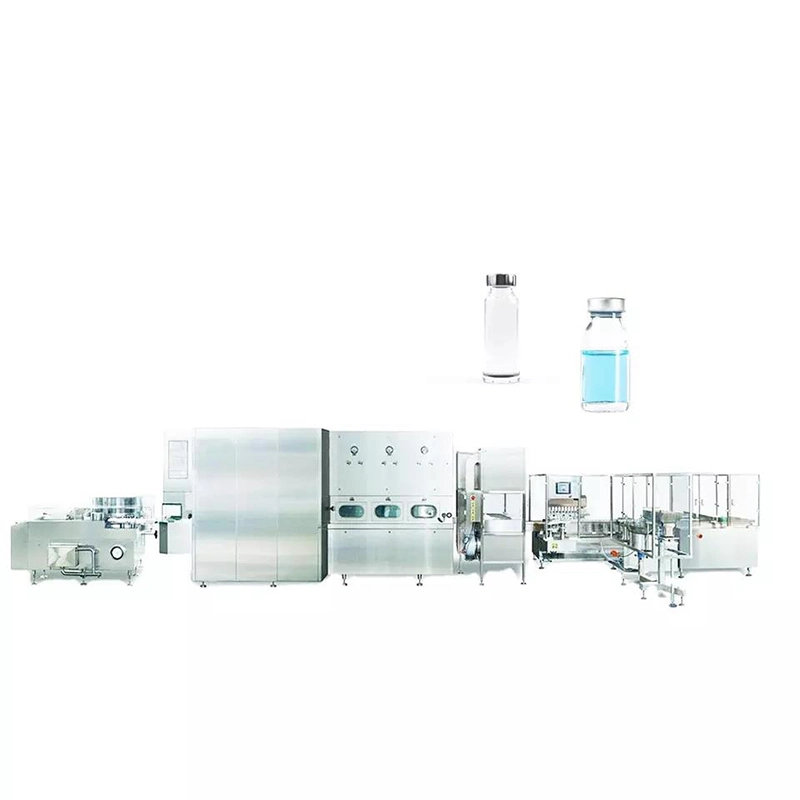

The Vial liquid filling line includes ultrasonic washing machine, RSM sterilizing drying machine, filling and stoppering machine, capping machine. This line can work together as well as independently. It completes the functions of ultrasonic washing, drying & sterilizing, filling & stoppering, and capping.

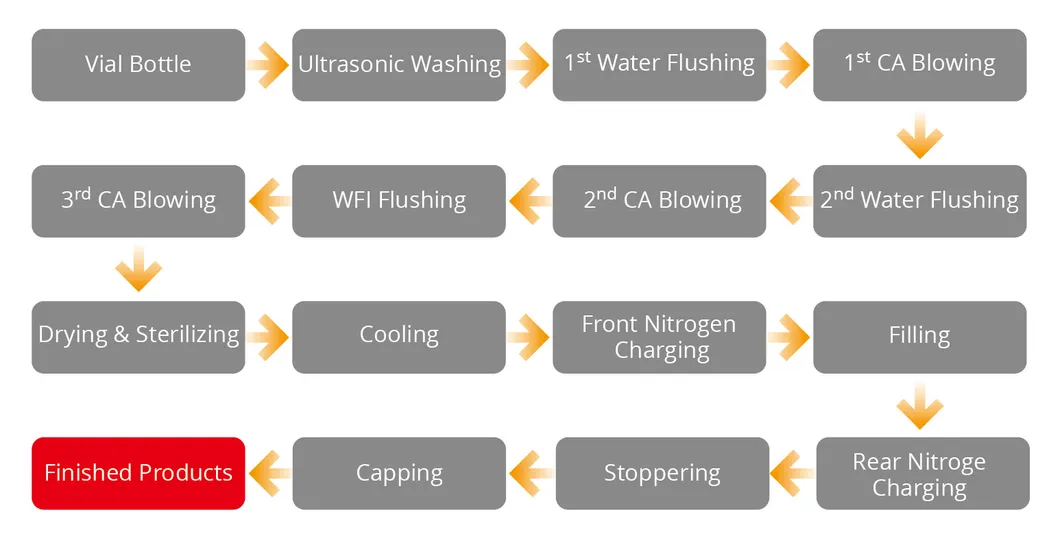

Production Procedures

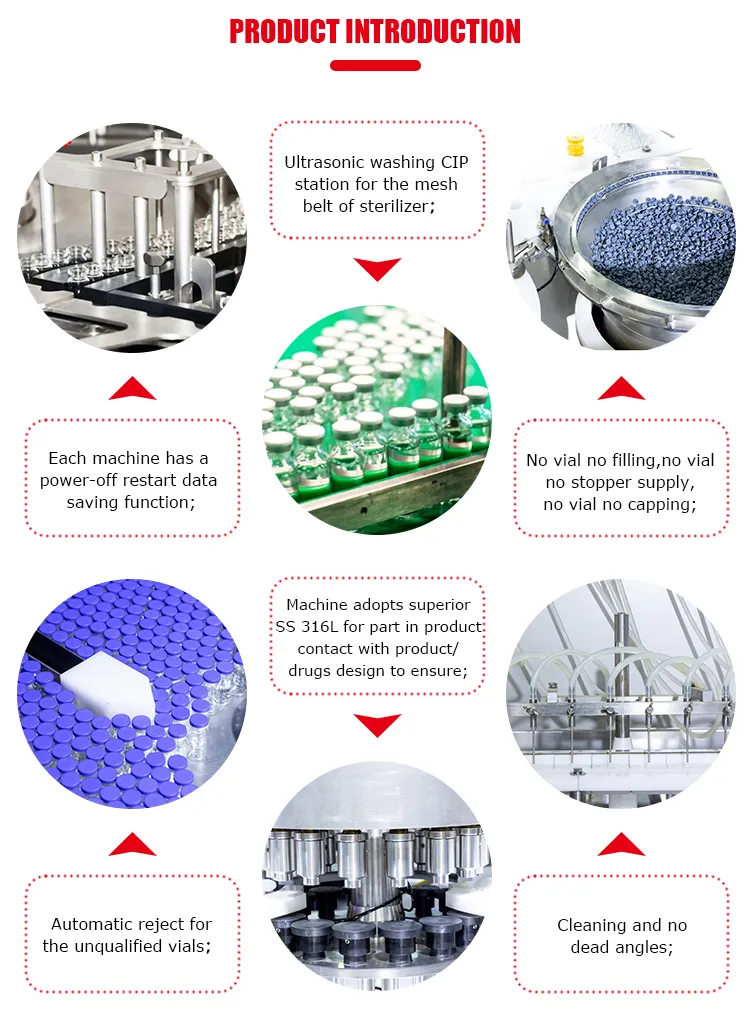

01Compact line realizes single linkage, continuous operation from washing to capping, meeting GMP standards.
02Adopts PLC total control, frequency converter, and touch screen technology for stable operation.
03Power-off restart data saving function for each machine.
04Ultrasonic washing CIP station for the mesh belt of the sterilizer.
05Smart sensors: No vial no filling, no stopper supply, and no capping.
06Superior SS 316L construction for product contact parts to ensure no dead angles.
Product Parameters
Model
Production Line Components
Suitable Size
Output (max)
Power
Net Weight
Overall Size
BXKZ I
CLQ 40 / RSM 620/44 / KGF 8
2.25 ml
6000-12000 pcs/h
69.8 KW
7500 Kg
9930×2500×2340 mm
BXKZ II
CLQ 60 / RSM 620/60 / KGF 10
2.25 ml
8000-18000 pcs/h
85.8 KW
8000 Kg
10830×2500×2340 mm
BXKZ III
CLQ 80 / RSM 620/80 / KGF 12
2.25 ml
10000-24000 pcs/h
123.8 KW
8100 Kg
10830×2500×2340 mm
Key Features
✓Full servo control system for high precision and reliability.
✓Transparent self-lifting protective cover with humid air outlet and electric screw control.

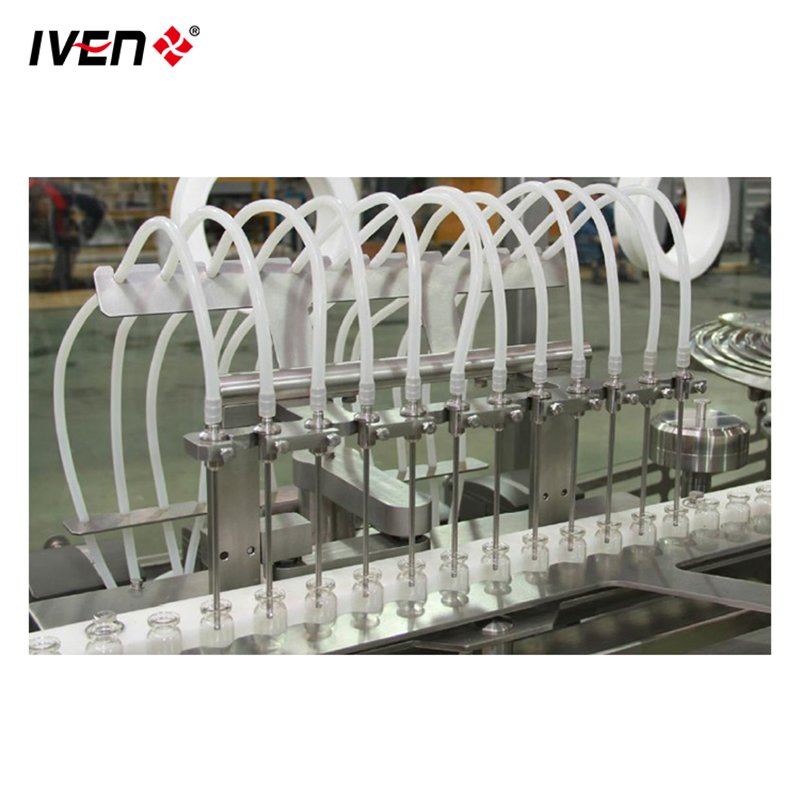

✓Ceramic pump filling system ensures extreme accuracy and flexible switching.

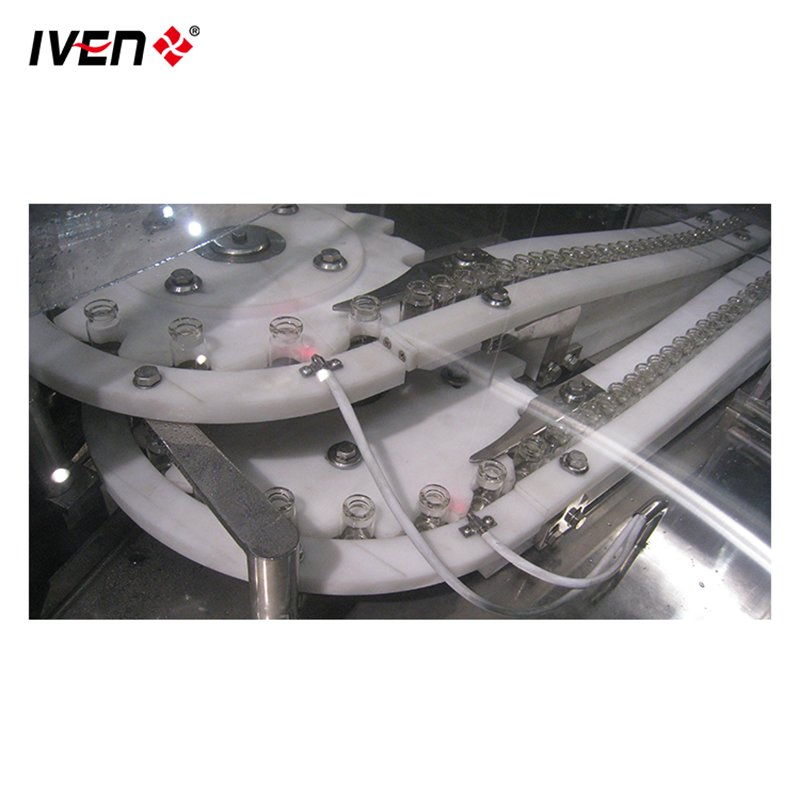

✓Advanced stoppering form (inserting while rotating) for effective sealing.
✓Capping machine includes vacuum absorption for aluminum scraps.
Frequently Asked Questions
1. Is your equipment in accordance with GMP, FDA, and WHO?
Yes, we design and manufacture the equipment according to the specific requirements of GMP, FDA, and WHO standards in your country.
2. Can you customize the machine according to our requirements?
Yes, all our machinery can be customized to meet your specific production needs and facility layouts.
3. Where have you exported your equipment?
We have exported to more than 45 countries across Asia, Europe, the Middle East, Africa, and South America.
4. How about your after-sales service?
We provide 24-hour support via email or phone. If a local agent is available, they can be dispatched to your site within 24 hours to assist with troubleshooting.
5. How long will a turnkey project take?
Typically, a turnkey project takes about 1 year from the initial layout design to the completion of installation and commissioning.
6. What kind of certificates do you hold?
Our equipment and processes are fully certified with ISO and CE standards.
