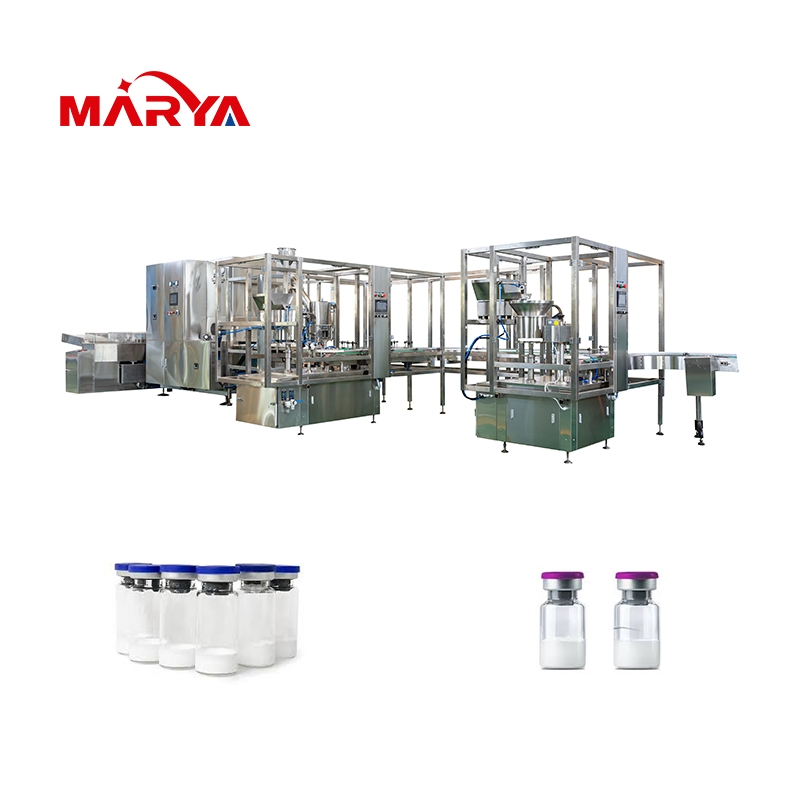

Stable Performance Pharmaceutical Glass Vial Liquid Powder Filling Capping Sealing Production Line

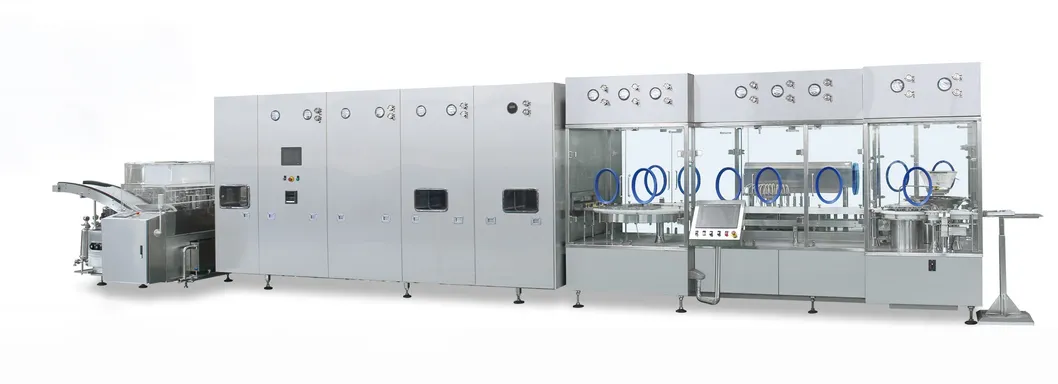

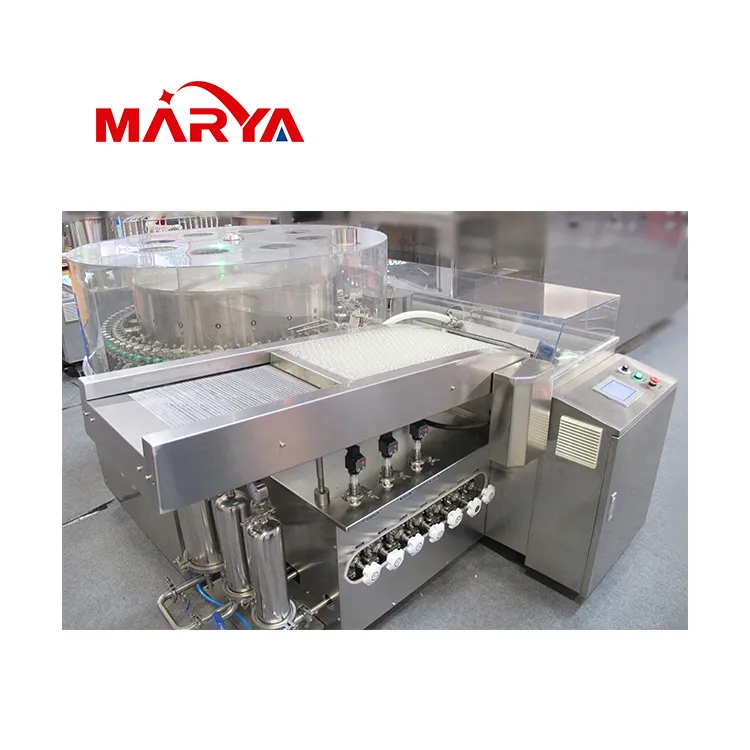

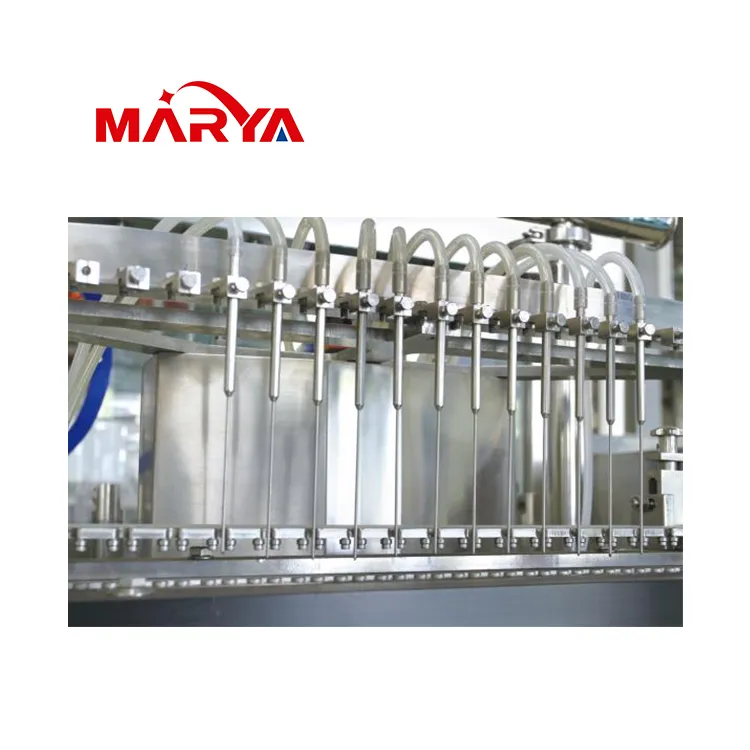

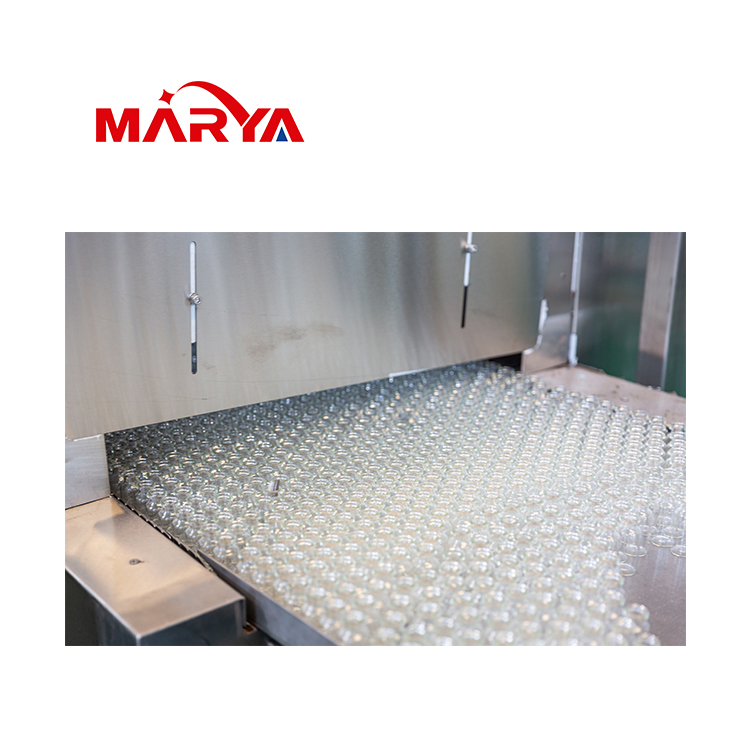

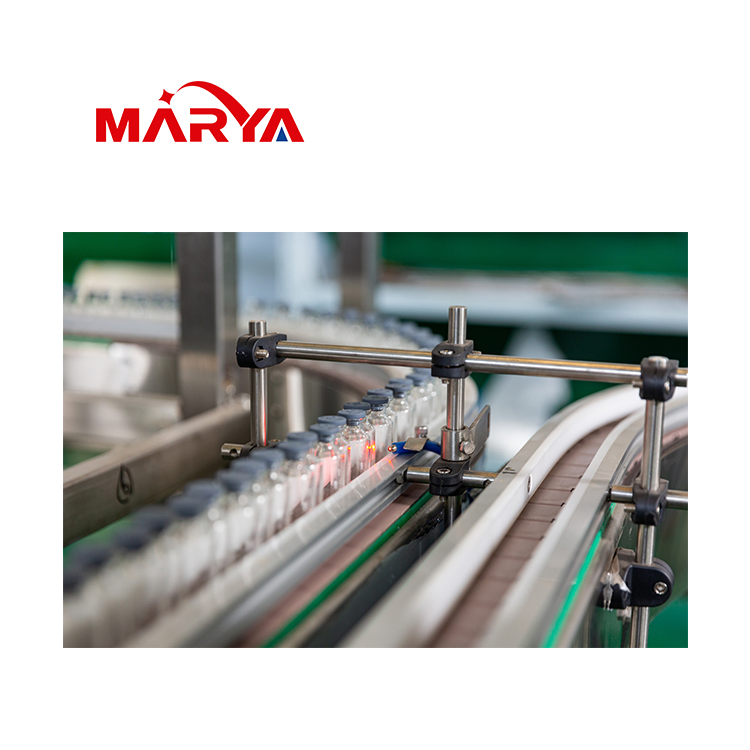

The Automatic Vial Filling Machine Production Line is composed of an ultrasonic bottle washing machine, sterilization dryer, filling and stoppering machine, and capping machine. It can complete spraying water, ultrasonic cleaning, flushing of inner and outer wall of bottle, preheating, drying and sterilization, removing heat source, cooling, bottle clear-up, (pre-filling nitrogen), filling, (nitrogen filling), plug clear-up, press plug, cap clear-up, capping and other complex functions, realizing automatic production of the whole process.
Key Features
• Optional real-time display and printing system of sterilization temperature.
• Optional online sterilization for the cooling section of the hot air circulation tunnel oven.
• Optional open-RABS isolation protection system and class 100 laminar flow hood protection.
• High-performance no-bottle-no-filling and no-bottle-no-capping functions.
• Dust exhaust device for capping machine to absorb aluminum scraps.
• Online monitoring for dust particles, bacteria, wind speed, and pressure.
| Item | Specifications |
|---|---|
| Product Filling Head | 6, 8, 10 |
| Suitable Size | 1ml-100ml vial (as per user's requirement) |
| Production Capacity | 1000-3600 bph |
| Filling Accuracy | ≤ ±1% (according to drug characteristics) |
| Capping Qualified Rate | ≥99.9% |
| Air Consumption | 0.3-0.6MPa ~0.5m3/h |
| Power | 380V 10KW |
| Noise | ≤65 dba within 1m |
