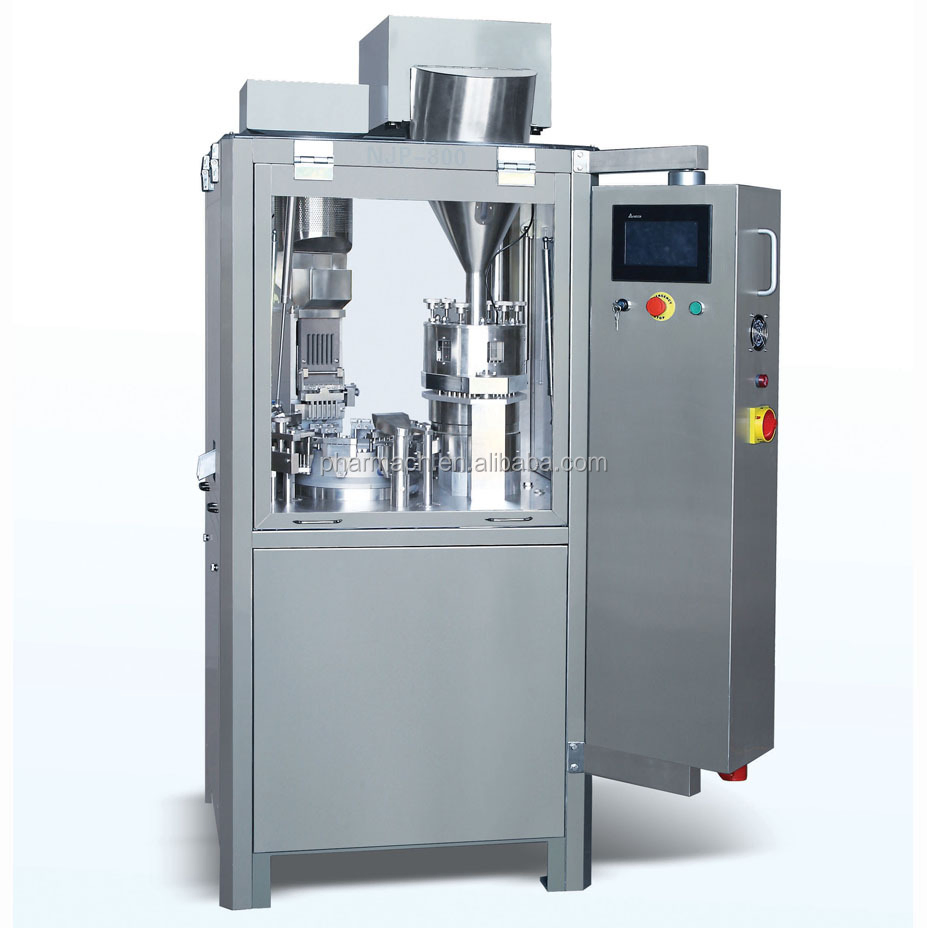

Njp-800 Fully Automatic Hard Gelatin Pharmaceutical Powder Liquid Capsule Filling Machine
Njp-800 Fully Automatic Hard Gelatin Pharmaceutical Powder Liquid Capsule Filling Machine
Njp-800 Fully Automatic Hard Gelatin Pharmaceutical Powder Liquid Capsule Filling Machine
Njp-800 Fully Automatic Hard Gelatin Pharmaceutical Powder Liquid Capsule Filling Machine
Njp-800 Fully Automatic Hard Gelatin Pharmaceutical Powder Liquid Capsule Filling Machine
1 / 5
Njp-800 Fully Automatic Hard Gelatin Pharmaceutical Powder Liquid Capsule Filling Machine
Njp-800 Fully Automatic Hard Gelatin Pharmaceutical Powder Liquid Capsule Filling Machine
Njp-800 Fully Automatic Hard Gelatin Pharmaceutical Powder Liquid Capsule Filling Machine
Njp-800 Fully Automatic Hard Gelatin Pharmaceutical Powder Liquid Capsule Filling Machine
Njp-800 Fully Automatic Hard Gelatin Pharmaceutical Powder Liquid Capsule Filling Machine

Njp-800 Fully Automatic Hard Gelatin Pharmaceutical Powder Liquid Capsule Filling Machine

Customization: Available
After-sales Service: Engineers Available to Service Machinery Overseas, Online Support,video Technical Support
Certification: CE
Send Inquiry

Product Description

🚀 NJP800 Fully Automatic Hard Capsule Filling Machine
Capacity: 800pcs/min | Suitable for Size 000-5
📋 Basic Specifications
Model NO.
NJP-800
Condition
New
Fill Range
≤49ml
Filling Principle
Auger Filling
Main Material
Stainless Steel 304, Aluminum
Voltage
380V/220V (Customizable)
Suitable Capsule
Size 000, 00, 0, 1, 2, 3, 4, 5
Suitable Product
Pellet, Powder, Oil
Capacity
800 PCS/Min
Certificate
CE, ISO
🔍 Product Overview

This model is an intermittent motion and hole plate type filling full automatic capsule filling equipment. It adopts optimization design for meeting the characteristics of pharmaceutical production and the requirement of GMP.

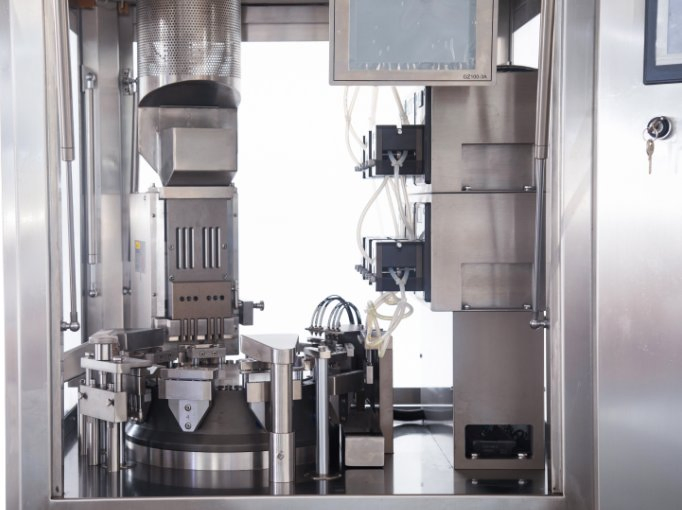

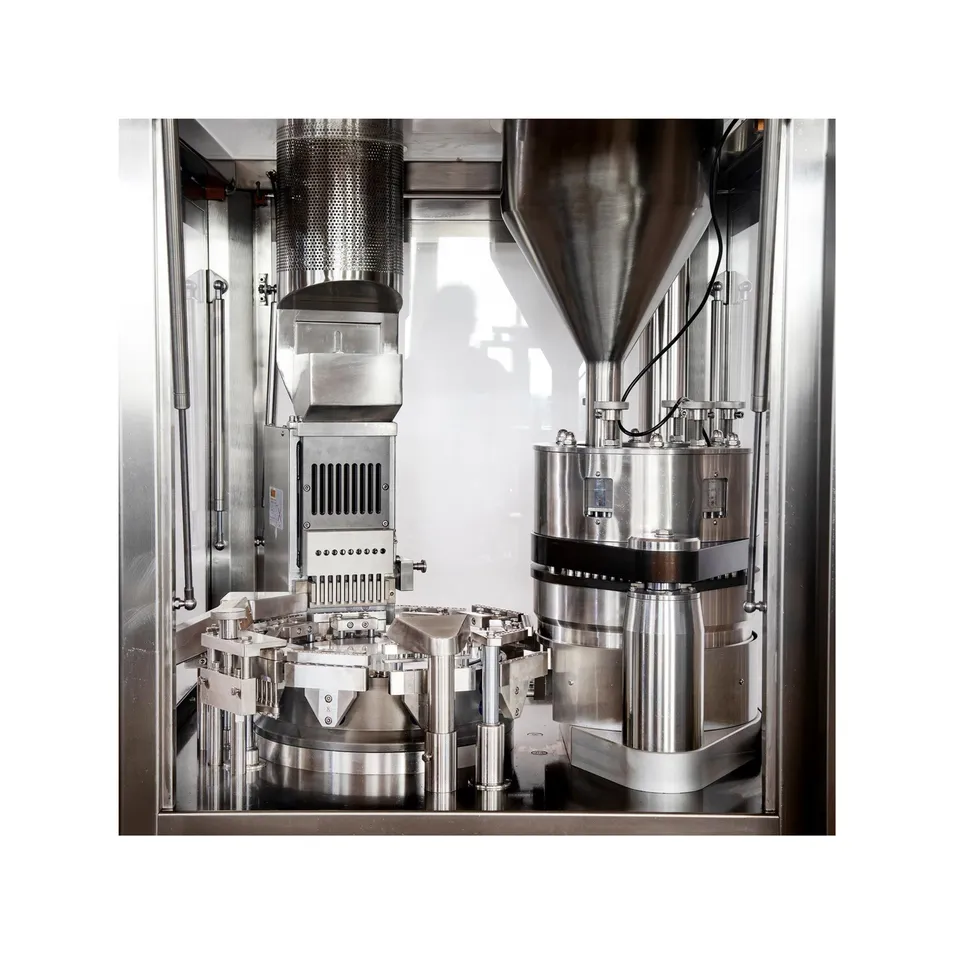

NJP-800 Machine

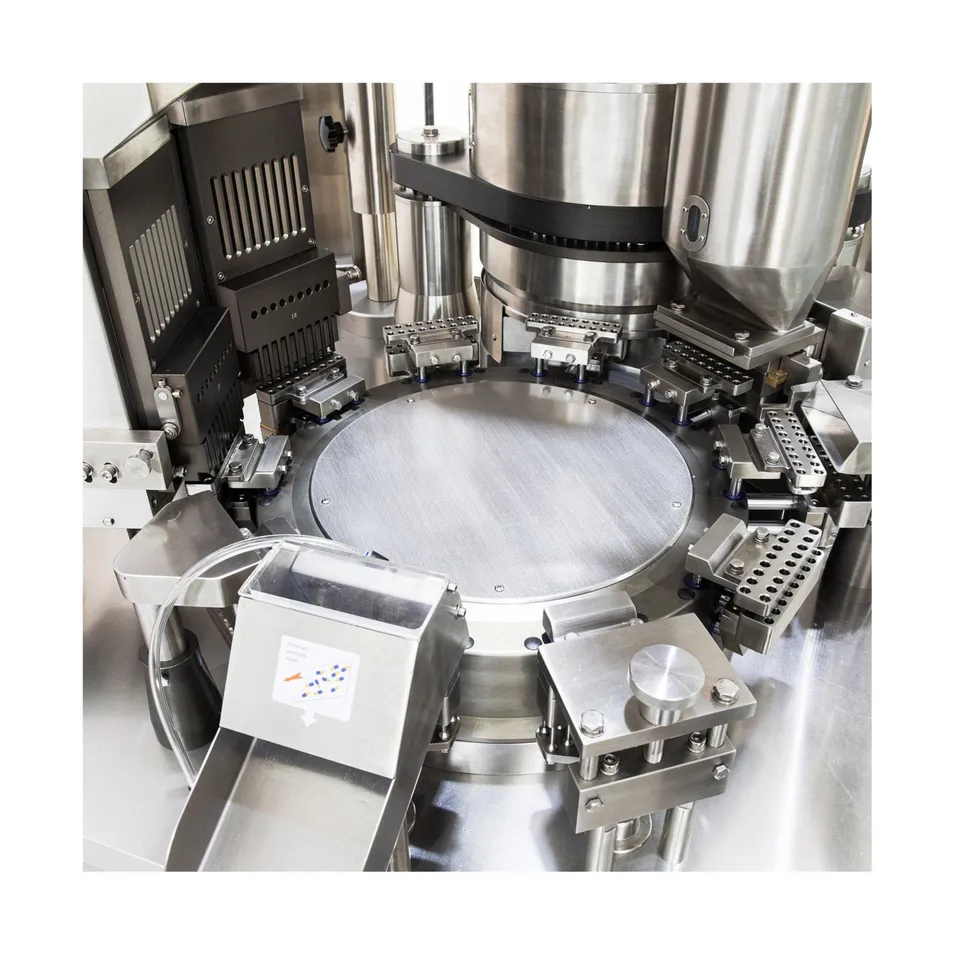

✨ Key Features
Features
  • Compact Design: Small volume with lower noise operation.
  • High Precision: Accurate filling dosage for powder and pellets.
  • Multi-Function: Handles capsule feeding, separating, filling, rejecting, locking, and discharge automatically.
  • GMP Standard: Ideal for pharmaceutical and health food industries.
  • Stable Running: Precision engineered for continuous industrial use.
⚙️ Technique Parameters
ModelNJP800
Capsule size00#-5# and safe grade capsule A-E (000 custom)
Max capacity800 capsules/min
Electrical sourceAC 380V/ 220V, 50/60Hz, 3 phase
Motor power2.5kw
Overall size930×790×1930mm
Weight800kg
Filling precisionMore than 300mg: ≤±3 % (fill 40-80mesh pellet)

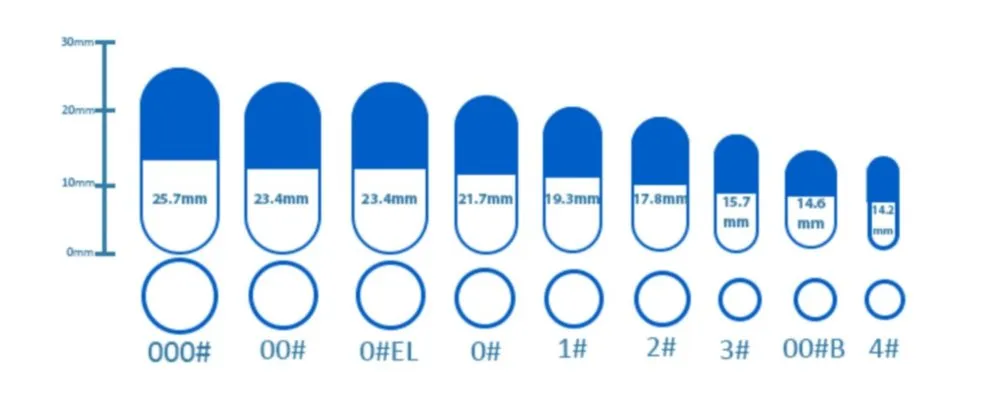

Technical Detail
📦 Main Product Series

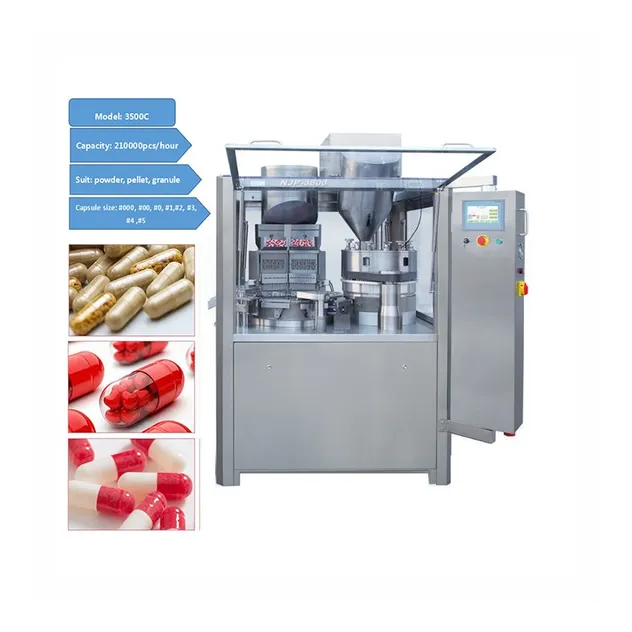

Fully automatic
Fully automatic Capsule filling machine

Powder/Granule into hard capsule

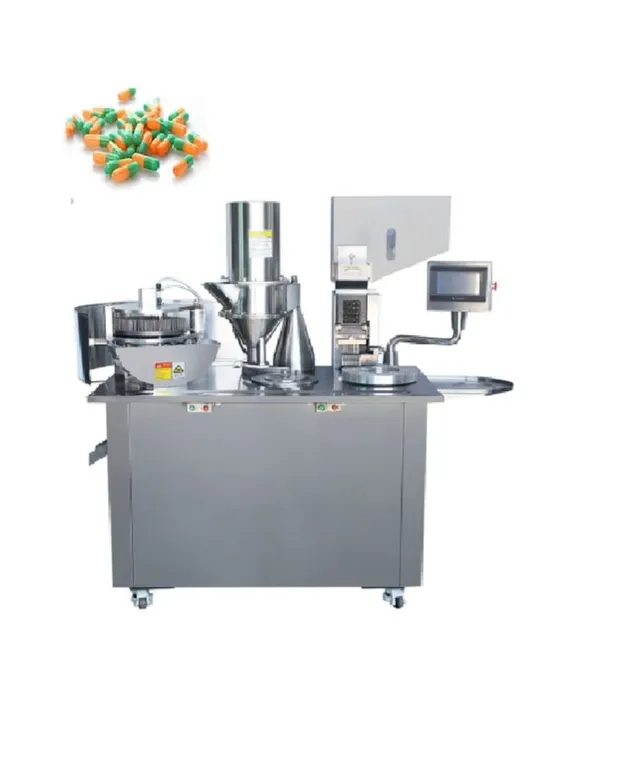

Semi automatic
Semi automatic capsule filling machine

Fill powder into hard capsule

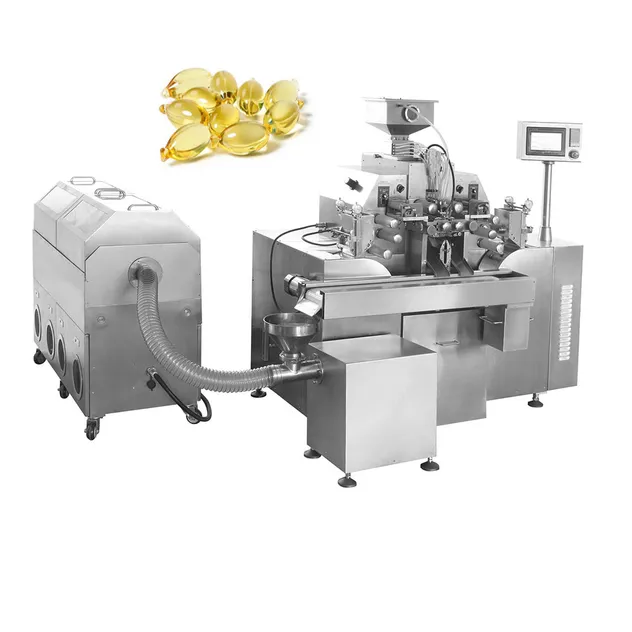

Softgel
Softgel capsule making machine

Oil/Cream into soft capsule

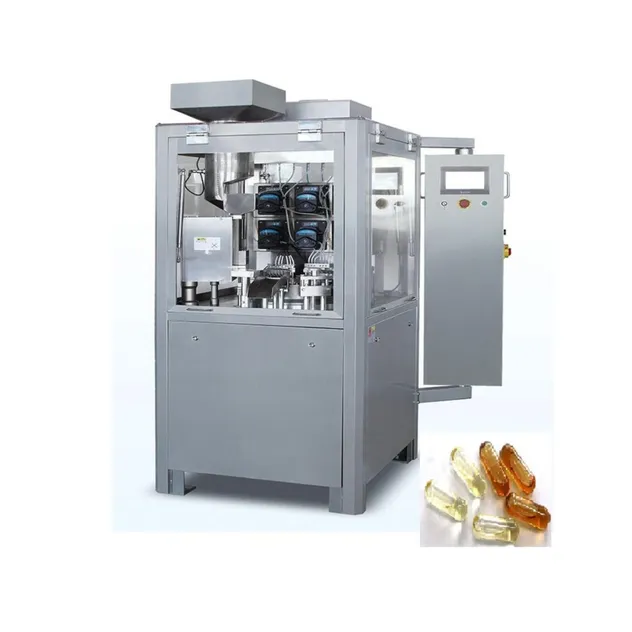

Oil filling
Oil hard capsule filling machine

Fill oil cream into hard capsule

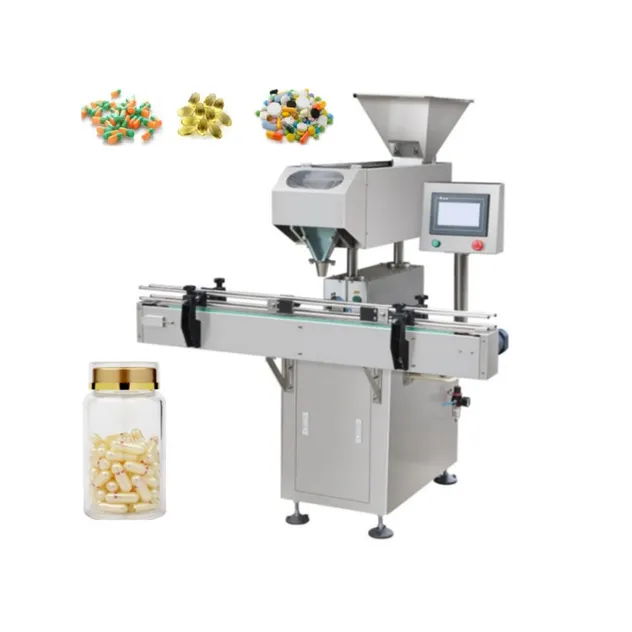

Counting
Capsule tablet counting machine

Count and fill into bottles

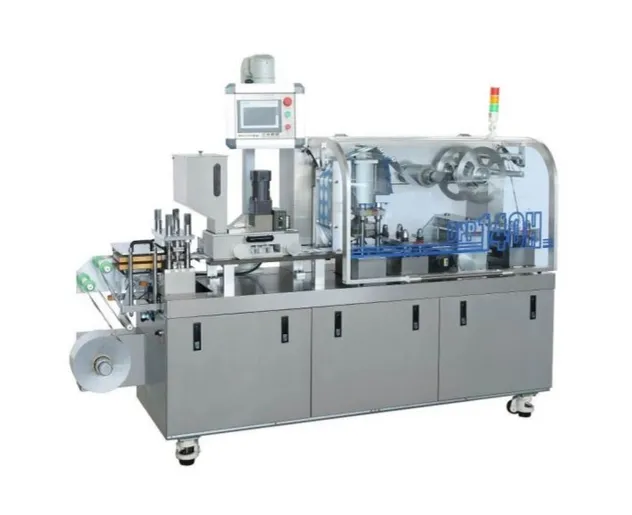

Blister
Blister packing machine

Pack into blister packs

🛡️ Certifications & Quality
Cert 1 Cert 2
🏢 Factory & Exhibition
Profile Advantage Exhibition
❓ Frequently Asked Questions
What capsule sizes can the NJP-800 handle?
The machine is compatible with standard capsule sizes 00, 0, 1, 2, 3, and 4. Size 000 can be accommodated via custom-made molds.
What is the maximum production capacity?
The NJP-800 has a maximum output of 800 capsules per minute, making it ideal for medium-scale production.
Can this machine fill materials other than powder?
Yes, it is versatile enough to fill powders, pellets, and even oil-based products into hard gelatin capsules.
What is the filling accuracy of the equipment?
For filling amounts greater than 300mg, the precision is maintained within ≤±3%.
Is the machine compliant with international standards?
Yes, the machine is designed according to GMP requirements and holds CE and ISO certifications.
What materials are used in the machine construction?
The main components are made of high-quality Stainless Steel 304 and Aluminum to ensure durability and hygiene.
