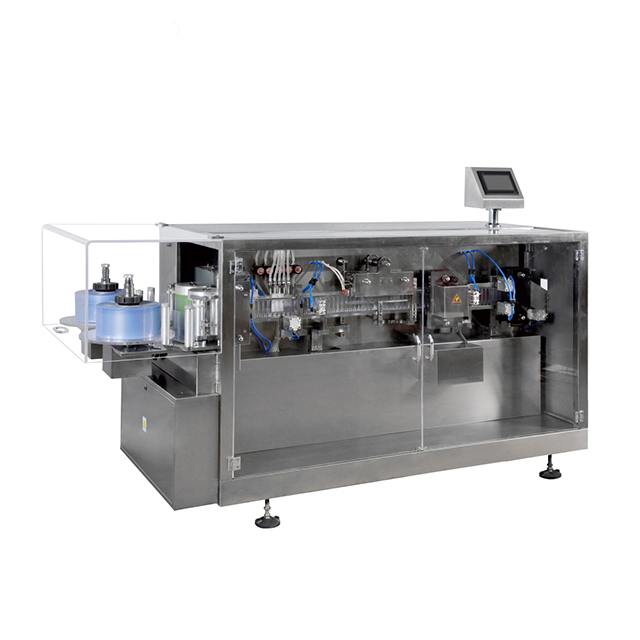

Bfs120 Plastic Vial Orial Liquid Filling and Sealing Machine
1 / 1
Bfs120 Plastic Vial Orial Liquid Filling and Sealing Machine

Bfs120 Plastic Vial Orial Liquid Filling and Sealing Machine

Type: Volumetric Filling Machine
Automatic Grade: Fully Automatic
Material Type: Liquid
Send Inquiry

Product Description

📊

Basic Information

Model NO.
BFS-120
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Plunger
Filling Principle
Pressure
Packaging Container Lifting
Pneumatic Lifting
Structure
Linear
Packaging
Bottle
Packaging Material
Plastic
Nozzle Quantity
2 Filling Nozzles
Max Forming Depth
12mm
Cutting Frequency
0-25 Times
Film Material
PVC/PE (0.2-0.4)*120mm
Ampoule Size
2-30ml/PC
Power
220V-380V/50Hz 3.5kw
Production Capacity
50-80 Ampoules/Min
Specification
ISO GMP
HS Code
8422309090
⚙️

Product Description

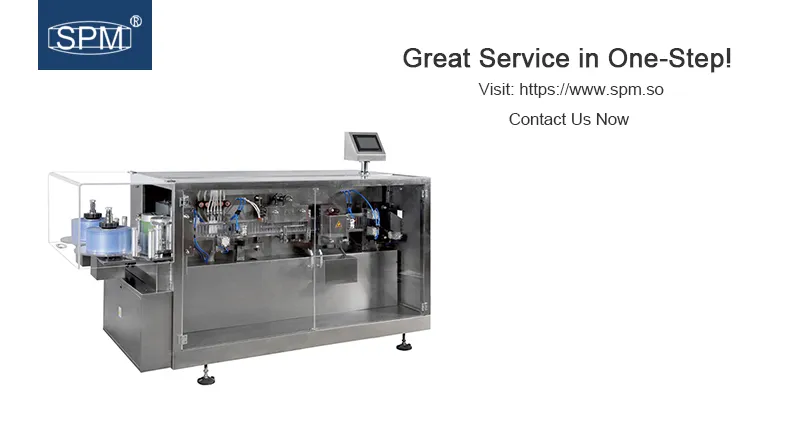

BFS 120 Plastic Vial Oral Liquid Filling and Sealing Machine

BFS 120 Plastic Vial Oral Liquid Filling and Sealing Machine

Main Features

✓ Controlled by PLC, the frequency conversion in finitely variable speeds.
✓ All 6 processes from spreading roll, AMP bottle forming, filling, sealing the end, printing serial numbers, cutting the end, cutting apart, controlled by programming.
✓ The computer human interface has simple and clear operation.
✓ The filling head doesn't drop, leak, rise in bubbled and spill over.
✓ All are made of high-quality stainless steel, accord with the standard GMP.
✓ Mostly pneumatic components and wirings adopt inward fittings.
✓ Automatic and mechanical bottling, precise calculation and limited deflection.
📋

Main Technical Data

Model BFS-120 (2 Filling Nozzles) BFS-240 (5 Filling Nozzles)
Max forming depth 12mm
Cutting frequency 0-25 times
Film material PVC/PE (0.2-0.4)×120mm
Production capacity 2-30ml/pc
Installed power 3.5kw
Voltage 220v-380v/50Hz
Weight(kg) 300kg 450kg
Dimension (L×W×H; mm) 1300×1700×750 2200*900*1500
🖼️

Product Gallery

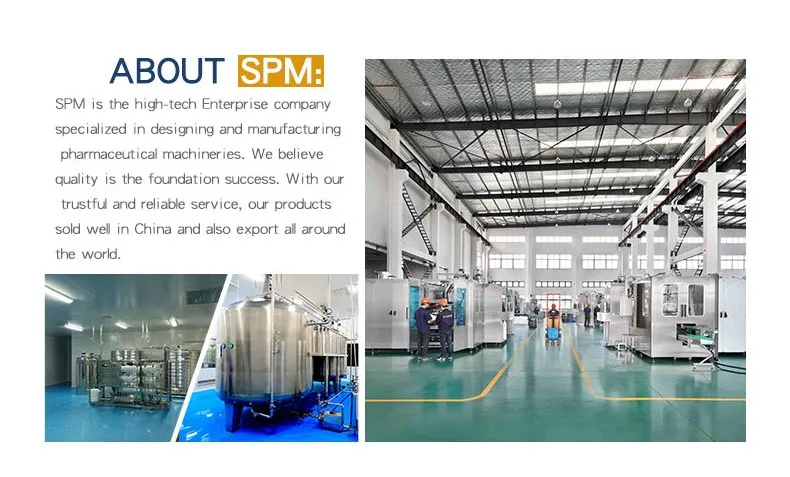

BFS120 Detail 1

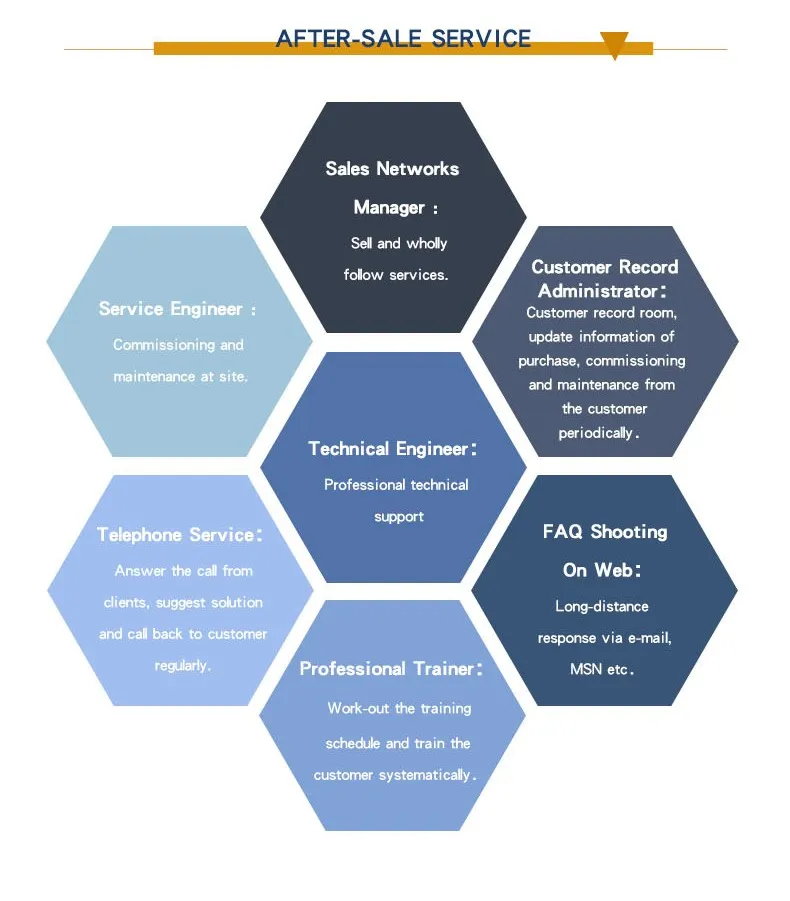

BFS120 Detail 2
BFS120 Detail 3
BFS120 Detail 4
BFS120 Detail 5
BFS120 Detail 6
BFS120 Detail 7

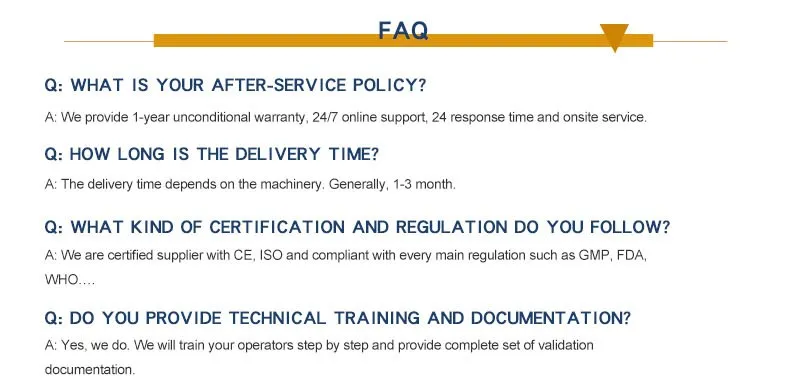

BFS120 Detail 8
❓

Frequently Asked Questions

What is the production capacity of the BFS-120?
The BFS-120 model has a production capacity of 50 to 80 ampoules per minute, depending on the specific product and filling volume.
What materials can be used for the vial film?
The machine is designed to work with PVC/PE film materials with a thickness range of 0.2mm to 0.4mm and a width of 120mm.
Is the machine compliant with pharmaceutical standards?
Yes, the machine is made of high-quality stainless steel and strictly follows ISO and GMP standards for pharmaceutical production.
How many processes are automated in this machine?
It integrates 6 key processes: spreading roll, ampoule bottle forming, filling, sealing, serial number printing, and final cutting.
What is the filling range for each ampoule?
The machine supports an ampoule size/filling volume ranging from 2ml to 30ml per piece.
Does the filling system prevent leakage?
Yes, the filling head is engineered to ensure no dropping, leaking, bubbling, or spilling over during the operation.
