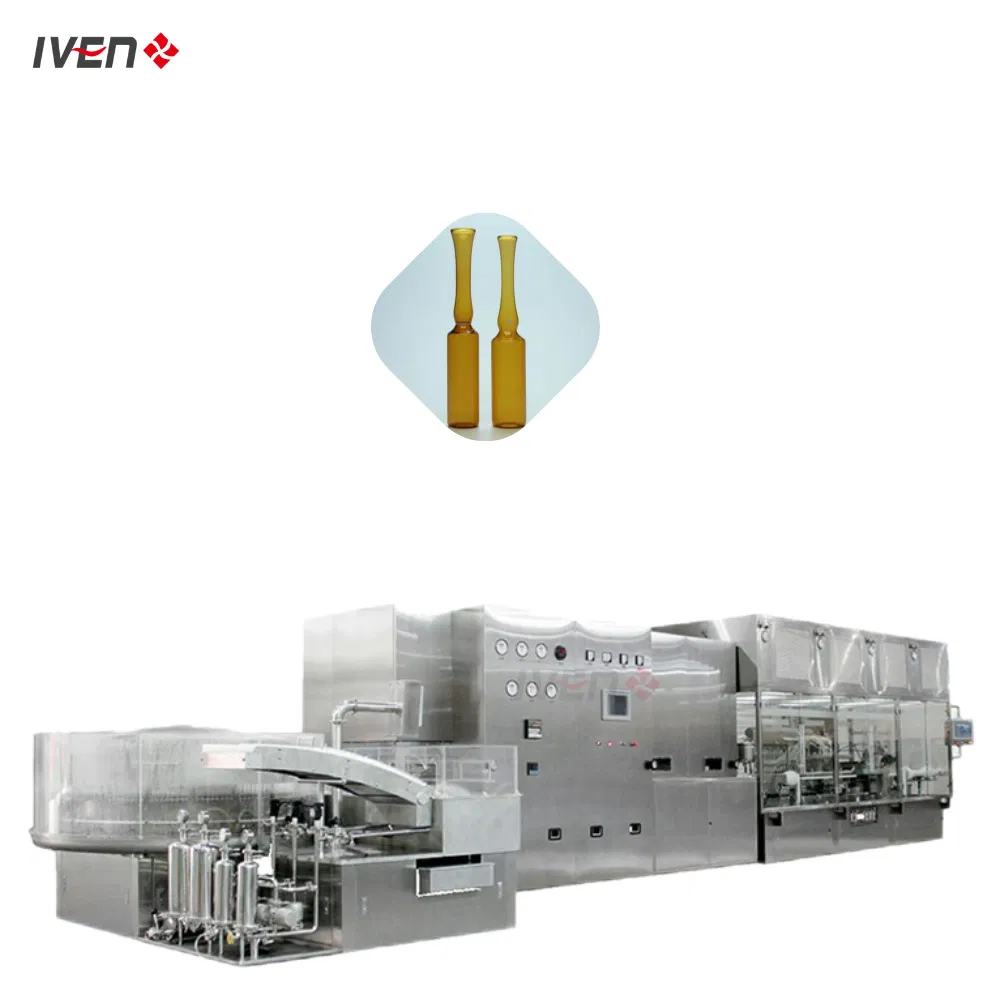

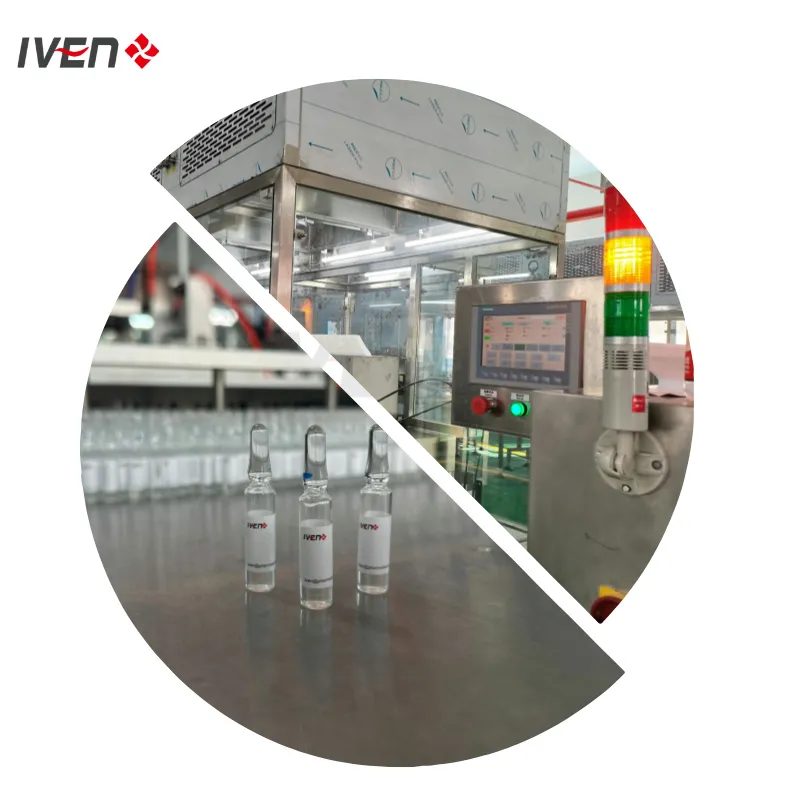

The Ampoule filling production line includes vertical ultrasonic washing machine, RSM sterilizing drying machine and AGF filling and sealing machine. It is divided into washing zone, sterilizing zone, filling and sealing zone. This compact line can work together as well as independently. Compared with other manufacturers, our equipment has unique features, including overall dimension smaller, higher automation & stability, lower fault rate and maintenance cost.

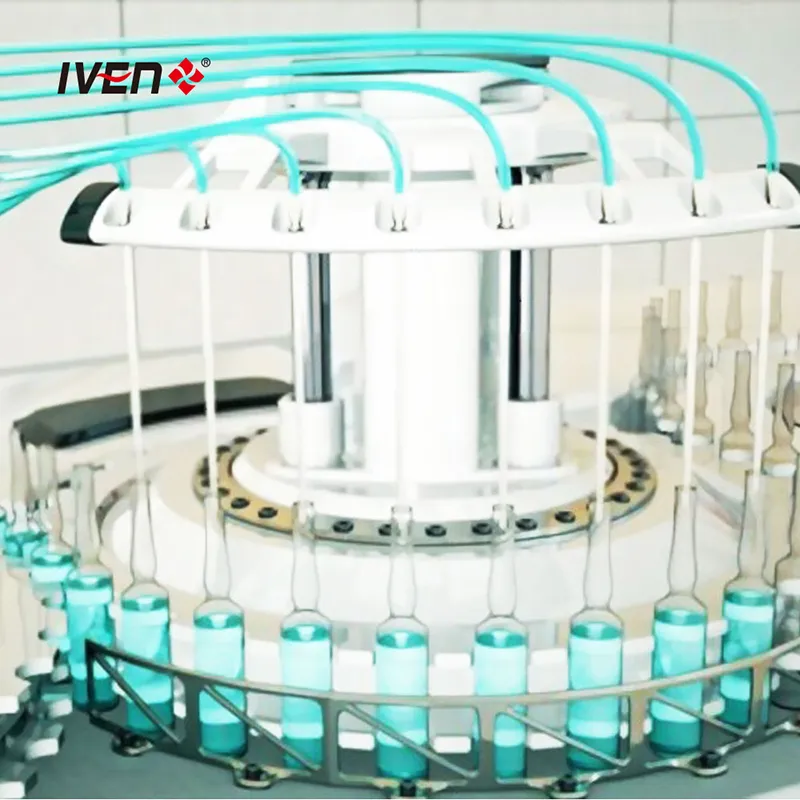

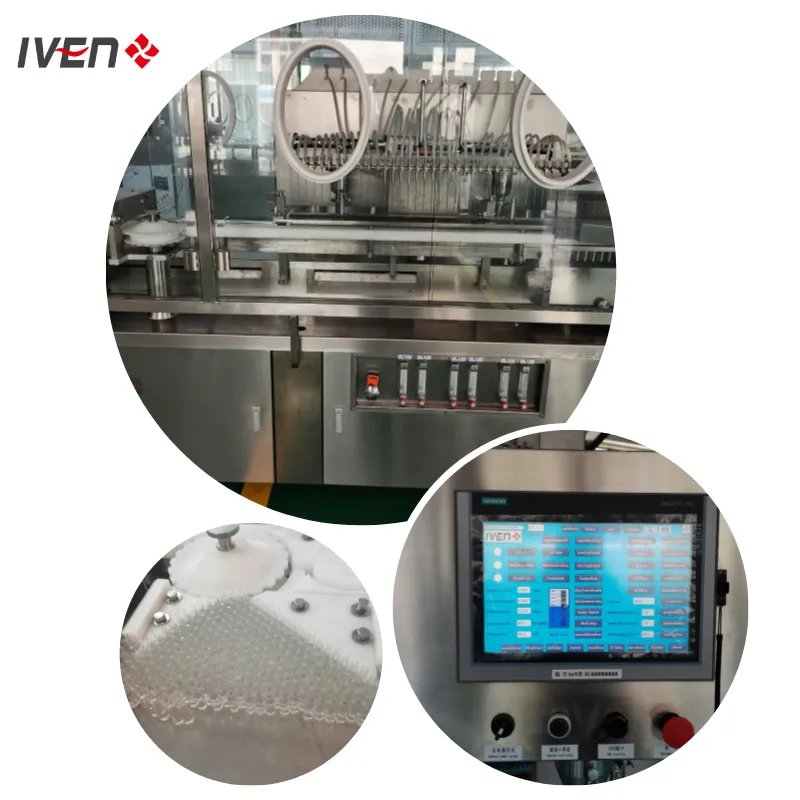

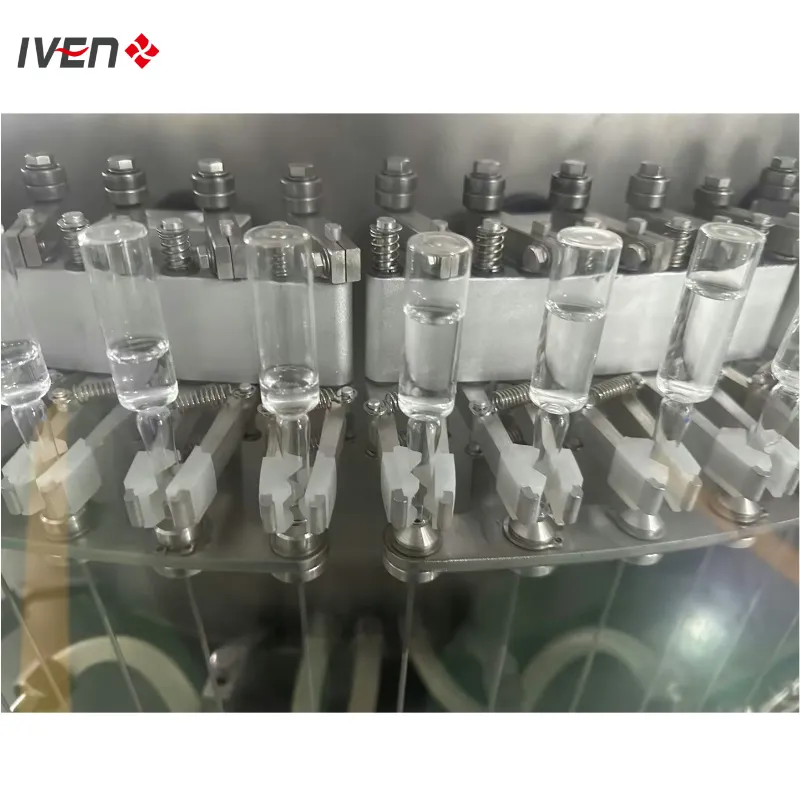

It adopts washing technology of 2 water and 2 air on the outer wall and 3 water and 4 air on the inner wall. 6 groups of spraying needles have track washing, spray needles adopts full 316L stainless steel. Servo control system + Guide sleeve and guide board give accurate position to the spray needle, effectively avoid needle damage caused by mismatch.

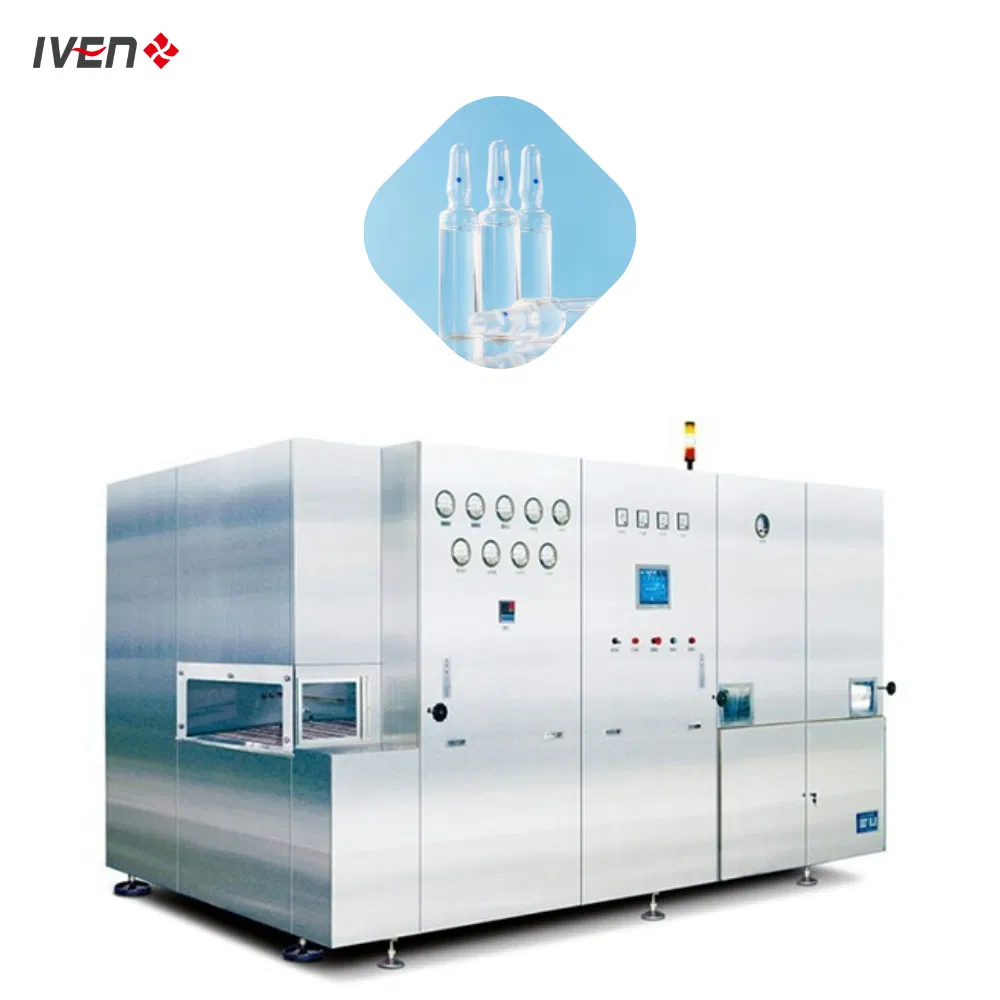

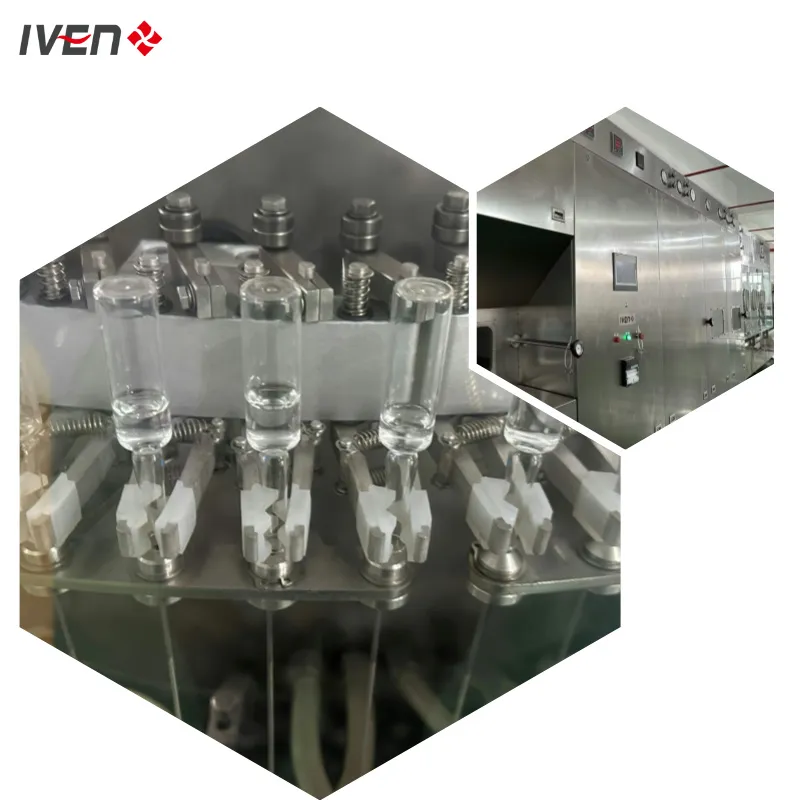

The washed bottles enter into sterilizing & drying machine slowly uniformly through mesh belt. Pass through preheating zone, high temperature sterilizing zone, cooling zone gradually. The bottles are sterilized about 5 minutes under 300-320ºC. The whole process is operated under real time monitoring.

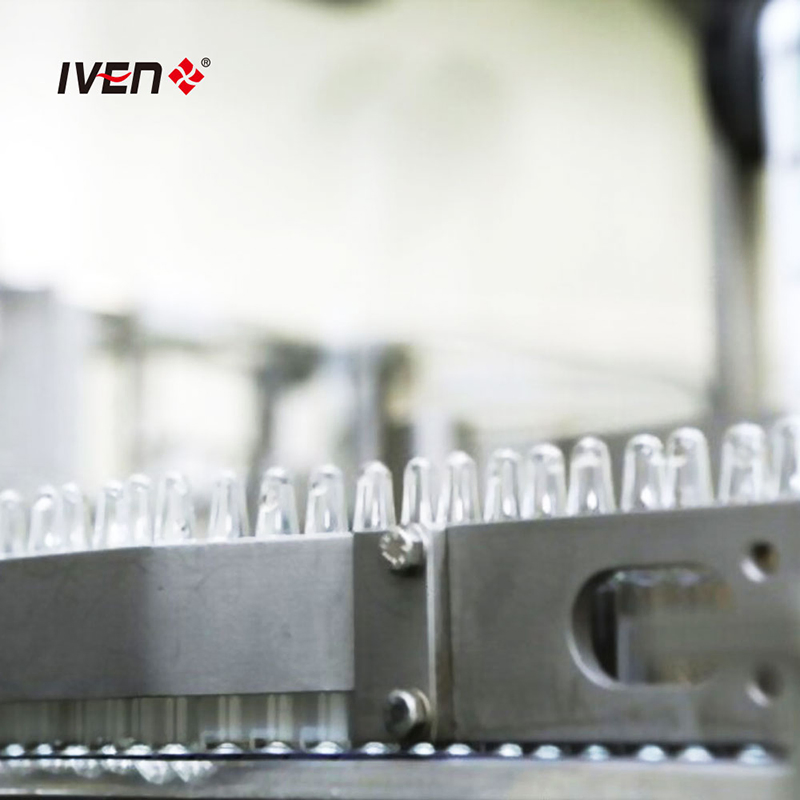

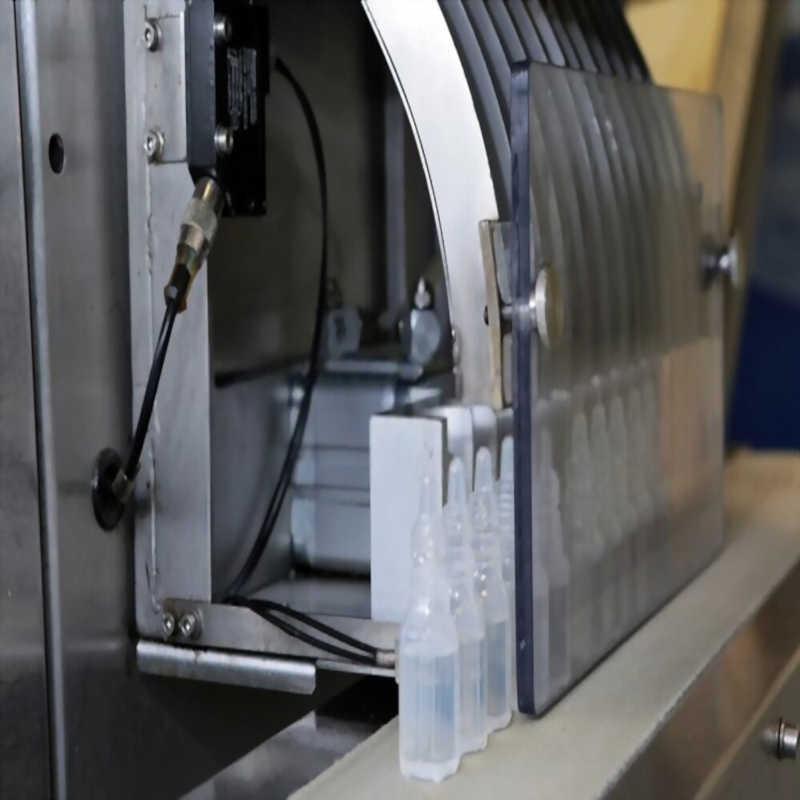

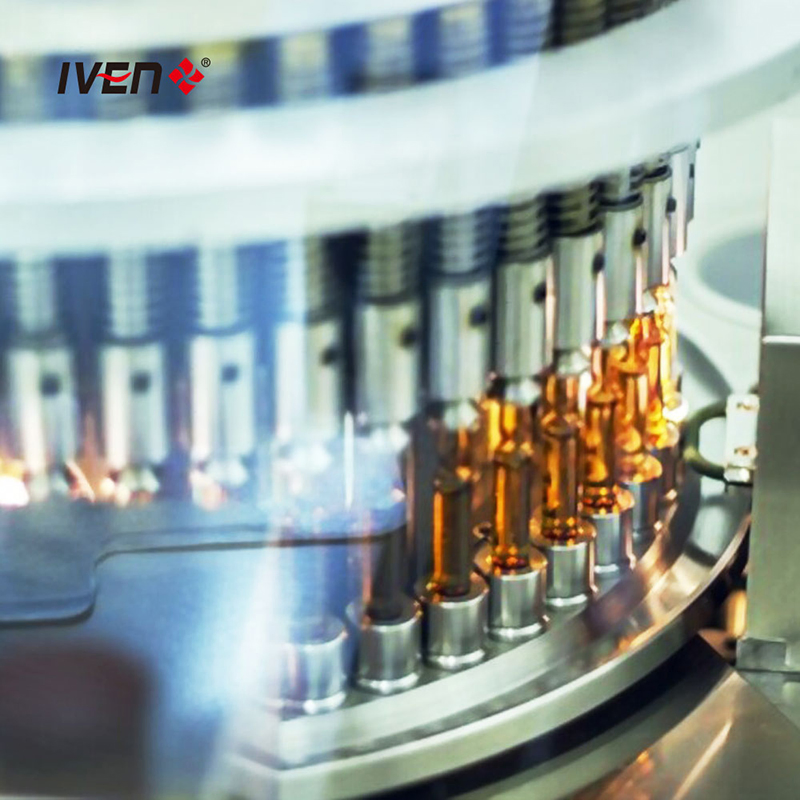

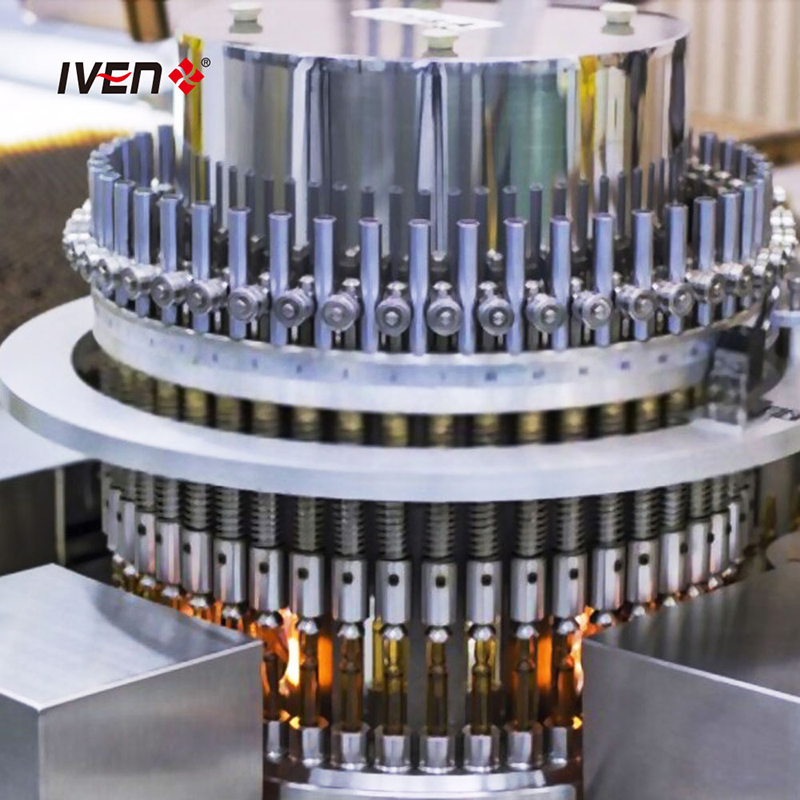

This machine adopts a transmission system of step-by-step with balcony structure. It automatically finishes: Auger conveying — Front nitrogen charging — Solution filling — Rear nitrogen charging — Preheating — Sealing — Counting — Finished products outputting.
| Applicable Specifications | 1-20ml B type ampoules (GB2637 standard) |
| Maximum Capacity | 7,000 - 10,000 pcs/h |
| WFI Consumption | 0.2-0.3Mpa, 1.0 m3/h |
| Compressed Air Consumption | 0.4Mpa, 50 m3/h |
| Washing Machine Power | 15.7KW (CLQ114) |
| Sterilizing Machine Power | 46KW (Heating: 38KW) |
| Filling Machine Power | 2.6KW (AGF12) |
| Total Weight | Approx. 9400 Kg |
