1 / 5
| Model NO. | Advanced Series |
| Type | Weighing-type Filling Machine |
| Automatic Grade | Fully Automatic |
| Material Type | Liquid |
| Filling Valve Head | 3/4/6/8 or Customized |
| Feed Cylinder Structure | Multi-Room Feeding |
| Filling Principle | Pressure |
| Container Lifting Structure | Pneumatic Lifting |
| Packaging | Barrel |
| Packaging Material | Plastic/Metal |
| Specification | 2400x1750x2800mm or customized |
| HS Code | 8422303090 |
| Production Capacity | 1000 pieces Per Year |
Fast & Accurate: Get the right amount of liquid in every container with no spillage.
Versatile: Ideal for filling cans, gallons, and drums of various sizes.
User-Friendly: Simple to operate, reducing labor costs and increasing efficiency.
Durable: Built for long-lasting, reliable performance in any environment.
| Filling Speed | 300-800 Barrels/Hour |
| Filling Accuracy | ±0.1% |
| Applicable Specifications | 18-25L Partial Square barrel |
| Mains Power | 380V / 50Hz; 3.5KW |
| Air Pressure | 0.6MPa |

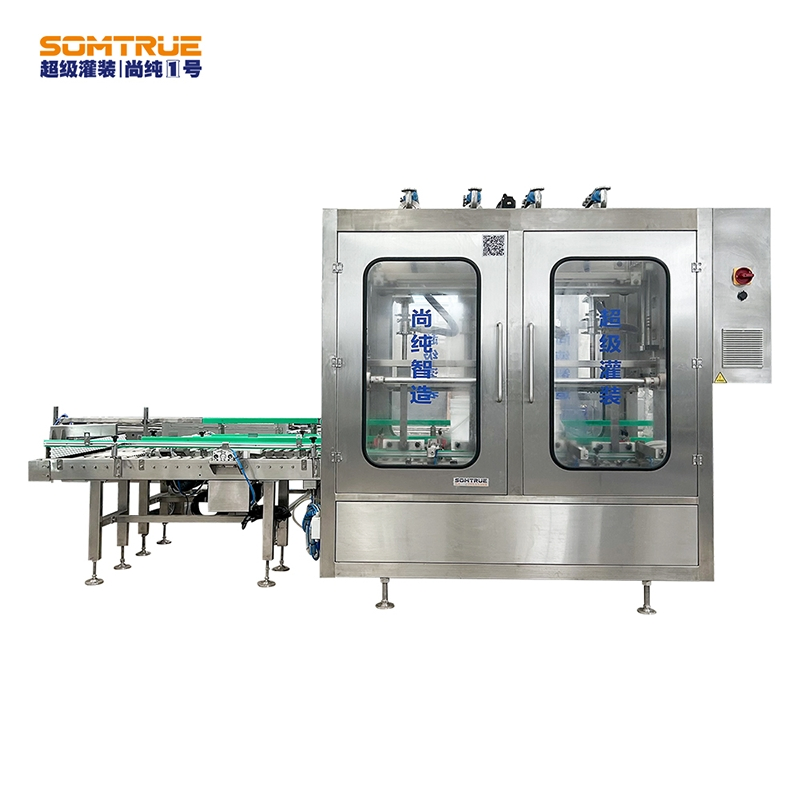

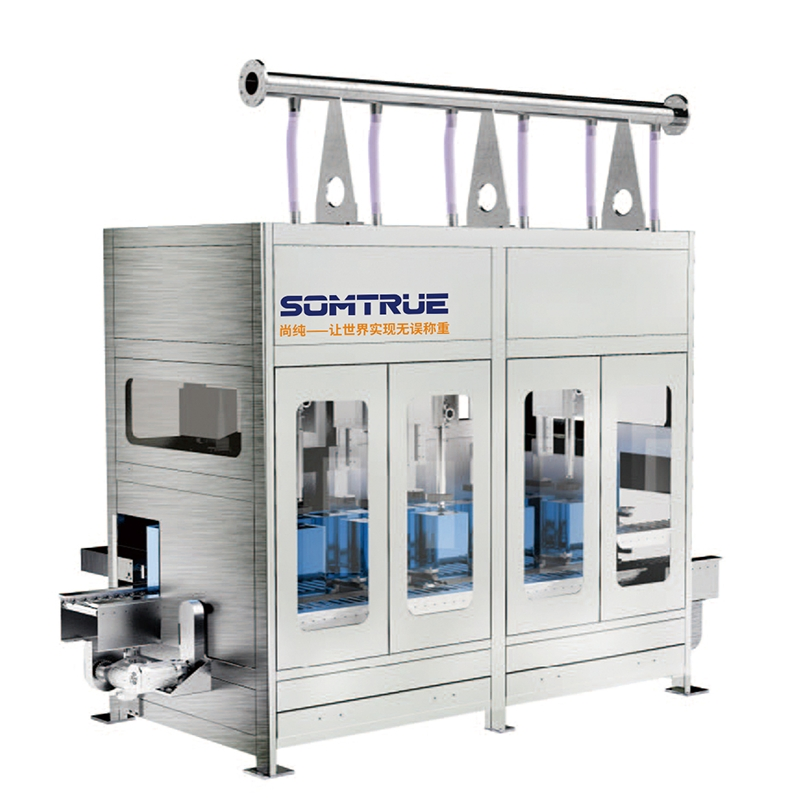

Suitable for 20L chemical liquid filling machine
Process flow: After the empty barrel is automatically delivered in place, the large flow rate filling begins. When the filling volume reaches the target volume of coarse filling, the large flow rate is closed, and the small flow rate filling begins. After reaching the target value of fine filling, the valve body is closed in time.

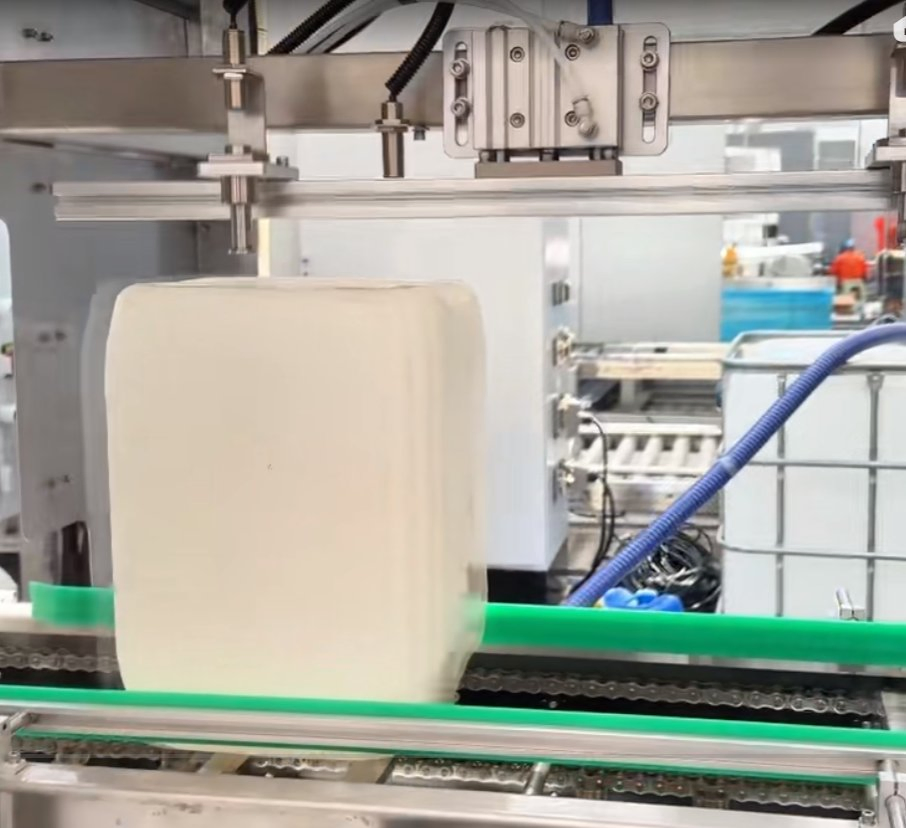

Forklift empty barrels to conveyor line.
After the empty barrel enters the filling room, the visual camera takes a picture and locates the barrel mouth. After completing the positioning, the filling actuator will open the lid, peel, fill, and re-inspect in turn. If the weight is lower than the target, it automatically refills.
At the labeling station, the camera takes a picture to give the labeling position of the barrel body, and the barrel body is labeled by the robot accurately.
The materials are automatically delivered to the designated location for horizontal strapping.

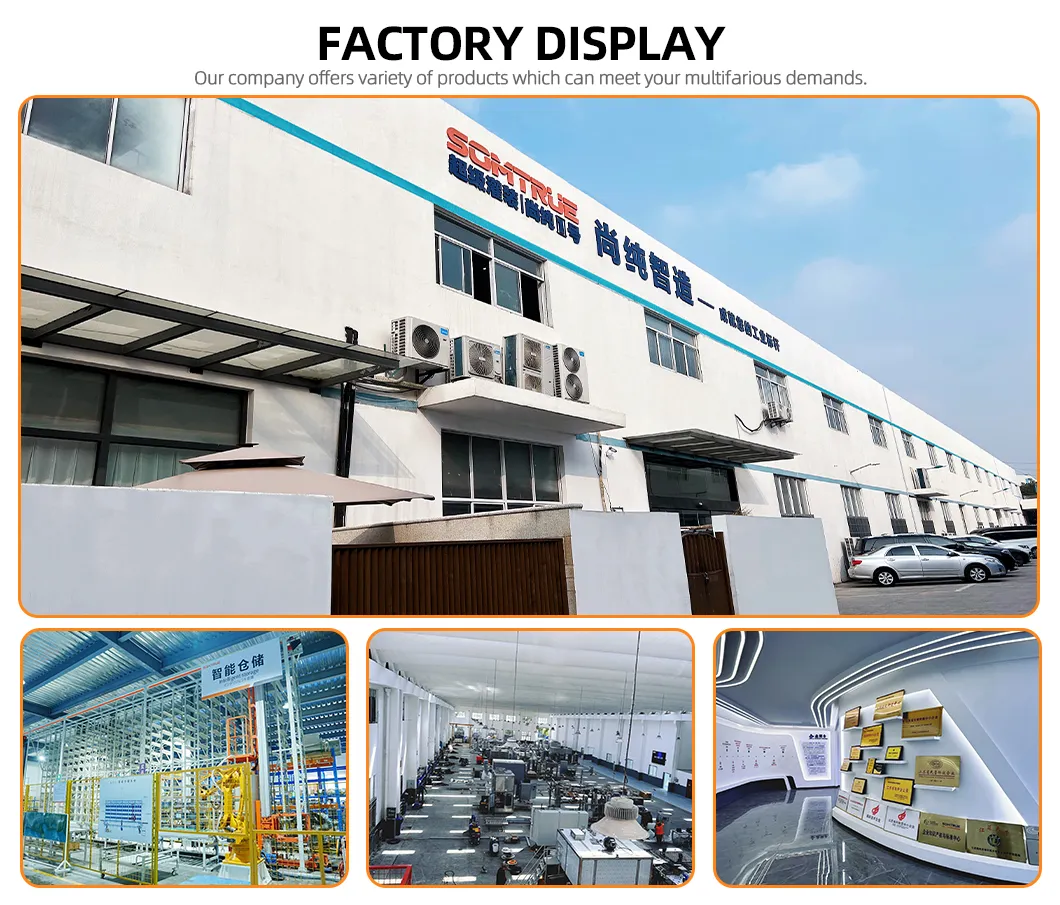

In the global wave of high-end chemical manufacturing, our intelligent manufacturing redefines industry standards with cutting-edge technology. As a full-chain intelligent filling system service provider serving semiconductors, new energy, and biotechnology, we house more than a hundred top engineers in our 15,000 square meters R&D base. Integrating precision sensors with cleanroom processes, we deliver reliable, safe, and green intelligent industrial filling solutions for more than 100 industrial giants worldwide.

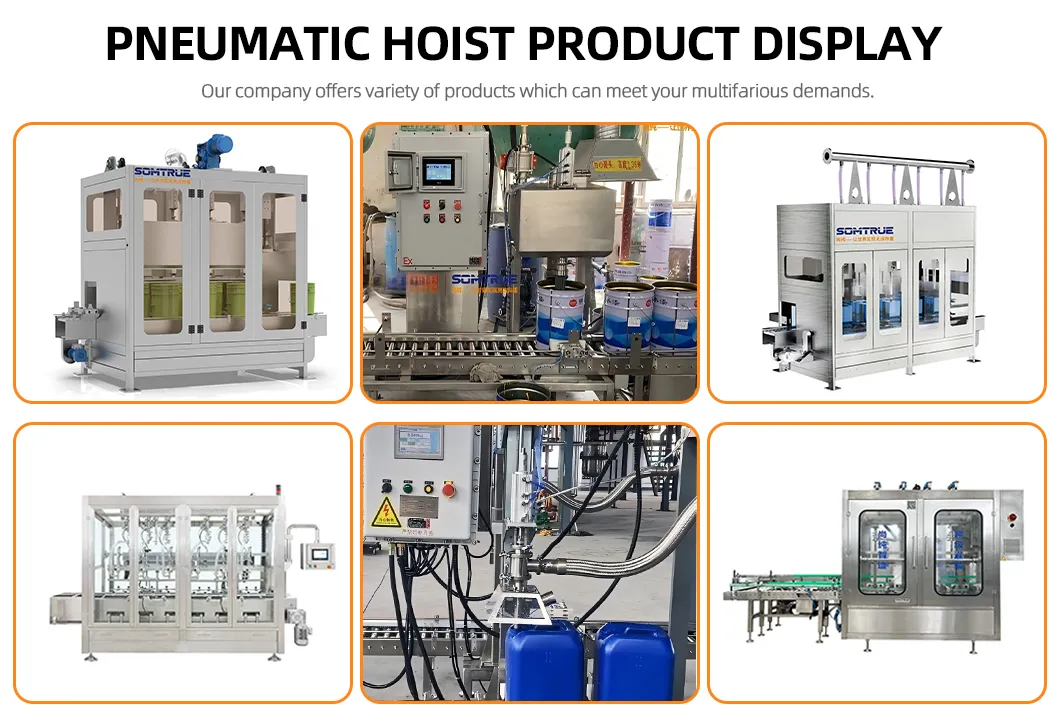

We provide core products including super filling systems, super stereo warehouses, high-pressure resistant weighing modules, and automated cleaning lines. Our solutions are adaptable to multi-dimensional demand scenarios such as batch customization and standardized mass production, helping enterprises break through efficiency boundaries.
