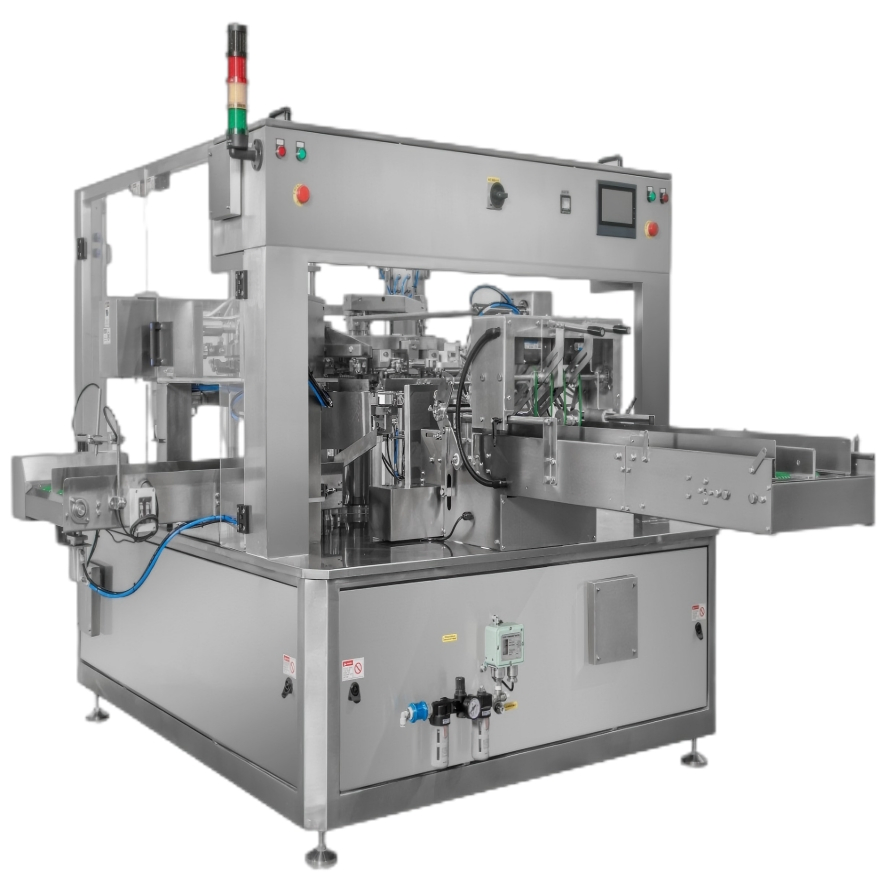

Automatic Rotary Premade Pouch Doypack Liquid Beverage Filling and Sealing Food Packing Machine for Solid-Candy/Shampoo/Juice/Cosmetic/Medicine /Water Package
Automatic Rotary Premade Pouch Doypack Liquid Beverage Filling and Sealing Food Packing Machine for Solid-Candy/Shampoo/Juice/Cosmetic/Medicine /Water Package
Automatic Rotary Premade Pouch Doypack Liquid Beverage Filling and Sealing Food Packing Machine for Solid-Candy/Shampoo/Juice/Cosmetic/Medicine /Water Package
Automatic Rotary Premade Pouch Doypack Liquid Beverage Filling and Sealing Food Packing Machine for Solid-Candy/Shampoo/Juice/Cosmetic/Medicine /Water Package
Automatic Rotary Premade Pouch Doypack Liquid Beverage Filling and Sealing Food Packing Machine for Solid-Candy/Shampoo/Juice/Cosmetic/Medicine /Water Package
1 / 5
Automatic Rotary Premade Pouch Doypack Liquid Beverage Filling and Sealing Food Packing Machine for Solid-Candy/Shampoo/Juice/Cosmetic/Medicine /Water Package
Automatic Rotary Premade Pouch Doypack Liquid Beverage Filling and Sealing Food Packing Machine for Solid-Candy/Shampoo/Juice/Cosmetic/Medicine /Water Package
Automatic Rotary Premade Pouch Doypack Liquid Beverage Filling and Sealing Food Packing Machine for Solid-Candy/Shampoo/Juice/Cosmetic/Medicine /Water Package
Automatic Rotary Premade Pouch Doypack Liquid Beverage Filling and Sealing Food Packing Machine for Solid-Candy/Shampoo/Juice/Cosmetic/Medicine /Water Package
Automatic Rotary Premade Pouch Doypack Liquid Beverage Filling and Sealing Food Packing Machine for Solid-Candy/Shampoo/Juice/Cosmetic/Medicine /Water Package

Automatic Rotary Premade Pouch Doypack Liquid Beverage Filling and Sealing Food Packing Machine for Solid-Candy/Shampoo/Juice/Cosmetic/Medicine /Water Package

Customization: Available
After-sales Service: Free Consultation, Lifetime Paid After-Sales Servi
Warranty: One Year
Send Inquiry

Product Description

Basic Specifications

Model NO.
AP-8BT-DUPLEX
Automatic Grade
Automatic
Type
Filling and Sealing Machine
Material
Stainless Steel #304
Speed
50-100 pcs/min
Power
5kw
Driven Type
Electric
Forming Function
Forming, Filling, Seal

Technical Specification

Parameter Name Technical Content
Model No.AP-8BT-DUPLEX
Pouch Size (Length)130-450mm
Pouch Size (Width)100-170mm
Speed50-100pcs/Min
Max. Filling Volume200ml
Air Consumption190 N Liter/Min
Machine Case Materials304 Stainless Steel
Pouch MaterialsHeat Sealable Laminated Film

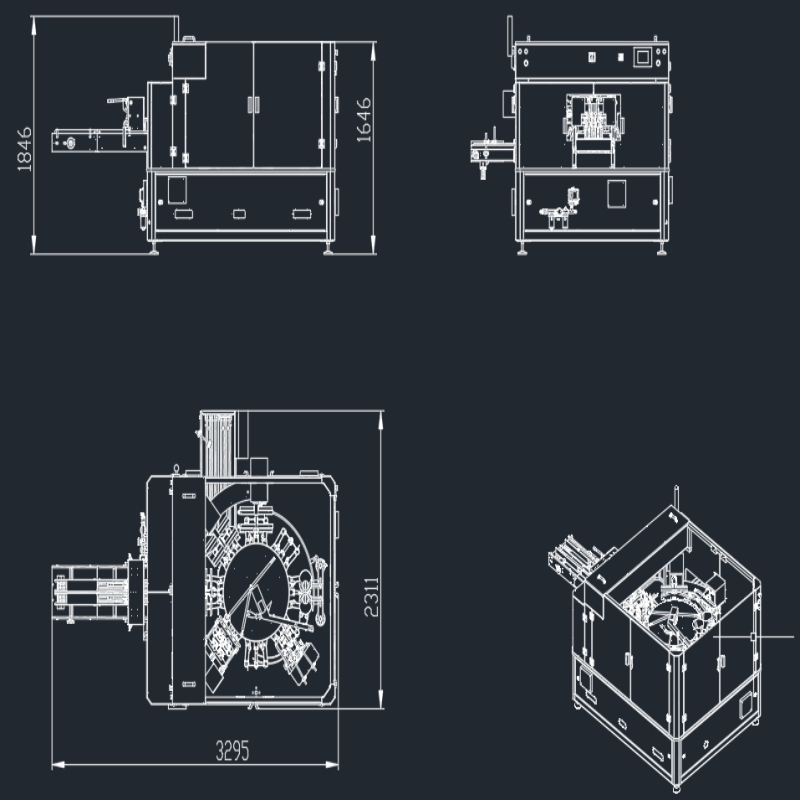

Machine SizeL3158mm*W2307mm*H1708mm (excluding dosing unit)
Electric Connection220V or 380V-3 Phase, 50 HZ/60HZ
Power Consumption5KW
Machine Overview 1
Machine Overview 2
Machine Detail 1
Machine Detail 2

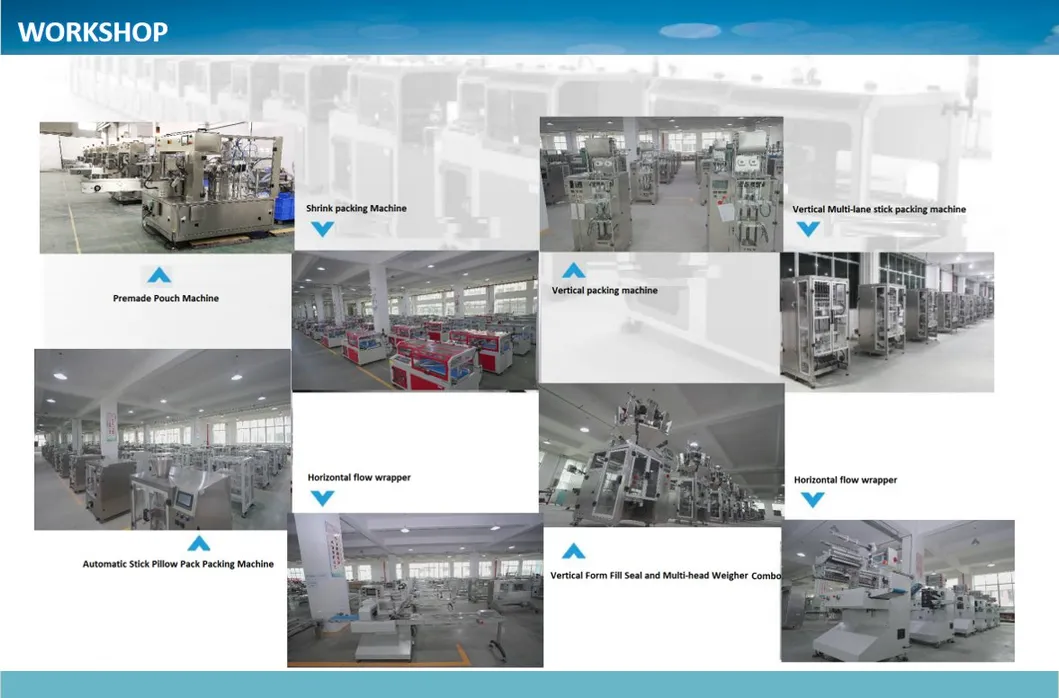

Machine Detail 3
Machine Detail 4
Machine Detail 5

Wide Application Range

Designed for premade pouch packaging, suitable for flat pouches, doypacks, stand-up pouches, zipper pouches, side spout pouches, and gusset pouches.

  • Powder: Wheat flour, soup (via Auger System)
  • Granule: Sugar, Seasoning (via Volumetric Measure or Scale)
  • Liquid: Detergent, Shampoo, Rinse, Drinks (via Piston or Rotary Pump)
  • Paste: Retort food (via Spiral or Rotary Pump)

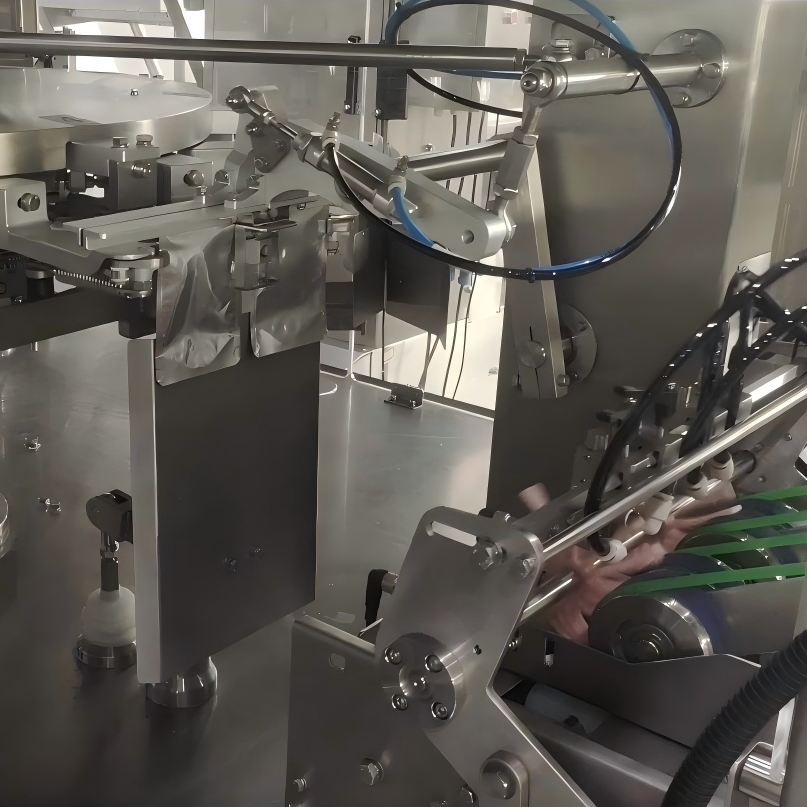

Automatic Packing Process

  • Pouch feeding conveyor & pickup
  • Date coding & Zipper open device (optional)
  • Bottom opening for self-stand pouches
  • Pouch top opening
  • First and second filling positions
  • Dual sealing positions for secure closure
  • Finished pouch discharge conveyor

Standard Equipment

  • Panasonic PLC + 10" Inovance Touch Screen
  • Bag Infeed Conveyor
  • Bag opening blade with full opening detector
  • P.I.D. temperature controller
  • Full #304 Stainless Steel Construction
  • Graphical color touch panel
  • Discharge conveyor

Frequently Asked Questions

1. What types of pouches can the AP-8BT-DUPLEX handle?
This machine is versatile and supports various premade pouches, including flat pouches, doypacks, stand-up pouches, zipper pouches, side spout pouches, and gusset pouches.
2. What is the production speed of this filling machine?
The machine operates at a high-speed range of 50 to 100 pieces per minute, depending on the product and pouch size.
3. Can it be used for both liquid and solid products?
Yes, by matching different dosing units such as auger systems, volumetric measures, or piston pumps, it can pack powders, granules, liquids, and pastes.
4. What materials is the machine constructed from?
The machine features a robust #304 Stainless Steel construction, ensuring durability and compliance with food and cosmetic safety standards.
5. Does the machine support date coding?
Yes, the standard packing process includes a station for date coding and an optional zipper opening device.
6. What are the electrical requirements for installation?
The machine can be configured for either 220V or 380V, 3-Phase power at 50Hz or 60Hz, with a power consumption of approximately 5KW.
