Yongli Machine
1 / 5
| Usage | Bottle Packing Line |
| Packaging Material | Plastic |
| Packaging | Bottles |
| Driven Type | Electric |
| Type | Packaging Production Line |
| Function | Storage and Packaging |
| Application | Drinks, Dairy Products, Cleaning, Detergent, Cosmetics, Skin Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Hair Care Products |
| Drive | Servo System |

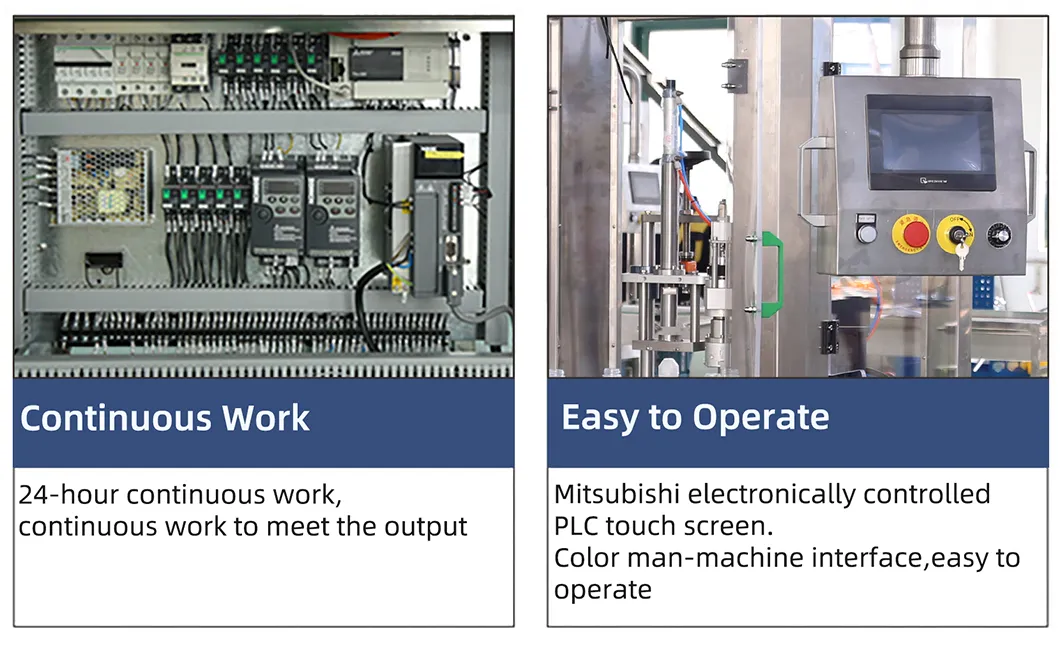

| HMI | 7.5" Color Touch Screen Control |
| Detecting System | Vial Detector & Counter |
| Production Capacity | 1500-4000bph |
| HS Code | 8422303090 |
| Package Size | 850.00cm * 700.00cm * 600.00cm |
| Package Gross Weight | 140.000kg |

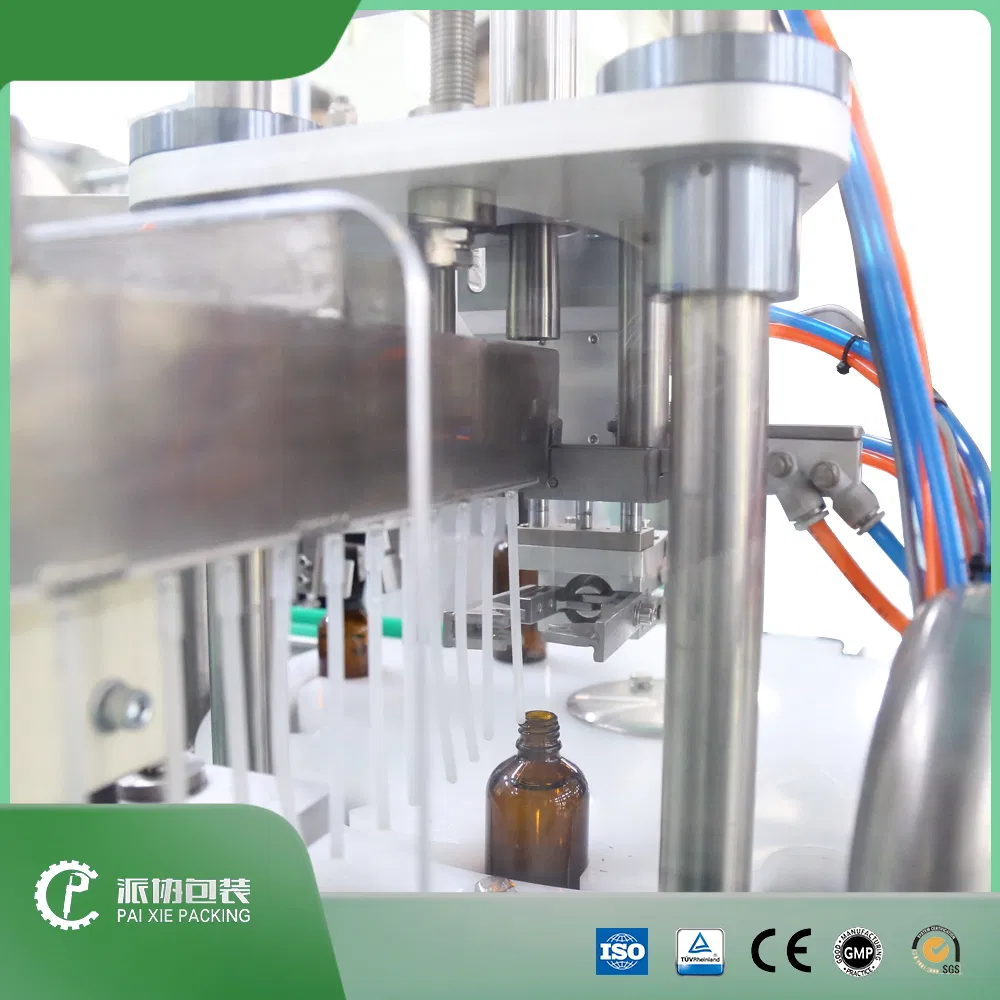

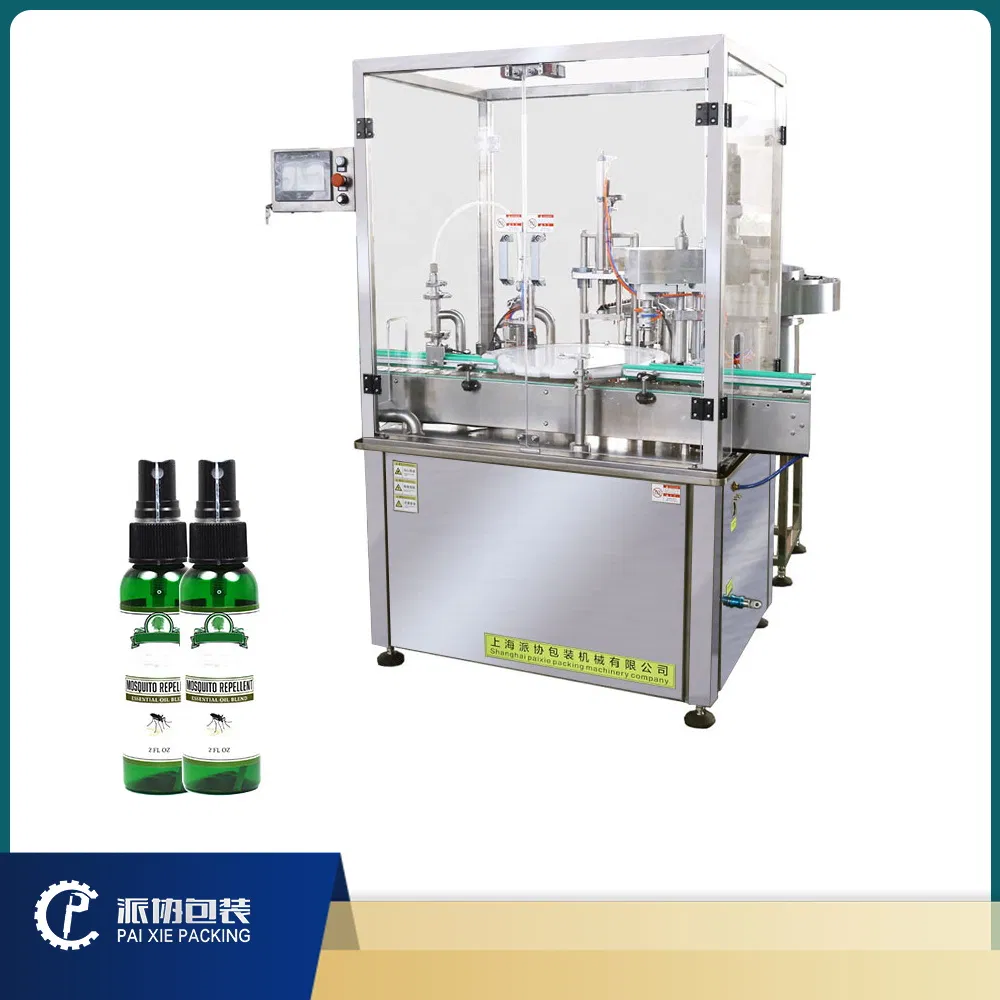

The latest smart Small Bottle Spray Filling Machine is rated at 1500-6000 bottles per hour, depending on the filling volume. This machine is specially made for spray bottles, filling liquid. Suitable for online filling 100-300ml containers. This machine adopts servo drive, easy to maintain precision and speed, only in the man-machine interface input ideal filling volume and speed, this is the significance of the servo motor. It can fill different bottles, we set a scale in the adjustment part, used to record the relationship between different specifications of the bottle and the equipment position. This greatly improves the convenience of the equipment.
| Model | PX-BFC80 |
| Yield | 1500-4000BPH (customized) |
| Filling heads | 1 (Customized) |
| Filling pump | Piston pump |
| Work voltage | 110/220/380V 50/60HZ |
| Air pressure | 0.6MPA |
| Accuracy | ≥99% |
| Power | 2.2KW |
| Driving | Servo motor |
| Pump volume | 100-300ml |
| United size | 2200*900*1800mm |
| Single machine noise | ≤50dB |
| Weight | 600KG |
| Material | SS304+SS316 |

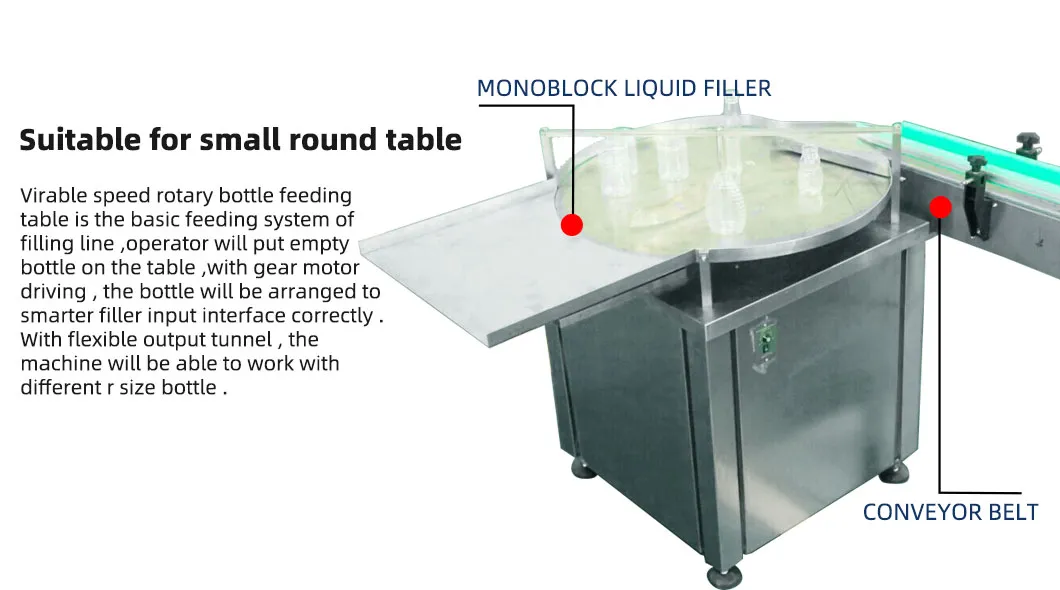

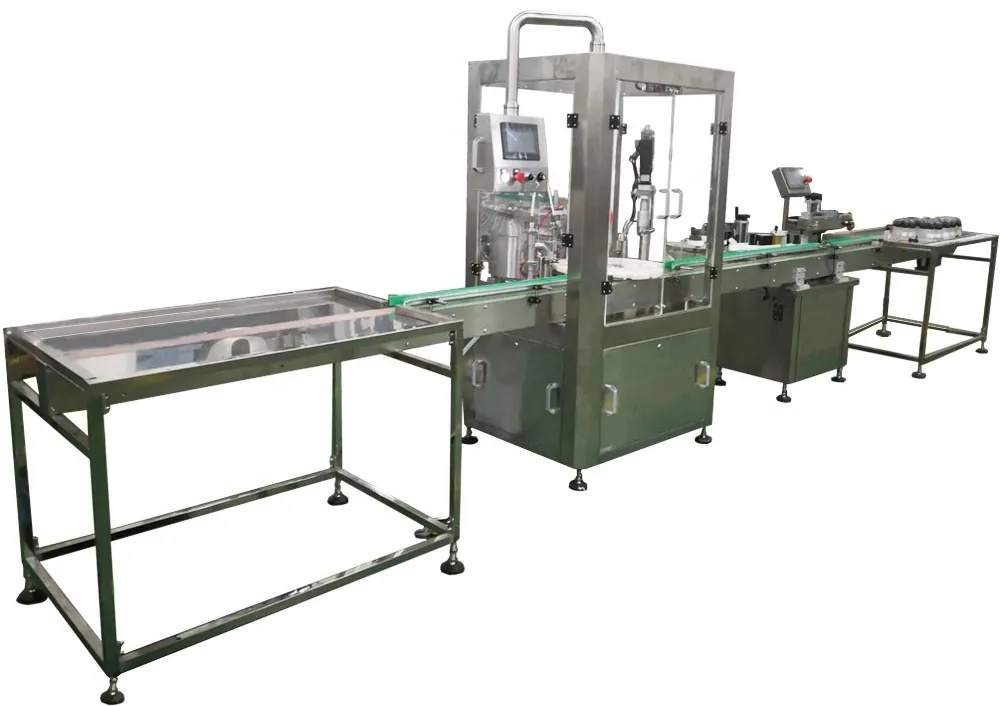

Bottle feeding table

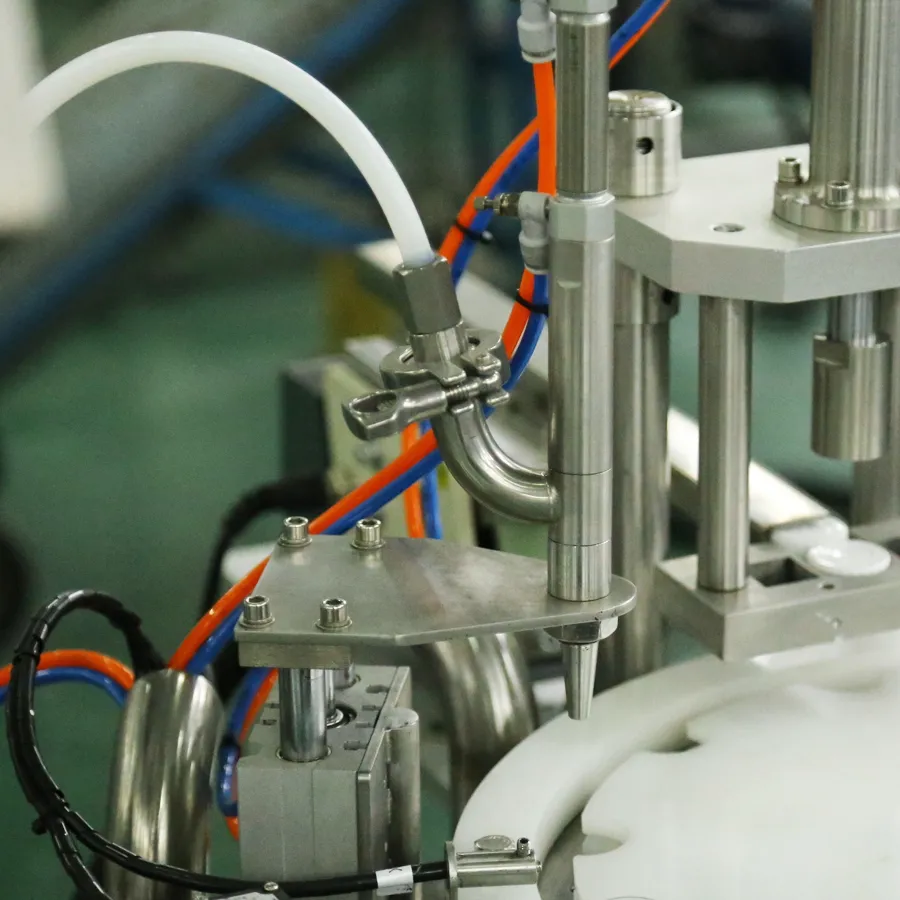

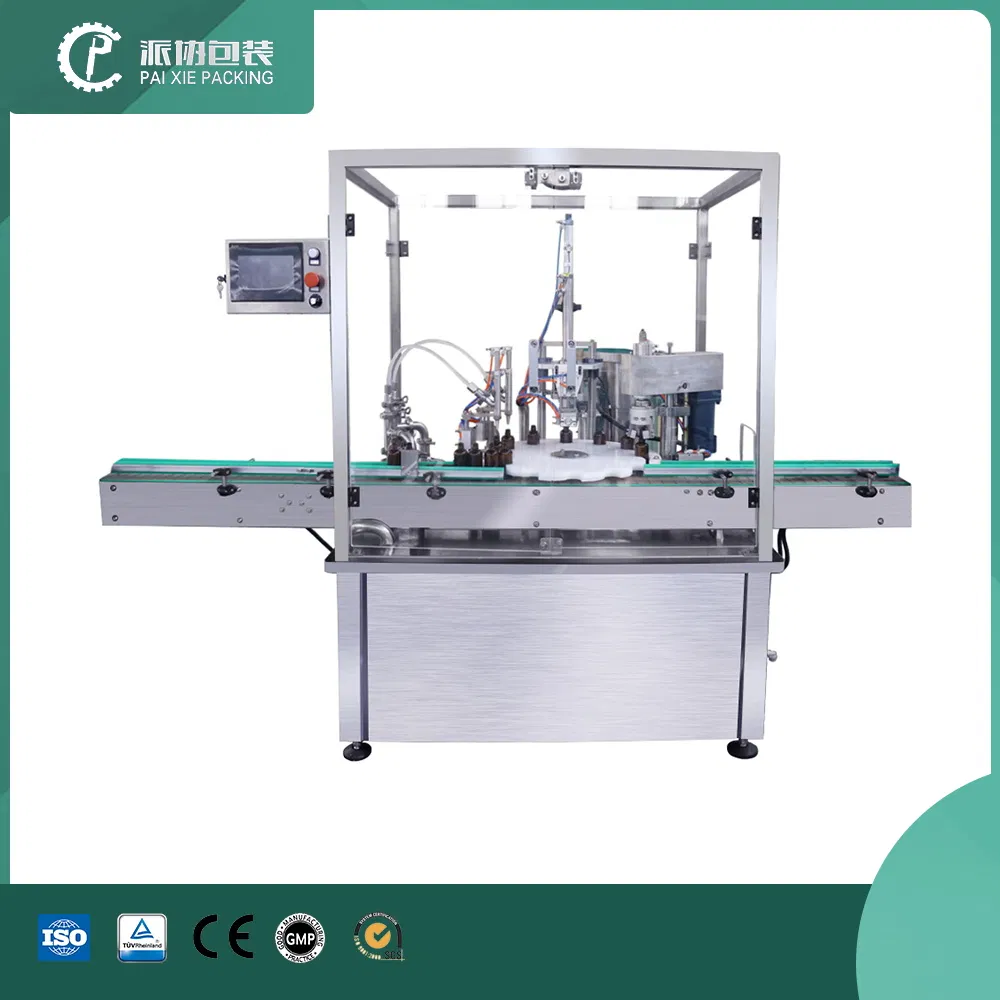

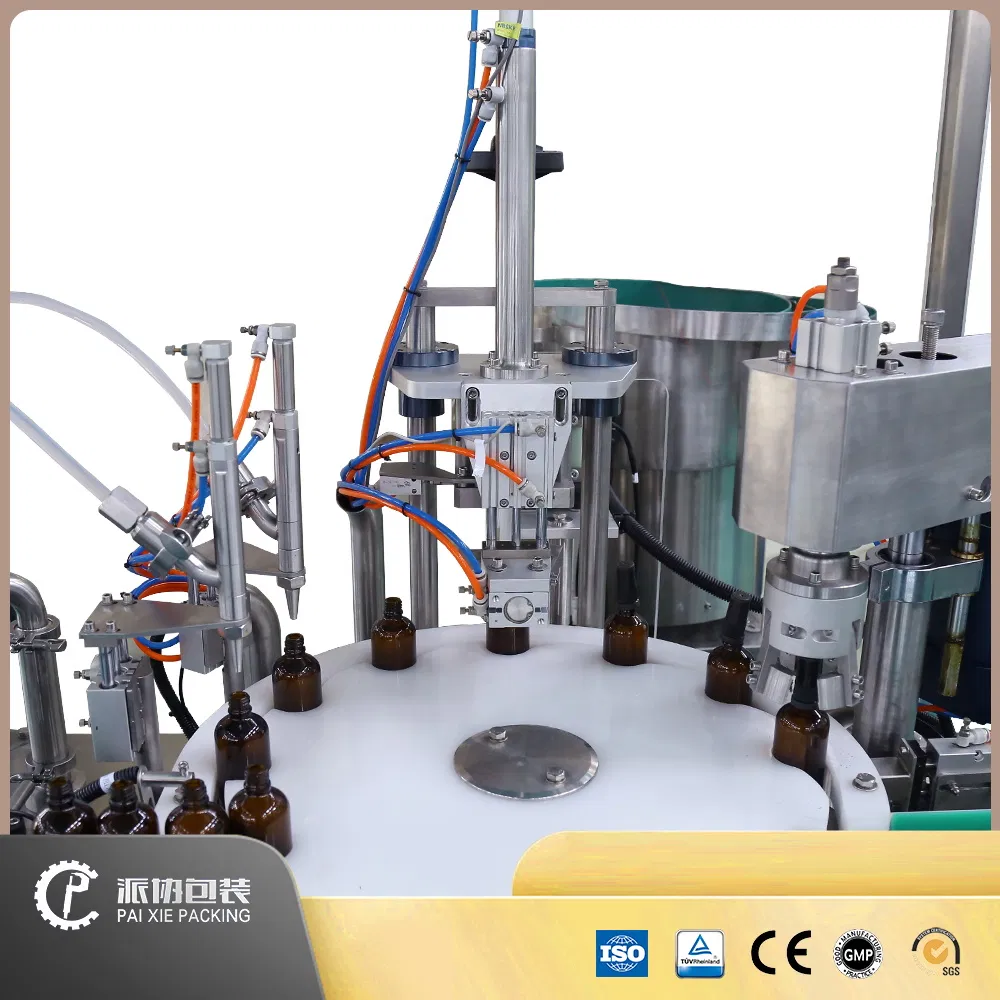

Filling and Capping machine

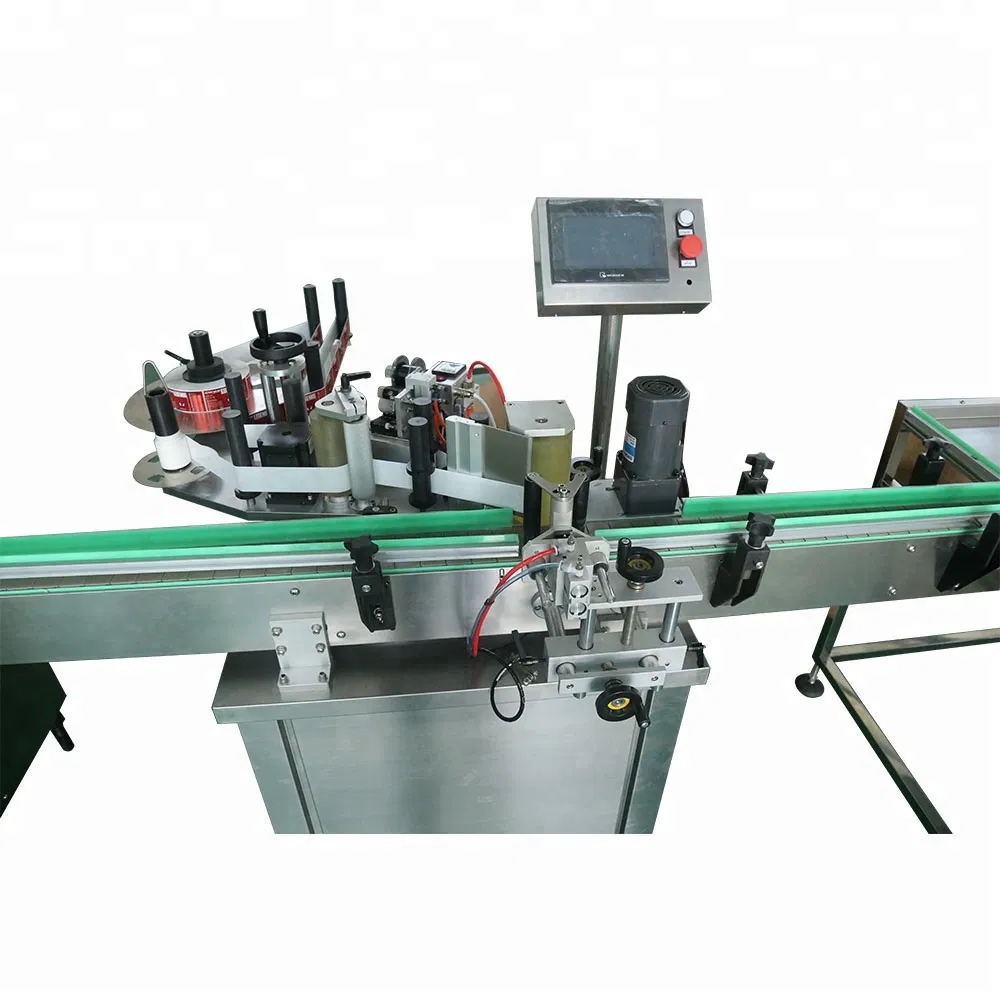

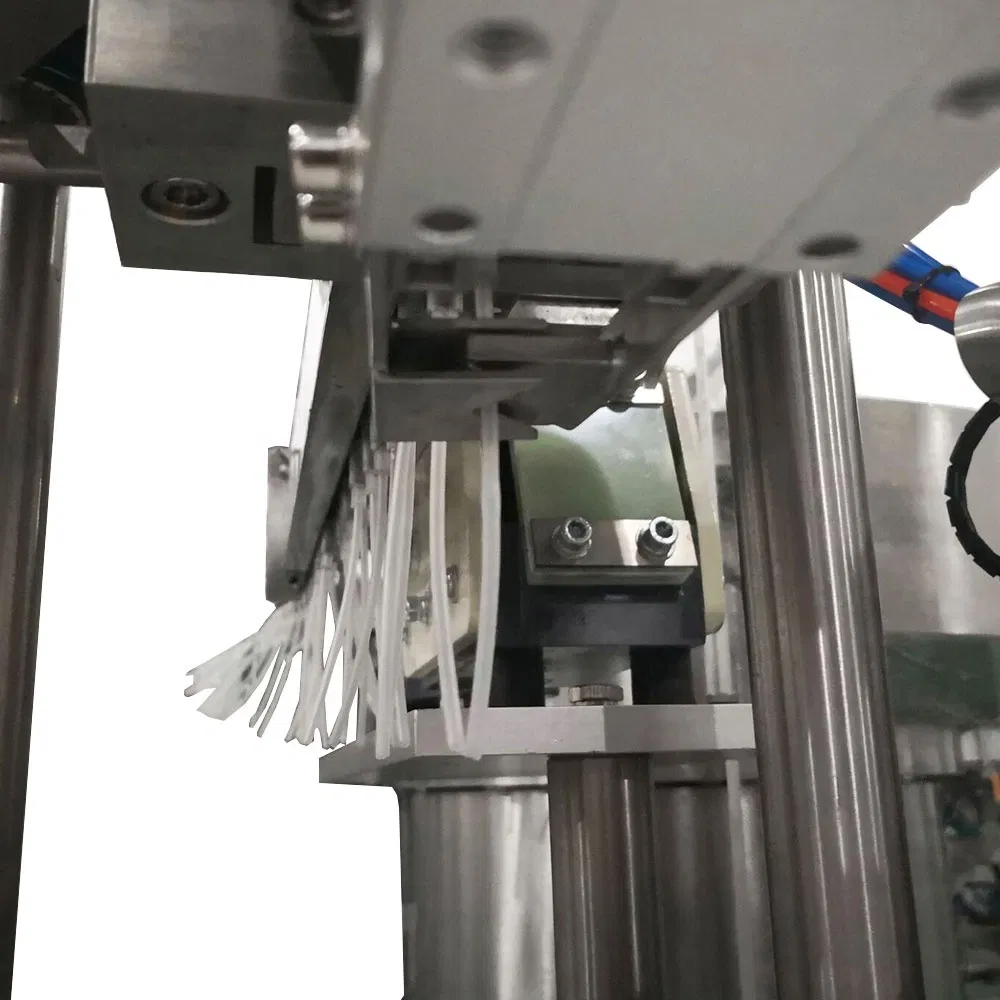

Cap unscrambler & Labeling station
