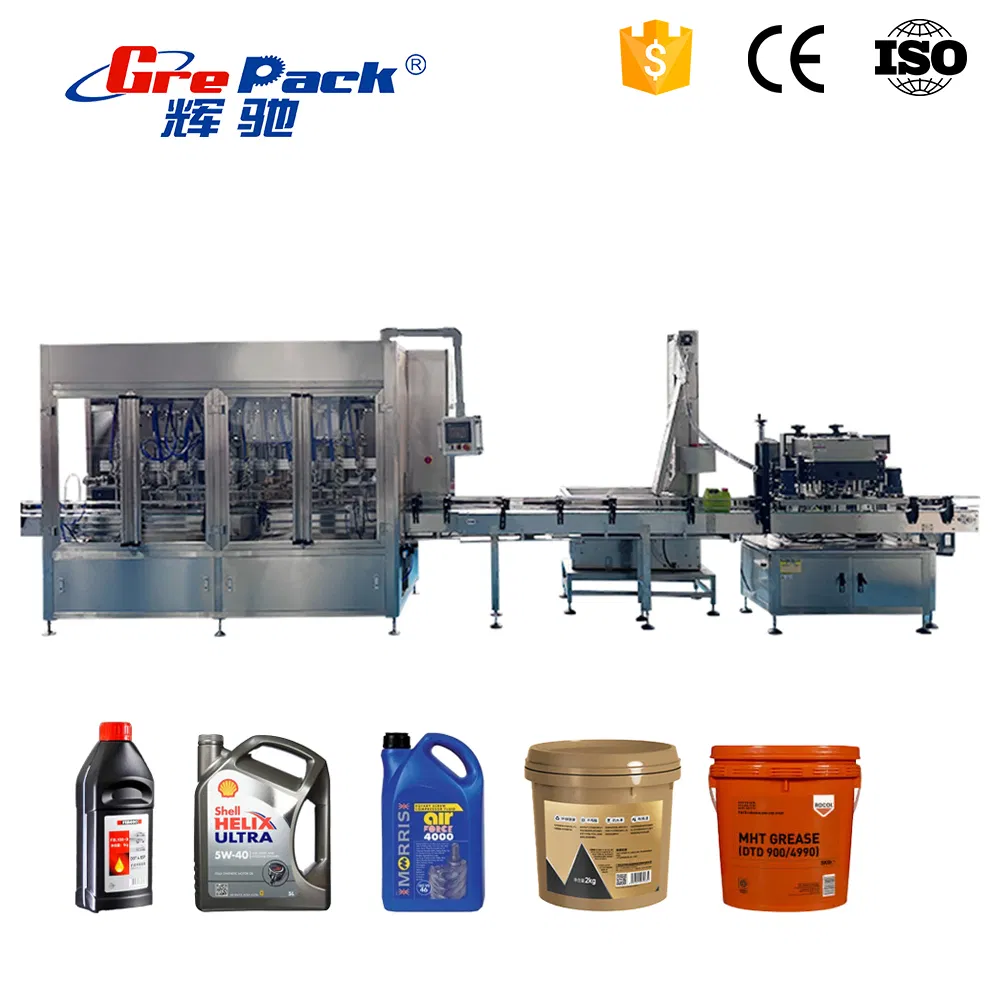

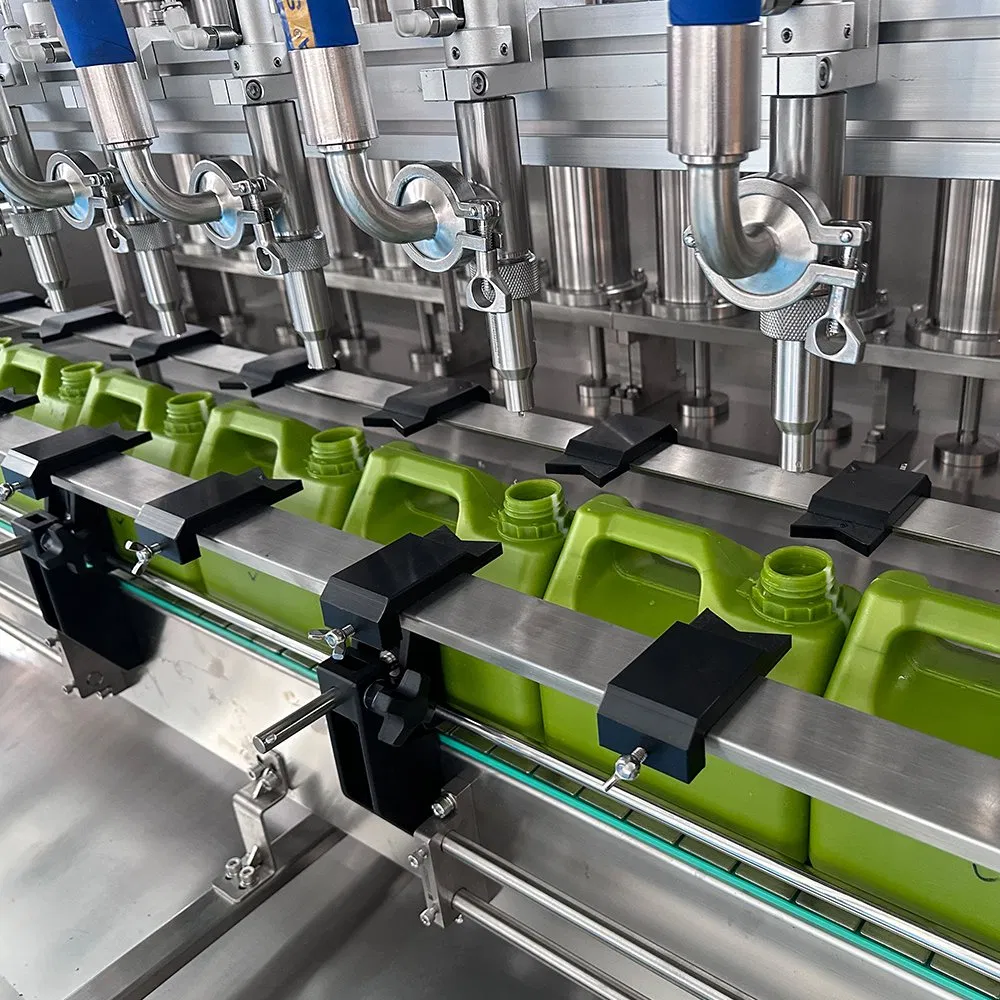

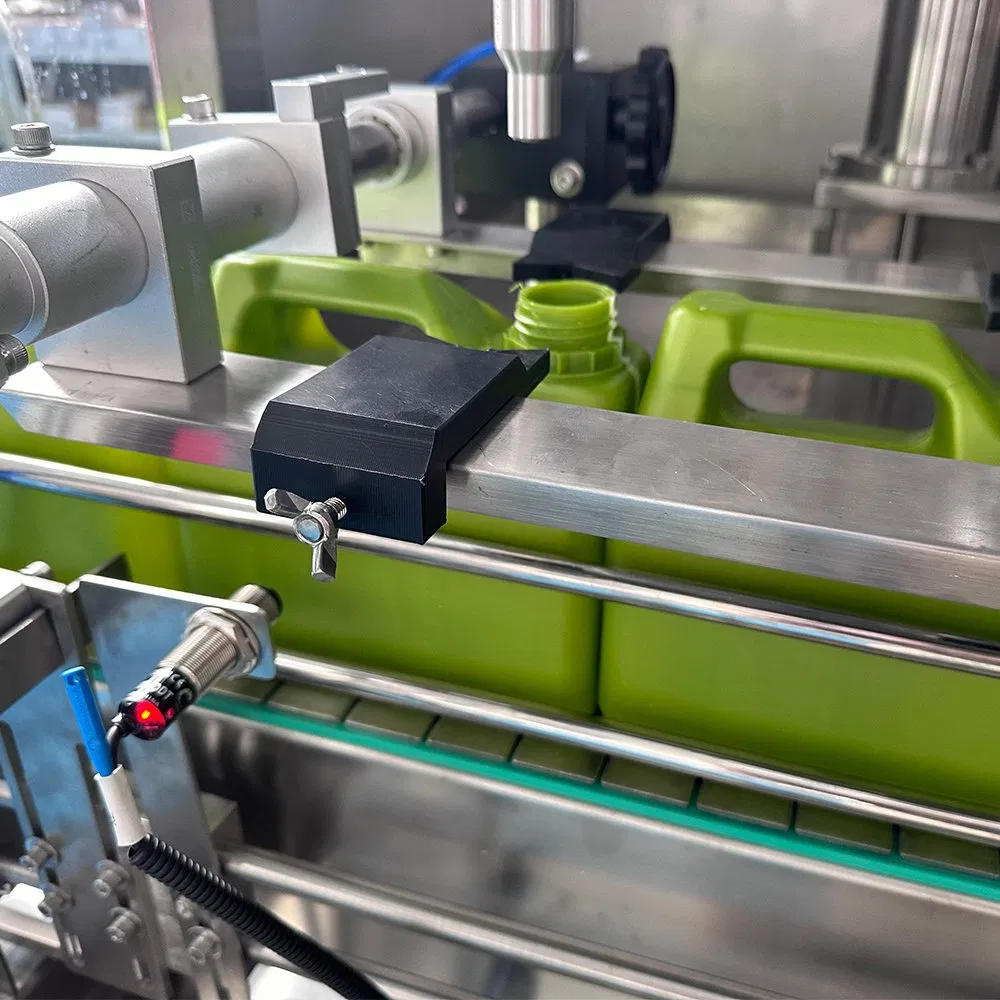

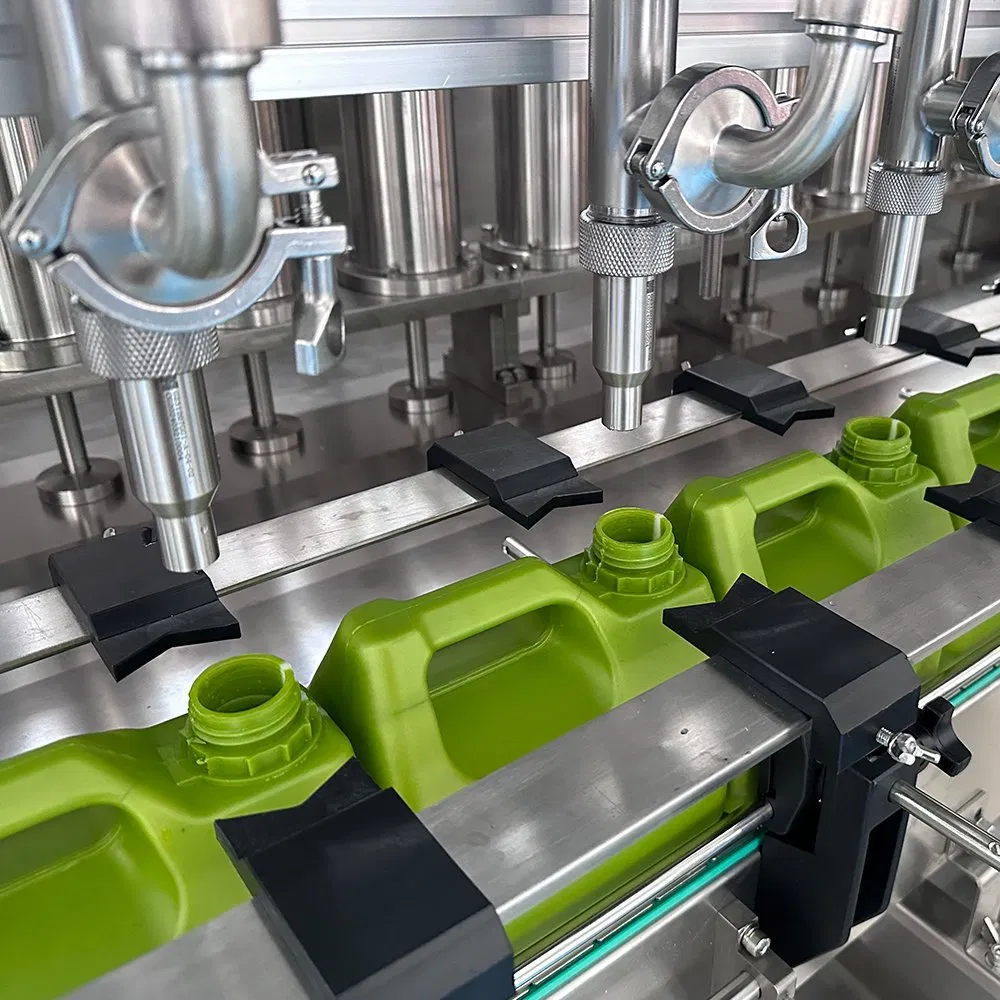

Automatic 1L-5L Motor Oil Lubricant Oil Bottle Filling Machine Engine Oil/Grease/Brake Fluid/Antifreeze Liquid Bottle Filling Machine Bottle Packing Machine

Customization: Available
After-sales Service: Overseas Services
Warranty: 1 Year

Product Description

Basic Information
Model NO.
GP125/500/1000/3000/5000 series
Type
Piston Filling Machine
Automatic Grade
Fully Automatic
Material Type
Sauce/Paste/Oil/Detergent/Lotion
Filling Valve Head
Multi-Head
Dosing Device
Plunger
Filling Principle
Pressure
Packaging
Bottle (Plastic/Glass/Metal)
Capacity
1200-3600bph (Customizable)
Driven Type
Electric
Metering
Piston
Origin
China

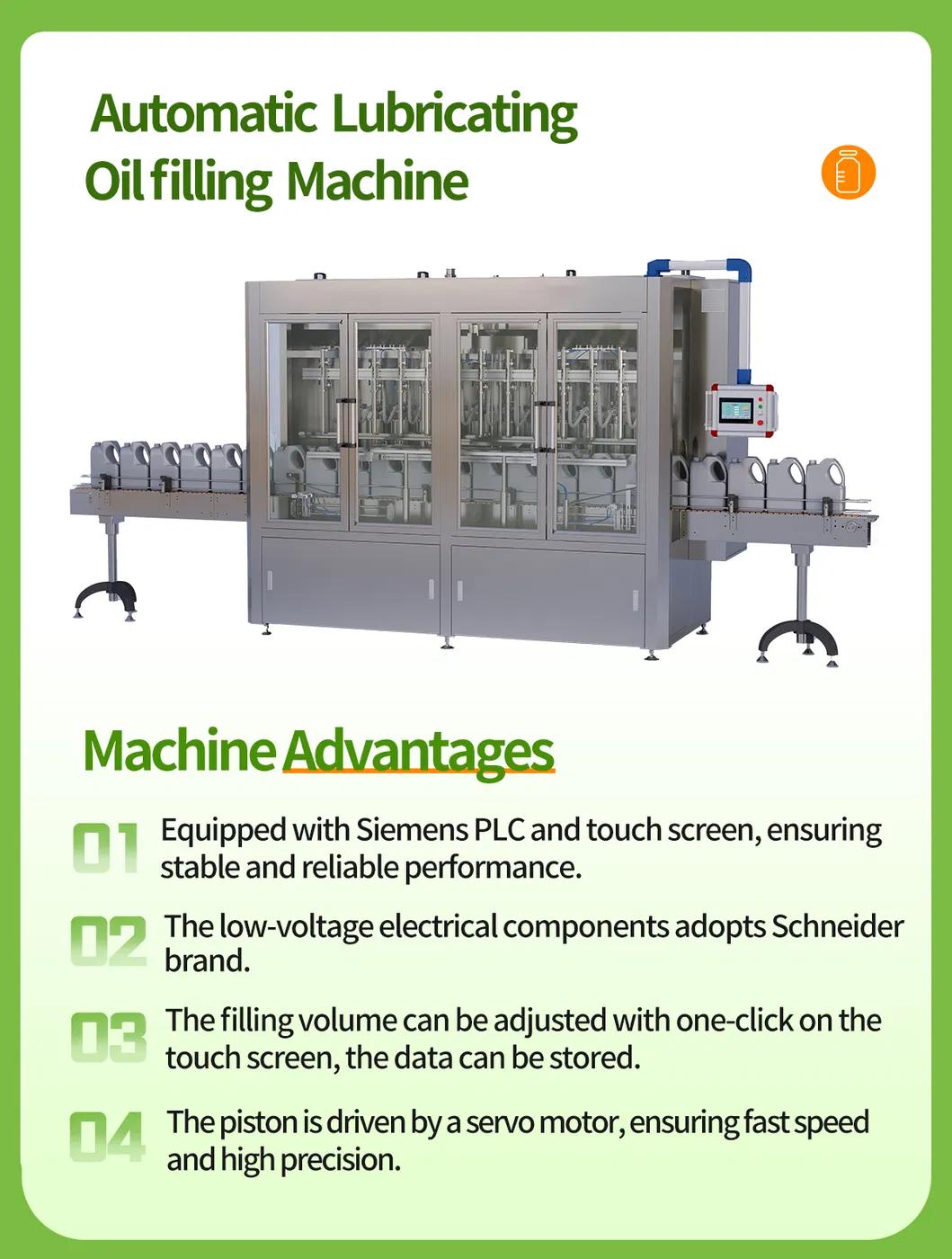

Product Overview
Technical Specifications
Model GP125Series / GP500Series / GP1000series / GP3000series / GP5000series
Filling Range 30-125ml, 50-500ml, 100-1000ml, 500-3000ml, 1000-5000ml
Filling Nozzle 4 6 8 10 12
Capacity (1000ml) ≤ 1200 bph ≤ 1800 bph ≤ 2400 bph ≤ 3000 bph ≤ 3600 bph
Filling Accuracy ≤±0.5%
Voltage AC220V/380V 50-60HZ (Customizable)
Power 2.0-3.5KW 2.0-4.0KW 2.5-4.5KW 3.0-5.5KW 3.0-6.5KW
Air Pressure 0.5-0.8Mpa
Product Description

Providing professional packaging machinery solutions globally. With machines exported to over 80 countries, we assist customers in finding suitable packaging solutions to boost production efficiency.

Main products include comprehensive bottle filling machine production lines (bottle unscramblers, filling machines, capping machines, sealing machines, labeling machines, case packing systems, and robot palletizers) and bag packaging production lines (packing machines, metal detectors, weighing machines). These lines are applicable to a wide range of products including powders, liquids, and granules.

Frequently Asked Questions
What types of products can this filling machine handle?
The machine is designed for various materials, including sauces, pastes, oils, detergents, and lotions.
What is the range of filling volumes available?
The series covers a wide range from 30ml up to 5000ml, with specific models like GP125, GP500, GP1000, GP3000, and GP5000.
What is the filling accuracy of the automatic piston filler?
The machine maintains a high filling accuracy of ≤±0.5%.
Can the production capacity be customized?
Yes, the standard capacity ranges from 1200 to 3600 bottles per hour, but it can be further customized based on requirements.
What types of containers are compatible with this machine?
It is suitable for bottles made of plastic, glass, and metal.
Does the machine support different power requirements?
The standard voltage is AC220V/380V at 50-60HZ, and special power configurations are customizable.
