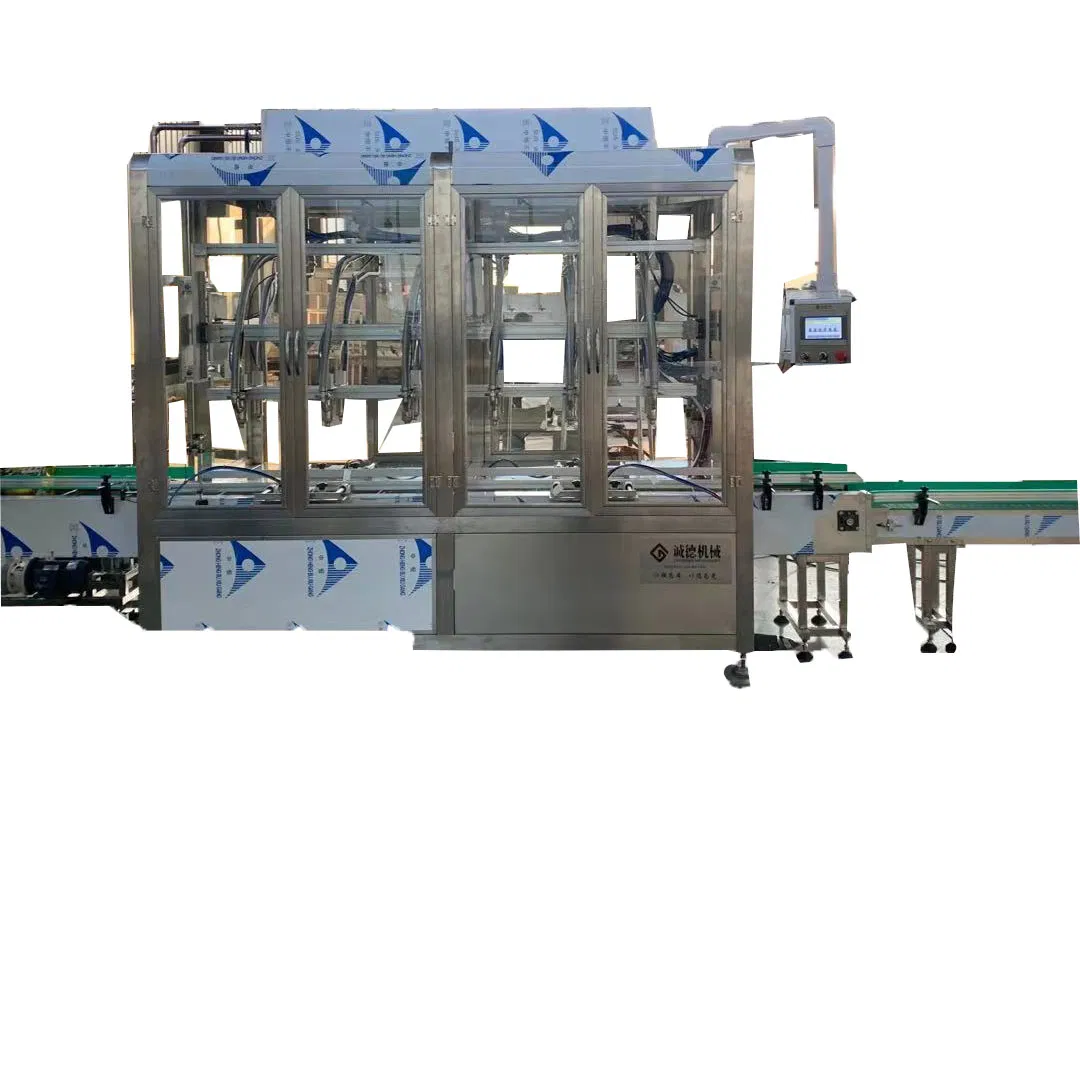

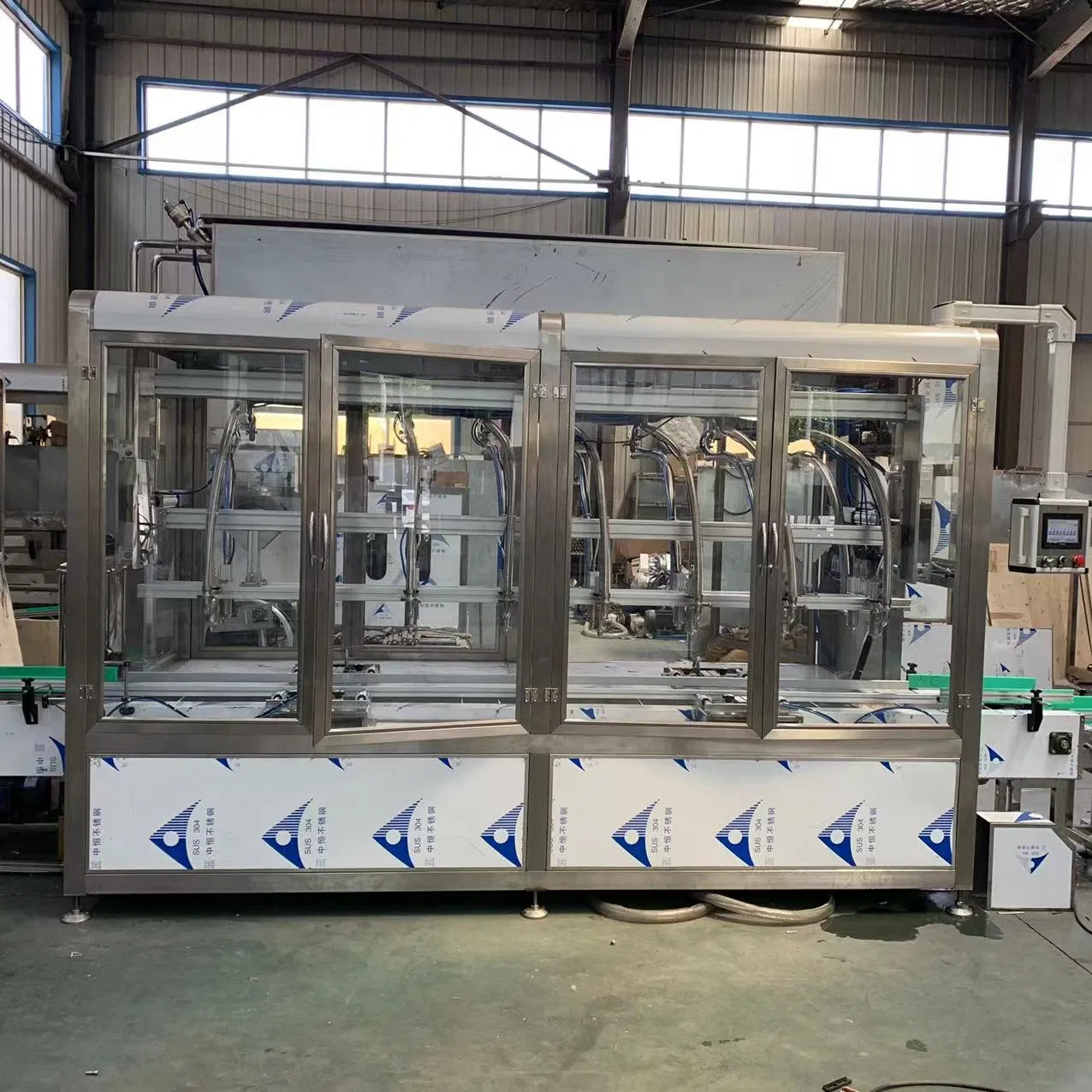

Semi-Automatic Overflow Fill Linear Gravity Liquid Weighing Filling Machine

Customization:	Available
After-sales Service:	Provided
Warranty:	1 Year

Basic Information

Model NO.

CD-10. CD-14, CD-16, CD-18, CD-20

Type

Weighing-type Filling Machine

Automatic Grade

Automatic

Material Type

Liquid

Filling Valve Head

Multi-Head

Dosing Device

Rotor

Filling Principle

Atmospheric Pressure

Structure

Linear

Application

Chemical Oil, Viscous Liquid, Fluid, Semi-Fluid

Speed

80-100/Head/Hour

Accuracy

±0.1%

HS Code

8422303090

Product Introduction

The weighing filling machine uses the high measurement accuracy of the electronic scale to connect the electronic weight signal sensor with the weighing control instrument with a data line. During the measurement process, the pressure signal of the electronic scale is continuously transmitted to the control instrument. When the preset quantitative weight is reached, the control instrument controls to stop the pump and close the pneumatic valve. The weighing filling machine is connected to the tank by pipeline, and self pressure filling is adopted.

This type of automatic hand gel filling and capping machine can be used for fixed amount small package filling, straight line type filling, medical, electric, apparatus control of all sorts of viscous and no viscous erosive liquid, such as plant oil chemical, liquid, daily chemical industry.

Key Features

✔
Contact part material: SS 316, other machine parts: SS 304.
✔
Suitable material: Oil, jams, daily chemicals, and highly viscous substances.
✔
High-tech Control: Controlled by microcomputer PLC programmable equipment with photo electricity transduction.
✔
Accurate measurement: Adopt servo control system to ensure consistent piston positioning.
✔
Spill Prevention: Realizes slow speed filling when close to target capacity to prevent liquid spill.

Technical Specifications

Parameter	Details
Model	Weighing Filling Machine
Filling Head	4, 6, 8, 10, 12
Capacity	100-130 bottles/hour/head
Filling Range	1-20kgs
Filling Accuracy	≤±0.2%
Power	5.5 kW

Detailed Components

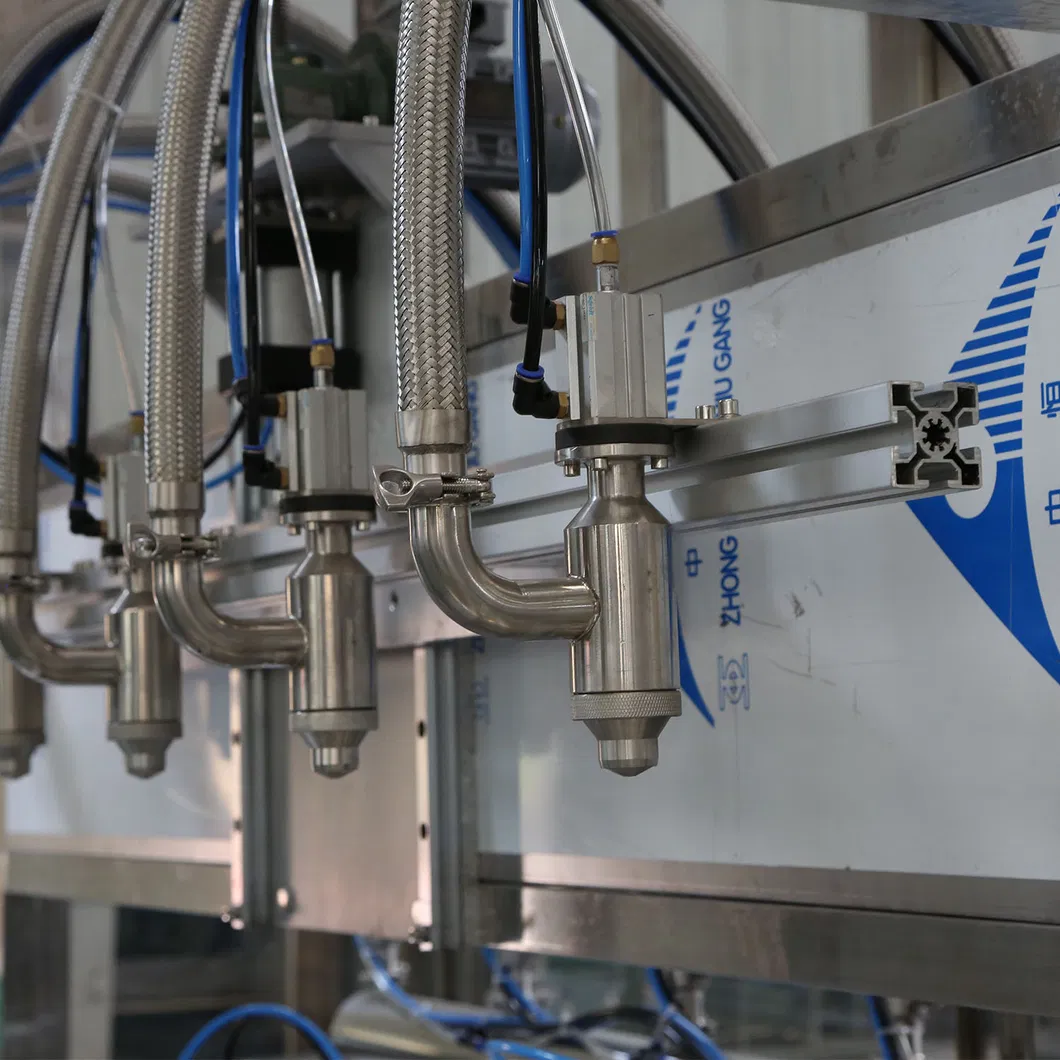

Commonly used oil filling valve

1. Widely used for viscous materials.
2. Fast filling speed with high precision.
3. Special seal design to prevent dripping.

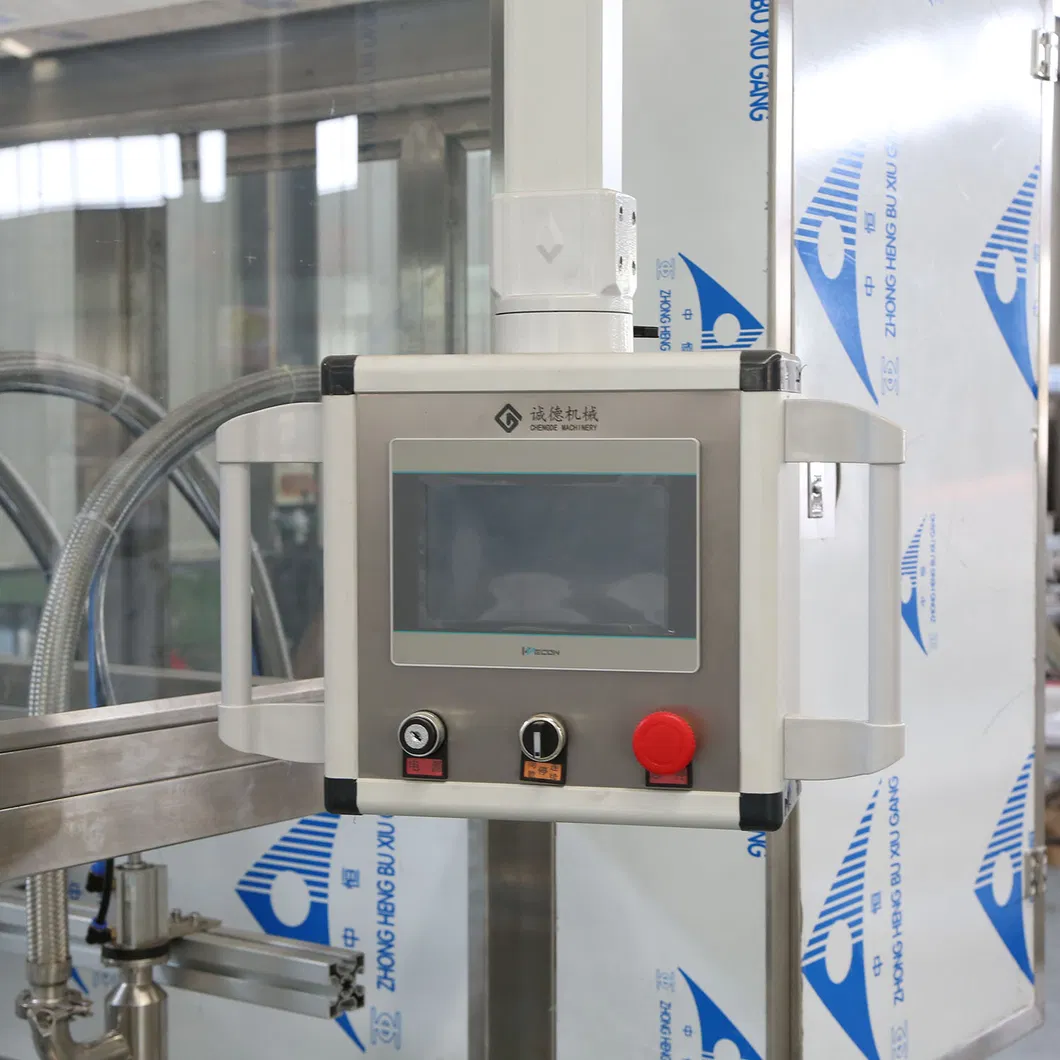

Touch Screen Control

Easy to operate and control. Supports multiple local languages. Speed can be adjusted to match your production line.

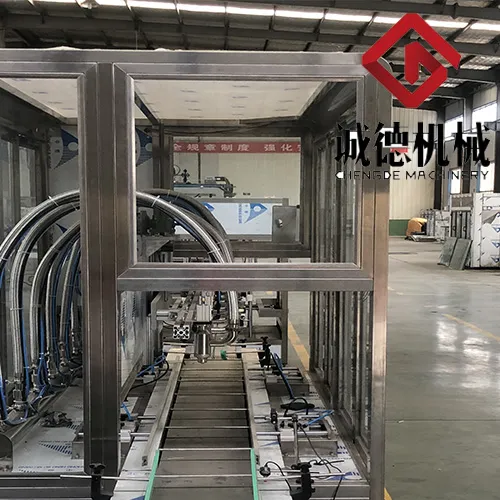

Weighing Table

Unpowered roller conveyors improve handling efficiency, reduce production costs, and enhance overall output.

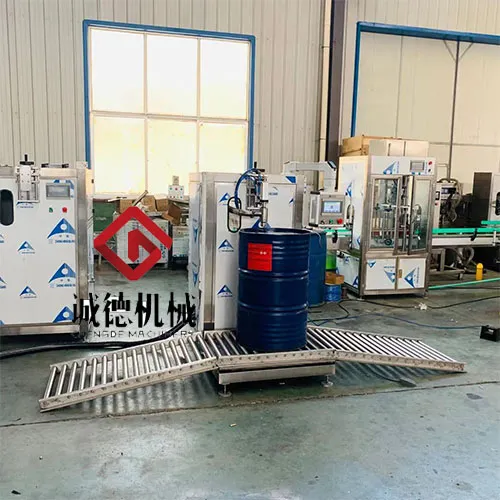

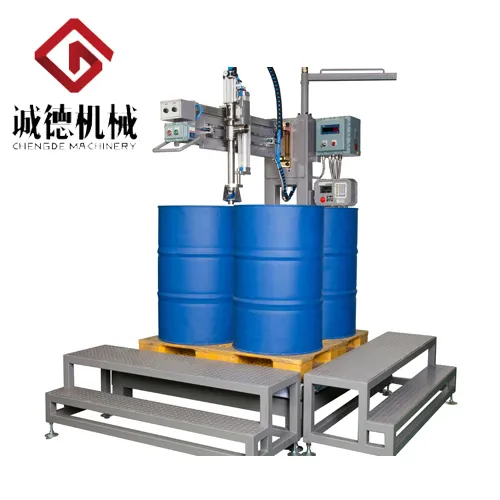

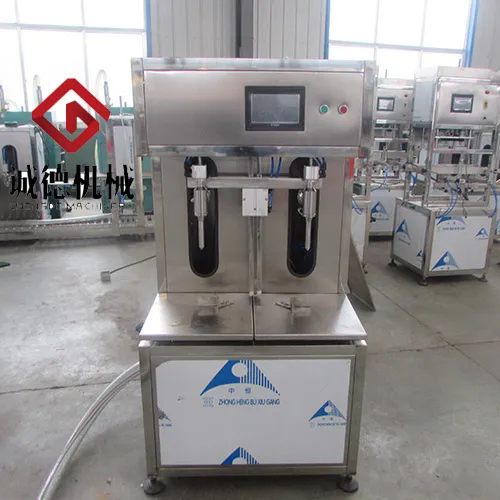

Similar Products

Our Advantages

01

Powerful Factory

10 Years Manufacturing & 8 Years Exporting Experience.

02

ODM & OEM

Customized solutions supported for unique needs.

03

Professional Team

Regularly trained staff and superior service.

04

Reasonable Price

High accuracy and easy operation at competitive costs.

05

Quality Assurance

Improving efficiency and resolving labor cost issues.

06

Online Instruction

Technical guidance and factory inspection via video.

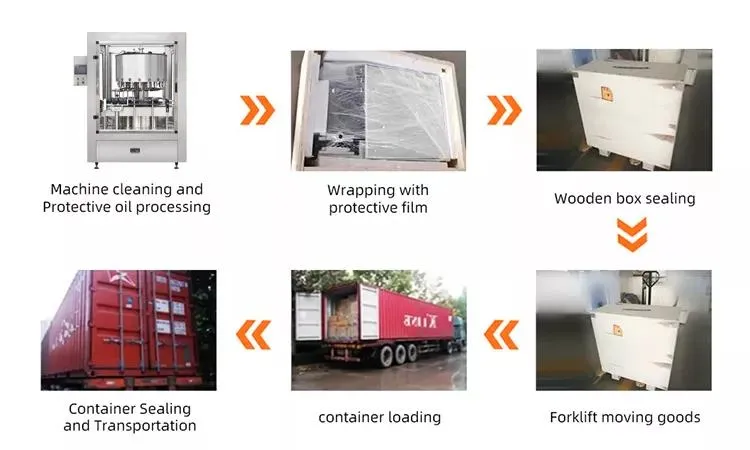

Shipping & Delivery

About Packaging: Products are wrapped with environmental protection film inside and packed in sturdy wooden cases outside to ensure safety during sea or land transportation.

Frequently Asked Questions

1. Who are we? We are a professional manufacturing team based in China, specializing in automatic packaging machinery since 2012, serving domestic and international markets including North America, Africa, and Europe.

2. How can we guarantee quality? We always provide a pre-production sample before mass production and conduct a final inspection before every shipment to ensure the highest standards.

3. What can you buy from us? You can purchase complete Liquid Bottling Production Lines, including Filling Machines, Capping Machines, Labeling Machines, and Bottle Washing Machines.

4. Why should you buy from us instead of other suppliers? We are original manufacturers offering direct sales, 20 years of production expertise, comprehensive OEM/ODM customization, and dedicated one-year after-sales service.

5. What services can we provide? We accept various delivery terms (FOB, EXW, CIF) and multiple payment currencies. Our team supports communication in over 10 languages including English, Spanish, and French.

6. Is technical support available? Yes, we provide online conferences for product explanation, technical guidance, and can support job site installation and training if required.
