Basic Specifications
Model NO.
CD14-12-5, CD18-16-6, CD24-18-8, CD32-24-10
Type
Automatic Gravity Filling Machine
Dosing Device
Capacity Cup
Filling Principle
Pressure
Packaging
Barrel / Plastic
Product Introduction

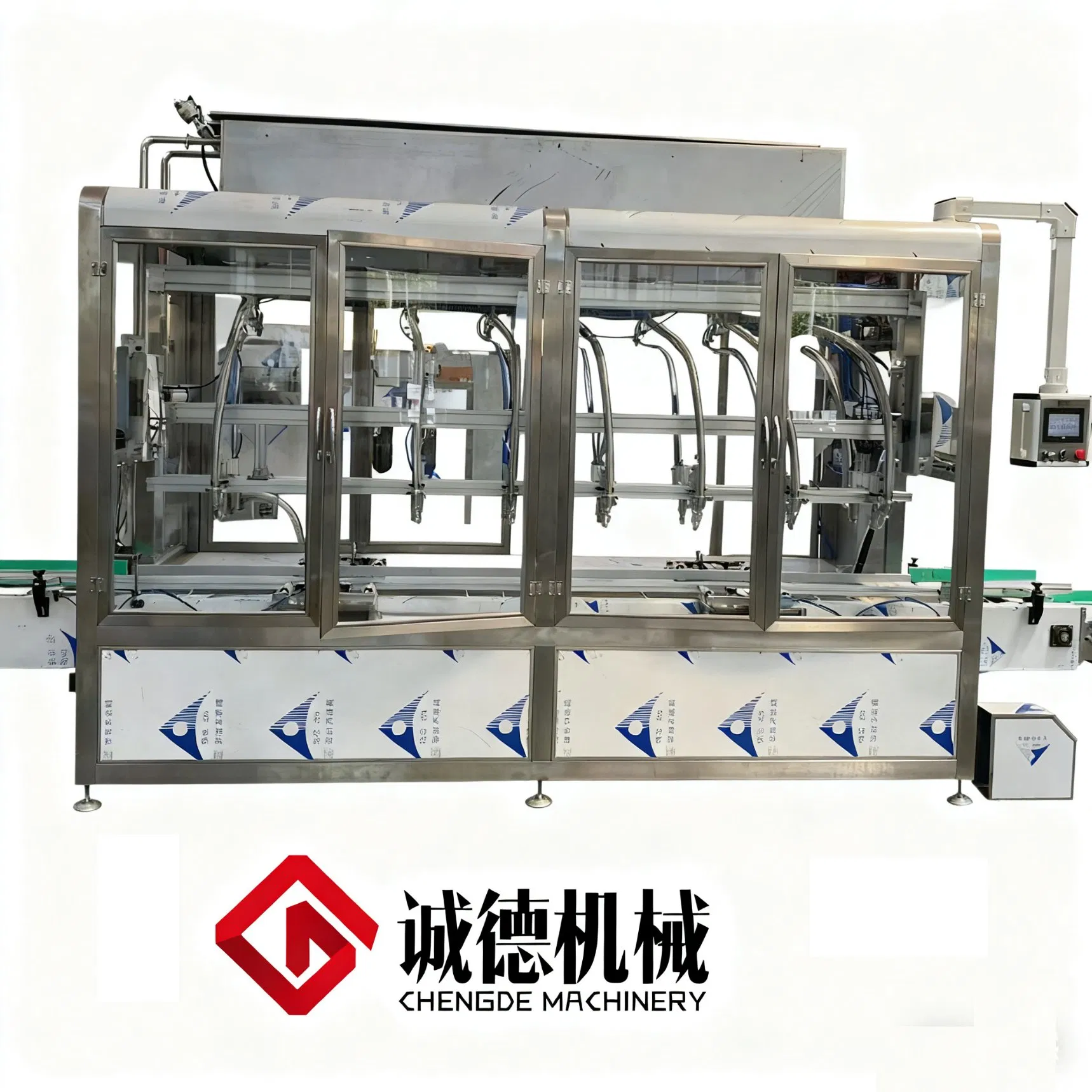

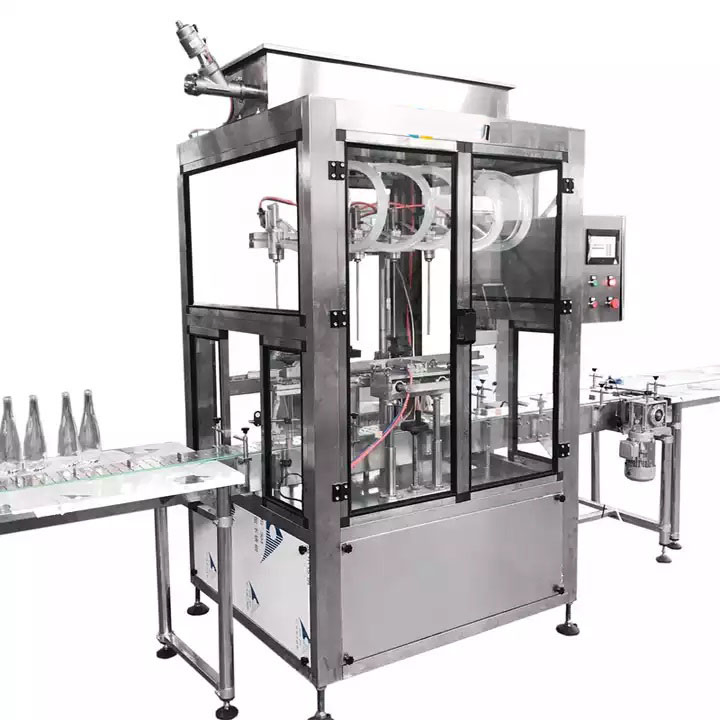

This Automatic Gravity Filling Machine is suitable for all kinds of non-viscous liquid filling, such as alcohol, glass water, antifreeze, urea, and other liquids. It is designed for filling liquid in round glass bottles and plastic bottles.

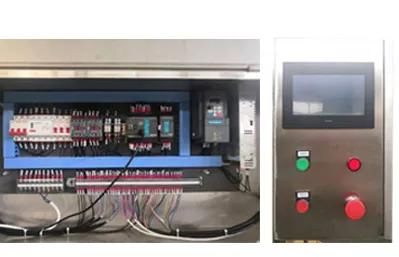

This equipment is controlled by a microcomputer PLC programmable system, equipped with photoelectric instruction and pneumatic action. It adopts a servo control system to ensure pistons reach constant positions. When approaching target capacity, the speed slows down automatically to prevent spills and pollution.
Technical Parameters
| Parameter Item |
Specifications |

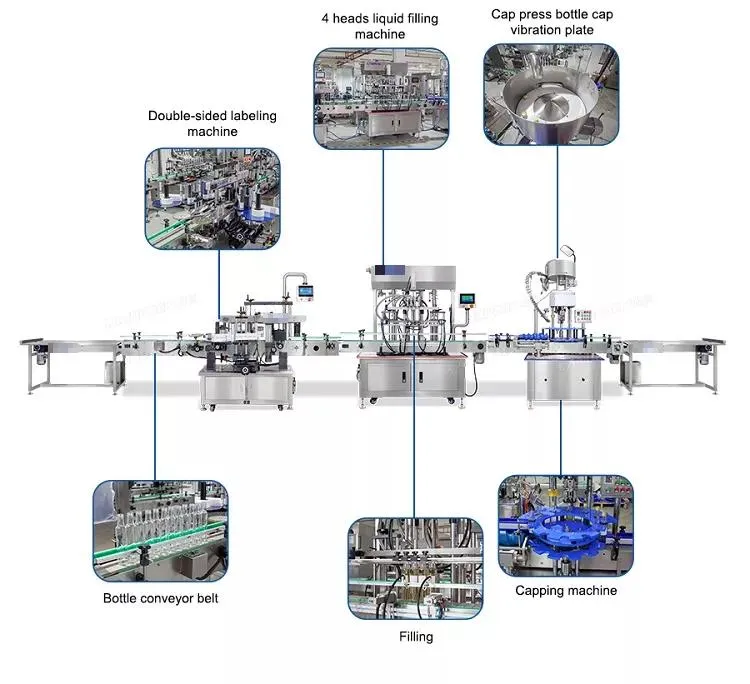

| Bottling Line Type | Linear Liquid Filling Production Line |
| Filling Nozzles | 4~12 Heads |
| Production Capacity | 600~2000 bph |
| Applicable Bottle Height | 160~360mm (Customizable) |
| Applicable Bottle Diameter | Φ50-Φ100 (Customizable) |
| Filling Volume | 100~5000ml (Customizable) |
| Filling Accuracy | ±0.01% |
| Overall Size (L*W*H) | 3000*1500*2200 mm |
Accurate Metering Control
- Fixed flow channel parameters and controlled filling time for precise quantities.
- Adjustable measurement for each filling head to ensure consistency.
- Pneumatic valve precision set to 0.01 seconds, maintaining error within ±1%.
- "No bottle, no filling" safety sensor system.
Special Filling Method
- Strong PLC software support for laboratory, chemical, and purified liquids.
- Linear grouping entry/exit method allows for various container shapes.
- Advanced filling valve design ensures no dripping or salivation.

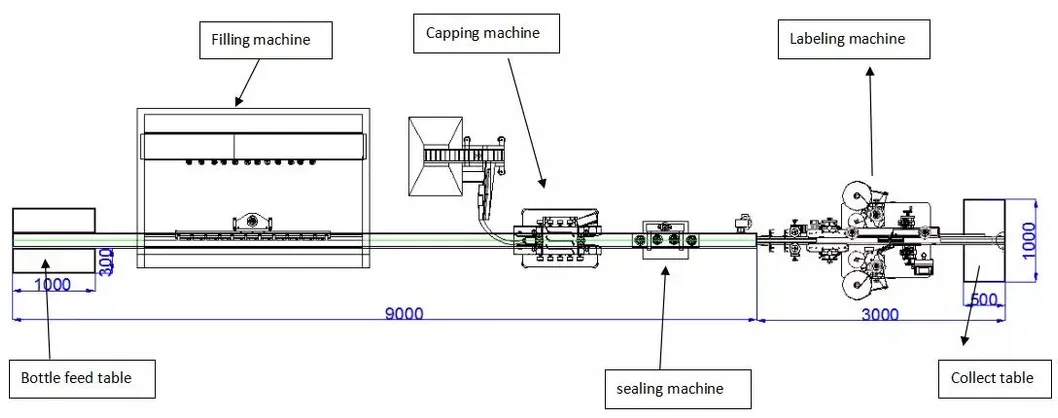

Detailed Components

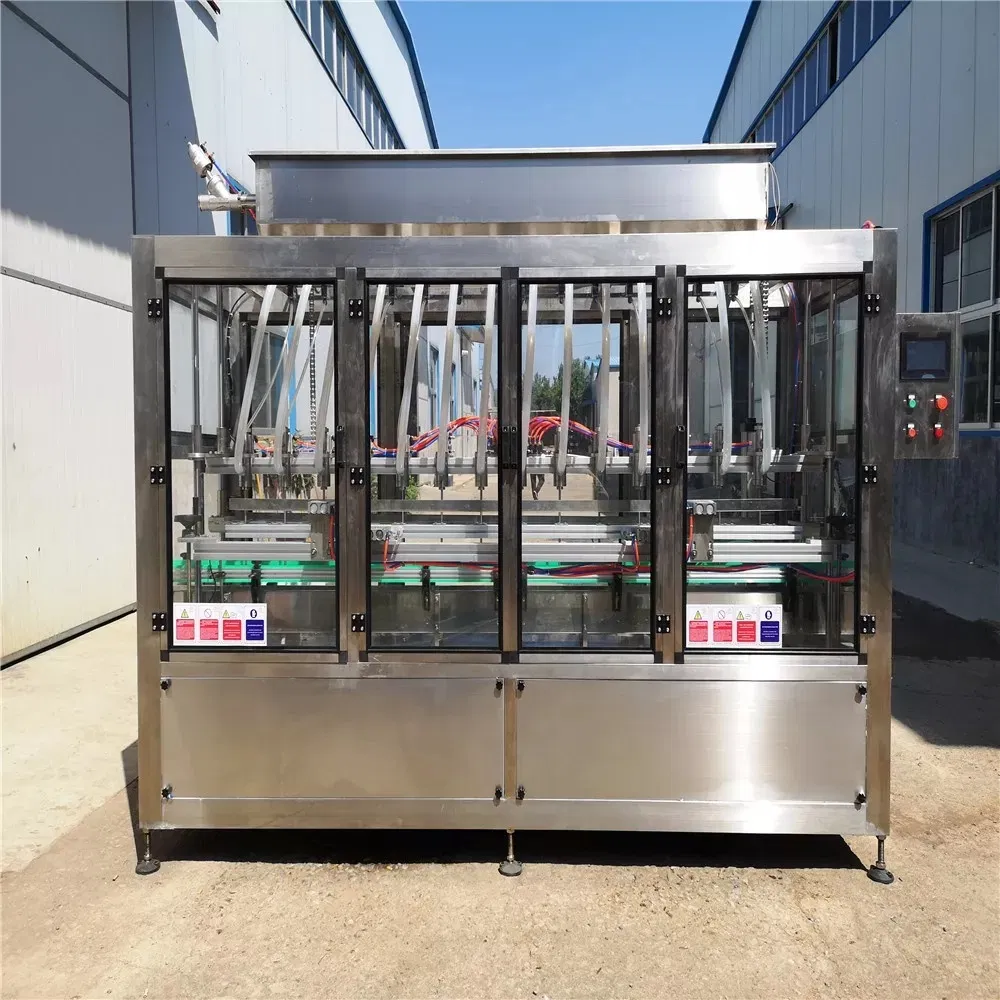

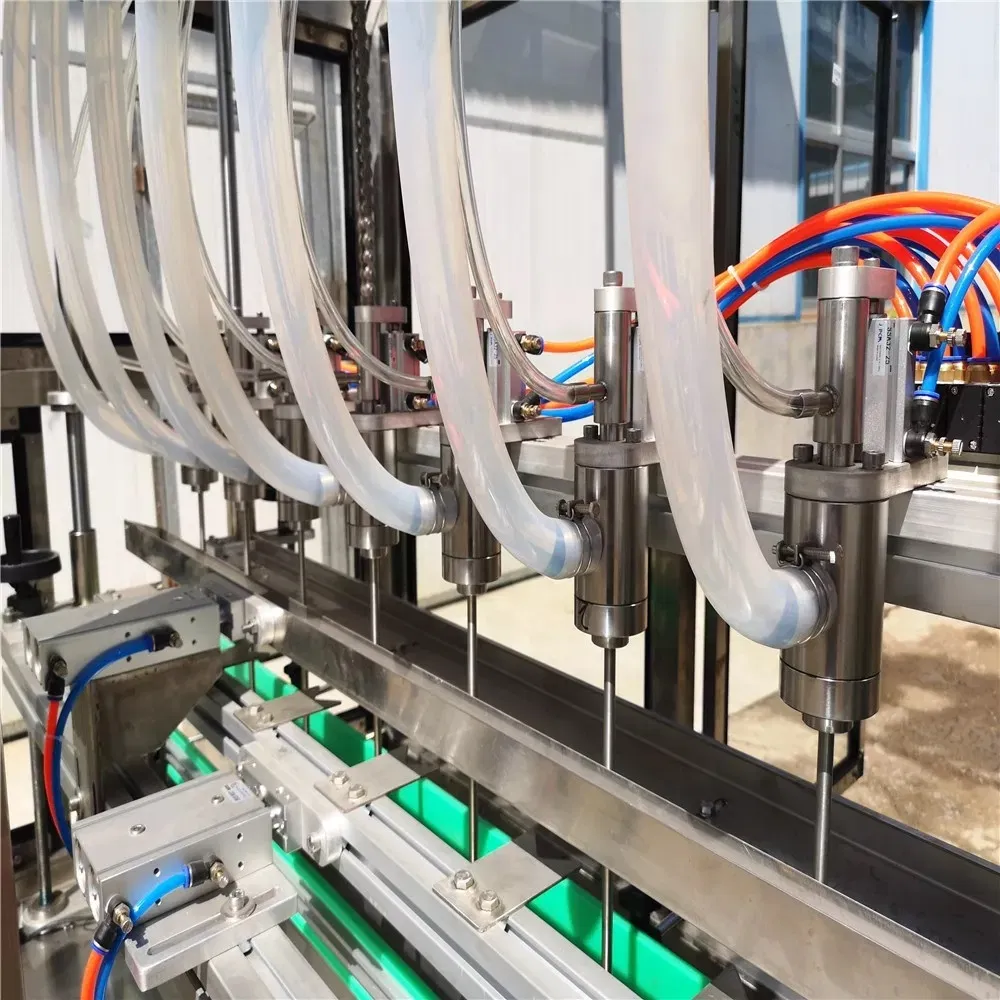

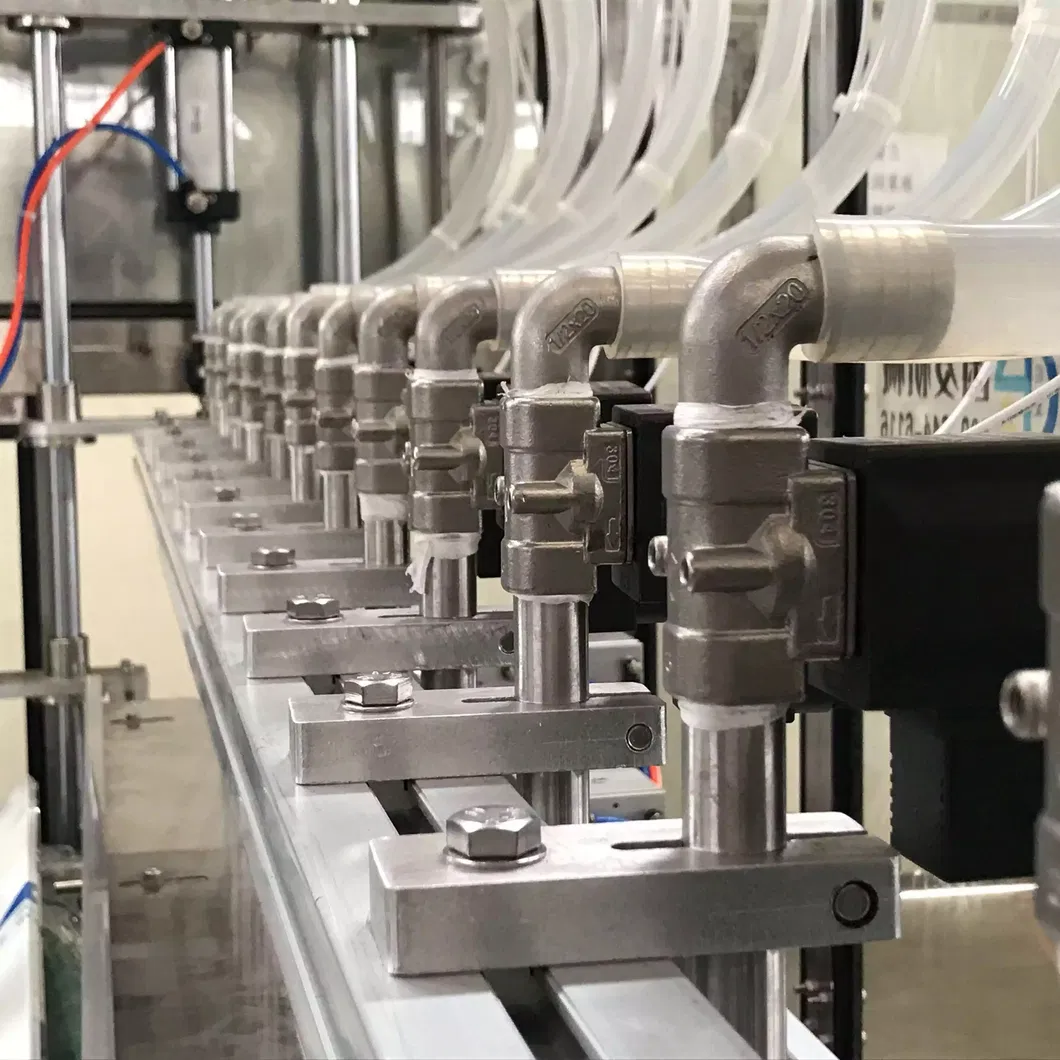

Filling Machine Part

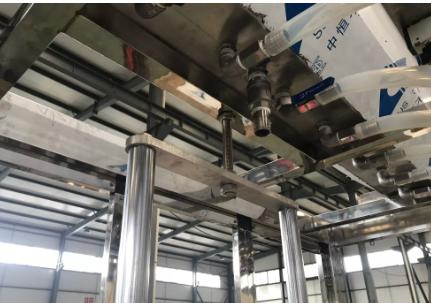

Uses linear arrangement principle; special silicone hoses with professional solenoid valves and stainless steel nozzles ensure rust resistance and durability.

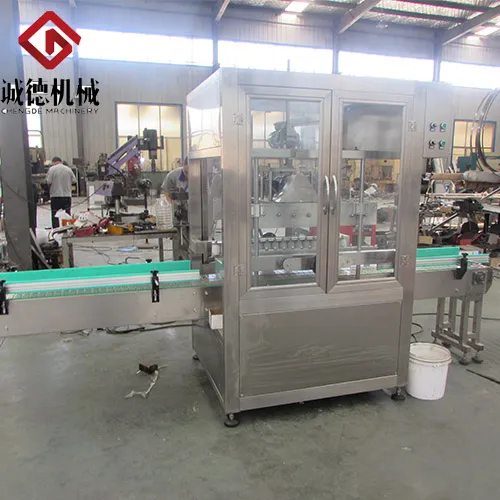

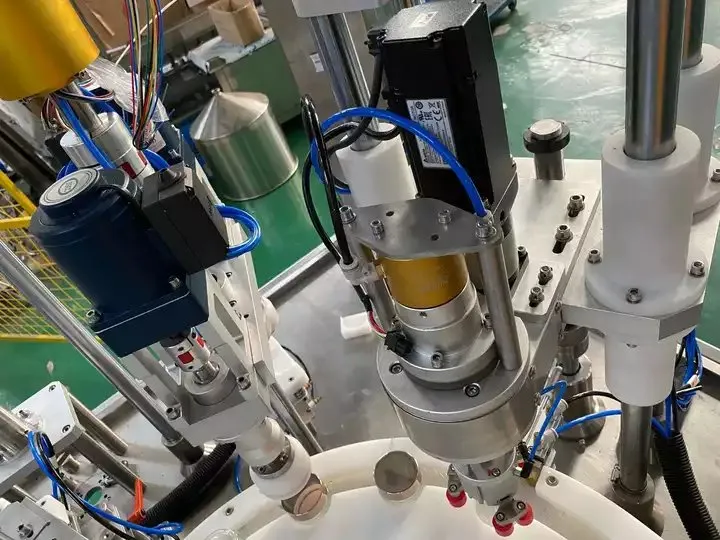

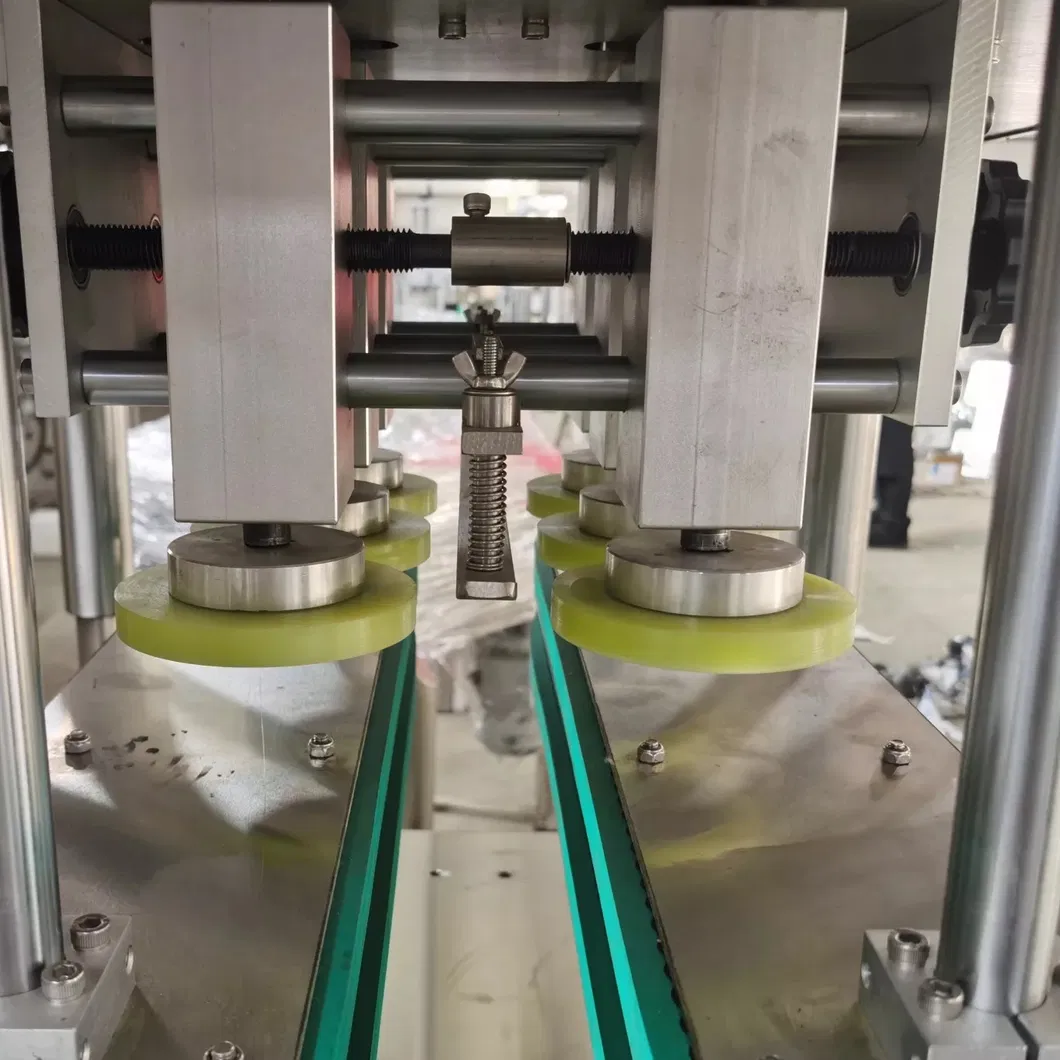

Capping Machine Part
Intelligent touch screen control with automatic induction screw capping. Suitable for a variety of bottle caps with no leakage.

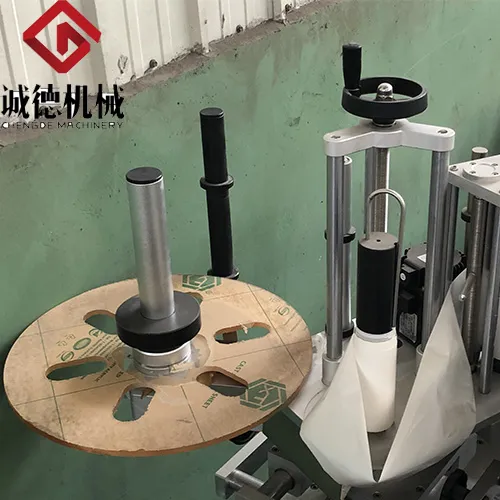

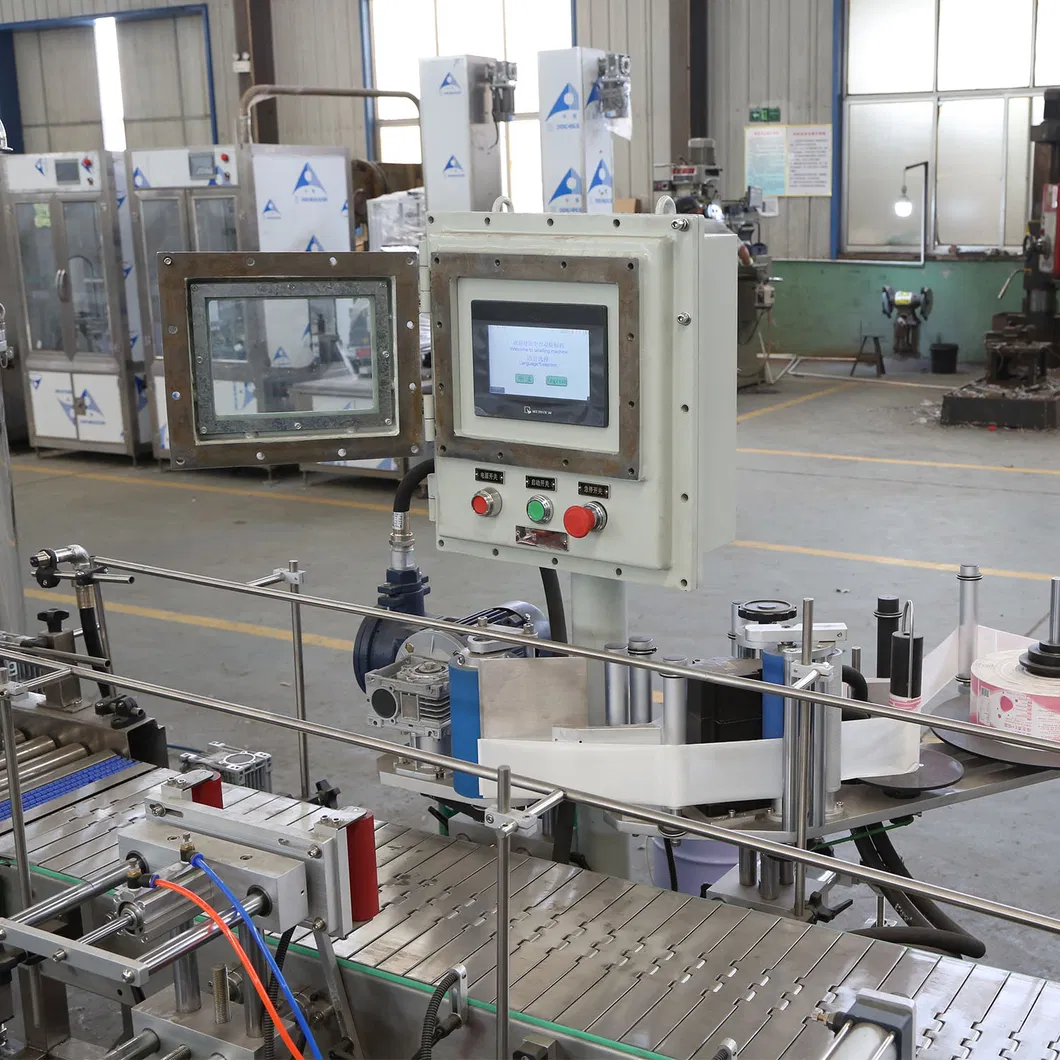

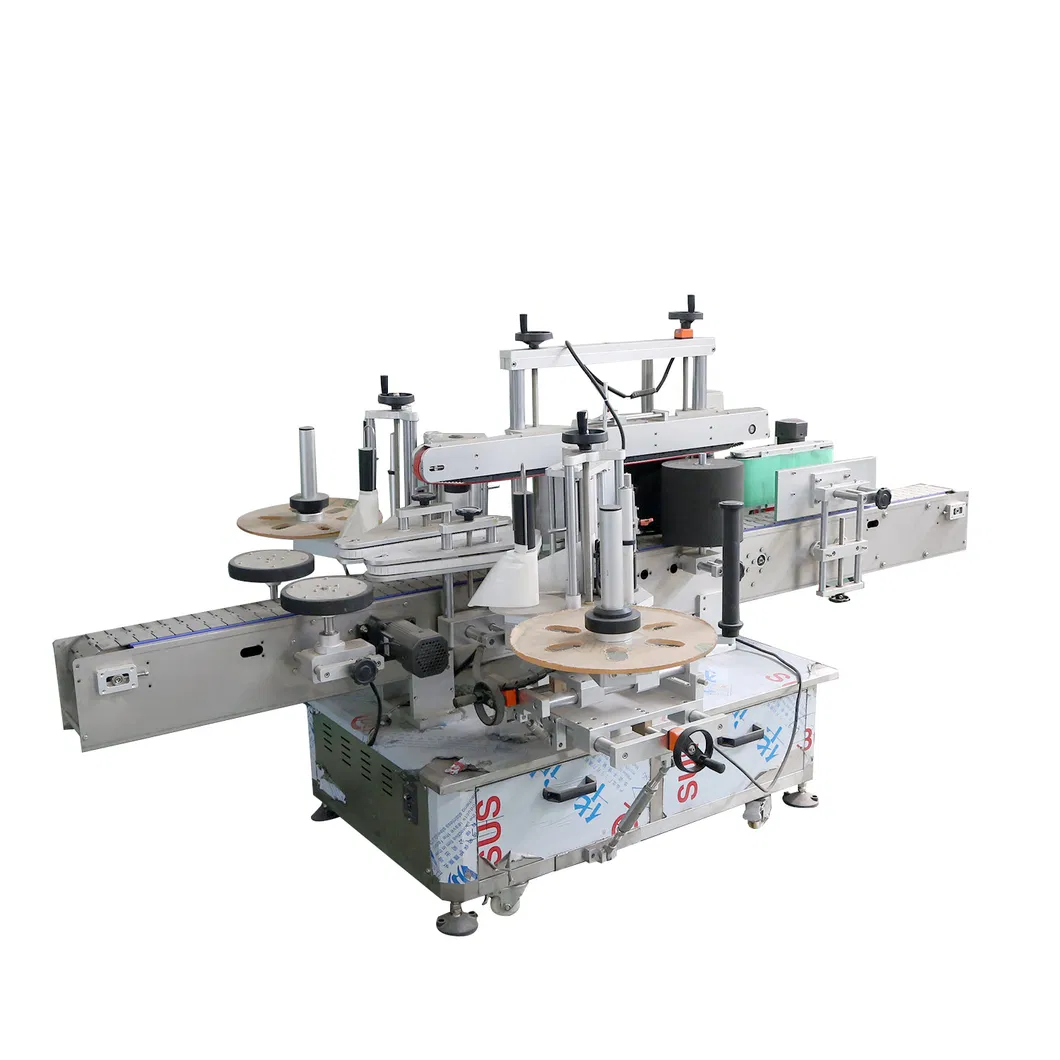

Labeling Machine Part
Stainless steel and anodized aluminum construction meeting GMP standards. Features bottle guide, separation, and counting functions.

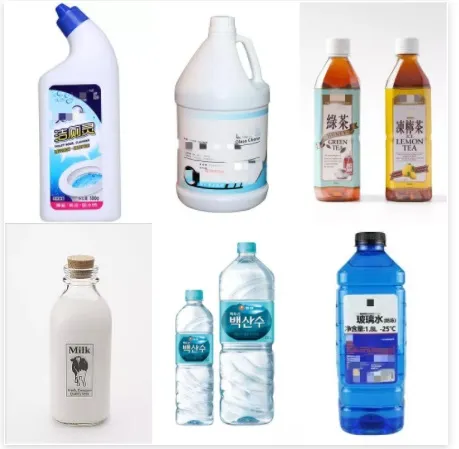

Wide Application
Plant Oil: Lubricant oil, engine oil, gear oil, etc.
Daily Chemicals: Liquid soap, toilet cleaner, laundry detergent, hand sanitizer, shampoo, body soap.
Food Industry: Tomato paste, honey, edible cooking oil, juice, sauce.
Cosmetics: Toner, lotion, cream, body milk.
Production Line & Quality
Our production lines adopt automation technology with imported PLC, frequency converters, and pneumatic components. All machines are built to export standards with relevant certifications.
Service & Logistics
- Free Testing: Send us your bottle samples for pre-debugging and video review.
- Warranty: One-year warranty with free spare parts.
- Training: Free training and installation guidance supported.
- Packing: PE film wrapped followed by exported wooden cases.
- Delivery: Within 20-25 days upon receipt of payment.
Frequently Asked Questions
How do you guarantee the quality of the filling machines?
We always provide a pre-production sample before mass production and conduct a final inspection before shipment to ensure all components meet our strict quality standards.

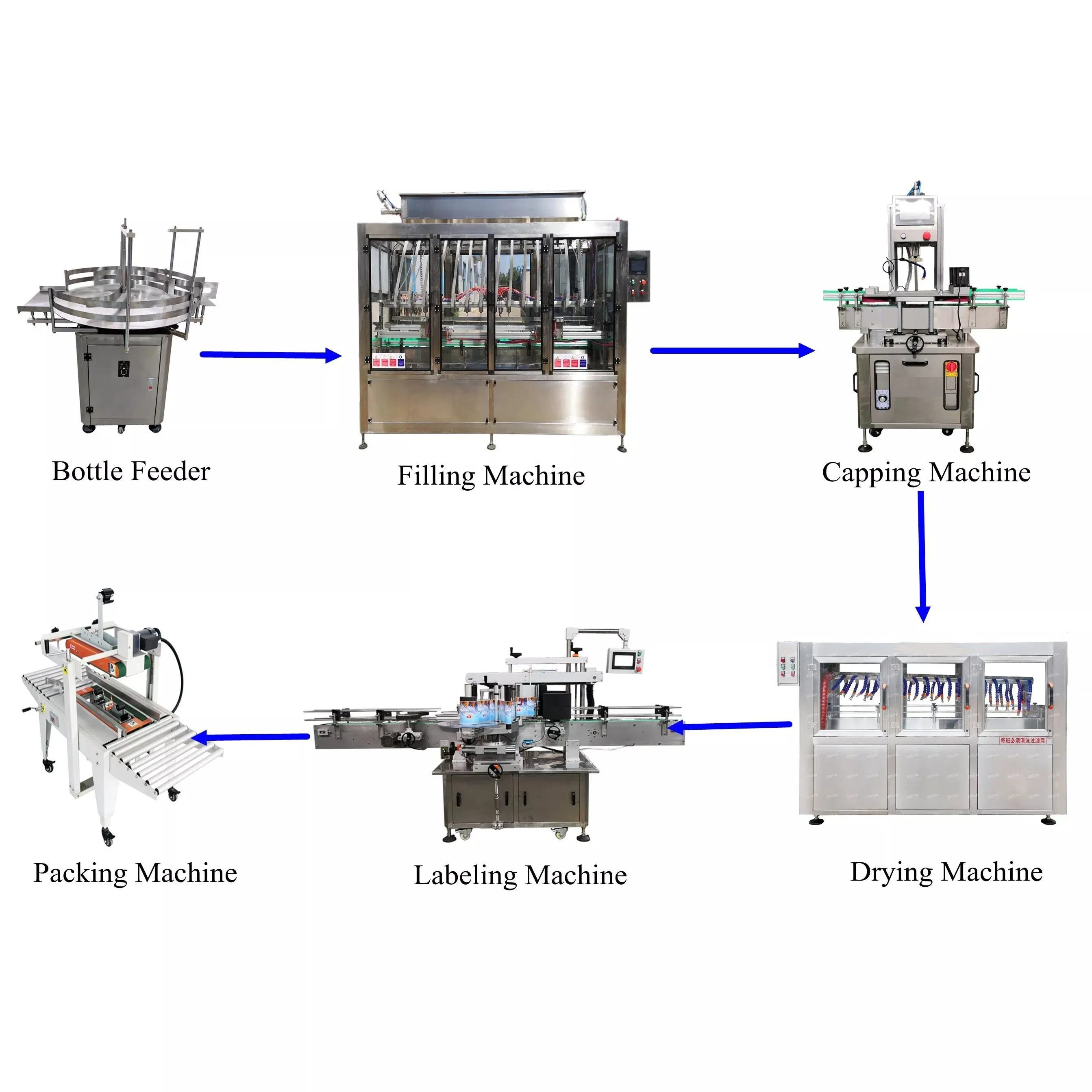

What types of products can I purchase for a complete line?
We offer a full range of equipment including Liquid Filling Machines, Capping Machines, Labeling Machines, Bottle Washing Machines, and Sealing Machines for a complete A-to-Z production line.
Why should I choose your gravity filling machine over others?
We are an original manufacturer with over 20 years of experience. We provide direct sales, competitive pricing, one-year after-sales service, and full support for OEM/ODM customization.
What payment and delivery terms do you accept?
We accept various delivery terms including FOB, EXW, and CIF. Accepted payment methods include T/T, L/C, Credit Card, and Western Union in multiple currencies like USD, EUR, and CNY.
Can the machine be customized for specific bottle sizes?
Yes, the applicable bottle height (160-360mm) and diameter (Φ50-Φ100) can be customized to meet your specific production requirements.
Do you provide international shipping and installation?
We ship globally via sea, air, or express from ports like Qingdao and Shanghai. We also provide documentation for customs and support installation through free training and guidance.
