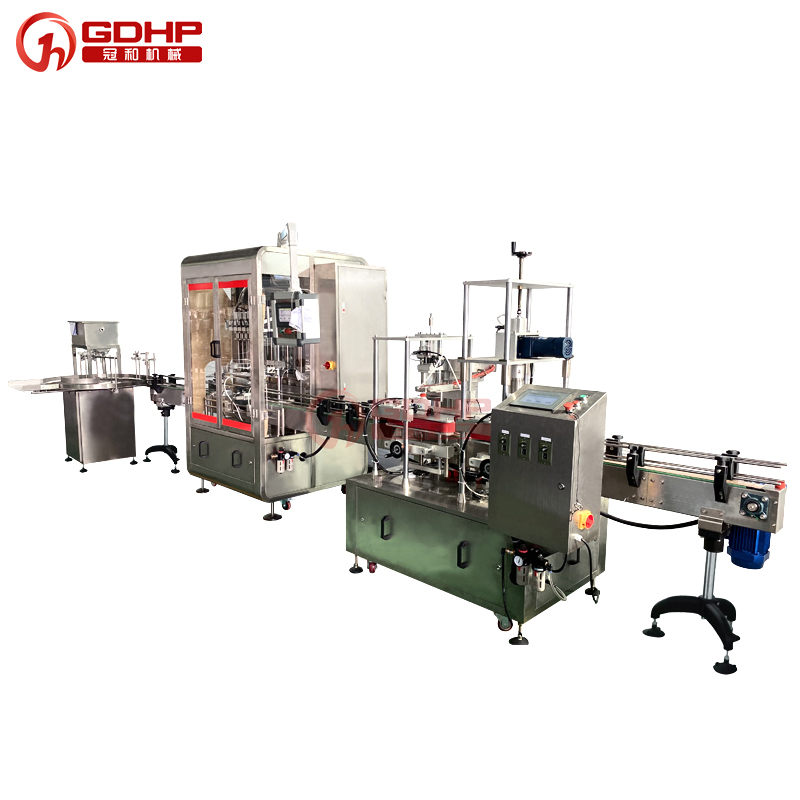

Professional Custom Shampoo Overflow Liquid Filling Six Nozzles Stainless Filling Machine Price

Customization: Available
After-sales Service: Have
Warranty: Have

Product Description

i

Basic Specifications

Type
Volumetric Filling Machine
Automatic Grade
Fully Automatic
Material Type
Liquid
Filling Valve
Multi-Head
Dosing Device
Plunger
Filling Principle
Atmospheric Pressure
Structure
Linear
Packaging
Bottle
Control System
PLC Control
Material
SUS304 or 316L
Capacity
50PCS/Month
HS Code
9422301090

Product Description

Introduction:

This series linear backflow defoaming liquid filler is suitable for various liquids that are easy to foam while filling as well as no foaming liquids. It is widely used in food, chemicals, pesticides, and pharmaceuticals fields. It can be used separately or linked to production lines. It is known as a fast and reliable defoaming filler.

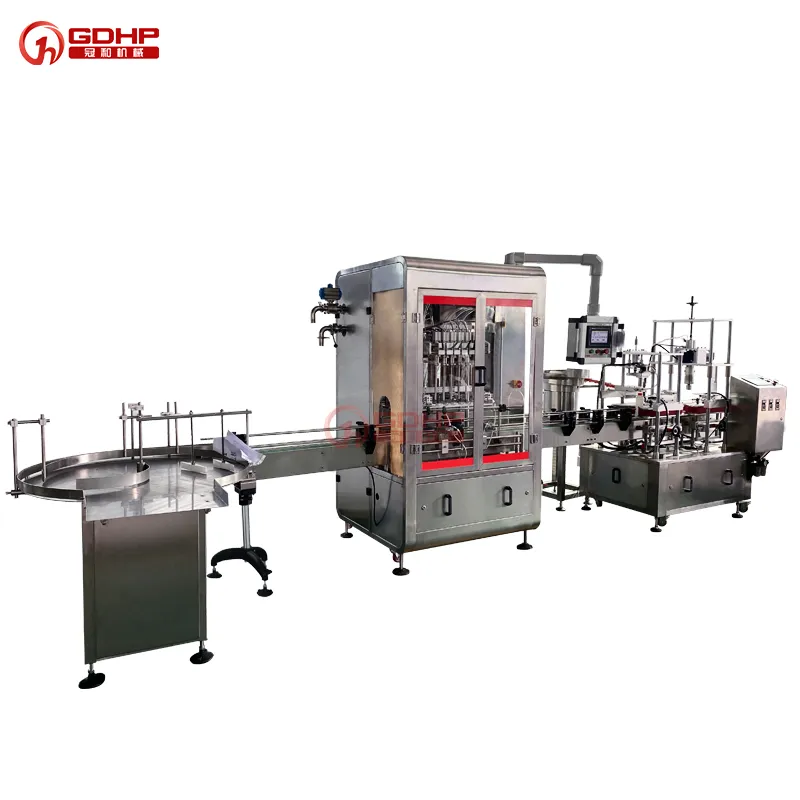

Linear Backflow Defoaming Liquid Filler

Key Features:

  • Adopting centrifugal pump to fill and backflow filling nozzles to suck-back foams, preventing overflow and drop leakage.
  • Equipped with a lower-position storage tank, making it convenient to clean and sterilize the machine.
  • Using bottleneck-clipping device ensures accurate positioning of filling-nozzles inside the bottle.
  • Easy and convenient to adjust filling dosage and change bottles of different sizes.
  • Totally in accordance with GMP requirements.

Technical Parameters

Item GHALF-4 GHALF-6 GHALF-8 GHALF-12 GHALF-16
Filling nozzle 4 6 8 12 16
Filling scope 50-500ml
Capacity (250ml) 25-30BPM 40-45BPM 50-60BPM 70-80BPM 90-100BPM
Precision ≤±2%
Air pressure 0.4~0.6MPa
Voltage/Power 220V 50/60Hz ≤3KW
N.W. 500kg 800kg 1000kg 1300kg 1500kg
Machine Detail

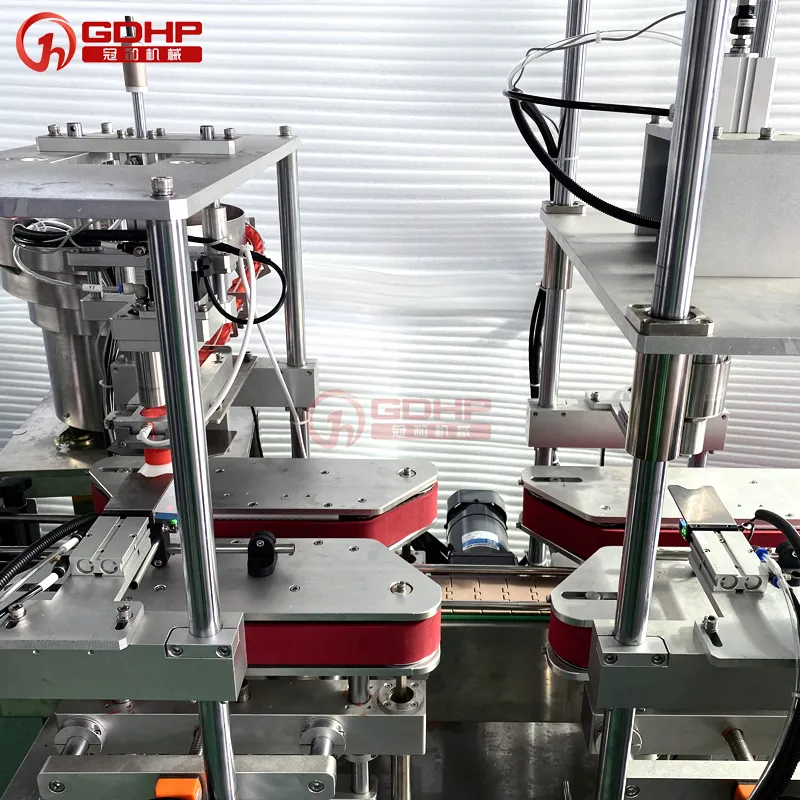

Automatic Components:

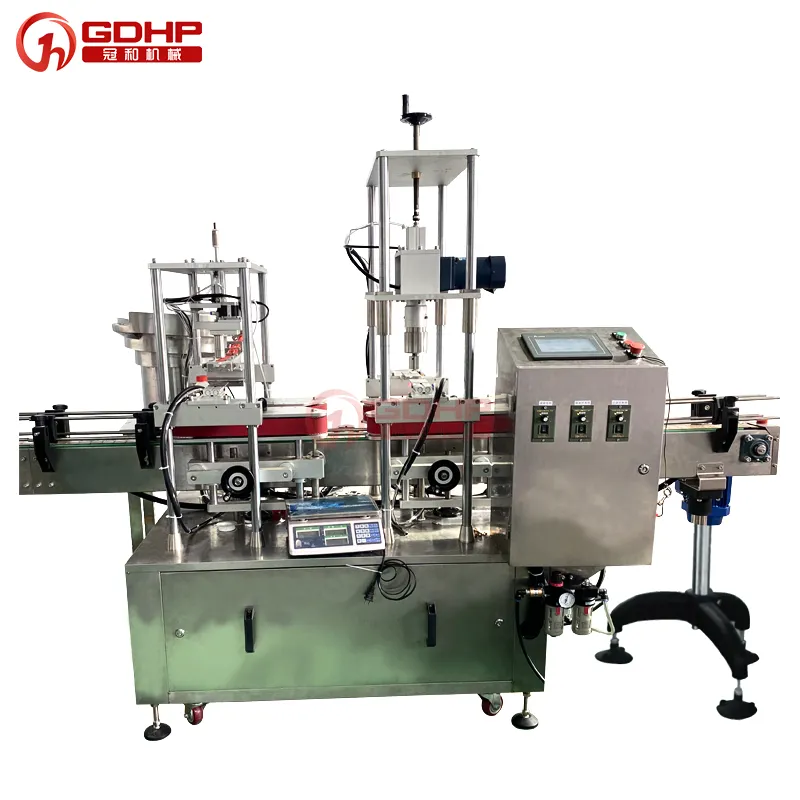

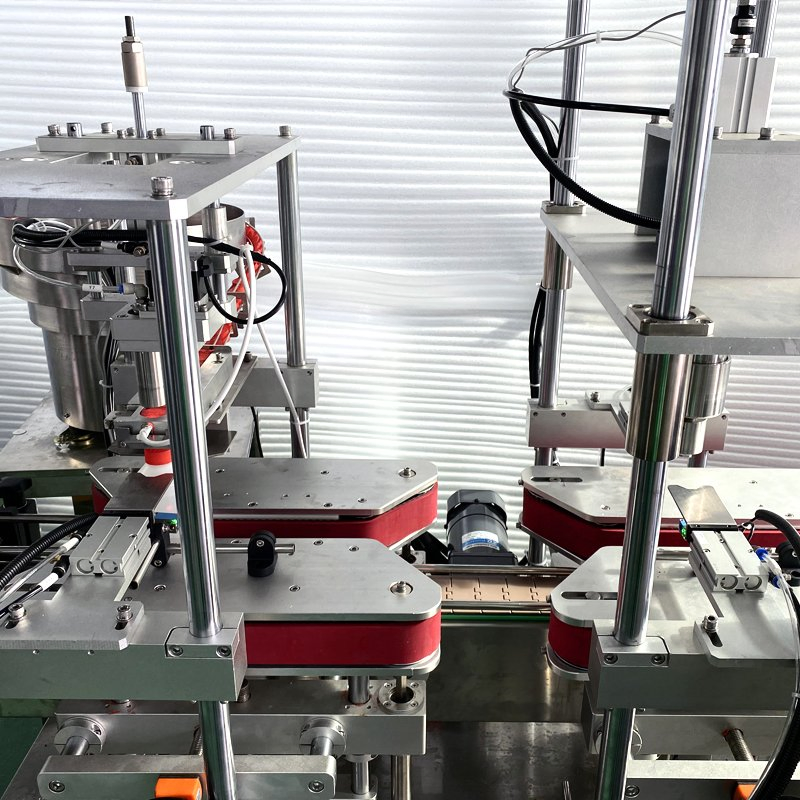

Automatic bottle unscrambler and single head capping machine integration.

Quality Inspection: Six heads over foam system.

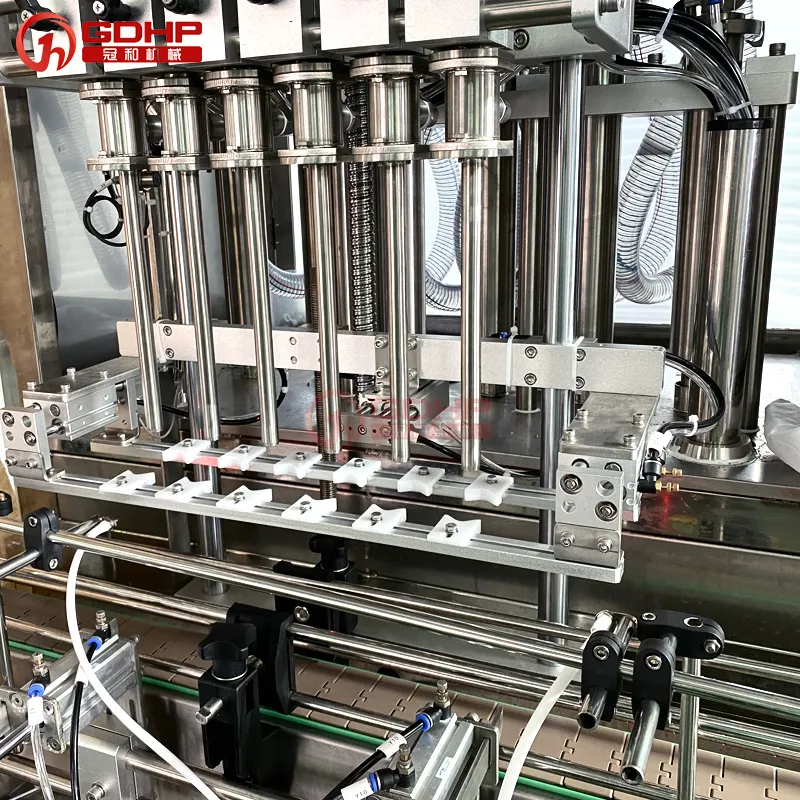

Six Heads Over Foam
🏭

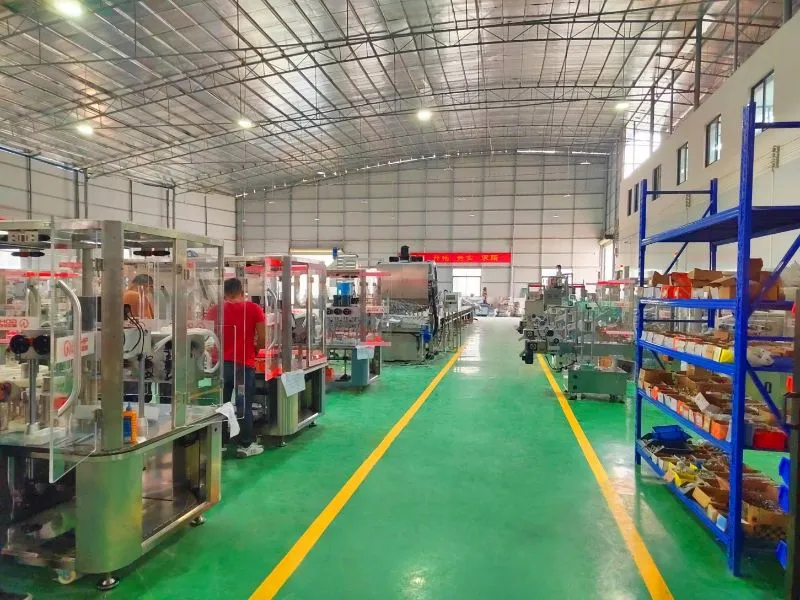

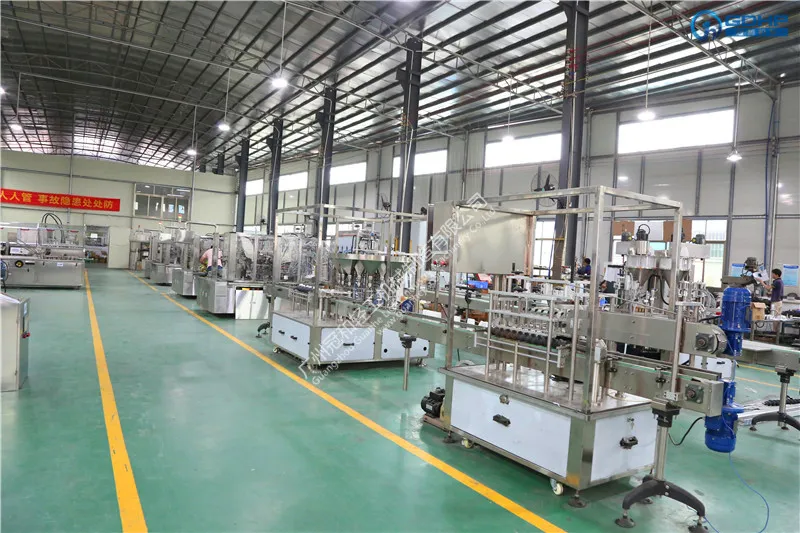

Factory Overview

With twenty years of professional experience in developing, manufacturing, and selling various filling, packing, labeling, capping, and sealing production lines. These solutions are widely used in food, beverages, cosmetics, pharmaceuticals, and chemical industries. Filling lines are customized according to materials, bottle types, and production requirements to help improve competitiveness.

📦

Package and Delivery

Packaging and Delivery
?

Frequently Asked Questions

What types of liquids can this machine fill?
It is designed for both easy-to-foam liquids and non-foaming liquids across food, chemical, pesticide, and pharmaceutical industries.
How does the defoaming system work?
The machine uses a centrifugal pump for filling and specialized backflow nozzles to suck back foam, preventing overflow and leakage.
Is the filling machine GMP compliant?
Yes, the entire structure and manufacturing process are totally in accordance with GMP requirements.
Can I adjust the filling volume for different bottle sizes?
Yes, the filling dosage is easy to adjust, and the bottleneck-clipping device ensures accurate positioning for various bottle sizes.
What material is used for the machine construction?
The machine is constructed using high-quality SUS304 or SUS316L stainless steel for durability and hygiene.
What is the production capacity of this series?
Depending on the model (from 4 to 16 heads), the capacity ranges from 25 BPM to 100 BPM for 250ml bottles.
