Low Viscosity Liquid Bottle Filling Machine for Pesticides (50-1000ml) with Microcomputer Control and Anti-Corrosion Features
Low Viscosity Liquid Bottle Filling Machine for Pesticides (50-1000ml) with Microcomputer Control and Anti-Corrosion Features
Low Viscosity Liquid Bottle Filling Machine for Pesticides (50-1000ml) with Microcomputer Control and Anti-Corrosion Features
Low Viscosity Liquid Bottle Filling Machine for Pesticides (50-1000ml) with Microcomputer Control and Anti-Corrosion Features
Low Viscosity Liquid Bottle Filling Machine for Pesticides (50-1000ml) with Microcomputer Control and Anti-Corrosion Features
1 / 5
Low Viscosity Liquid Bottle Filling Machine for Pesticides (50-1000ml) with Microcomputer Control and Anti-Corrosion Features
Low Viscosity Liquid Bottle Filling Machine for Pesticides (50-1000ml) with Microcomputer Control and Anti-Corrosion Features
Low Viscosity Liquid Bottle Filling Machine for Pesticides (50-1000ml) with Microcomputer Control and Anti-Corrosion Features
Low Viscosity Liquid Bottle Filling Machine for Pesticides (50-1000ml) with Microcomputer Control and Anti-Corrosion Features
Low Viscosity Liquid Bottle Filling Machine for Pesticides (50-1000ml) with Microcomputer Control and Anti-Corrosion Features

Low Viscosity Liquid Bottle Filling Machine for Pesticides (50-1000ml) with Microcomputer Control and Anti-Corrosion Features

Customization: Available
After-sales Service: Online&Visit Service
Warranty: 1year
Send Inquiry

Product Description

Basic Information
Model NO.
CDP-16E
Type
Weighing-type Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Filling Principle
Pressure
Packaging
Bottle
Inlet Height
2560mm
Inlet Diameter
Φ34mm
Air Source
0.6-0.8MPa
External Dimension
2835×880×2390mm
Weight
400kg
Product Description

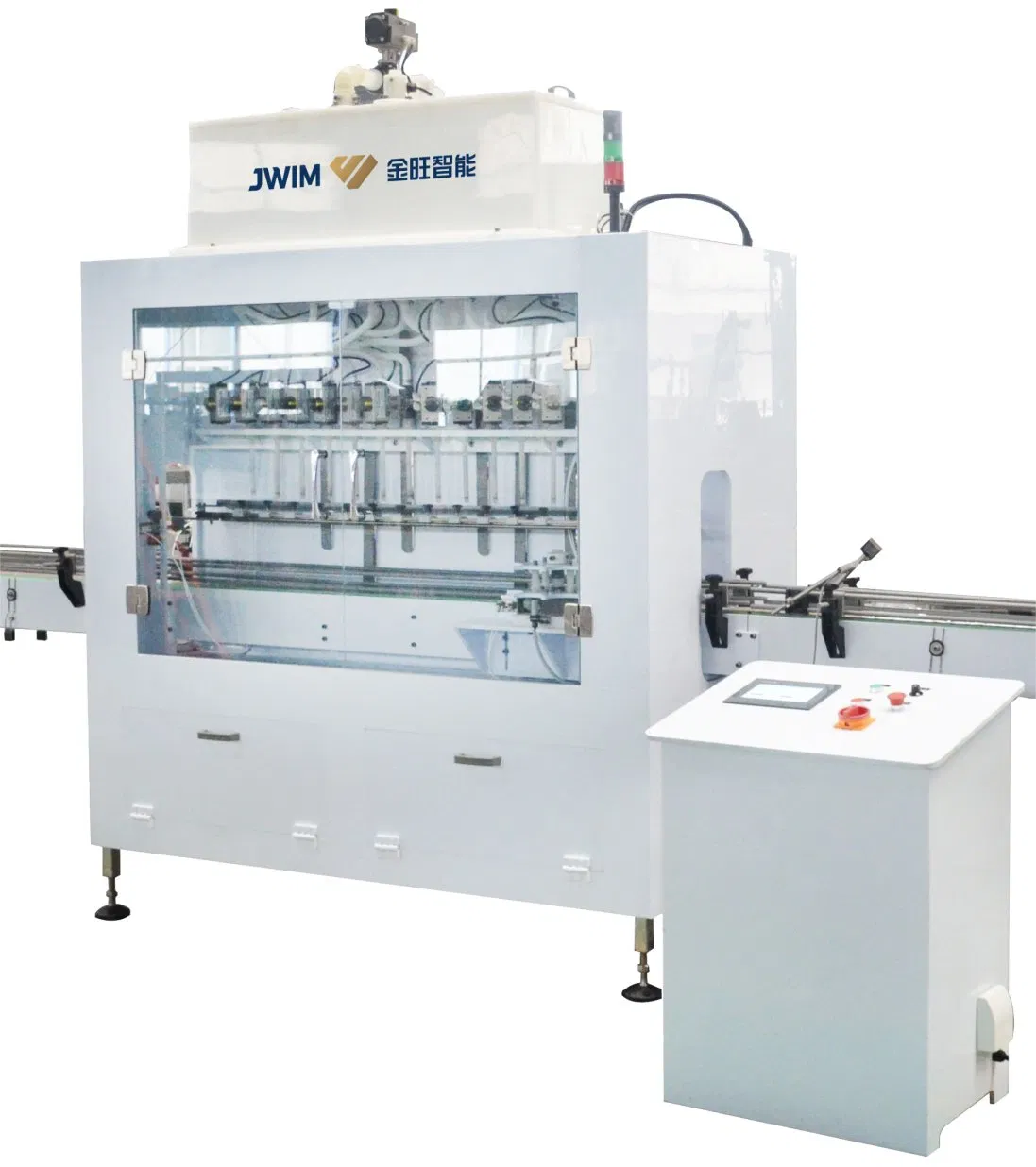

Microcomputer In-line Anti-corrosion Gravity Filling Machine
For Packing Es, Sc Material with Good Fluidity for pesticides, veterinary drugs, daily chemicals, fertilizer

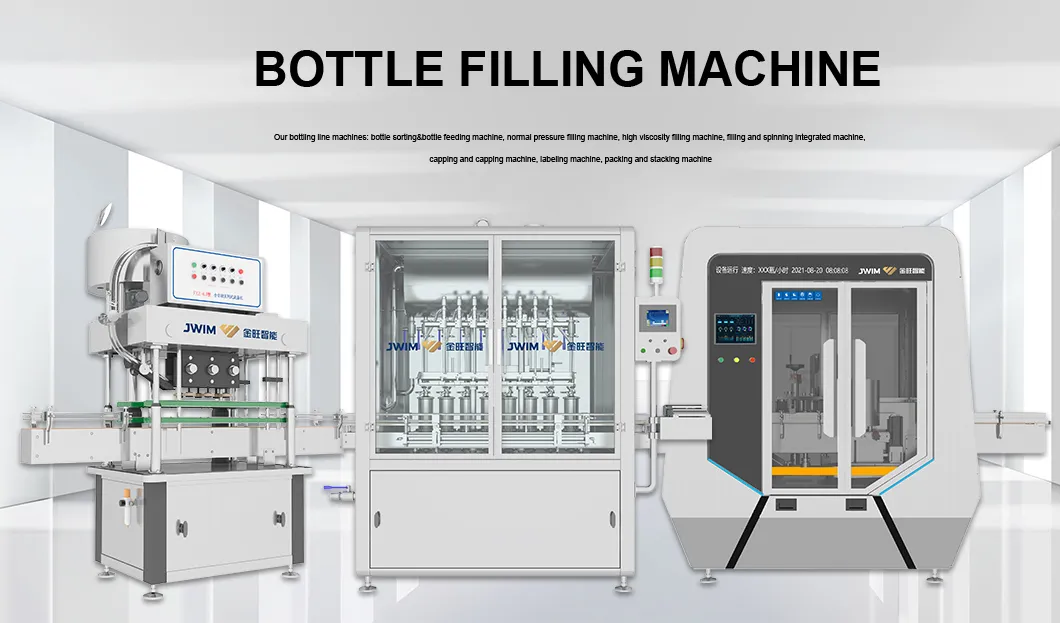

Gravity Filling Machine

Introduction: CDP-16E microcomputer in-line anti-corrosion gravity filling machine is suitable for filling materials with good fluidity. The whole machine features an in-line structure, adopting the metering and filling principle of keeping liquid level constant (constant speed) and timing mode to realize precise filling. Controlled by PLC with a touch-type man-machine interface for easy operation.

Machine Details
Technical Drawings & Parameters

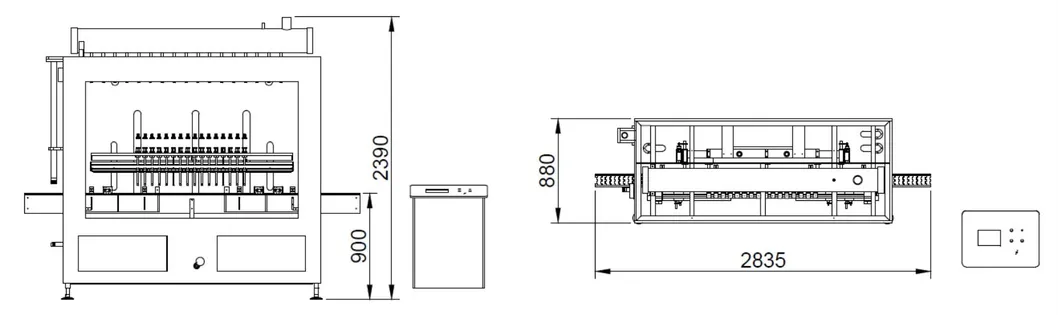

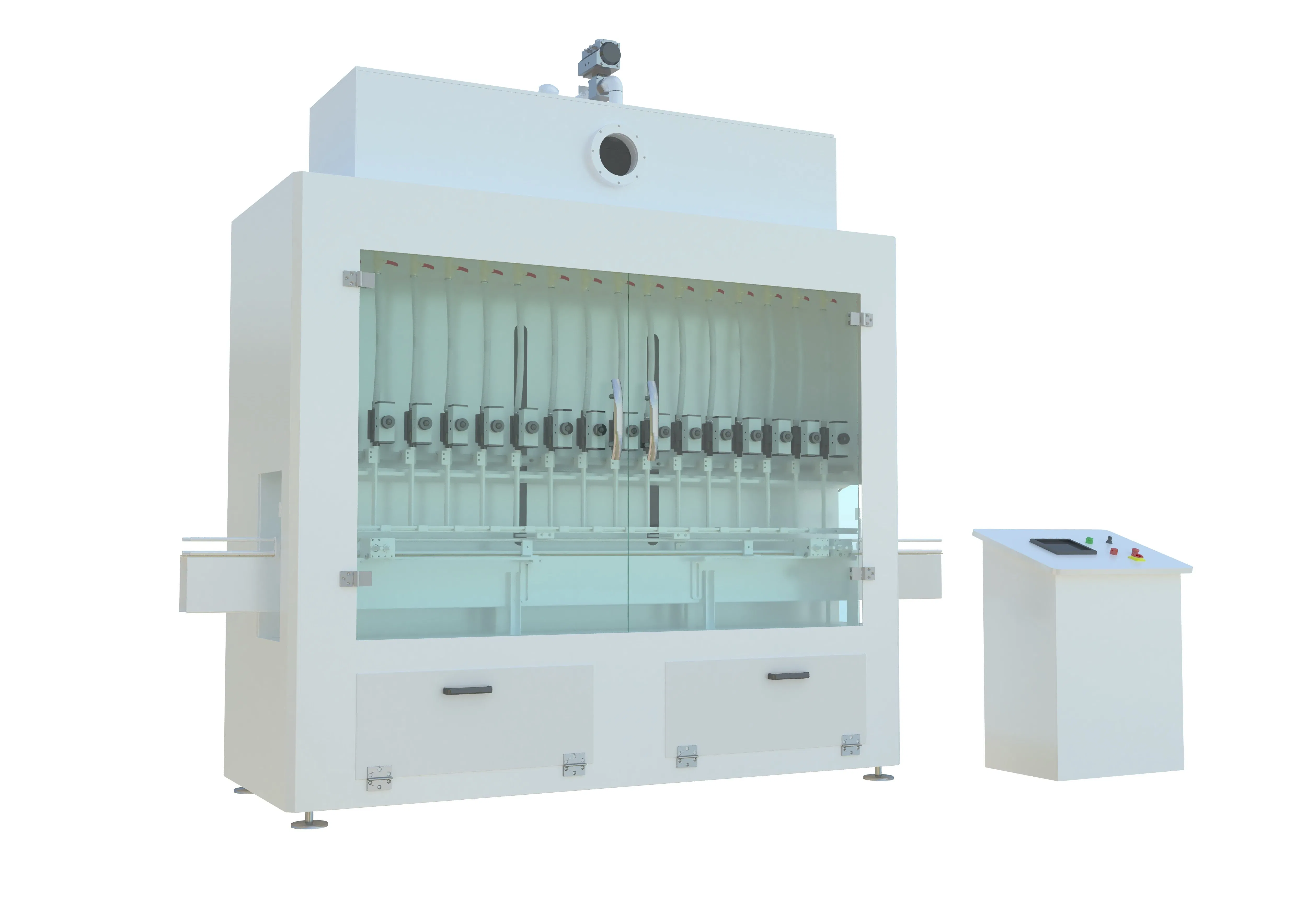

Technical Drawings
Filling Capacity100ml bottle ≤5500BPH | 500ml bottle ≤3200BPH | 1000ml bottle ≤2400BPH
Applied BottlesRound bottle: Φ40-95mm, height 80-230mm
Filling Error±1g (50-200mL), ±2g (200-500mL), ±3g (500-1000mL)
Inlet Height/Dia2560mm / Φ34mm
Air Source0.6-0.8MPa
Power Source~380V 50Hz/0.7KW
Dimensions/Weight2835×880×2390mm / ~400Kg

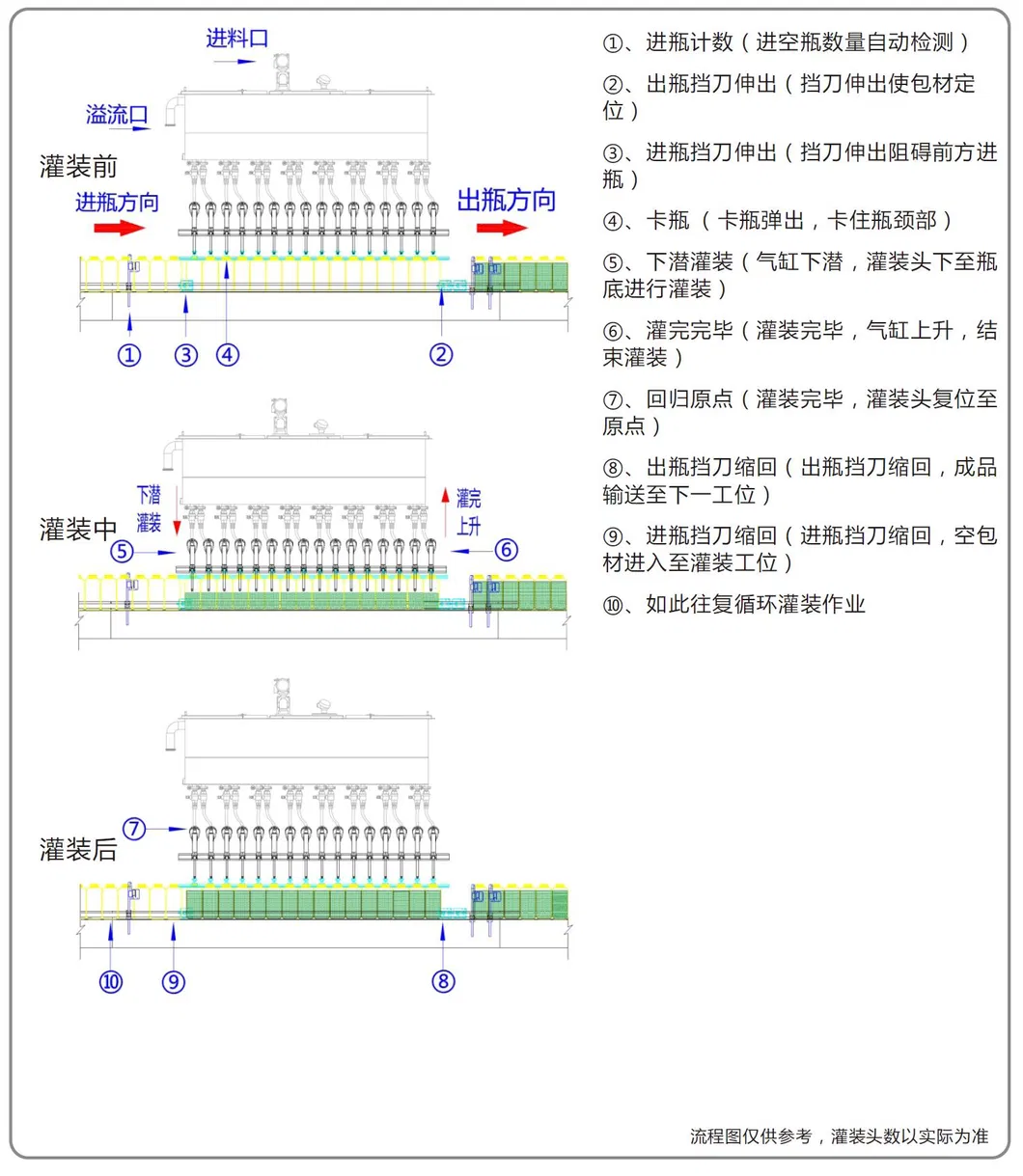

Process Flow
Process Flow

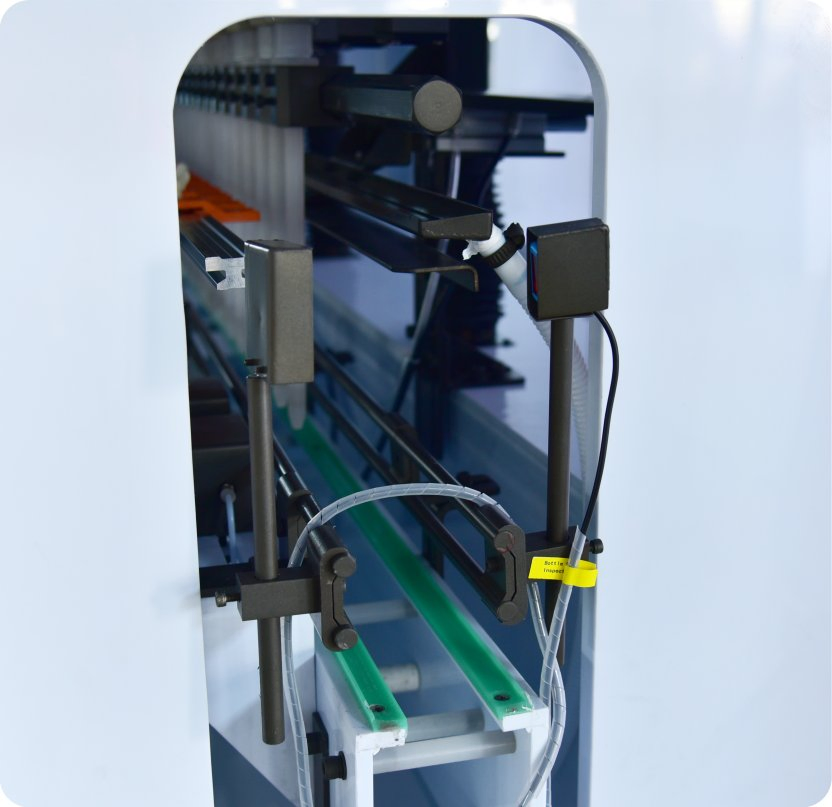

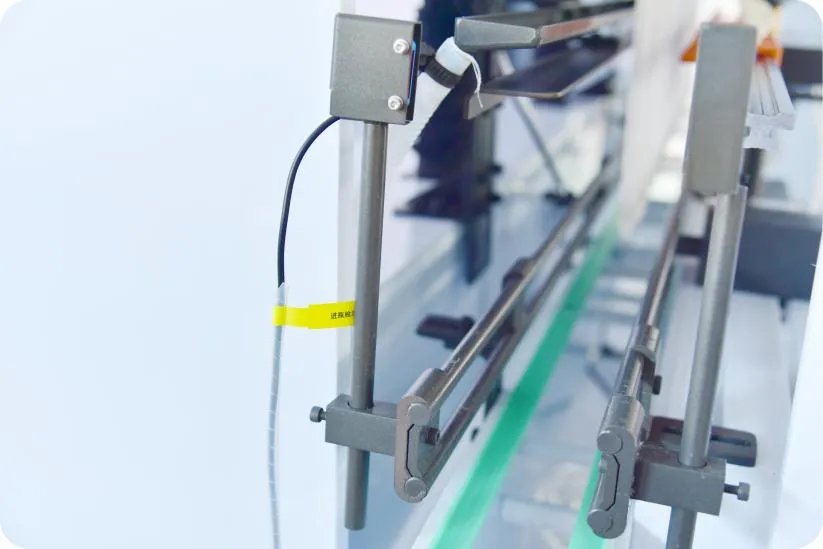

  1. Bottle in counting (Automatically inspecting quantity)
  2. Bottle out block (Positioning packing material)
  3. Bottle in block (Stop incoming bottles)
  4. Bottle neck block (Secure bottle neck)
  5. Diving filling (Nozzle dives to bottom)
  6. Raise after finishing (Nozzle raises)
  7. Back to starting position
  8. Bottle out block release (Convey to next position)
  9. Bottle in block release (Empty material conveyed in)
  10. Cycle completion
Advanced Features
  • Corrosion Resistance: External frame, material box, feed pipe, and filling heads are made of anti-corrosion PP material.
  • Teflon Treatment: Liquid accumulation tank, actuator parts, and exhaust pipes feature Spray Teflon Treatment.
  • Safe Environment: Independent electrical box with toughened glass door and air exhaust system to discharge waste gas.
  • Diving Filling: Air cylinder diving method reduces foam and prevents bottle mouth contamination.

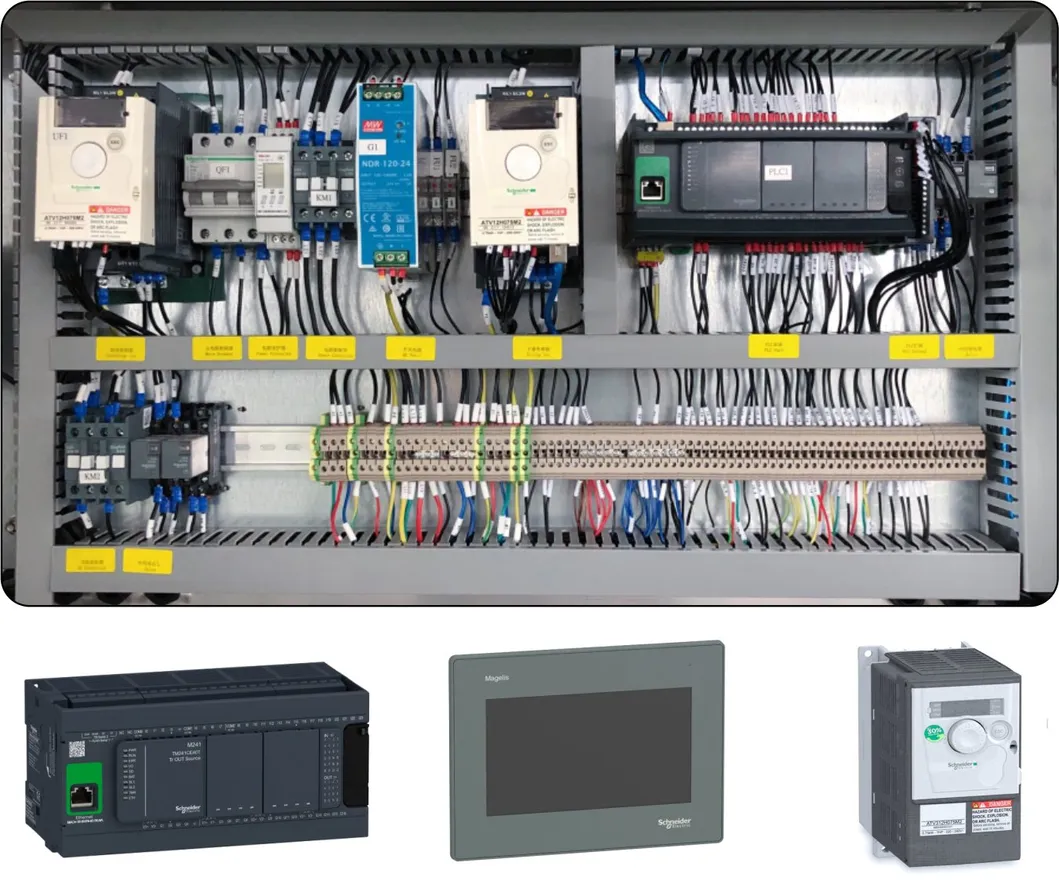

  • Schneider Configuration: Integrated Electric Control System for stability and low energy consumption.

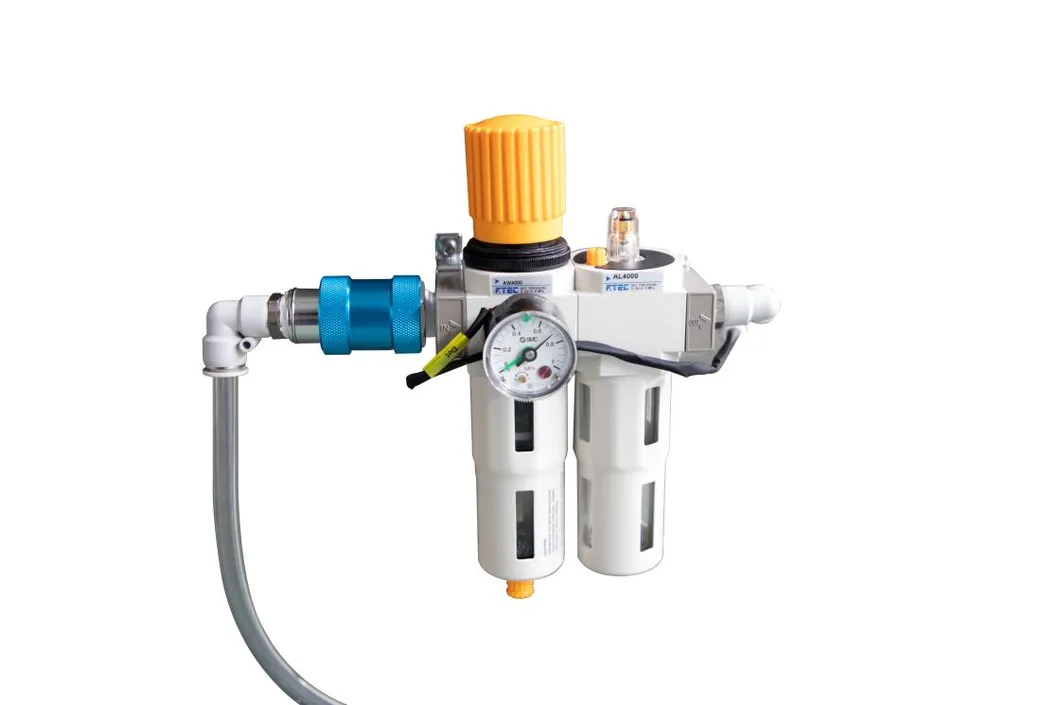

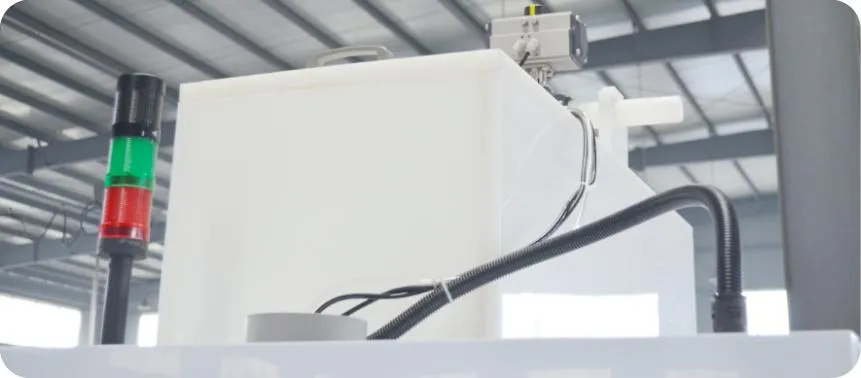

  • Intelligent Detection: Multi-channel system for high/low liquid levels and SMC Japan air pressure testing with auto-stop alarms.

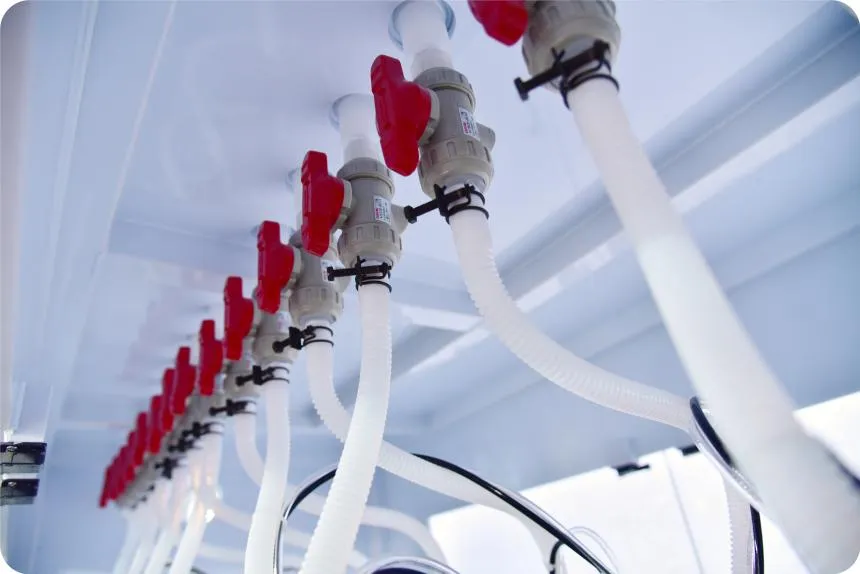

Feature 1

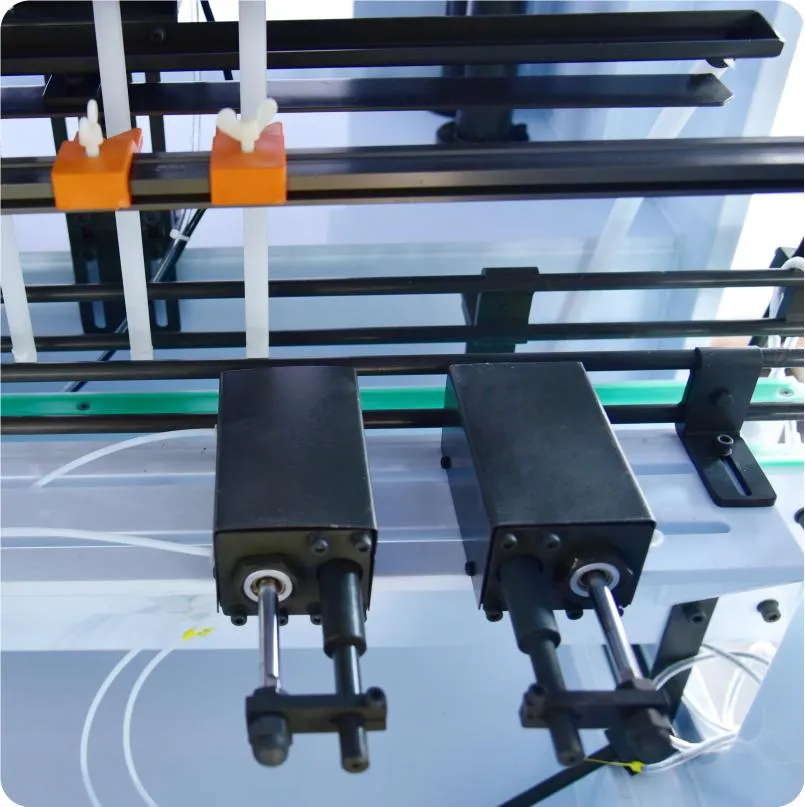

Feature 2

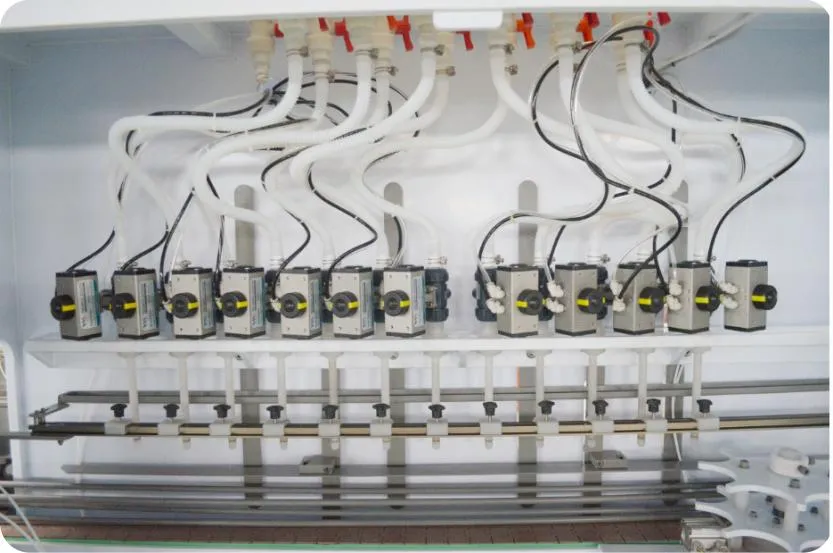

Feature 3
Feature 4
Feature 5
Feature 6
Feature 7
Feature 8
Application Scenarios
Applications
Professional Capabilities

A professional manufacturer engaged in agricultural and animal husbandry intelligent factories. We are a high-tech enterprise integrated with R&D, manufacturing, marketing, and service. Our products focus on the agriculture and animal husbandry industry, backed by more than 100 patent certificates.

Our solutions include intelligent processing, packaging, storage, and general control. We provide professional services to more than 3,000 customers globally, exporting to more than 50 countries. With a dedicated team of service engineers, we ensure remote and on-site support for intelligent factory transformation.

Factory View
Certifications
Frequently Asked Questions
What types of liquids can the CDP-16E handle?
It is specifically designed for liquids with good fluidity, such as pesticides, veterinary drugs, daily chemicals, and fertilizers.
How does the machine ensure corrosion resistance?
The machine uses high-quality PP (polypropylene) for the frame and filling components, and critical parts are treated with Spray Teflon for maximum durability against corrosive materials.
What is the filling accuracy of this machine?
The filling error is highly controlled: ±1g for 50-200mL, ±2g for 200-500mL, and ±3g for 500-1000mL volumes.
Is the machine suitable for foaming materials?
Yes, the filling head uses a diving method (bottom-up filling), which significantly reduces foam generation and prevents bottle mouth contamination.
What safety features are integrated into the system?
It includes an independent electrical box, an air exhaust system for waste gas, and an intelligent detection system that monitors liquid levels and air pressure with automatic alarms.
What bottle sizes are compatible with the CDP-16E?
It supports round bottles with diameters between 40-95mm and heights ranging from 80-230mm.
