Full Automatic Fruit Wine Filling Machine Low Viscosity Liquid Bottling Machine
Full Automatic Fruit Wine Filling Machine Low Viscosity Liquid Bottling Machine
Full Automatic Fruit Wine Filling Machine Low Viscosity Liquid Bottling Machine
Full Automatic Fruit Wine Filling Machine Low Viscosity Liquid Bottling Machine
Full Automatic Fruit Wine Filling Machine Low Viscosity Liquid Bottling Machine
1 / 5
Full Automatic Fruit Wine Filling Machine Low Viscosity Liquid Bottling Machine
Full Automatic Fruit Wine Filling Machine Low Viscosity Liquid Bottling Machine
Full Automatic Fruit Wine Filling Machine Low Viscosity Liquid Bottling Machine
Full Automatic Fruit Wine Filling Machine Low Viscosity Liquid Bottling Machine
Full Automatic Fruit Wine Filling Machine Low Viscosity Liquid Bottling Machine

Full Automatic Fruit Wine Filling Machine Low Viscosity Liquid Bottling Machine

Customization: Available
After-sales Service: Location Installing,Online Guiding
Warranty: 12months
Send Inquiry

Product Description

📋

Basic Information

Model NO.
GZZ-4
Type
Volumetric Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Dosing Device
Plunger
Filling Principle
Atmospheric Pressure
Structure
Linear
Packaging
Bottle
Product Name
Linear Bottled Liquid Filling Machine
Accuracy
0.3%
Specification
30-2000ml
⚙️

Product Description

Full Automatic Fruit Wine Filling Machine
The linear gravity filling system utilizes the gravity overflowing principle. During the filling process, the filling valve dives into the bottom of the bottle and lifts slowly in synchronization with the liquid level. This specialized method ensures stable handling of materials, although the filling speed is designed for precision compared to other linear types.

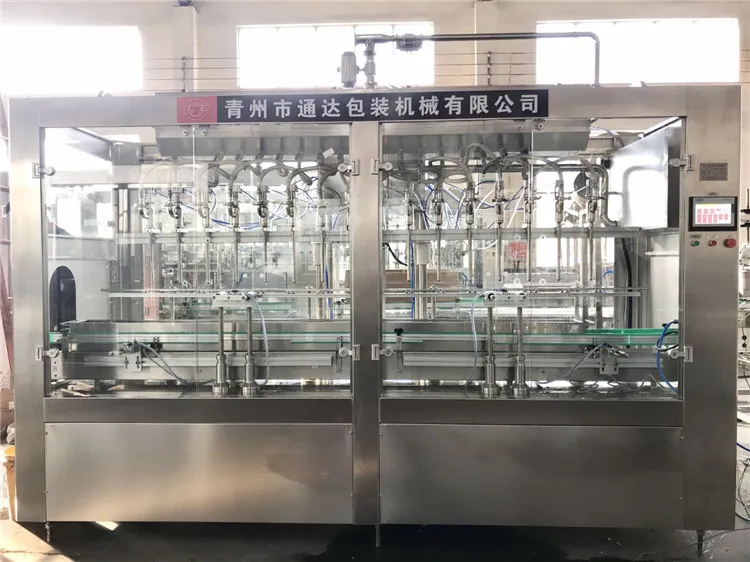

Liquid Bottling Machine Detail

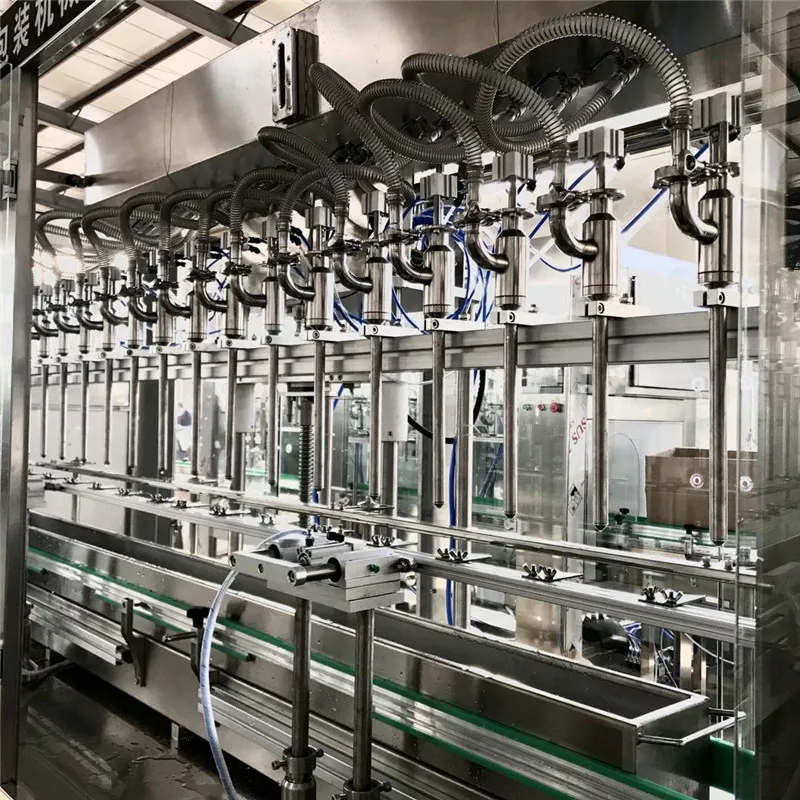

Filling Machine Operation

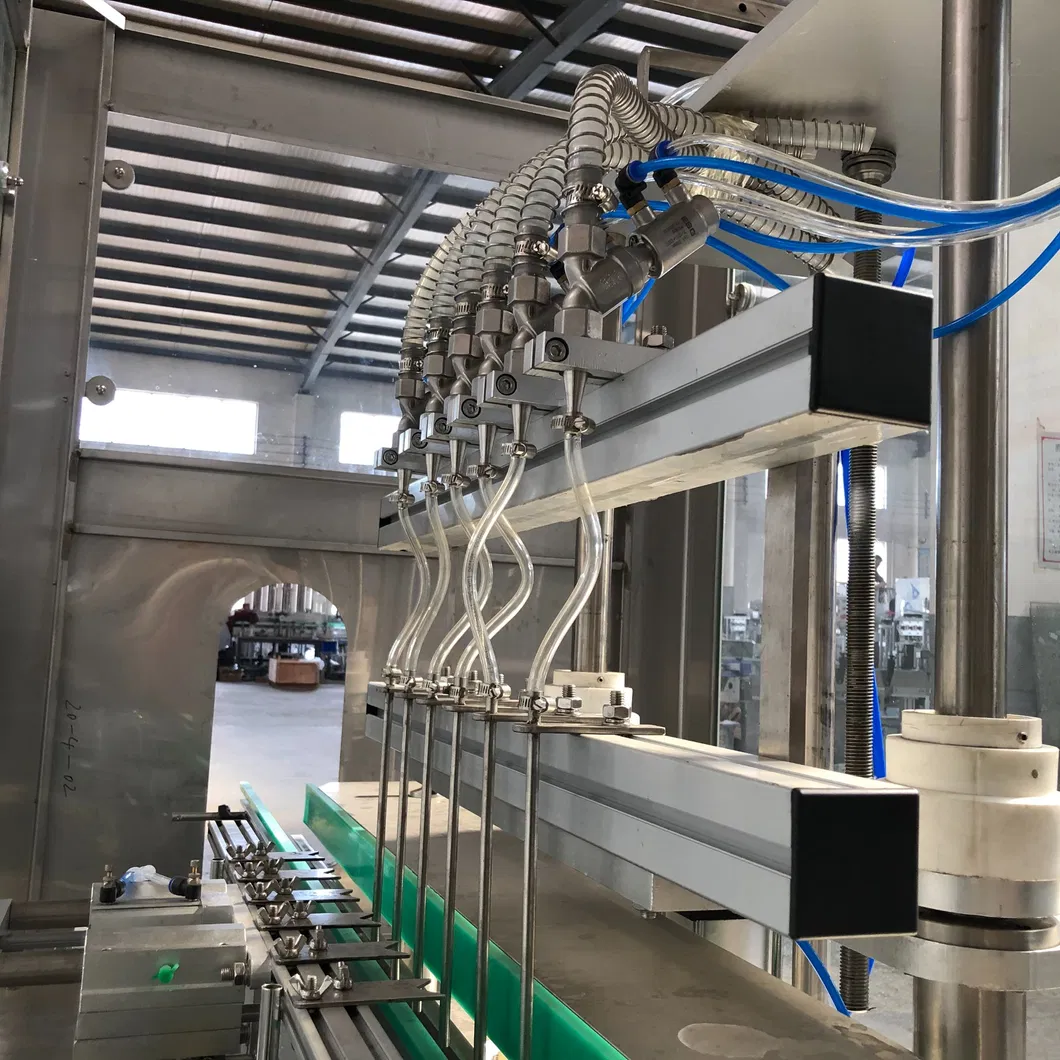

Bottling Process
🔹 Versatile Design: The linear configuration adapts to various bottle shapes. For bottles with smaller bottom diameters, a positioning block can be integrated to ensure stability on the conveyor line.
🔹 Anti-Foaming: The diving valve mechanism effectively prevents liquid from foaming during the filling process.
🔹 Smart Control: Equipped with a PLC and touch screen, the system supports multiple filling volume presets with a memory storage function for quick model switching.
📊

Product Parameters

Parameter Item Technical Specifications
NameAutomatic Linear Gravity Filling Machine
Filling TypeGravity
Filling MaterialsOverflowing Liquid
Filling Volume Range50ml - 20L
Adapted ProductsWine, Spirits, Antifreeze, Juice, Soy Sauce, Vinegar
DimensionsL1500 * W1500 * H2200mm
🏭

Application & Production

This equipment is primarily designed for low-viscosity liquids and overflowing liquids. It is widely used in industries producing spirits, liquor, alcohol, fruit wine, alcohol drinks, soy sauce, vinegar, oral syrup, edible oil, and liquid fertilizers.
Production Line View
Machine Components

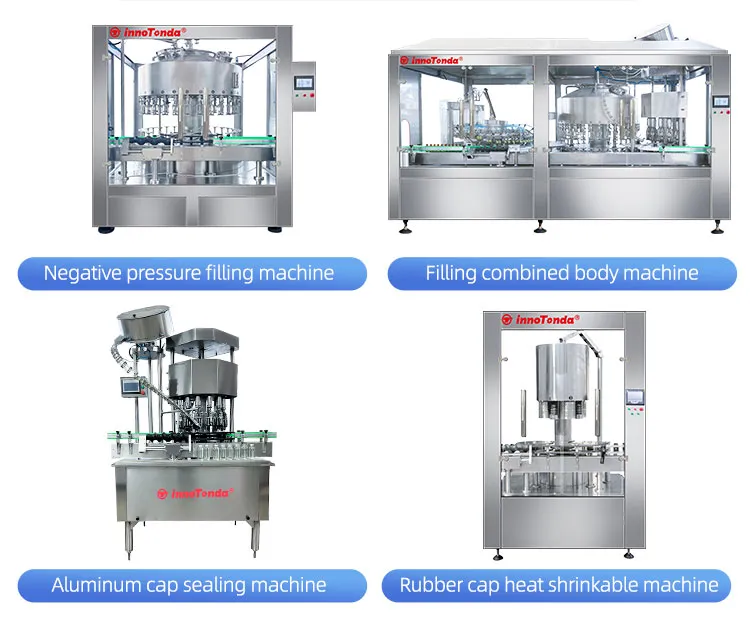

We provide complete filling line solutions, including bottle depalletizers, washing machines, filling machines, capping machines, labeling machines, coding machines, and cartoning machines. The entire line is computer-controlled for high efficiency and reduced labor costs.
❓

Frequently Asked Questions

What is your sample service?
We can provide videos of the finished machine in operation or welcome you to visit our facility to see the equipment running. If permitted, we can also share contact information for existing customers so you can observe the machines in a real production environment.
What does your after-sales service include?
We dispatch technicians overseas for commissioning and operator training. We provide a 12-month warranty including free parts and technical support. Beyond the warranty period, we continue to offer free technical support with spare parts provided at cost.
How are spare parts handled?
Upon completion of the project, we provide a comprehensive spare parts list for your reference and future maintenance needs.
What services are provided during production?
We provide regular updates on the manufacturing process. Once the machine is finished, we invite the buyer for factory testing. Alternatively, we can provide detailed testing videos for approval before arranging shipment.
Can the equipment be customized?
Yes, we design machines based on your specific requirements including material type, power specifications, filling method, and bottle types. We also offer professional consultation and factory layout drawings.
What certifications do the products have?
The equipment is manufactured under strict quality supervision systems and has passed ISO9001 quality management, ISO2000 environmental management, and CE certifications.
