Low Viscosity Liquid Filling/Bottling Machine for Chemicals, Fertilizer, Pesticides
Low Viscosity Liquid Filling/Bottling Machine for Chemicals, Fertilizer, Pesticides
Low Viscosity Liquid Filling/Bottling Machine for Chemicals, Fertilizer, Pesticides
Low Viscosity Liquid Filling/Bottling Machine for Chemicals, Fertilizer, Pesticides
Low Viscosity Liquid Filling/Bottling Machine for Chemicals, Fertilizer, Pesticides
1 / 5
Low Viscosity Liquid Filling/Bottling Machine for Chemicals, Fertilizer, Pesticides
Low Viscosity Liquid Filling/Bottling Machine for Chemicals, Fertilizer, Pesticides
Low Viscosity Liquid Filling/Bottling Machine for Chemicals, Fertilizer, Pesticides
Low Viscosity Liquid Filling/Bottling Machine for Chemicals, Fertilizer, Pesticides
Low Viscosity Liquid Filling/Bottling Machine for Chemicals, Fertilizer, Pesticides

Low Viscosity Liquid Filling/Bottling Machine for Chemicals, Fertilizer, Pesticides

Customization: Available
After-sales Service: Online&Visit Service
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Information
Model NO.CDP-8AJ
TypeAtmospheric Pressure Filling
GradeAutomatic
Material TypeLiquid
Filling ValveMulti-Head
StructureLinear
PackagingBottle (Plastic)
Max Capacity1000 Bph @ 1 L
Power Source380V 50Hz / 0.7kw
Air Source0.6-0.8MPa
Weight500kg
Dimensions1785×970×2410mm
🚀 Product Description

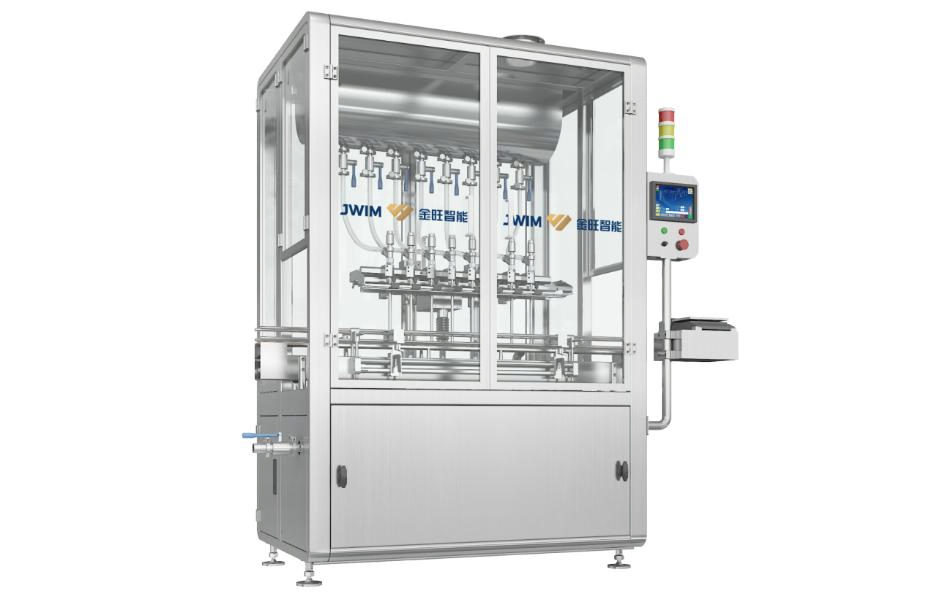

Gravity Type Agrochemical Automatic Fertilizer Bottle Filling Machinery
Gravity Type Filling Machine
Introduction:
The CDP-8AJ Micro-computer Filling Machine is specifically designed for packing ES and SC materials with high fluidity. Utilizing a vertical structure with constant liquid level and timing control, it ensures high-precision filling. The system is managed via PLC with a user-friendly interface. It features an integrated electric scale weight feedback system for simplified volume adjustments.

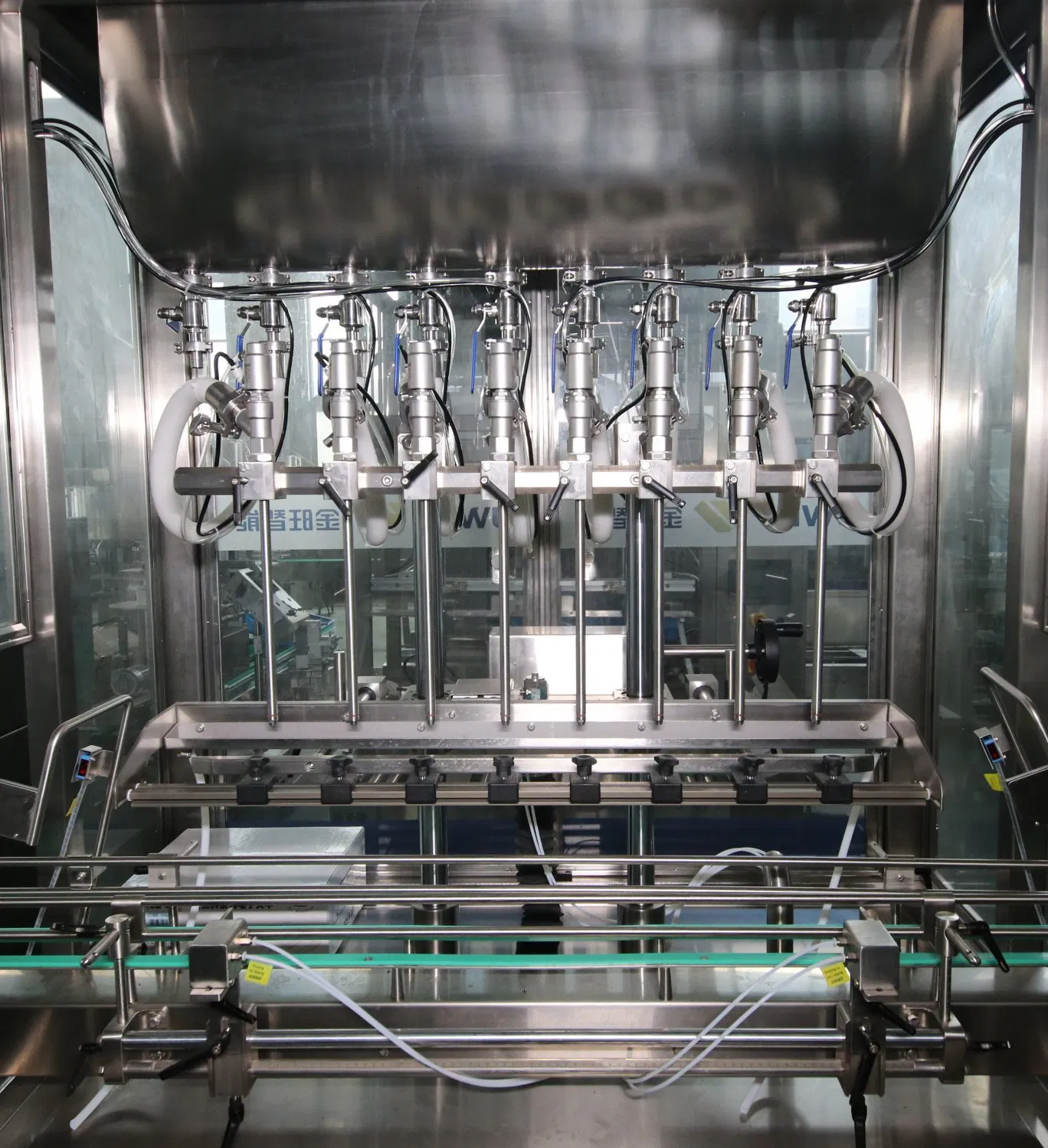

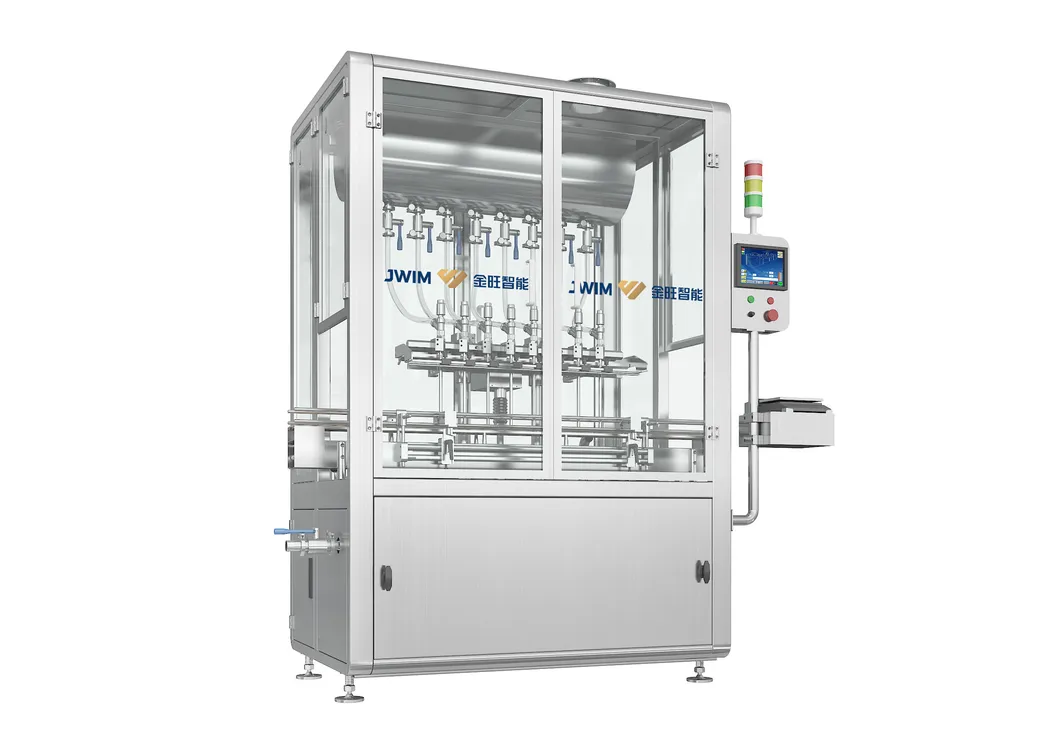

Machine Detail 1

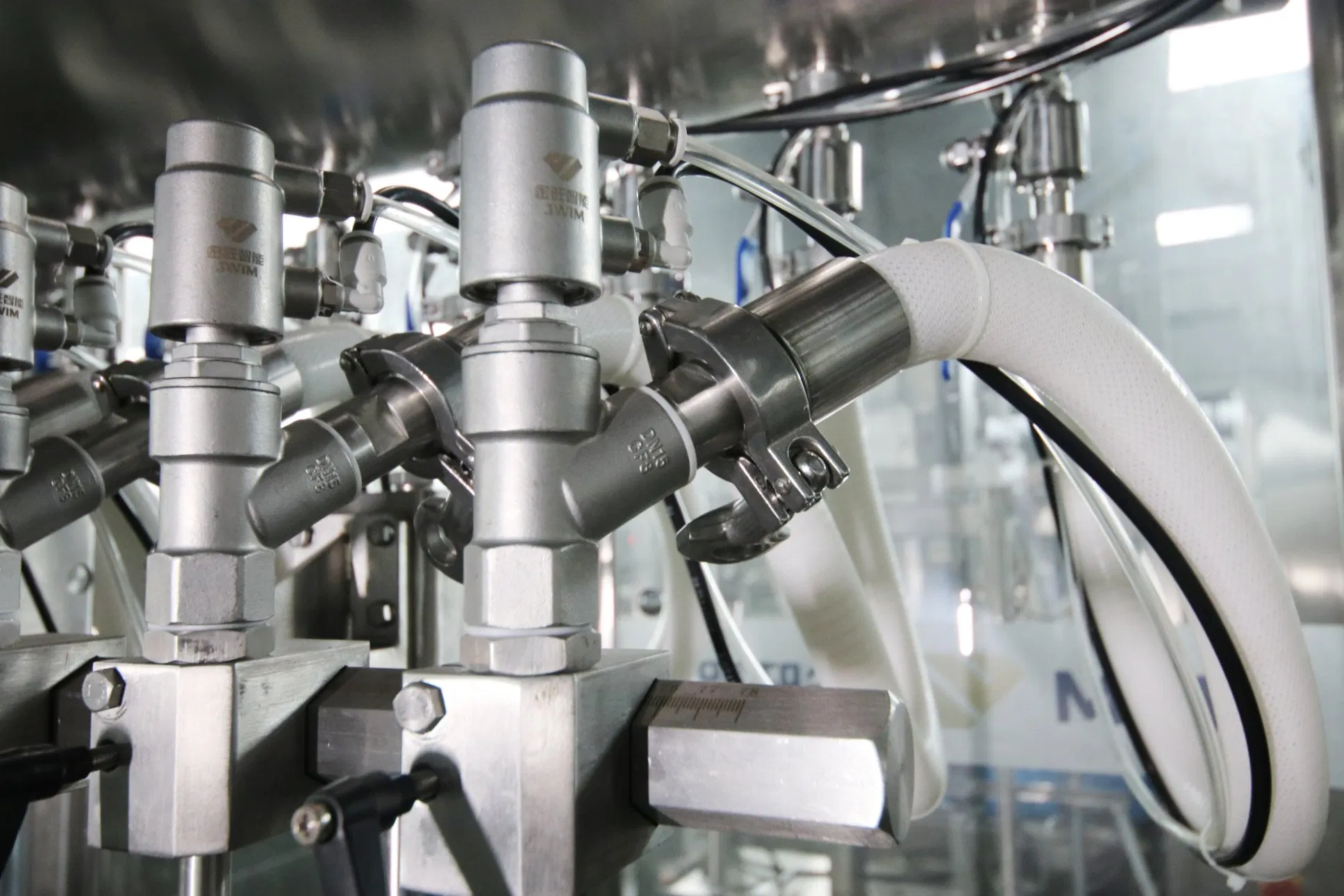

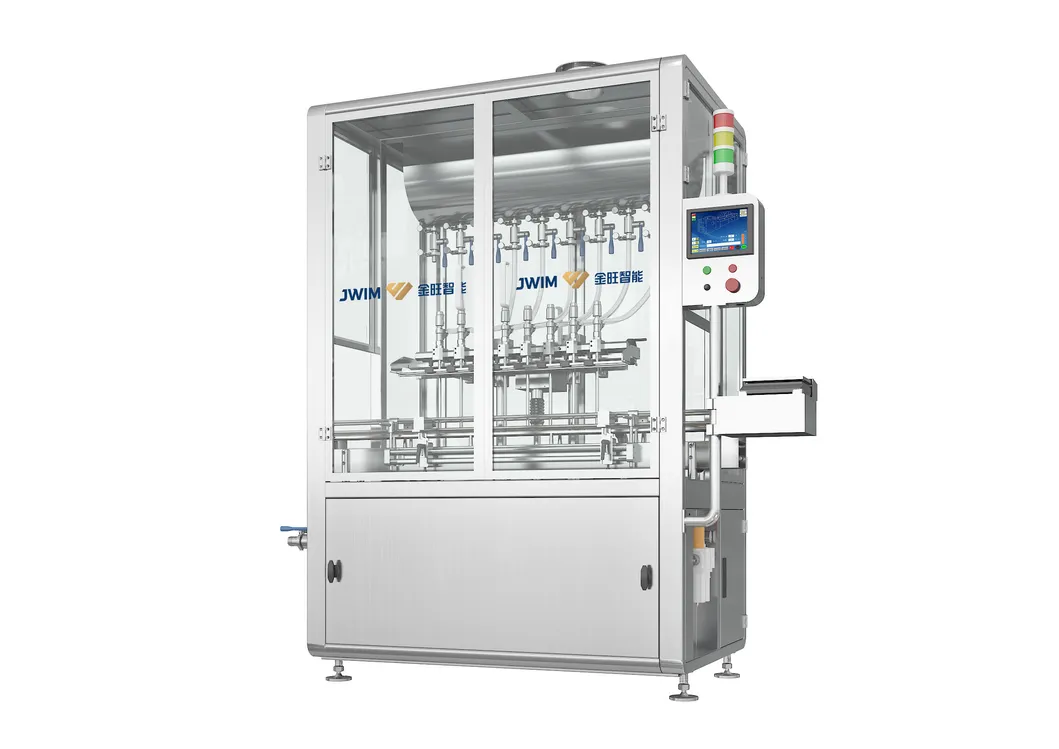

Machine Detail 2
⚙ Technical Parameters
No. Item Specifications
1Filling Capacity100ml ≤3200 BPH; 500ml ≤1500 BPH; 1000ml ≤1000 BPH
2Applied BottlesRound bottle: Φ40-95mm; Height: 80-230mm
3Filling Error±1g (100mL); ±3g (1000mL)
4Inlet Height2300mm
5Inlet DiameterΦ35mm
6Filling Nozzle DimensionΦ12mm
7Min Bottle Neck≥Φ16mm
8Diving Distance100mm
9Air Source0.6-0.8MPa
10Power Source~380V 50Hz / 0.7KW

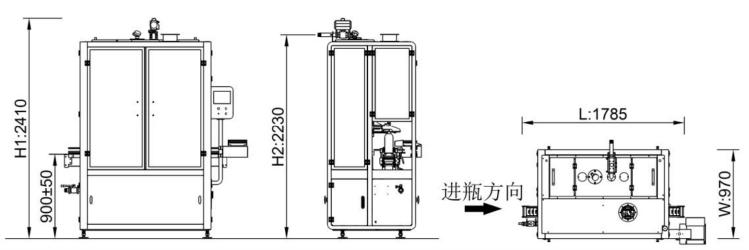

11External Dimension1785×970×2410mm (L×W×H)
12Weight~500Kg
⭐ Our Advantages
🛠 Intelligent Control

Advanced PLC and human-machine interface for seamless operation.

🎯 High Precision

Electric scale weight feedback ensures minimal filling error.

🌐 Global Standard

Exported to over 50 countries with proven reliability.

Machine Advantages
📦 Application & Recommendations
Product Recommendations
Application Scenario
📜 Certifications
Product Certifications
Frequently Asked Questions
What types of liquids are suitable for the CDP-8AJ filling machine?
It is ideal for low-viscosity liquids with good fluidity, such as ES and SC agrochemical materials, fertilizers, and pesticides.
How does the machine ensure filling accuracy?
The machine uses a micro-computer control system combined with an electric scale weight feedback system to maintain high precision (±1g for 100mL).
Can this machine handle different bottle sizes?
Yes, it supports round bottles with diameters from 40mm to 95mm and heights ranging from 80mm to 230mm.
What is the production capacity of the CDP-8AJ?
The capacity varies by bottle size: up to 3200 BPH for 100ml bottles and approximately 1000 BPH for 1000ml bottles.
Is the machine easy to operate for new users?
Absolutely. It features a PLC-controlled human-machine interface that is intuitive and allows for easy adjustment of filling volumes.
What are the power and air requirements?
The machine requires a 380V 50Hz power source (0.7KW) and an air source pressure between 0.6-0.8MPa.
