| Model NO. | HSP-8 |
|---|---|
| Type | Piston Filling Machine |
| Automatic Grade | Automatic |
| Material Type | Paste |
| Filling Valve Head | Multi-Head |
| Feed Cylinder Structure | Multi-Room Feeding |
| Dosing Device | Plunger |
| Filling Principle | Atmospheric Pressure |
| Structure | Linear |
| Packaging | Bottle / Plastic |
| Product Name | Linear Piston Pump Filling Machine |
| Suitable for | Food/Cosmetic/Beverage/Oil/Cream/Soap Liquid |
| Trademark | SINBON |
| Package Size | 250.00cm * 150.00cm * 200.00cm |
|---|---|
| Package Gross Weight | 600.000kg |

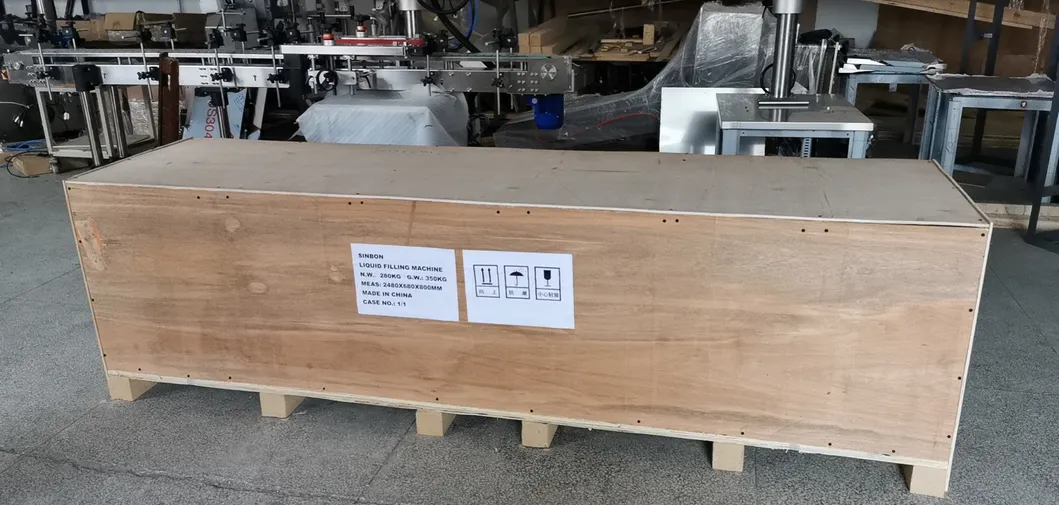

| Transport Package | Wooden Case |
Brief Introduction:

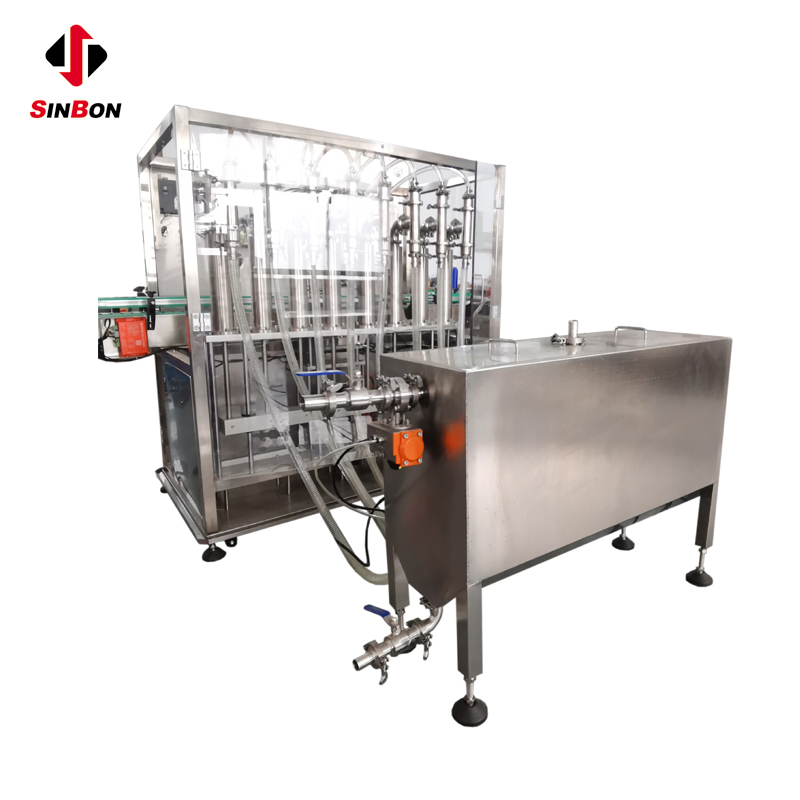

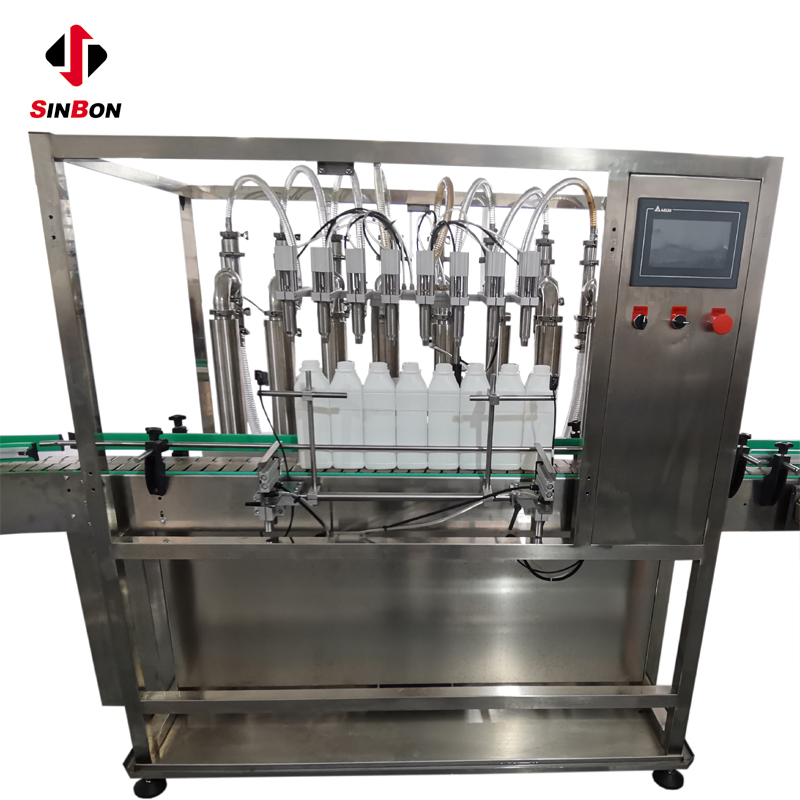

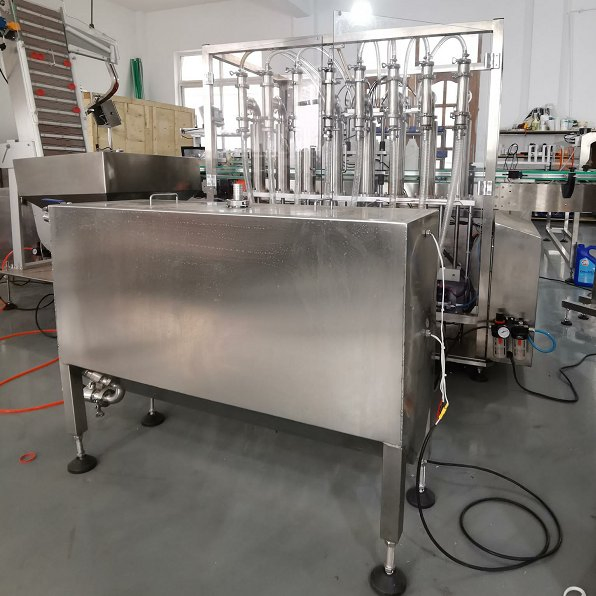

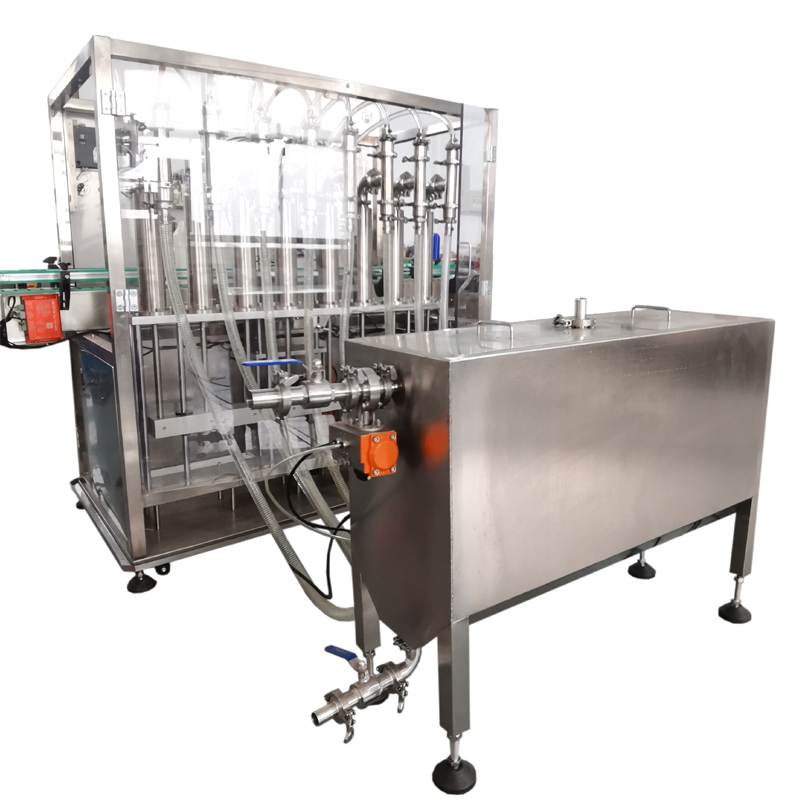

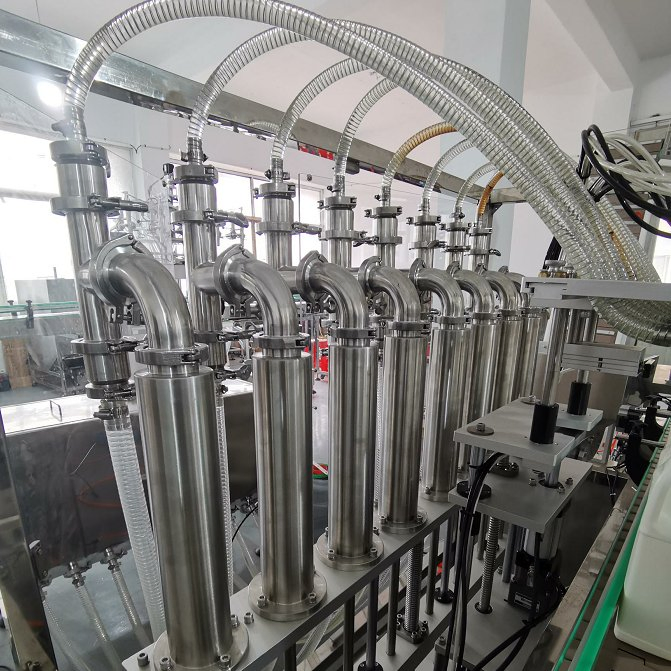

The fully automatic servo filling machine is an electrical and mechanically integrated automatic filling equipment for dispensing both pastes and liquids. The machine consists of a HMI, PLC, piston pump, pneumatic valve, hopper, pneumatic nozzle and linear conveyor. It meets the automatic filling needs of the pharmaceutical, food, and cosmetics industries.
Key Features:
| Model No. | HSP-8 |
| Control System | HMI + PLC + Servo |
| Pump Type | Piston Pump (Gear/Rotor optional) |
| Filling Range | 100-1000ml (Tailor-made) |
| Production Capacity | 500ml: 2000-3600 BPM |
| Filling Accuracy | ±0.5% |
| Bottle Size Range | Φ25 - 80mm |
| Power Source | AC220V; 50Hz; 1P; 5.5kw |
| Material | Stainless Steel SUS304 |
