Basic Specifications
Model NO.
CD14-12-5, CD18-16-6, CD24-18-8, CD32-24-10
Type
Automatic Gravity Filling Machine
Filling Valve Head
Multi-Head
Dosing Device
Capacity Cup
Filling Principle
Pressure
Package Size
210.00cm * 130.00cm * 180.00cm

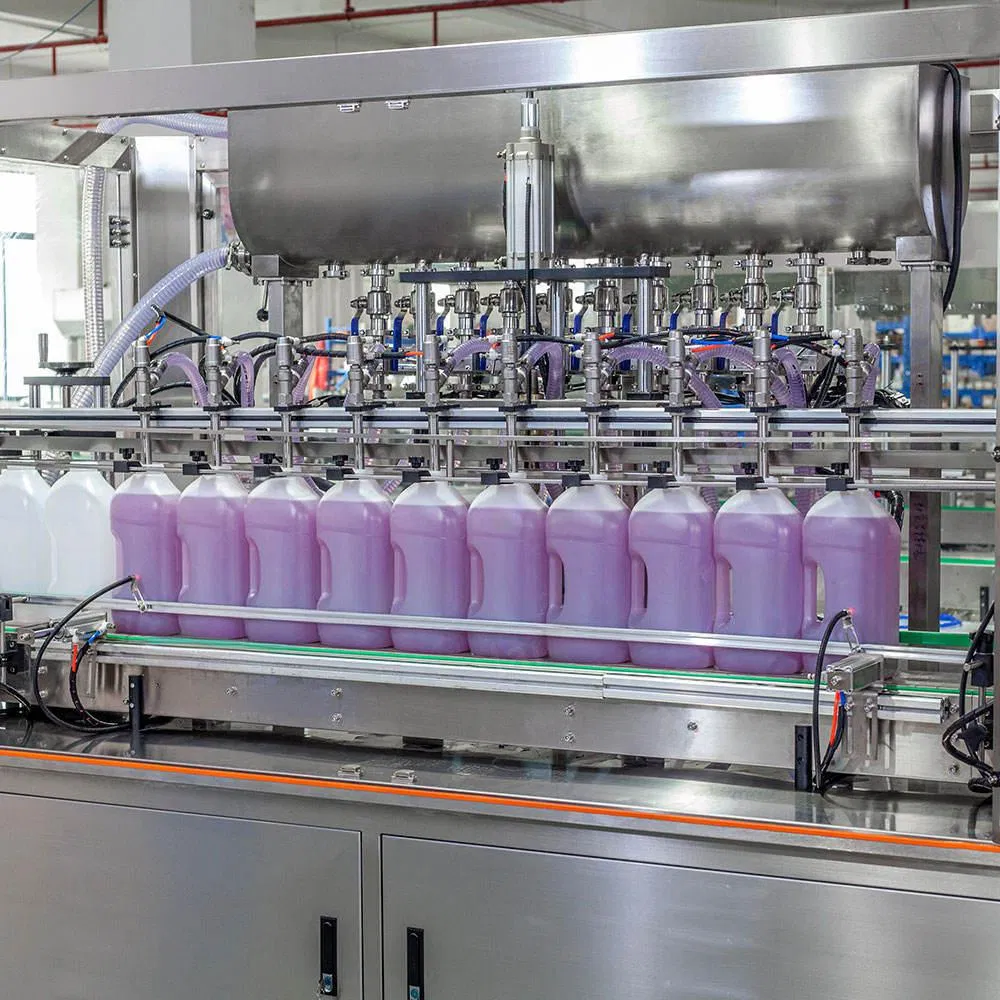

Product Introduction

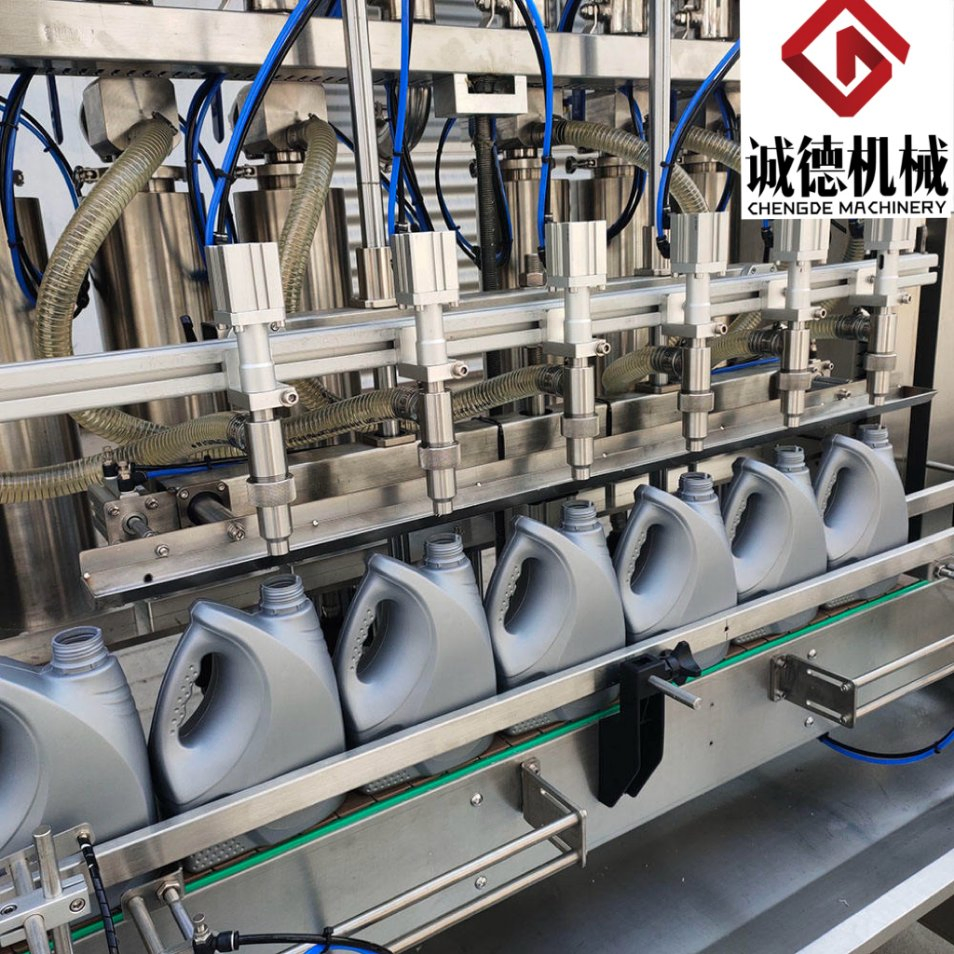

This Machine is an Automatic Gravity Filling Machine. It is suitable for all kinds of non-viscous liquid filling, such as alcohol, glass water, antifreeze, urea, and other liquids. It is designed for filling liquid in round glass bottles and plastic bottles.
This liquid filling machine is a high-tech equipment controlled by microcomputer PLC programmable logic, equipped with photoelectric instruction and pneumatic action. It adopts a servo control system to ensure pistons reach constant positions. Filling speed automatically slows down near the target capacity to prevent spills and pollution.
The automatic production line features frequency conversion speed adjustment with touch screen operation. It includes safety features such as "no bottle no filling," "no cap feeding without bottles," and cap shortage alarms. The full stainless steel design complies with food and sanitation requirements.
Technical Parameters
| Parameter Item |
Specification Details |
| Bottling Line | Linear Liquid Filling Production Line |
| Filling Nozzles | 4~12 |
| Production Capacity | 600~2000 bph |
| Applicable Bottle Height | 160~360mm (Customizable) |
| Applicable Bottle Diameter | Φ50-Φ100 (Customizable) |
| Filling Volume | 100~5000ml (Customizable) |
| Filling Accuracy | ±0.01% |
| Overall Size (L*W*H) | 3000*1500*2200 mm |
Key Features & Competitive Edges
Accurate Metering Control
Fixed flow channel parameters and controlled filling time for precise quantities.
Fine-tuned measurement for each filling head to ensure consistency.
Pneumatic valve precision set to 0.01 seconds, keeping error within ±1%.
Advanced bottle feeding sensors: No bottle, no filling.
Special Filling Method
Strong PLC software support for laboratory, chemical, and purified liquids.
Linear grouping entry/exit method allows for various container shapes.
International advanced filling valve design ensures no dripping or salivation.
Detailed Components

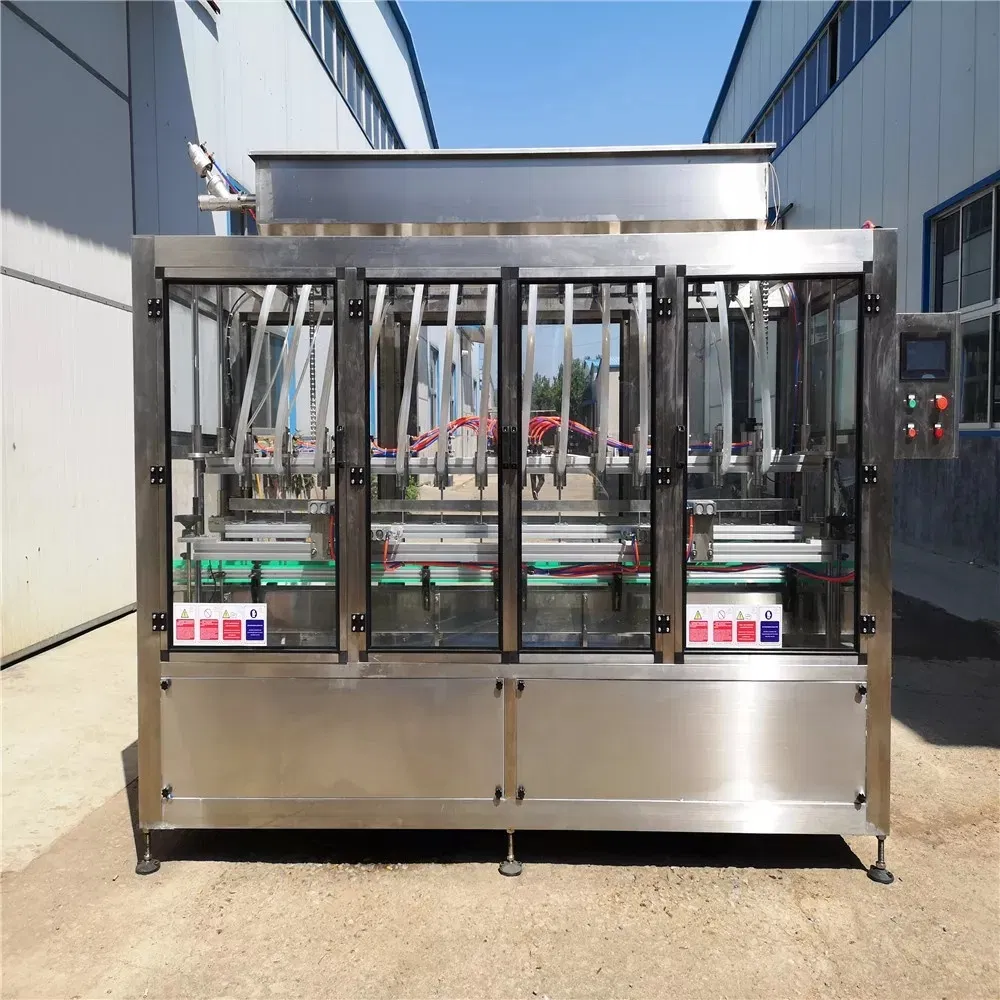

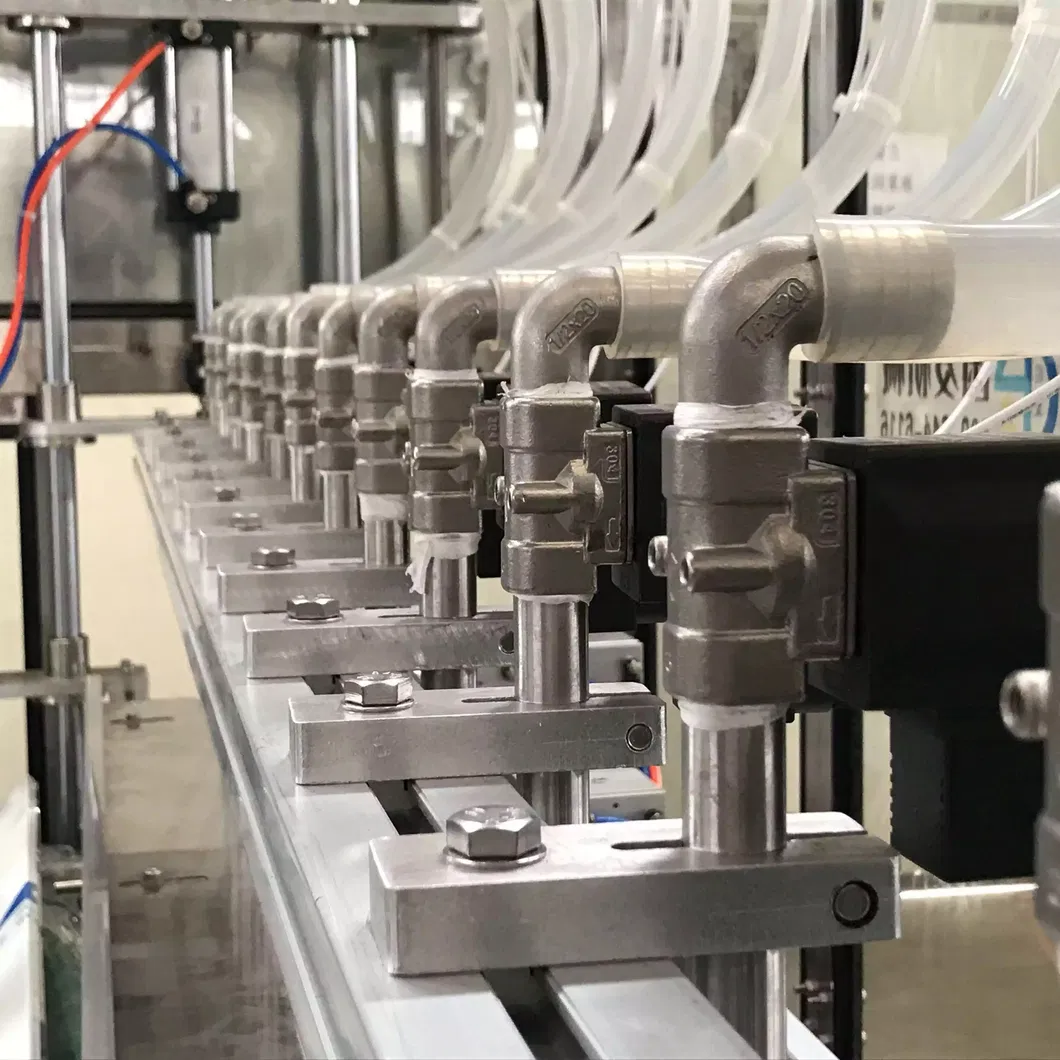

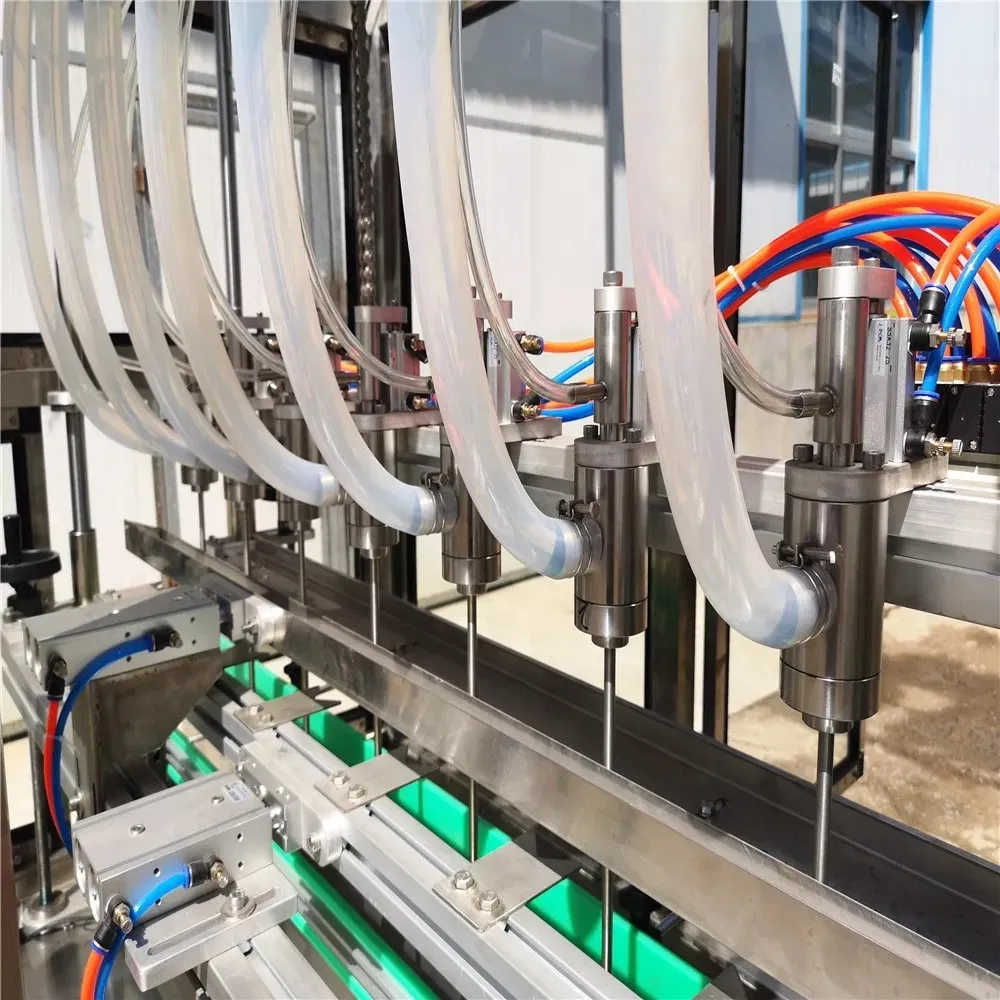

Filling Machine Part
A: Linear type principle for simple volume adjustment. B: Special silicone hose with professional solenoid valves. C: Touch screen PLC control with reliable brand components.

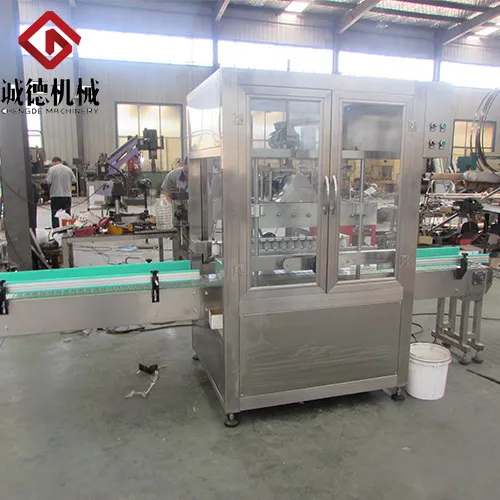

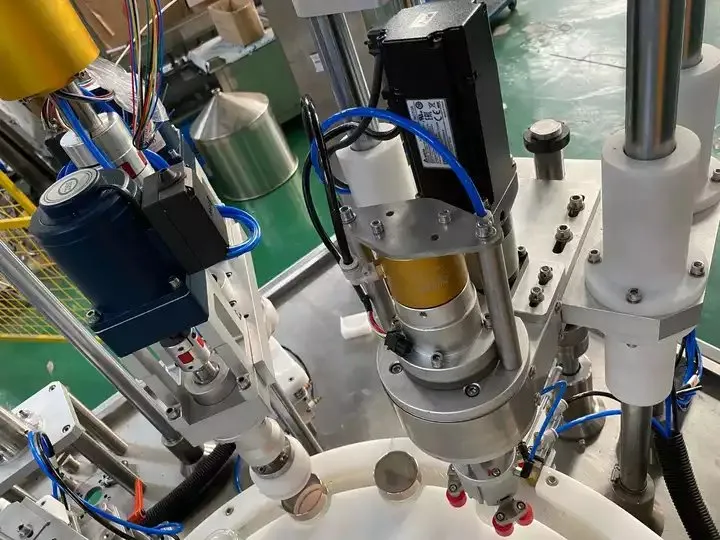

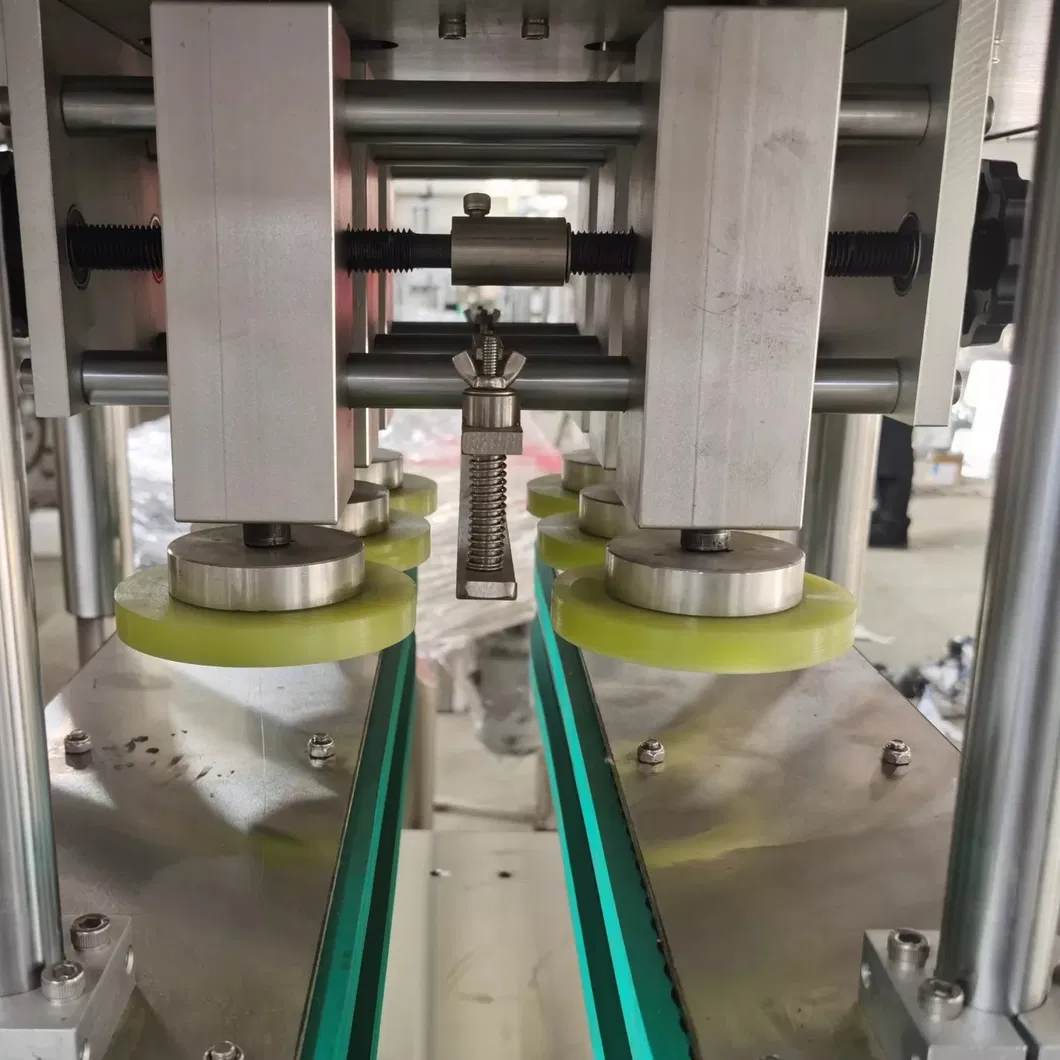

Capping Machine Part
Intelligent touch screen control with automatic induction screw capping. Humanized design suitable for a variety of bottle caps with no leakage.

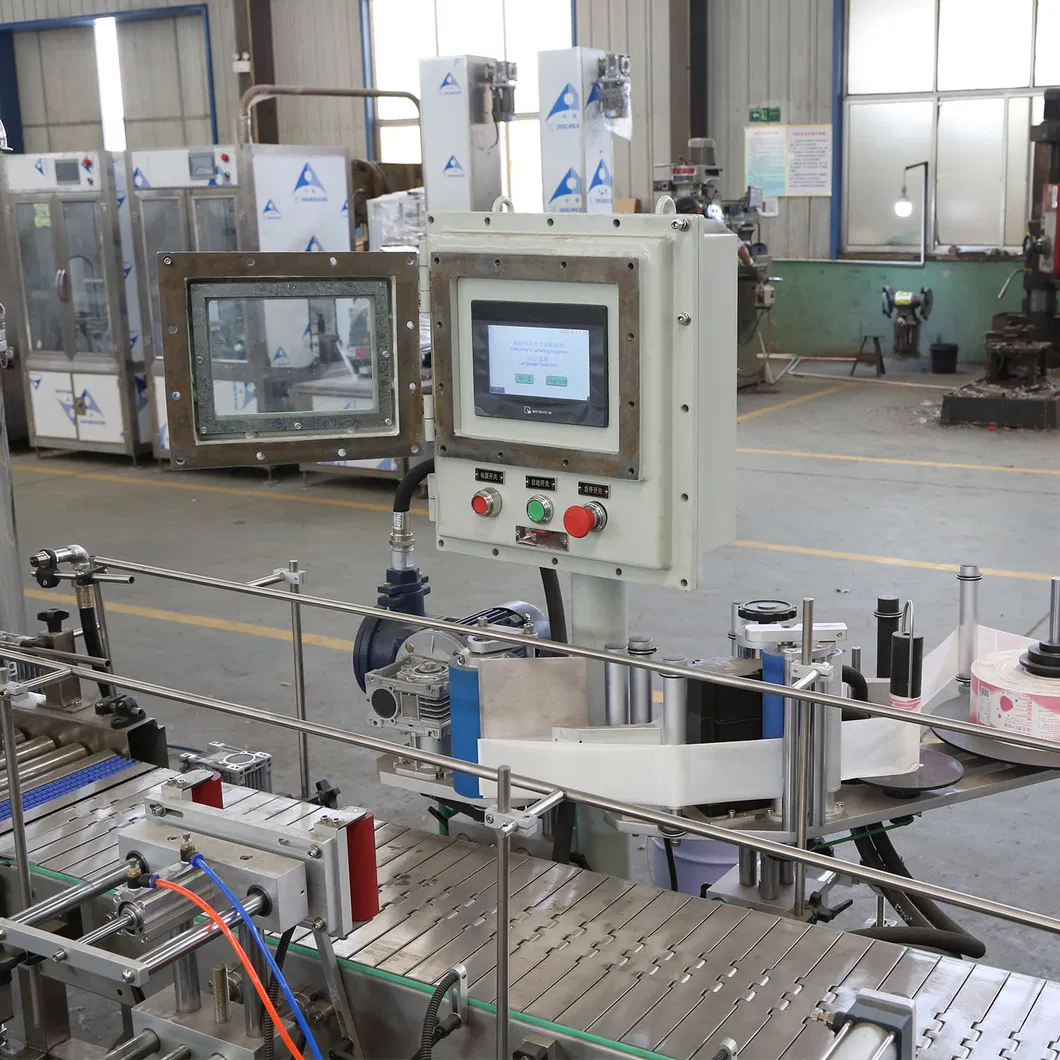

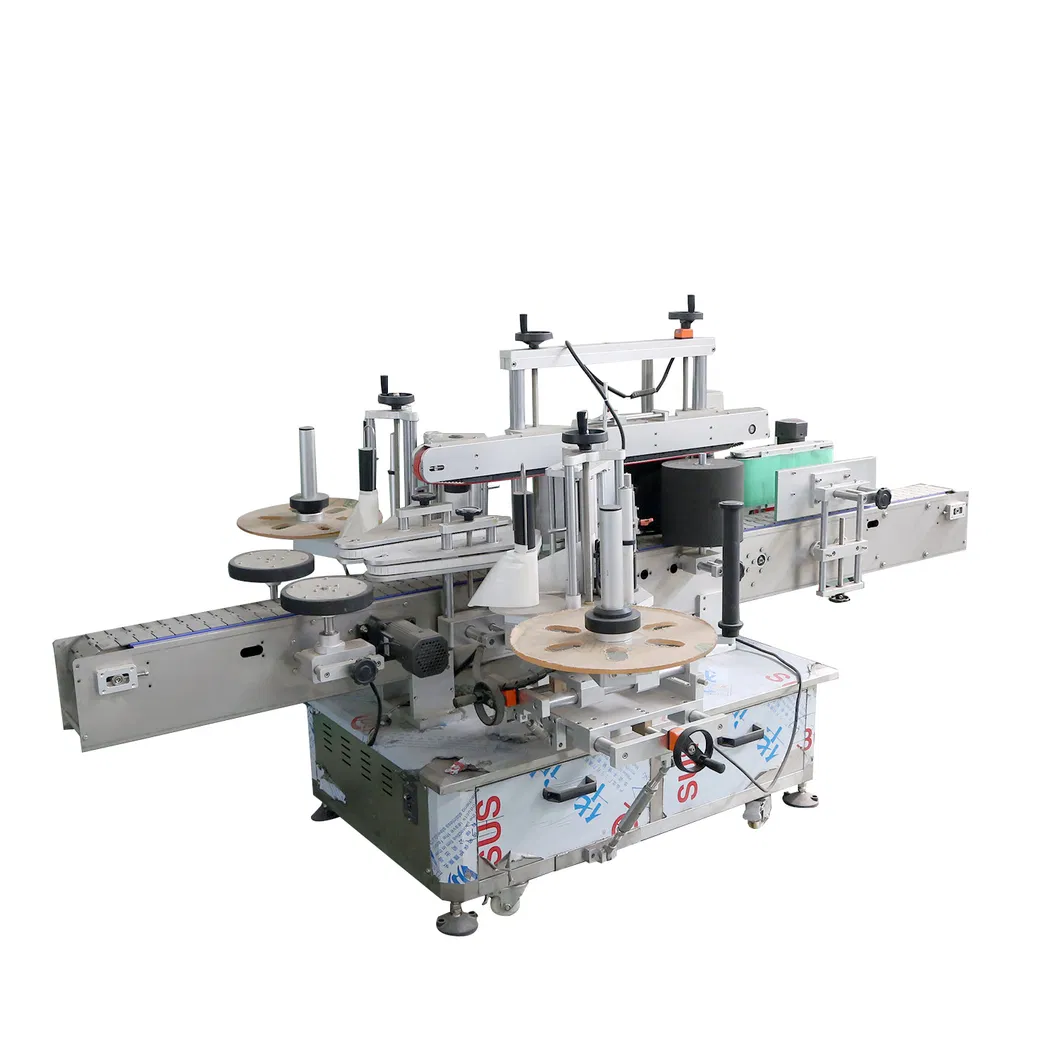

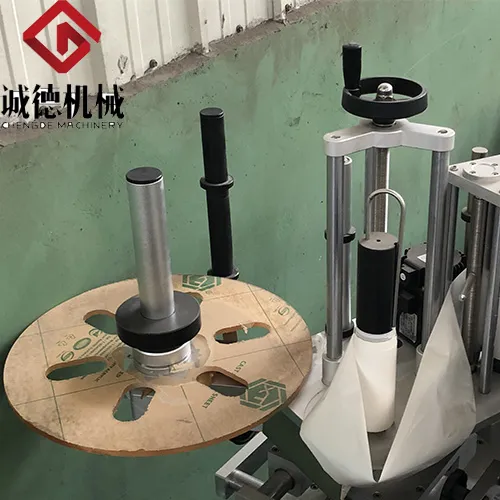

Labeling Machine Part
PLC control with large man-machine interface. Stainless steel and anodized aluminum construction meeting GMP standards.

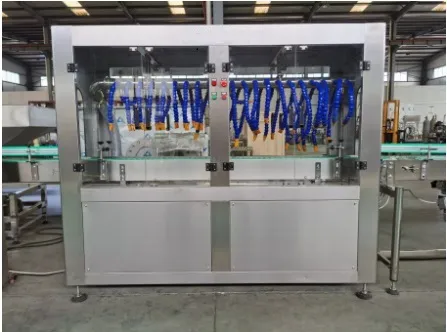

Bottle Drying Machine
Used to dry the outside of bottles after filling and capping to ensure perfect labeling and carton packing conditions.
Applications
The packing line is suitable for all kinds of liquid, fluid, and paste materials:
Plant Oil: Lubricant, engine oil, gear oil.
Daily Chemicals: Liquid soap, toilet cleaner, laundry detergent, shampoo, hand sanitizer.

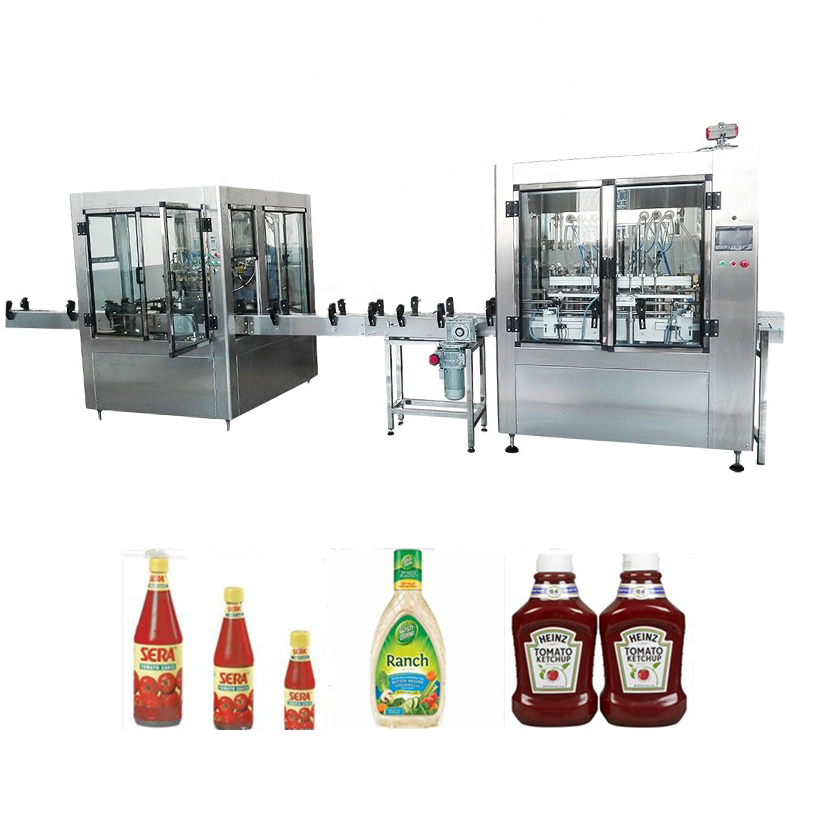

Food Industry: Tomato paste, honey, cooking oil, ketchup, yogurt.
Cosmetics: Toner, lotion, cream, body milk.

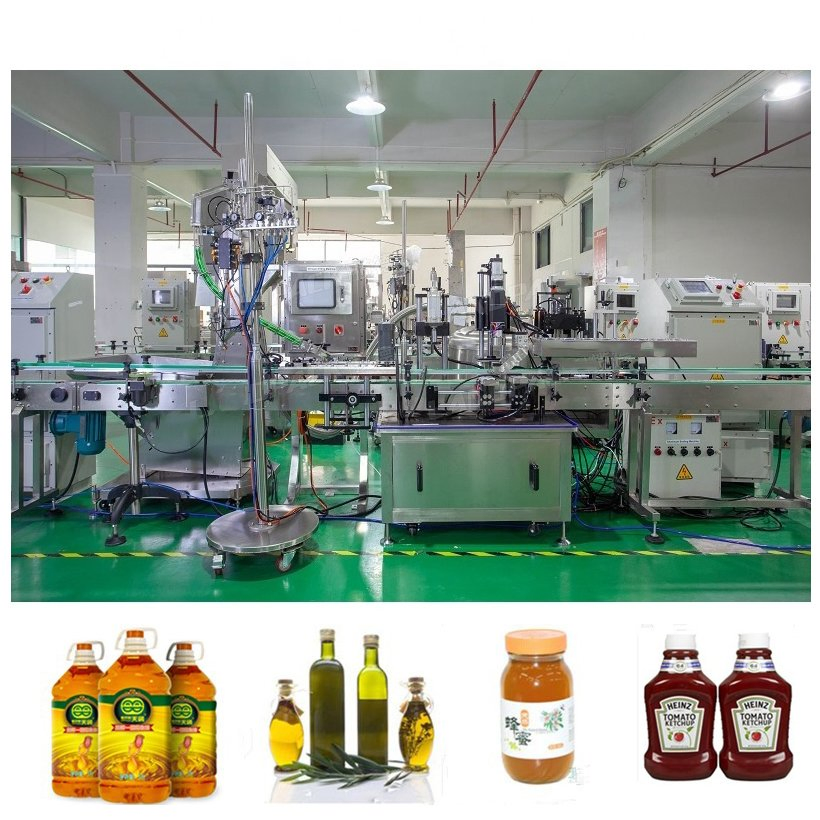

A to Z Production Solutions

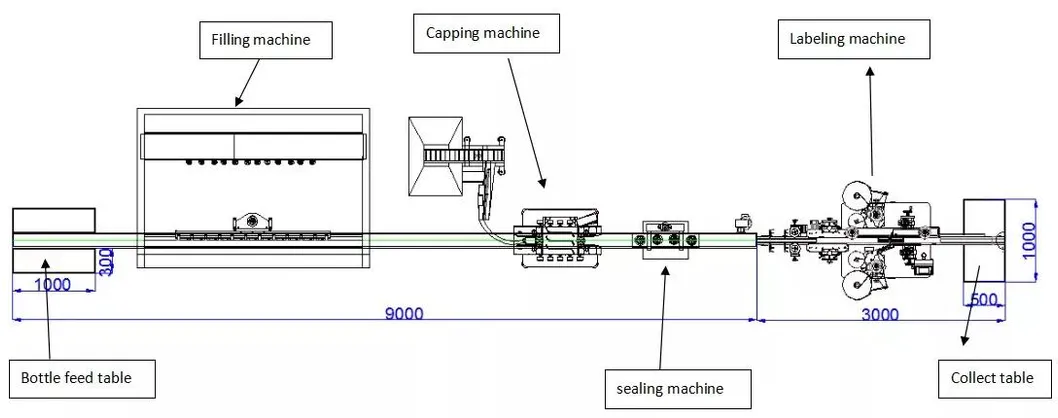

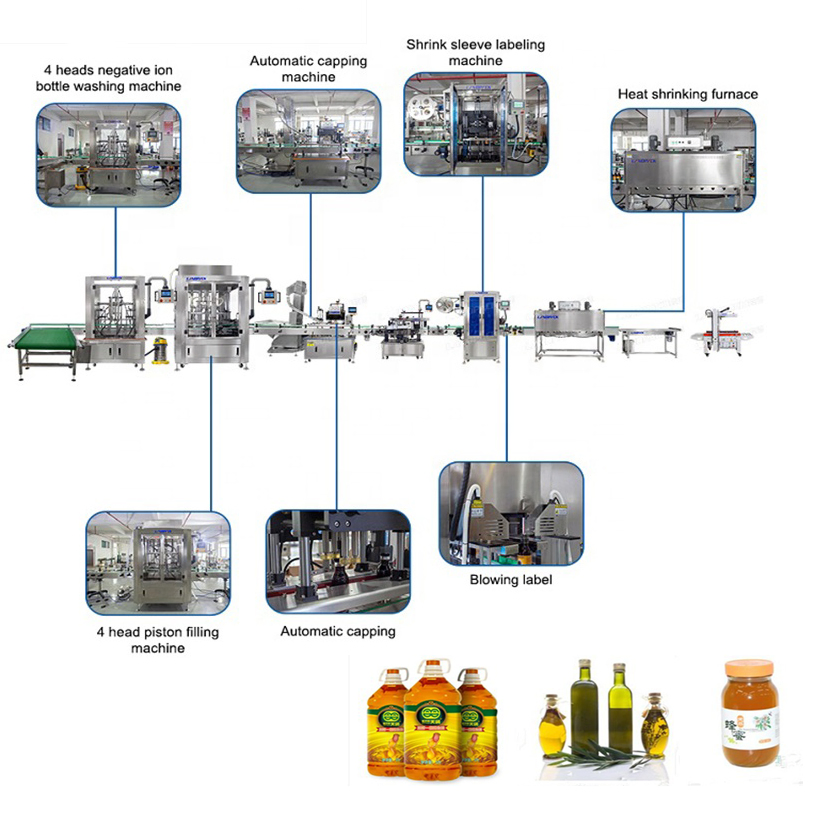

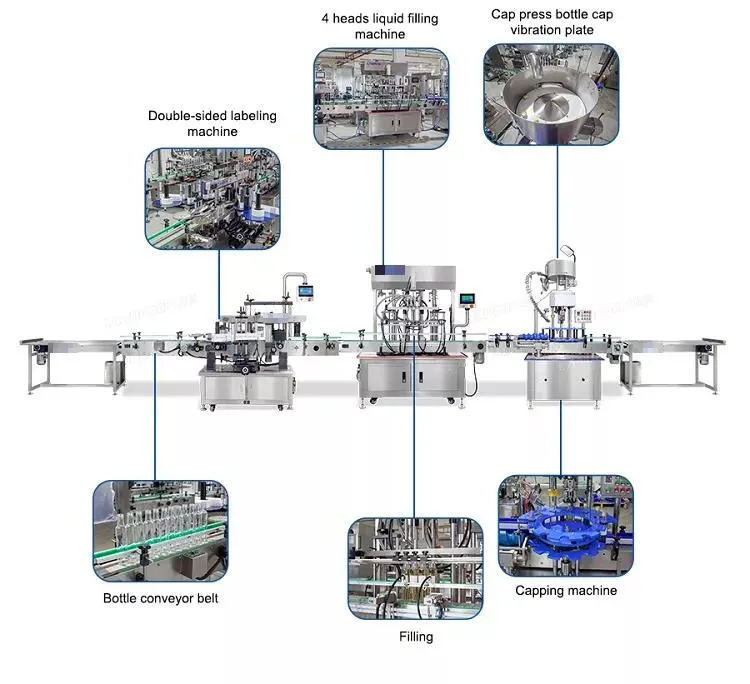

Our production lines integrate automation technology, imported PLC systems, and high-efficiency electrical components. We provide full lines including bottle feeding, 10-head filling, automatic capping, and round bottle labeling.
Our Services & Shipping
Free Testing: Send us your bottle samples for pre-debugging and video review.
Warranty: One-year warranty with free spare parts.
Packing: PE film wrapped followed by exported wooden cases.
Delivery: Within 20-25 days upon receipt of payment.
Frequently Asked Questions
1. What types of liquids can this gravity filling machine handle?
It is ideal for non-viscous liquids such as alcohol, glass water, antifreeze, liquid soap, detergents, and thin oils.
2. How accurate is the filling volume?
The machine utilizes high-precision pneumatic valves and PLC control to achieve a filling accuracy of ±0.01%.
3. Can the machine be customized for different bottle sizes?
Yes, the applicable bottle height (160-360mm) and diameter (Φ50-Φ100) can be customized to meet your specific packaging requirements.
4. What is the production capacity of the linear filling line?
Depending on the model and liquid type, the production capacity ranges from 600 to 2000 bottles per hour (bph).
5. Does the machine include safety features for empty bottle runs?
Yes, it includes a "no bottle, no filling" sensor system and alarms for cap shortages to ensure smooth and waste-free operation.
6. What kind of after-sales support is provided?
We provide a one-year warranty with free spare parts, free technical training, and optional installation support.
