Single Head Semi Automatic Nutrient Solution Small Bottles Liquid Filling Machine
Single Head Semi Automatic Nutrient Solution Small Bottles Liquid Filling Machine
Single Head Semi Automatic Nutrient Solution Small Bottles Liquid Filling Machine
Single Head Semi Automatic Nutrient Solution Small Bottles Liquid Filling Machine
Single Head Semi Automatic Nutrient Solution Small Bottles Liquid Filling Machine
1 / 5
Single Head Semi Automatic Nutrient Solution Small Bottles Liquid Filling Machine
Single Head Semi Automatic Nutrient Solution Small Bottles Liquid Filling Machine
Single Head Semi Automatic Nutrient Solution Small Bottles Liquid Filling Machine
Single Head Semi Automatic Nutrient Solution Small Bottles Liquid Filling Machine
Single Head Semi Automatic Nutrient Solution Small Bottles Liquid Filling Machine

Single Head Semi Automatic Nutrient Solution Small Bottles Liquid Filling Machine

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications

Model NO.
TMFM-01SC
Type
Magnetic Pump
Automatic Grade
Semi-Automatic
Material Type
Liquid Sauces Jams
Filling Valve Head
Multi-Head
Dosing Device
Digital Setting Time
Filling Principle
Pump Suction
Structure
Linear
Packaging Material
Plastic / Bottle
Filling Volume
1ml - 500ml
Conveyor Size
600mm(L)*81mm(W)
Origin
China

Product Description

💧
Wide Application:
Perfect for filling water, beverages, sauces, juices, soybean milk, and toner. Suitable for non-viscous liquids without particles. Ideal for small-scale production.
⚙️
Key Features:
Equipped with Intelligent Induction Mode for automatic bottle detection. Features a high-precision magnetic pump capable of handling high-temperature liquids up to 100°C. Compact design with powerful functionality.

Technical Parameters

Max TemperatureMax 100°C
Machine Voltage110/220V 50-60Hz
Filling Flow Rate4L/min
Filling Accuracy±1%
Suitable Bottle Sizeφ≤80mm, H≤100mm
Working ModeManual / Automatic / Intelligent Induction
Machine Size636*166*179mm
Net/Gross Weight3kg / 4kg

Product Display

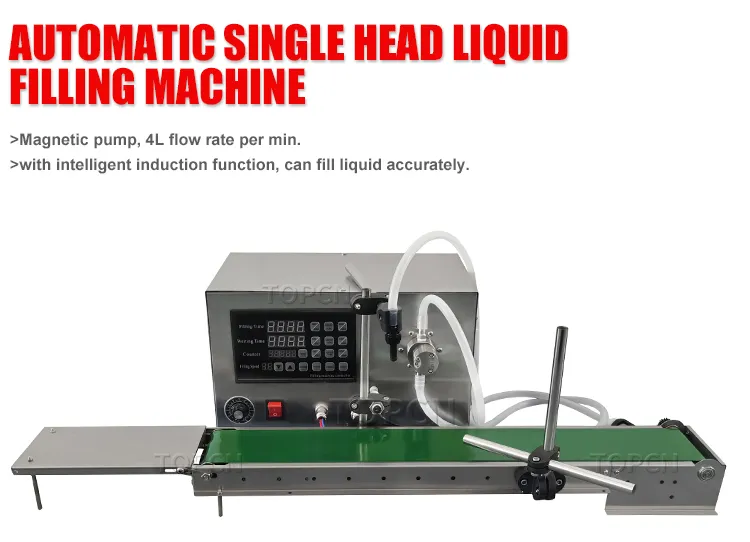

Filling Machine Front View

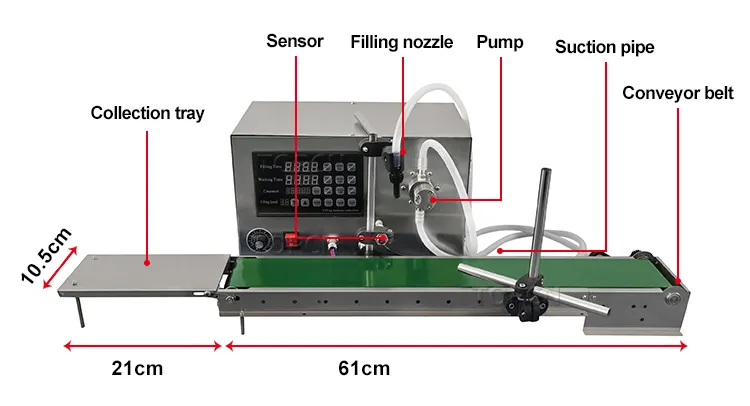

Filling Machine Side View
Filling Machine Detail

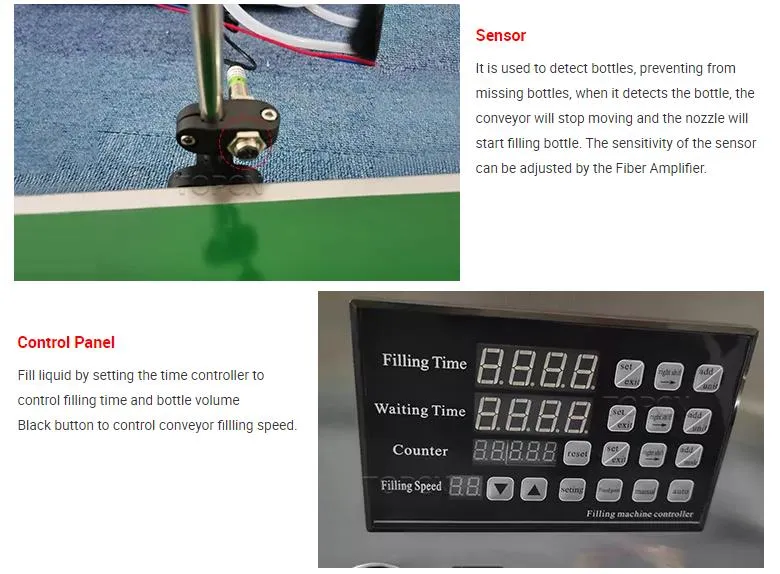

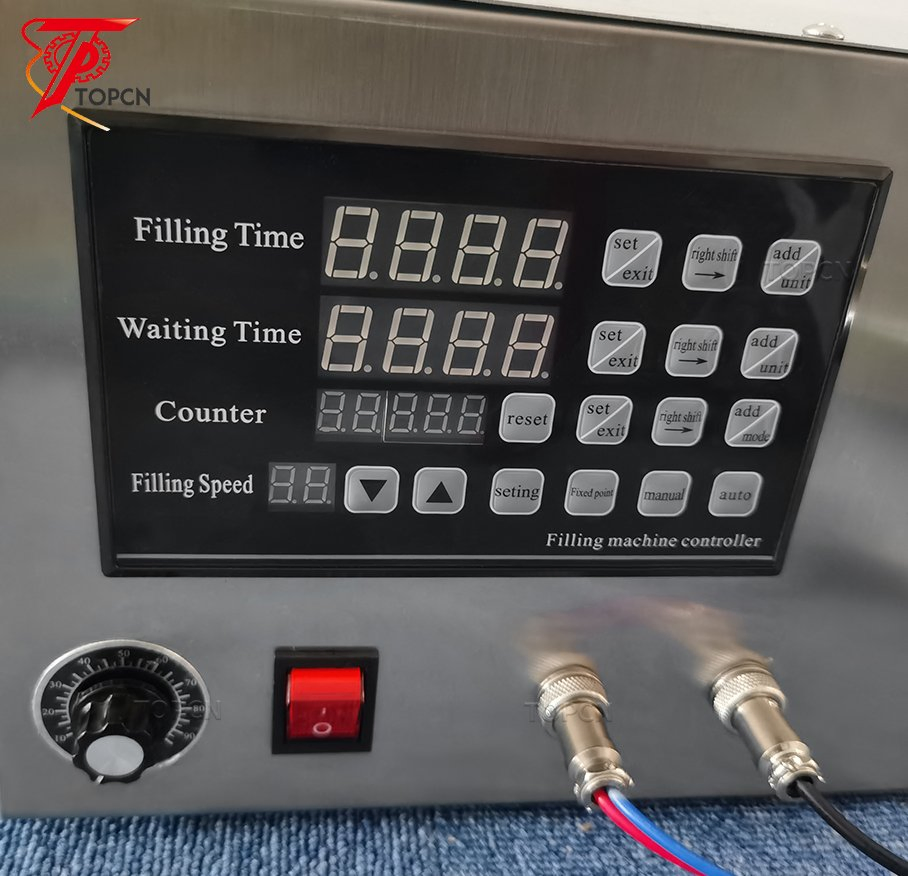

Control Panel

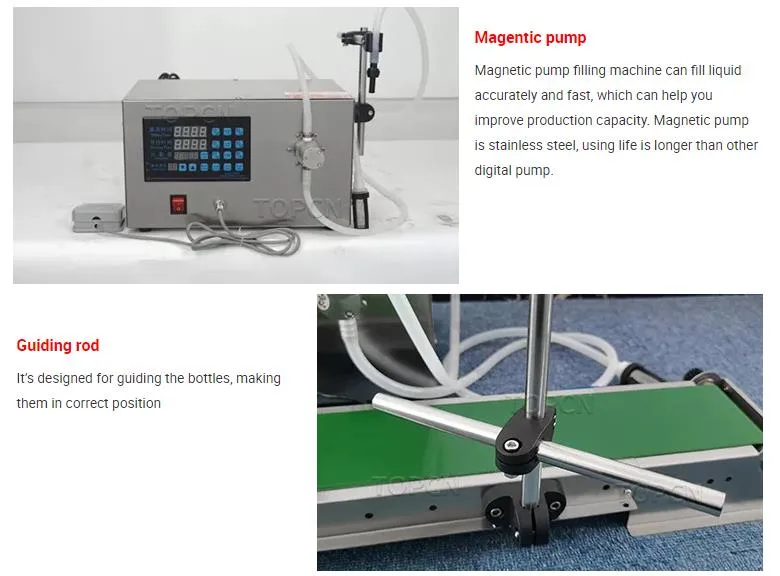

Magnetic Pump System

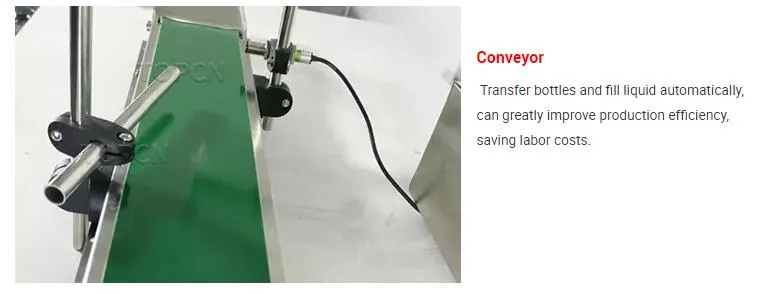

Conveyor System
Filling Nozzle

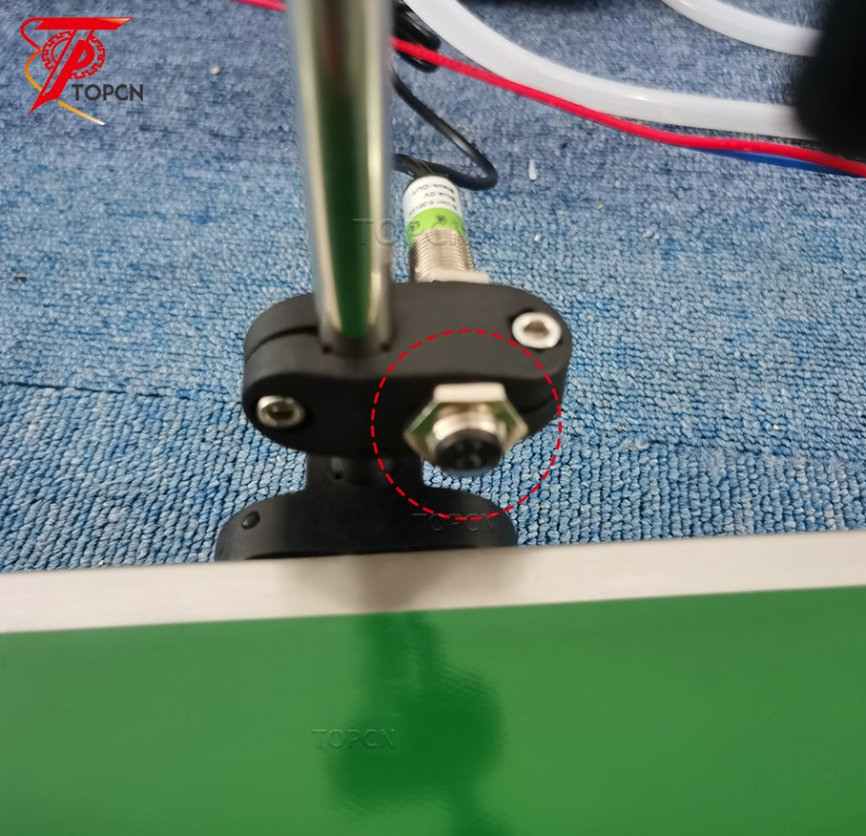

Induction Sensor
Operation Demo 1
Operation Demo 2
Packaging Case

Frequently Asked Questions

Q1: What types of liquids can this machine fill?
A1: It is suitable for water, beverages, sauces, juices, and other non-viscous liquids without particles. It is not recommended for thick pastes or honey.
Q2: How do you ensure the machine operates correctly before shipping?
A2: Every machine is thoroughly tested and adjusted to its optimal performance level before delivery to ensure accuracy and reliability.
Q3: Is technical support available for installation?
A3: Yes, we provide comprehensive operation manuals and videos. For large-scale requirements, engineers can be available for overseas commissioning and training.
Q4: Can I customize the language on the operation screen?
A4: Yes, multiple languages such as Spanish, French, Italian, Arabic, and Korean can be configured based on your requirements.
Q5: How do I choose the best machine for my needs?
A5: Please provide the material type, required filling capacity (ml), and the inner diameter of your containers so we can recommend the most suitable configuration.
Q6: What is the warranty policy for broken parts?
A6: If a part fails, please provide photos or video for confirmation. Within the warranty period, we provide replacement parts for free, though shipping costs are covered by the client.
