| Model NO. | G1WGD | Type | Piston Filling Machine |
| Automatic Grade | Semi-Automatic | Material Type | Paste and Liquid |
| Filling Valve Head | Single-Head | Structure | Linear |
| Filling Speed | 0-40 Bottles/Min | Air Pressure | 0.6-0.8MPa |
| Hopper | 30L | Material | Stainless Steel 304/316 |
| Filling Range | 5-100ml 20-300ml 50-500ml 100-1000m | ||
Seek excellence and refinement!

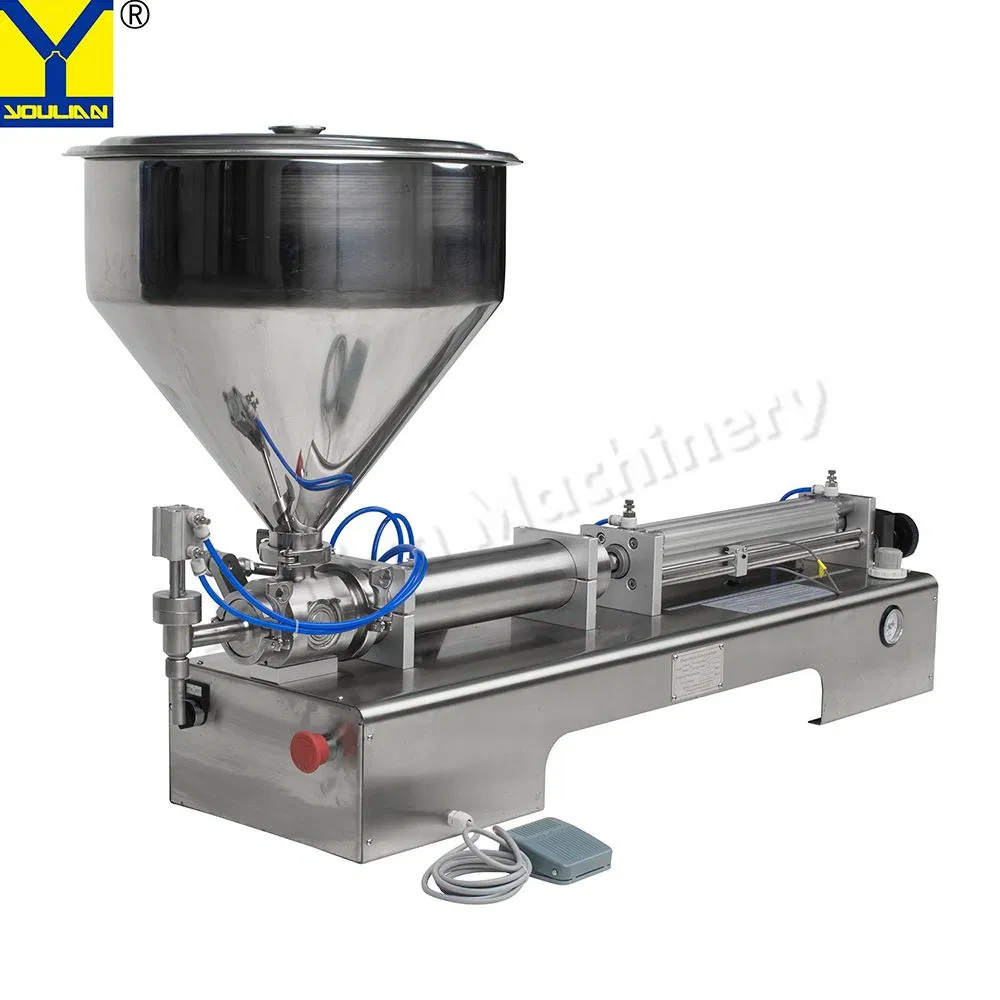

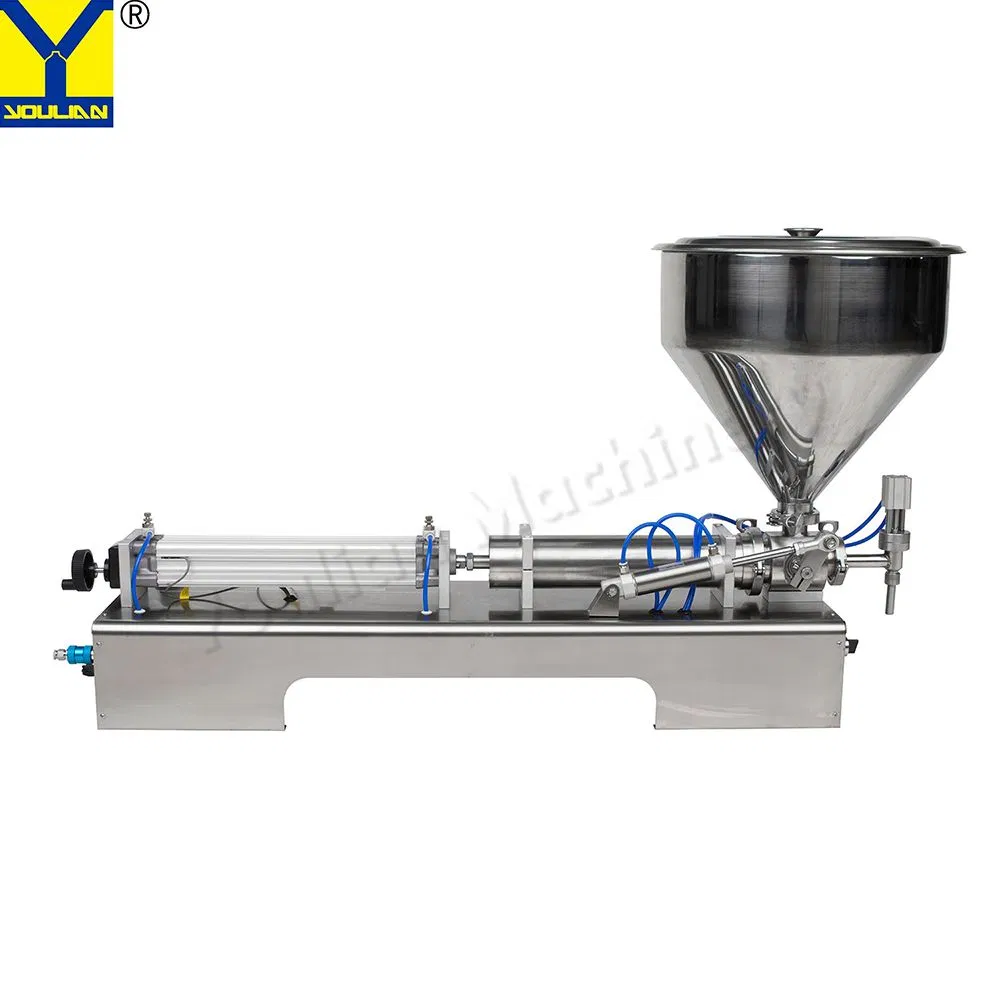

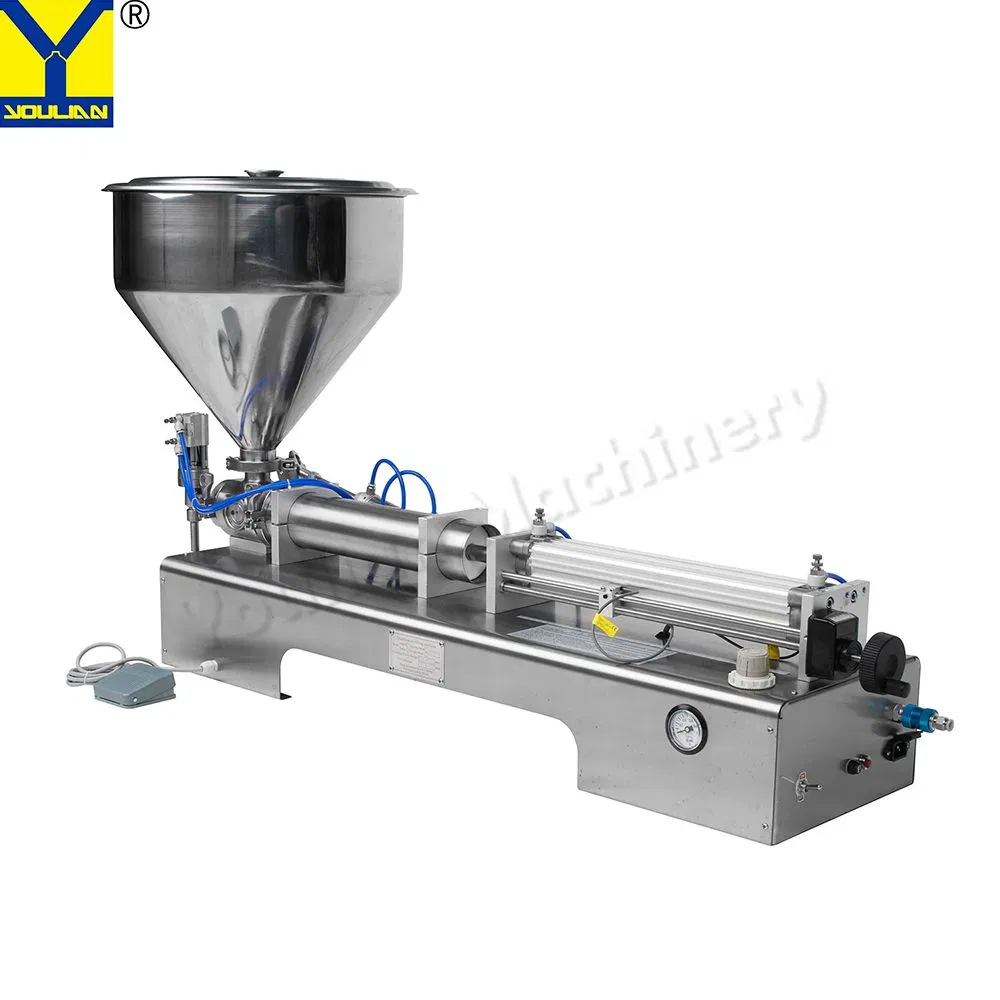

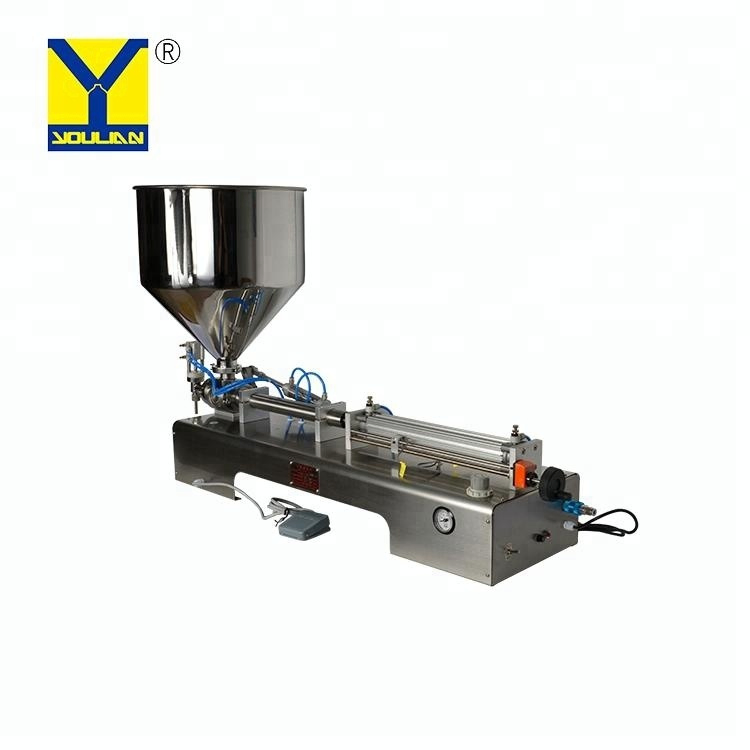

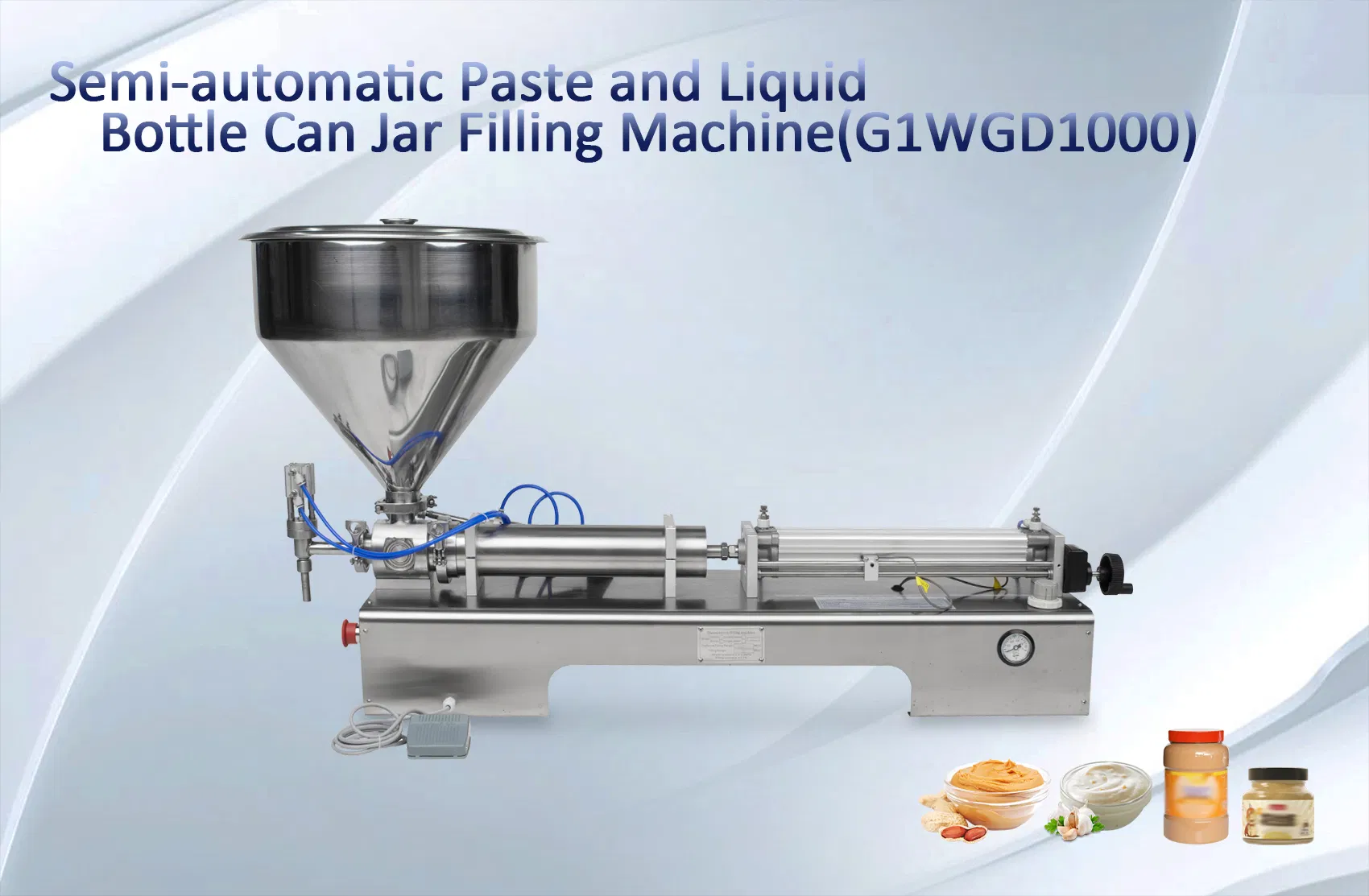

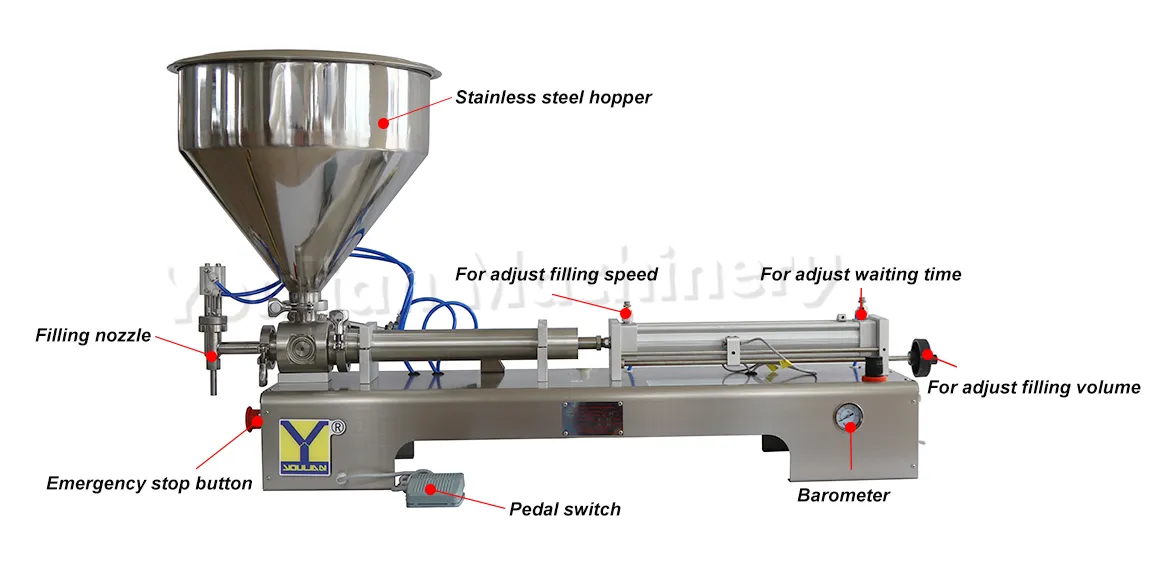

The semi-automatic single head piston sauce Paste Filling Machine is designed for high-viscosity materials such as cream, peanut sauce, tomato sauce, and chili sauce. It features a reasonable, compact design. The pneumatic components are sourced from world-class brands like AirTac or SMC, ensuring reliability.

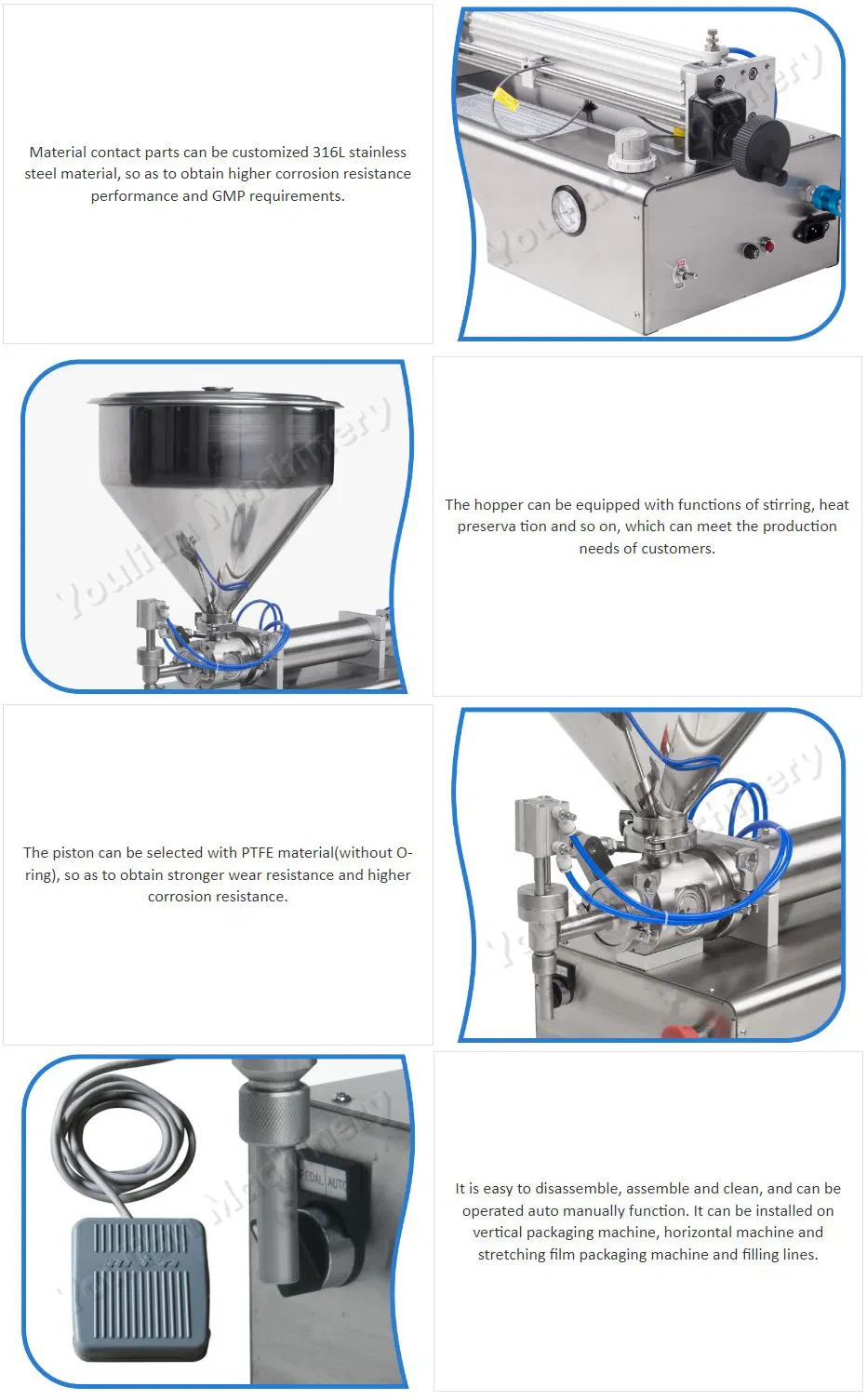

Equipped with a 40L hopper, all parts contacting the material are made of 304L stainless steel. The machine is integrated with a worktable for convenience. Both filling volume and speed are fully adjustable with high precision, and the filling head features anti-leakage technology.

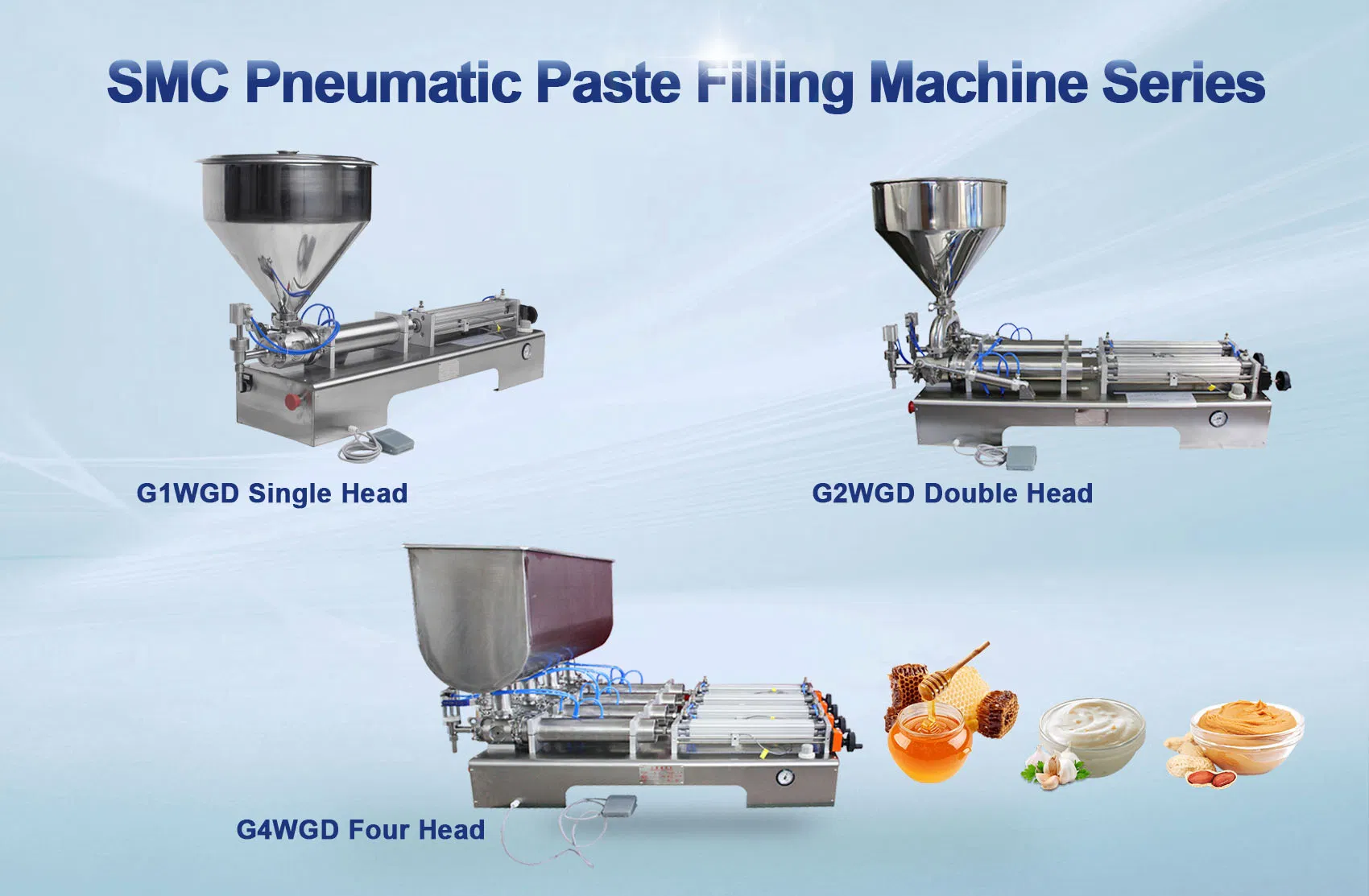

| Model | G1WGD | G2WGD | G4WGD |
|---|---|---|---|
| Power Supply | 220/110V 50/60HZ | ||
| Air Pressure | 0.6-0.8mpa | ||
| Output | 0-40 bottles/min | 0-80 bottles/min | 0-160 bottles/min |
| Filling Range | 5-100ml, 10-300ml, 50-500ml, 100-1000ml, 500-3000ml, 1000-5000ml | ||
| Power | 50W | 100W | 200W |
| Hopper | 30L | 50L | 100L |
| Filling Head | 1 | 2 | 4 |
Note: Single filling nozzles are available in diameters of 14mm, 19mm, 25mm, and 35mm. Suitable for both liquid and pasty materials.
Accuracy, Perfectly! This machine is suitable for quantitative filling in chemical, food, daily chemical, pharmaceutical, and cosmetic industries. Ideal for honey, chili sauce, tomato sauce, toothpaste, and lubricants.
