| Model NO. | CM-AF-4 | Type | Piston Filling Machine |
| Automatic Grade | Automatic | Material Type | Liquid |
| Filling Valve Head | Multi-Head | Dosing Device | Plunger |
| Filling Principle | Vacuum | Structure | Linear |
| Packaging | Bottle | Packaging Material | Plastic |
| Filling Accuracy | 99% | Size | L2000 X W1100 X H2200mm |
| Filling Speed | 30-40PCS/Min (Based on 500ml) | Filling Range | 30-500ml |
| Material | SUS304/SS316L | Power | 1.5kw |

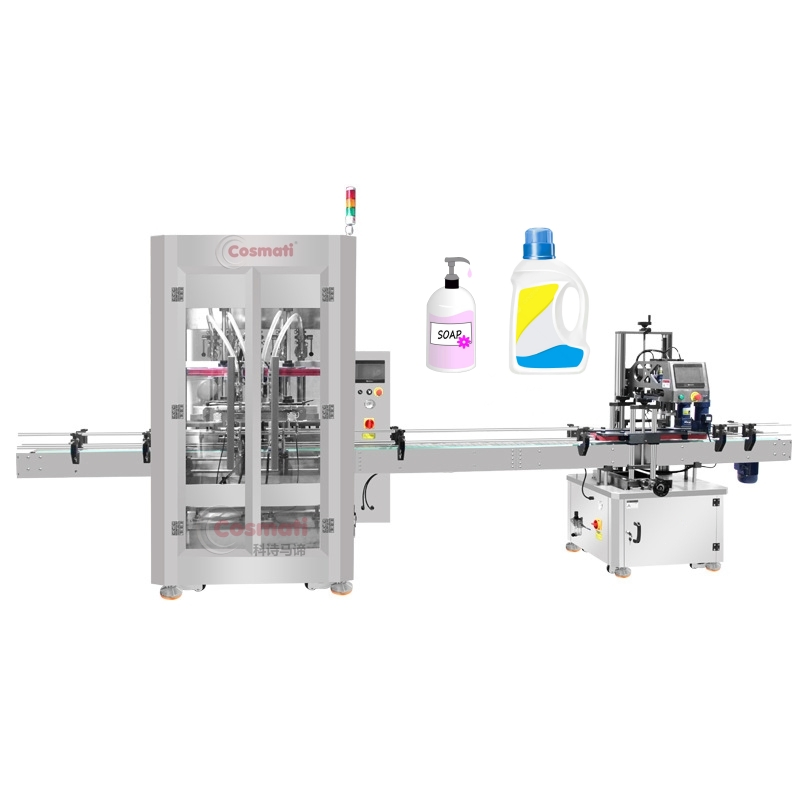

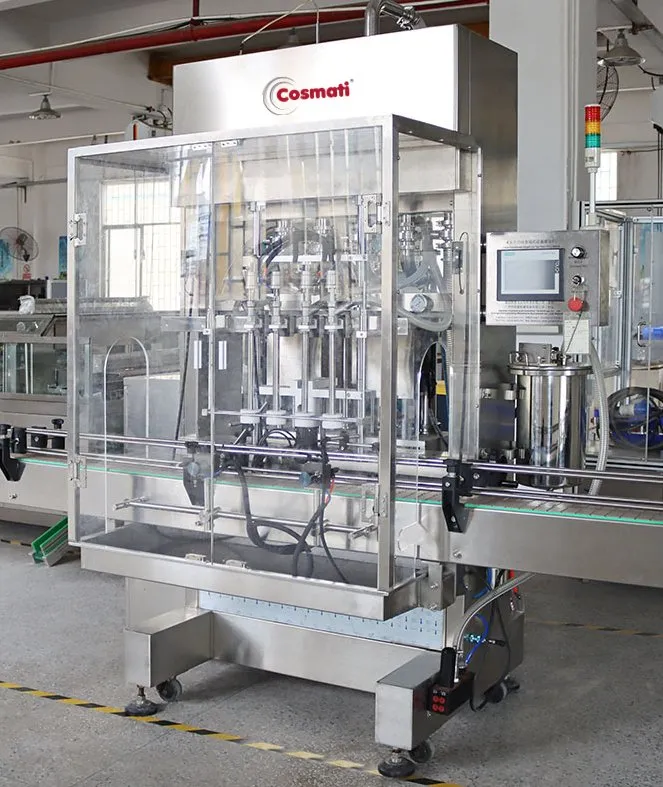

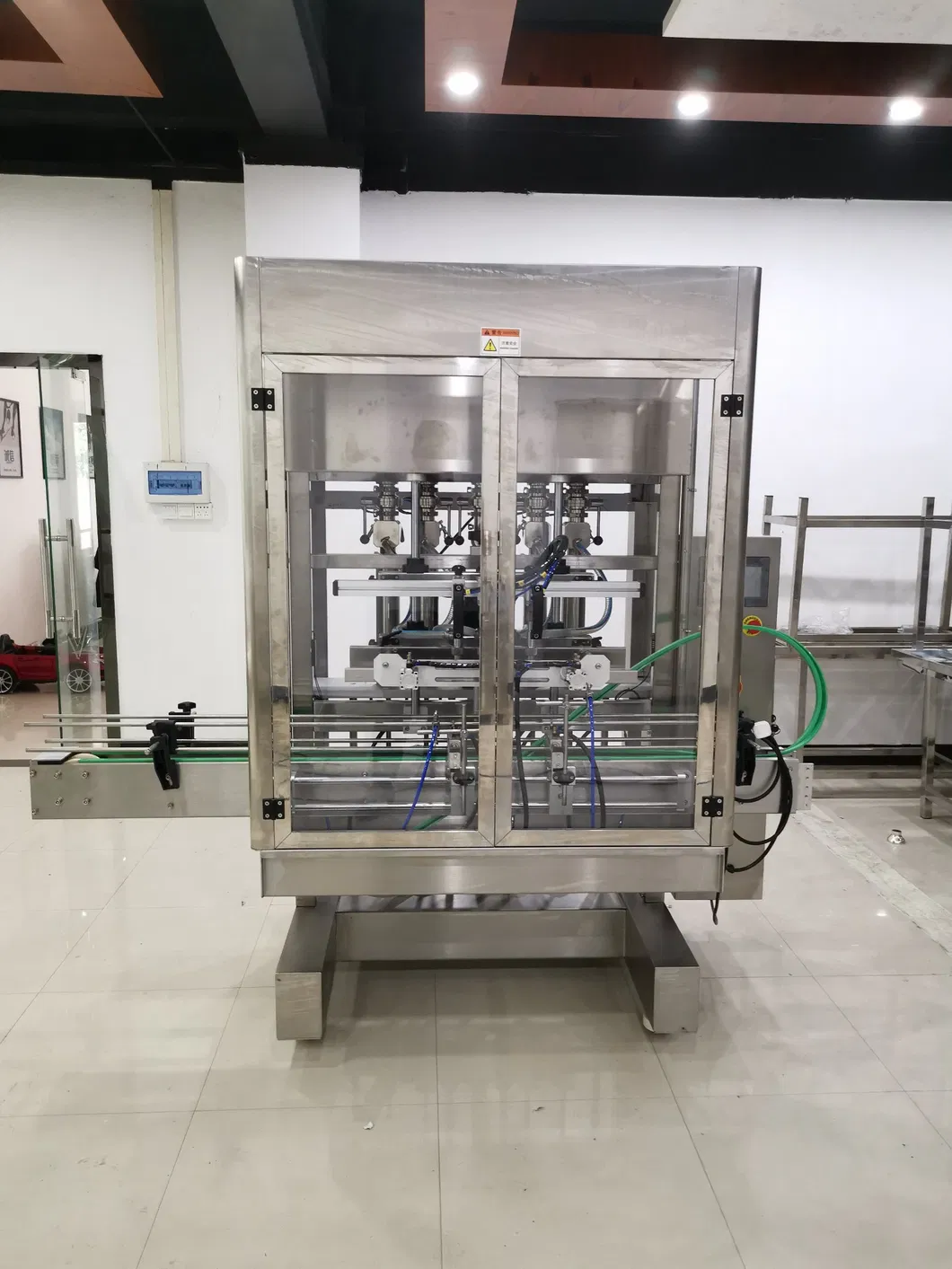

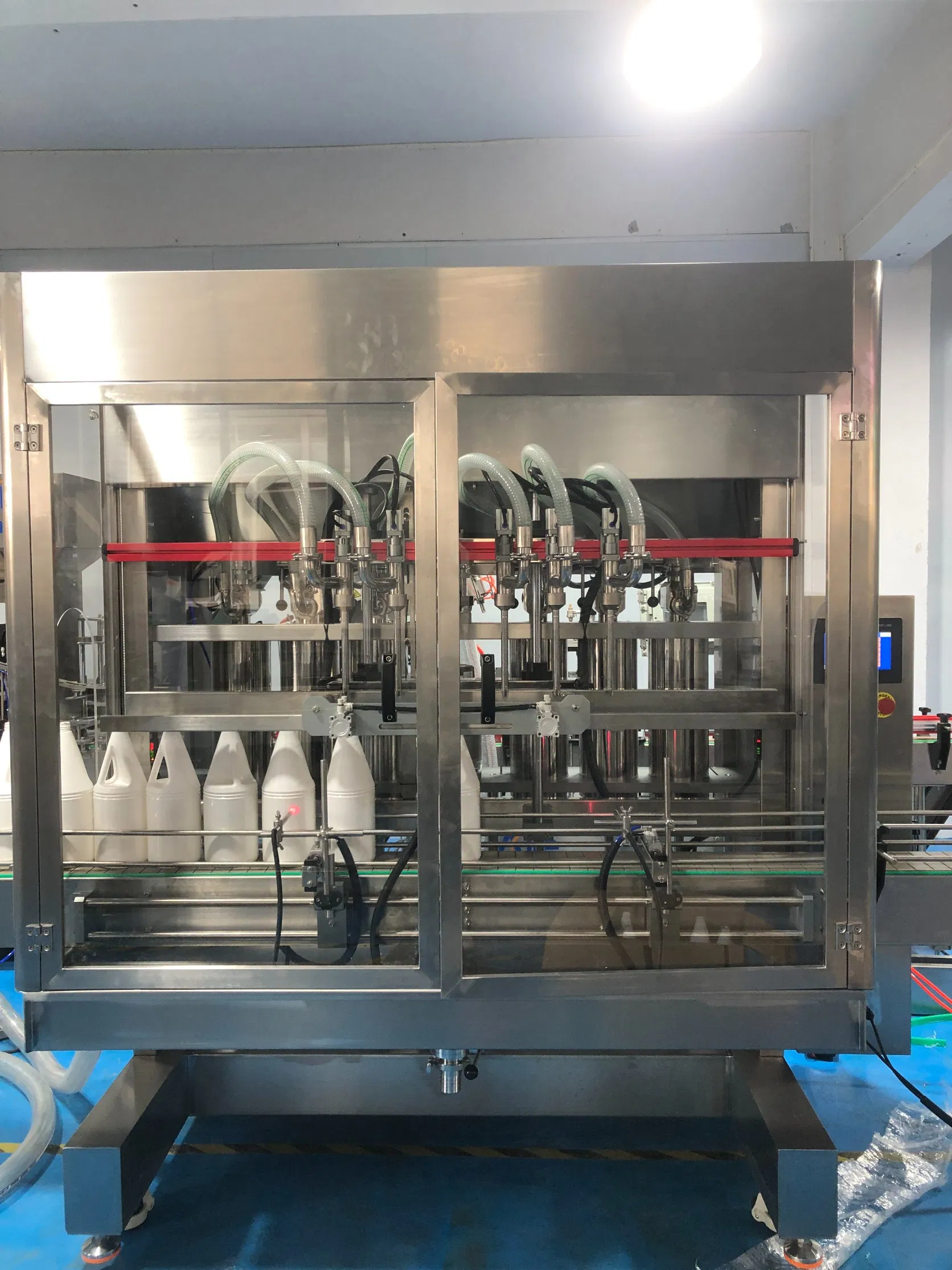

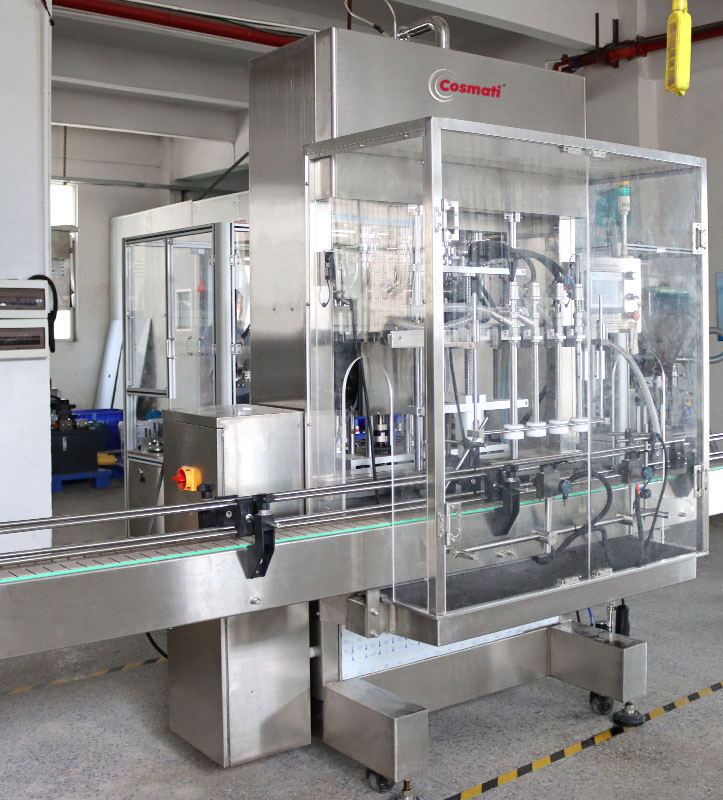

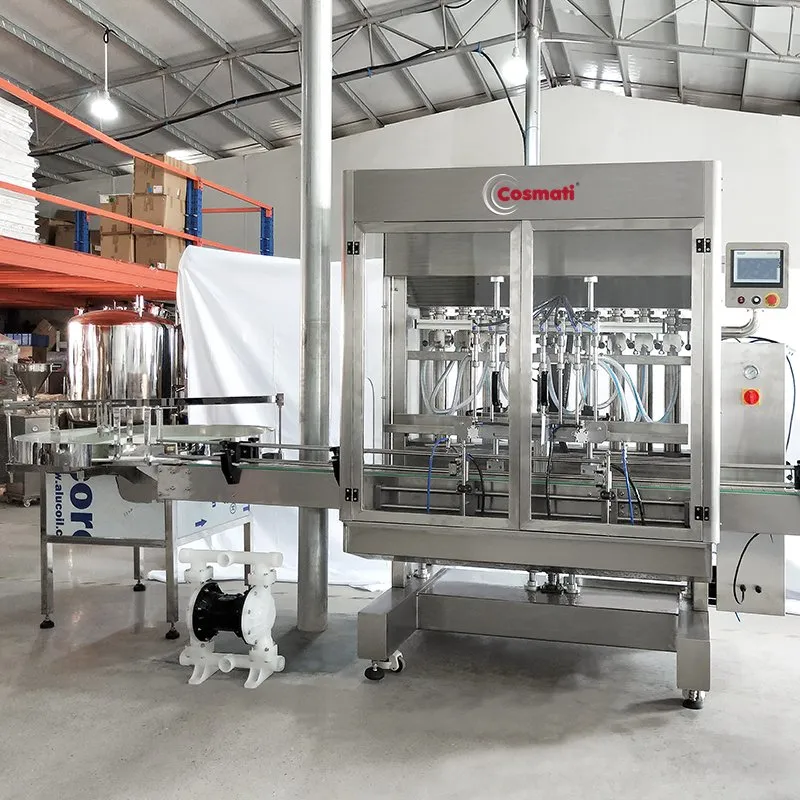

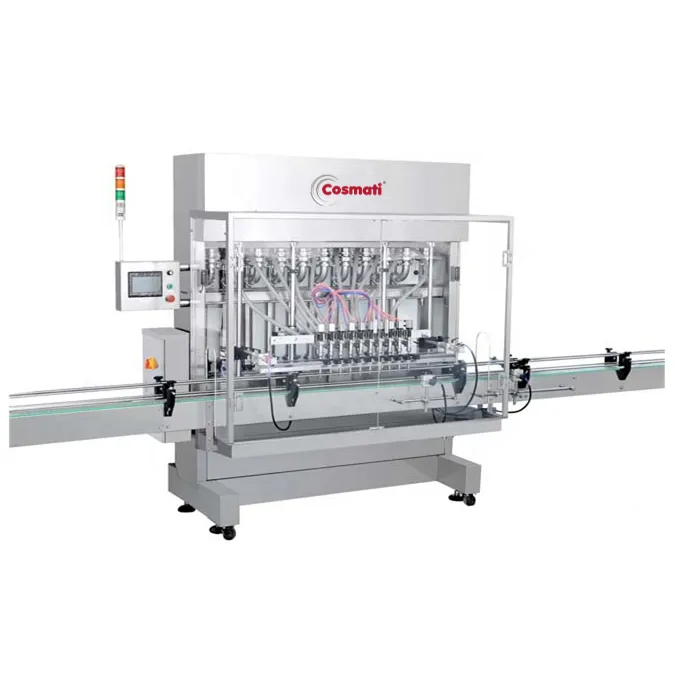

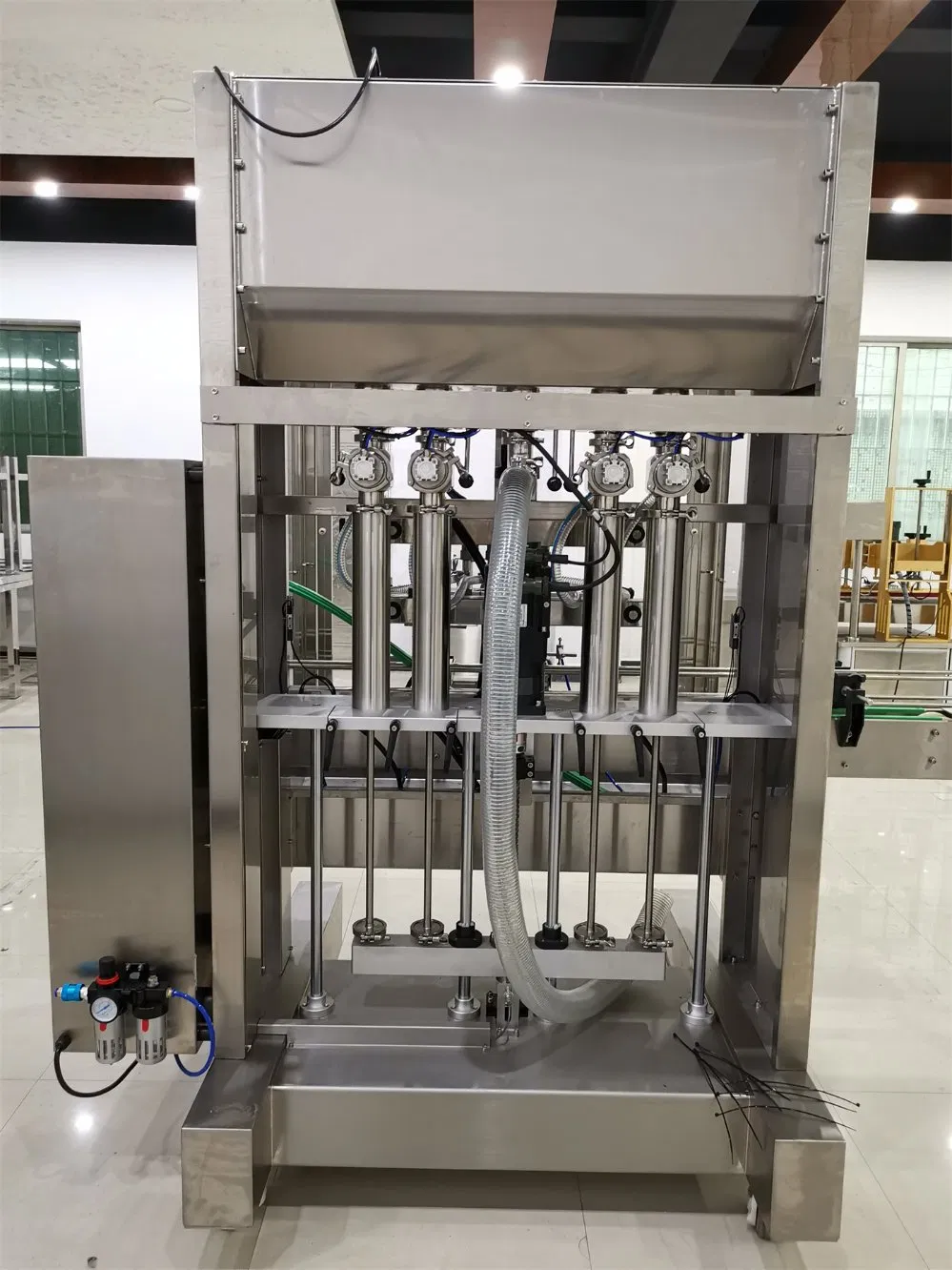

Multi Heads Piston Liquid Detergent Filling Machine Daily Chemical Shampoo Lotion Filler
| Model | CM-ZDGZ | Machine Size | 2000 x 1100 x 2200mm |
| Filling Speed | 30-40pcs/min (500ml bottles) | Filling Nozzles | 4/6/8/10/12 pcs (Customizable) |
| Filling Accuracy | ±1% | Working Pressure | 8kg/cm |
| Material | 304 and 316L stainless steel | Usage | Shampoo, lotion, liquid soap, detergent, conditioner, hair care liquid. |

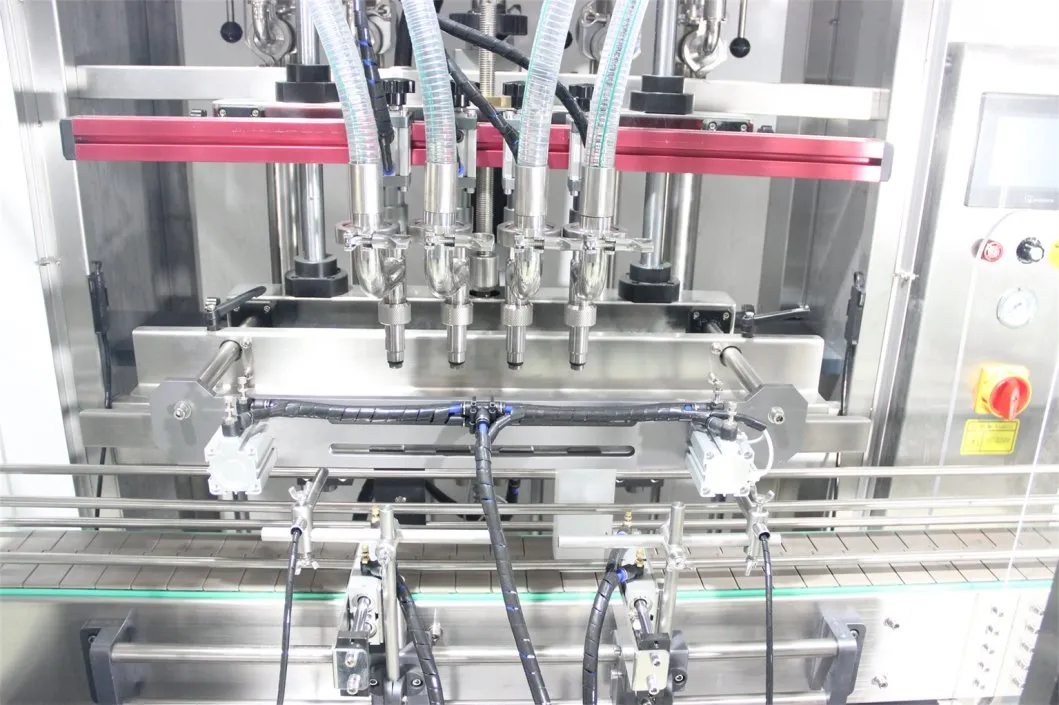

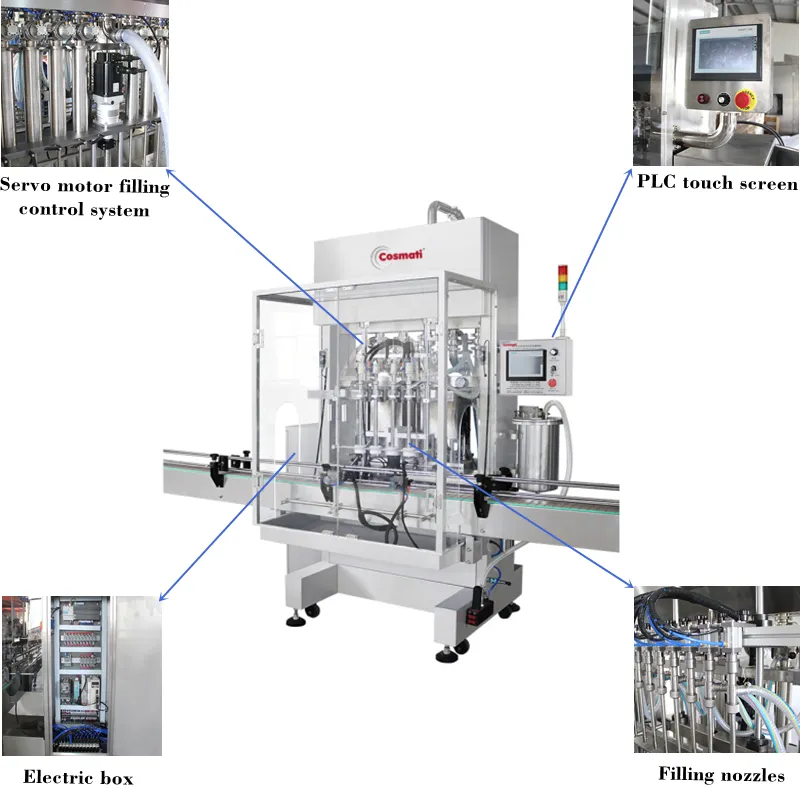

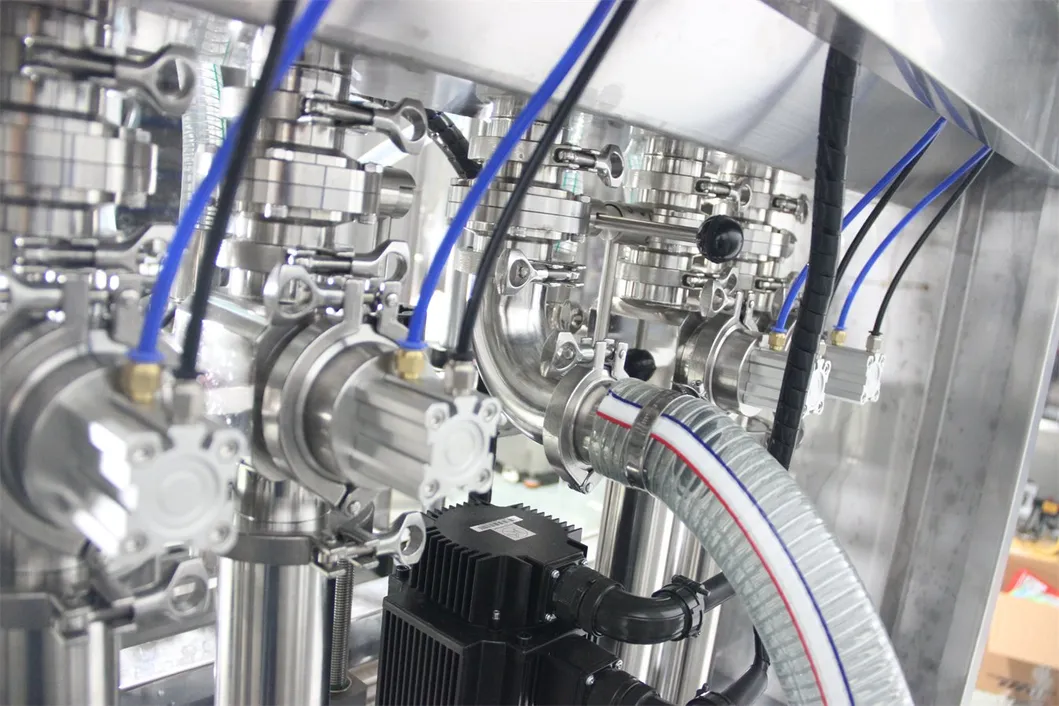

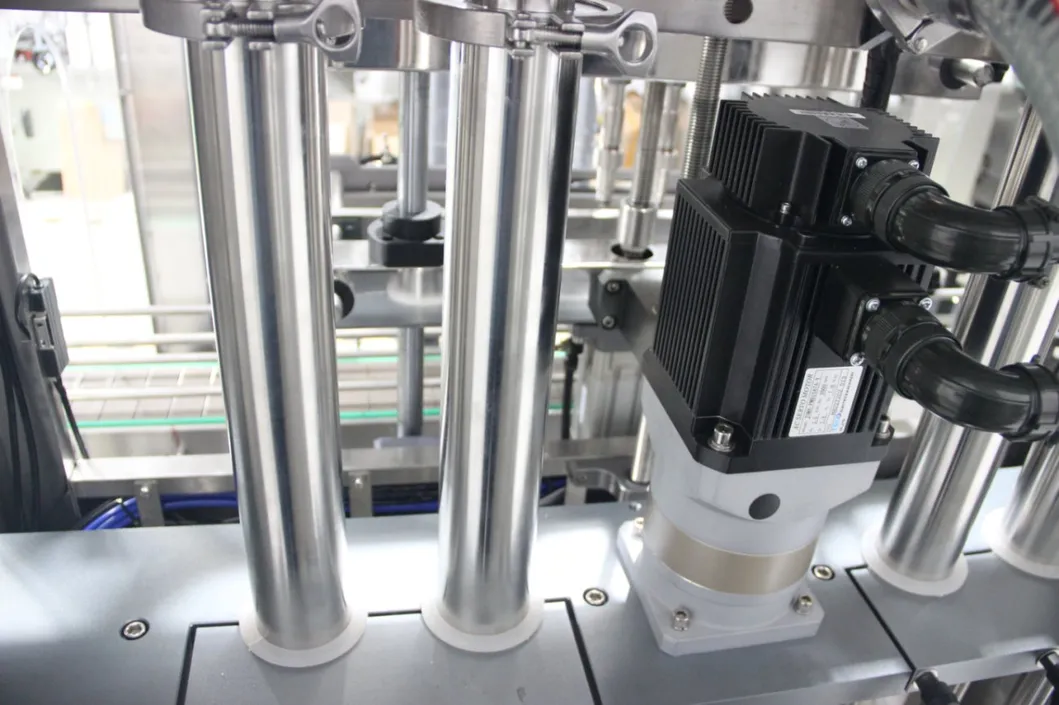

It adopts a separate photoelectricity for bottle feeding and withdrawal, a mechanical structure with upper feeding and no one-way valve. The servo motor drives the piston cylinder to make the filling accuracy more accurate, ensuring efficient and stable continuous operation.
Working Method: Piston filling, automatic bottle feeding, automatic filling, equipped with the automatic feeding control system.
