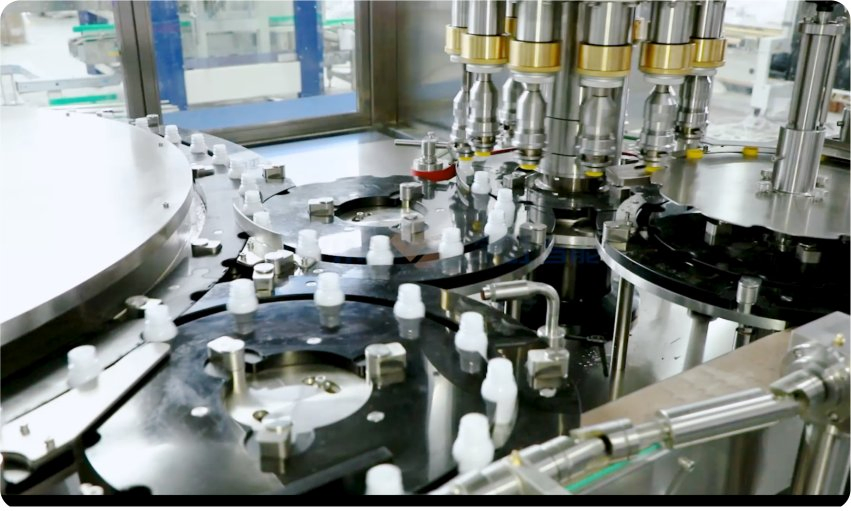

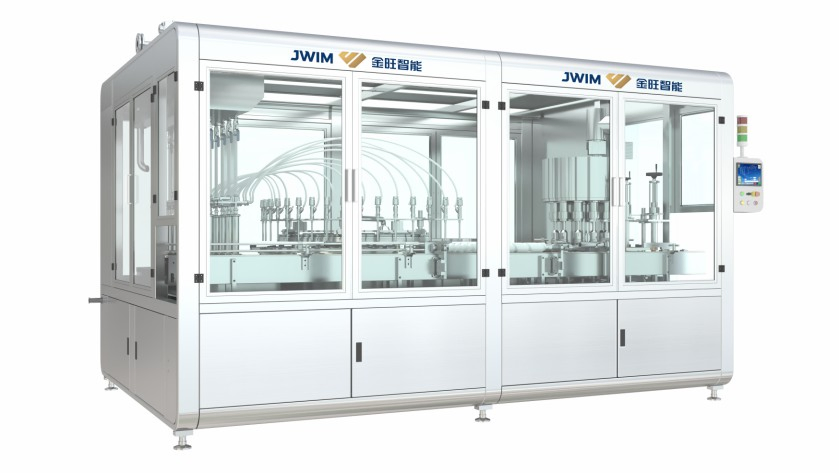

The Automatic Integrated Filling Capping Machine is driven by a servo motor and utilizes the volume metering filling principle, ensuring high precision in dosage. Controlled via PLC, all operations are managed through an intuitive touch screen. The capping component includes cap supply, scratching, pressing, clamping, and conveyor systems.

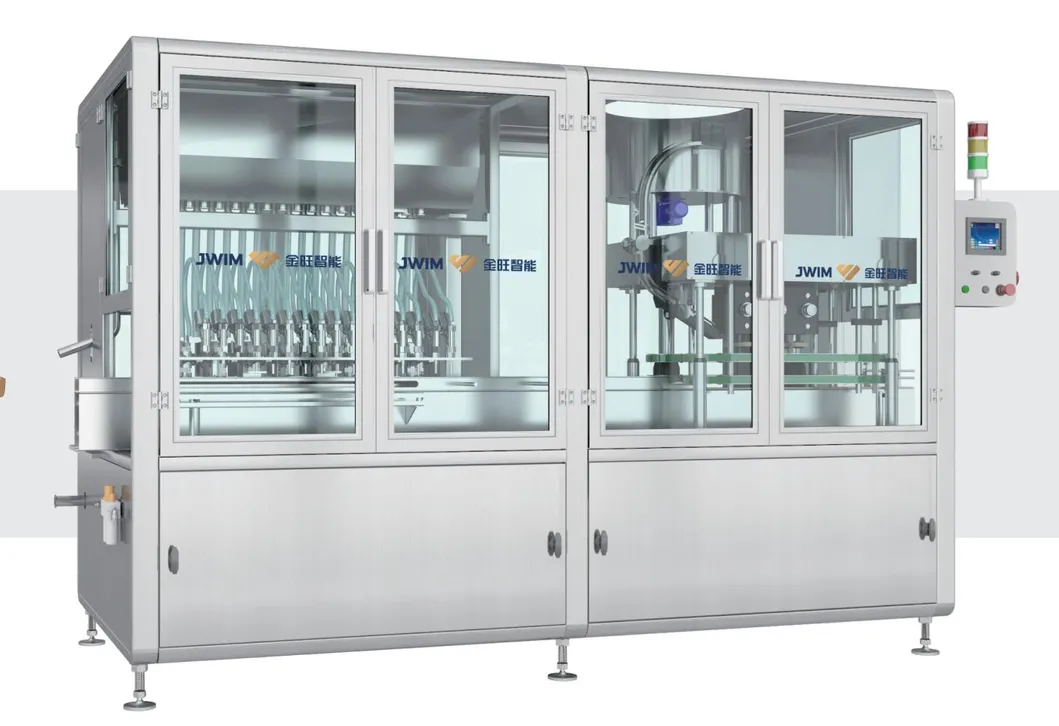

Featuring a compact structure and small footprint, this machine integrates filling and capping into one unit. Constructed with a SUS304 frame and toughened glass doors, it offers safety, environmental friendliness, and ease of cleaning.
| Parameter | Details |
|---|---|
| Model | GX-16-12TS |
| Type | Integrated Filling Capping Machine |
| Automatic Grade | Full Automatic |
| Material Type | Liquid |
| Capacity | 20ml: ≤4500 BPH |
| Applicable Bottle | Diameter: Φ20-60mm | Height: 50-150mm |
| Applicable Cap | Diameter: Φ20-50mm | Height: 15-40mm |
| Filling Precision | ±1% - ±1.5% |
| Power Source | 380V 50Hz / 4kw |
| Air Pressure | 0.6-0.8MPa |

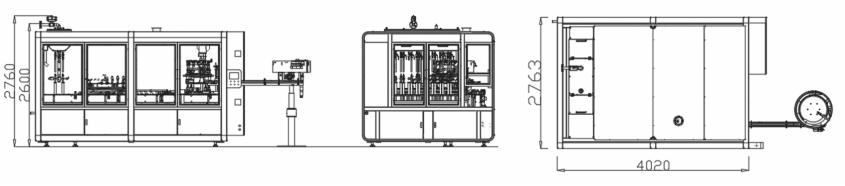

| Machine Size | 3420*1180*2078mm |
| Weight | 1100kg |

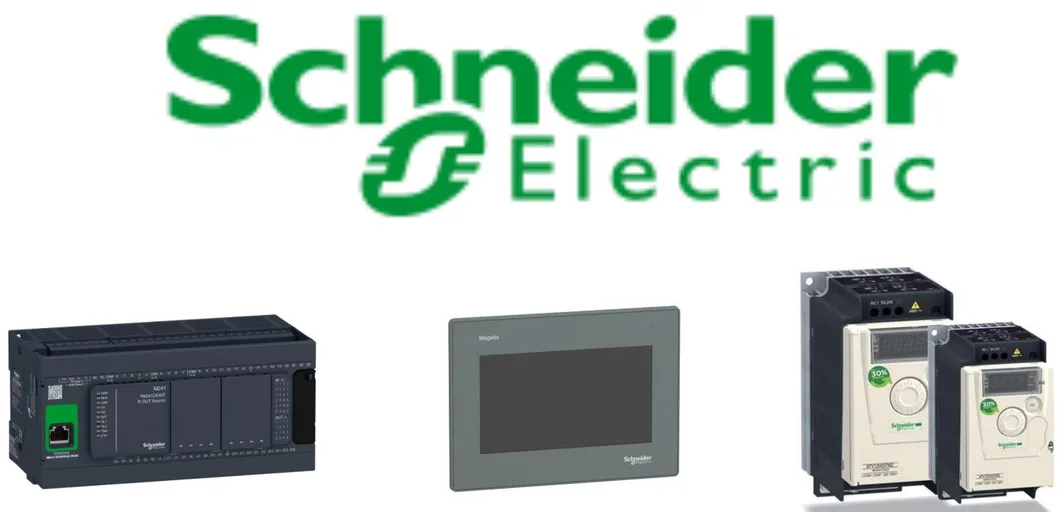

1. Schneider Configuration: The electric control system utilizes Schneider components, providing a stable, reliable, and energy-efficient operation.
2. Versatile Application: Widely used for automatic filling and screw capping of 20-100ml containers in agrochemical, chemical, and personal care industries.

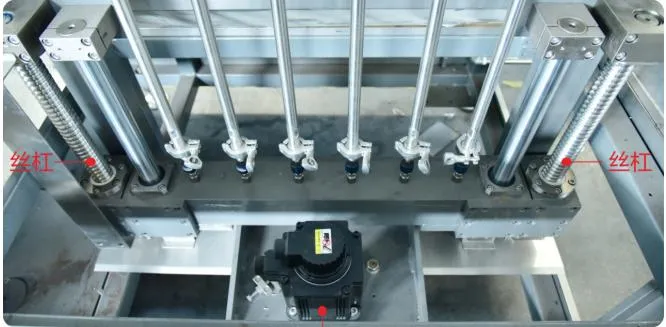

3. Precision Motion: Utilizes PLC control and servo motors to drive a synchronous belt and double screw rod lifting structure for high-precision piston movement.

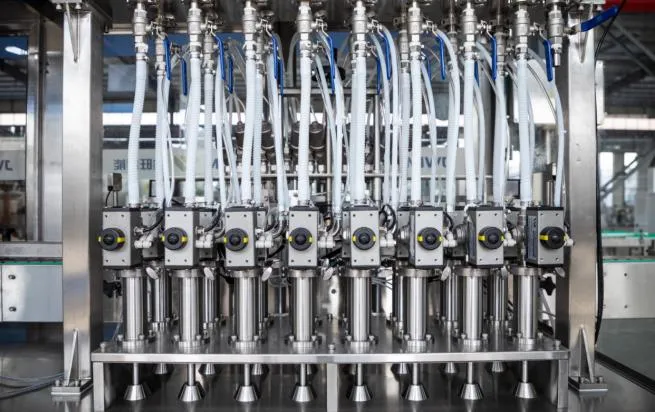

4. Specialized Pistons: 100ml pistons are specifically designed to ensure precision for small volume filling tasks.

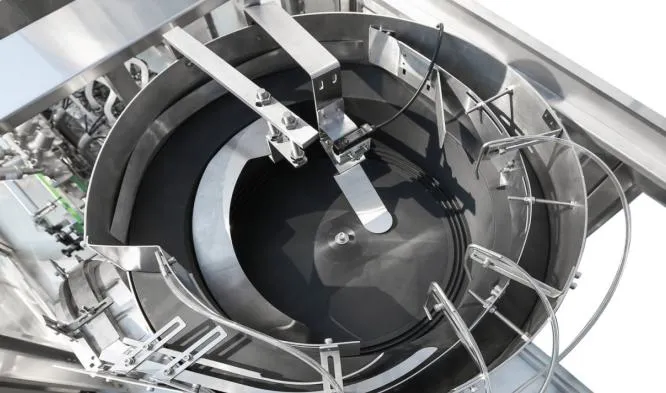

5. Intelligent Cap Supply: The cap sorter features an automatic inspection device. The cap elevator starts automatically when supply is low, ensuring continuous production.
