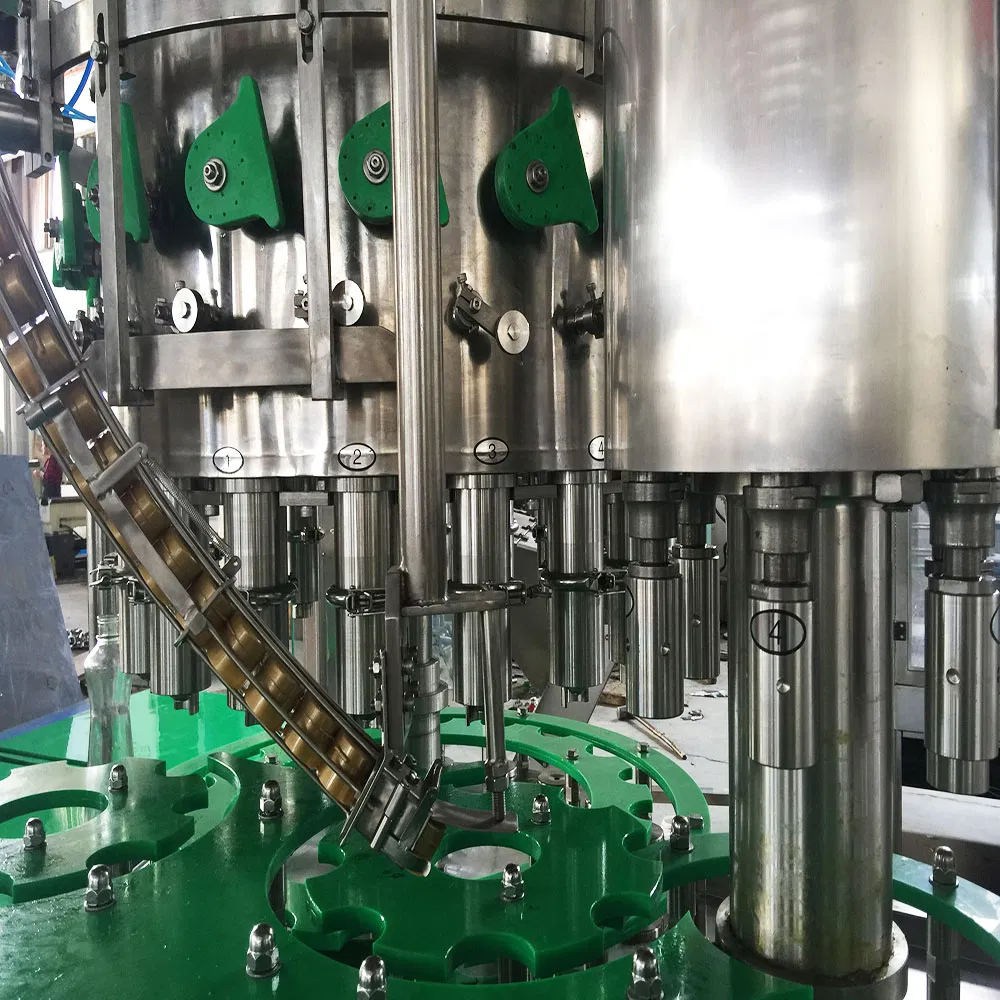

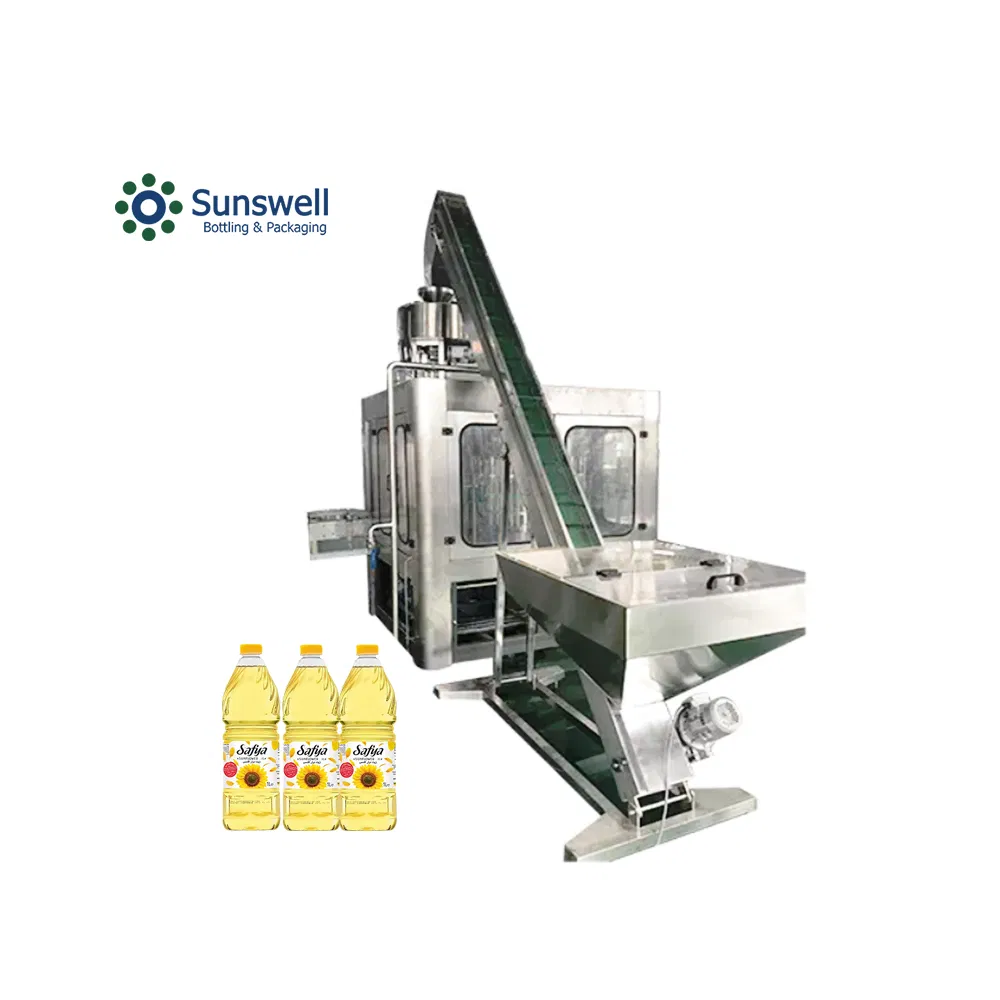

Customized Servo Motor Linear Type 1-5L Filling Capping Liquid Bottling Piston Labeling Machine Automatic Engine Edible/Olive Oil Filling Machine

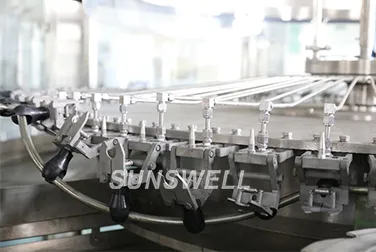

1. Washing Parts

<1> The type of into bottle is Stainless Steel conveyor belt, bottle screw shaft connection with Bottle dial.
<2> All 304/316 stainless steel rinse heads with rubber holding parts, water spray style inject design, more save water consumption and more clean.
<3> 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.

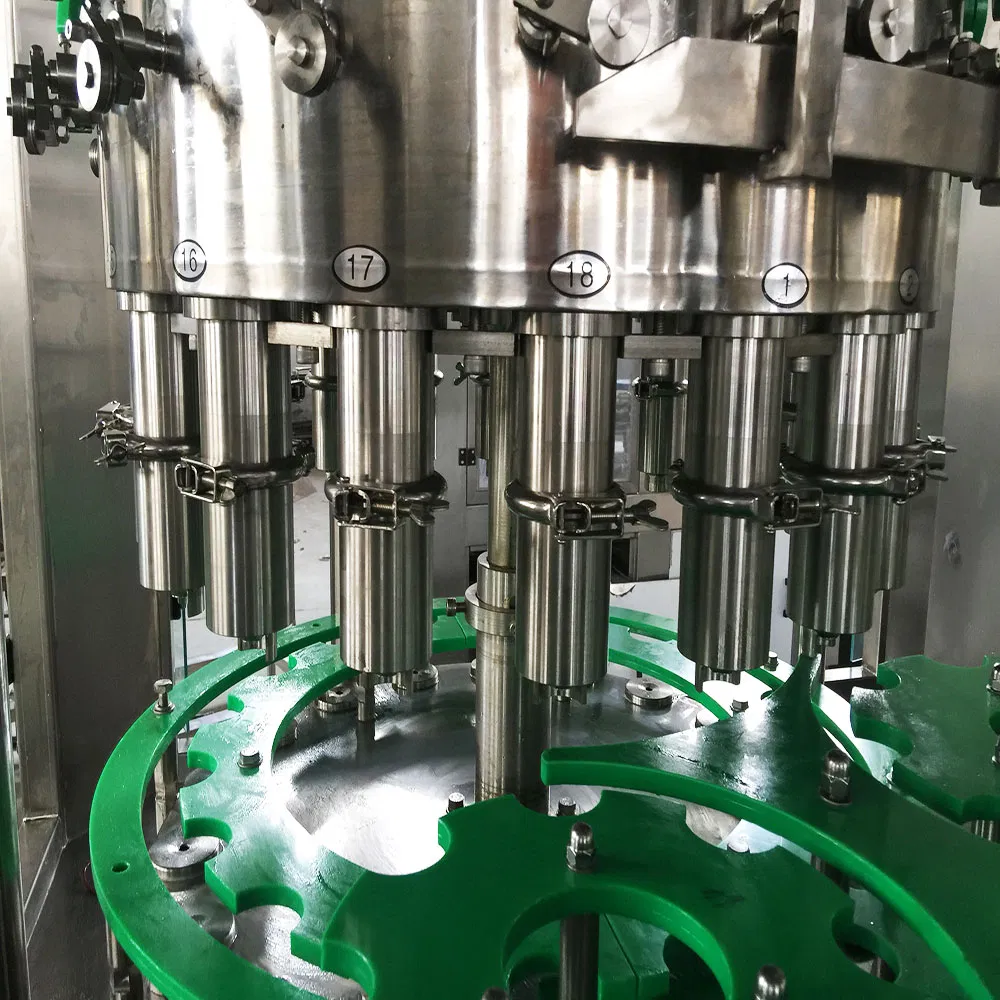

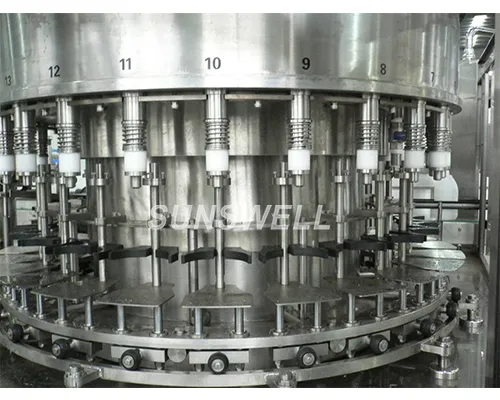

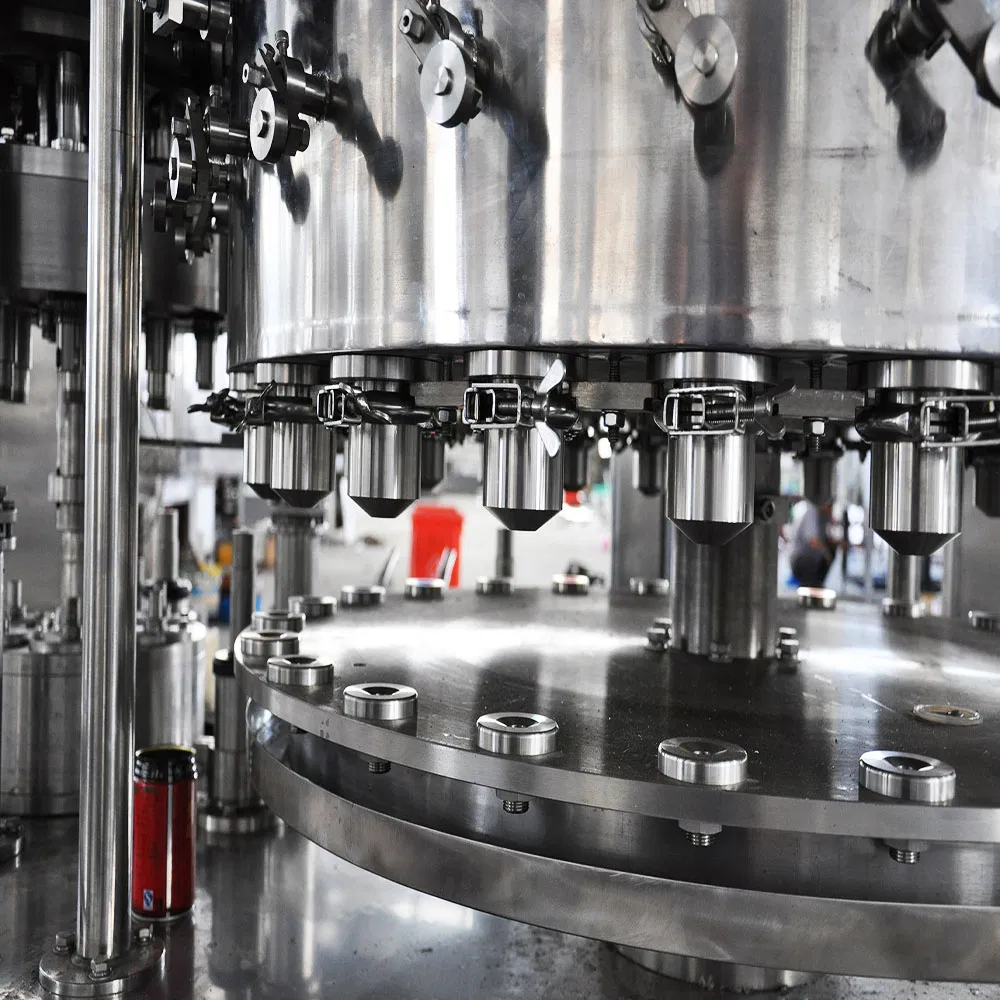

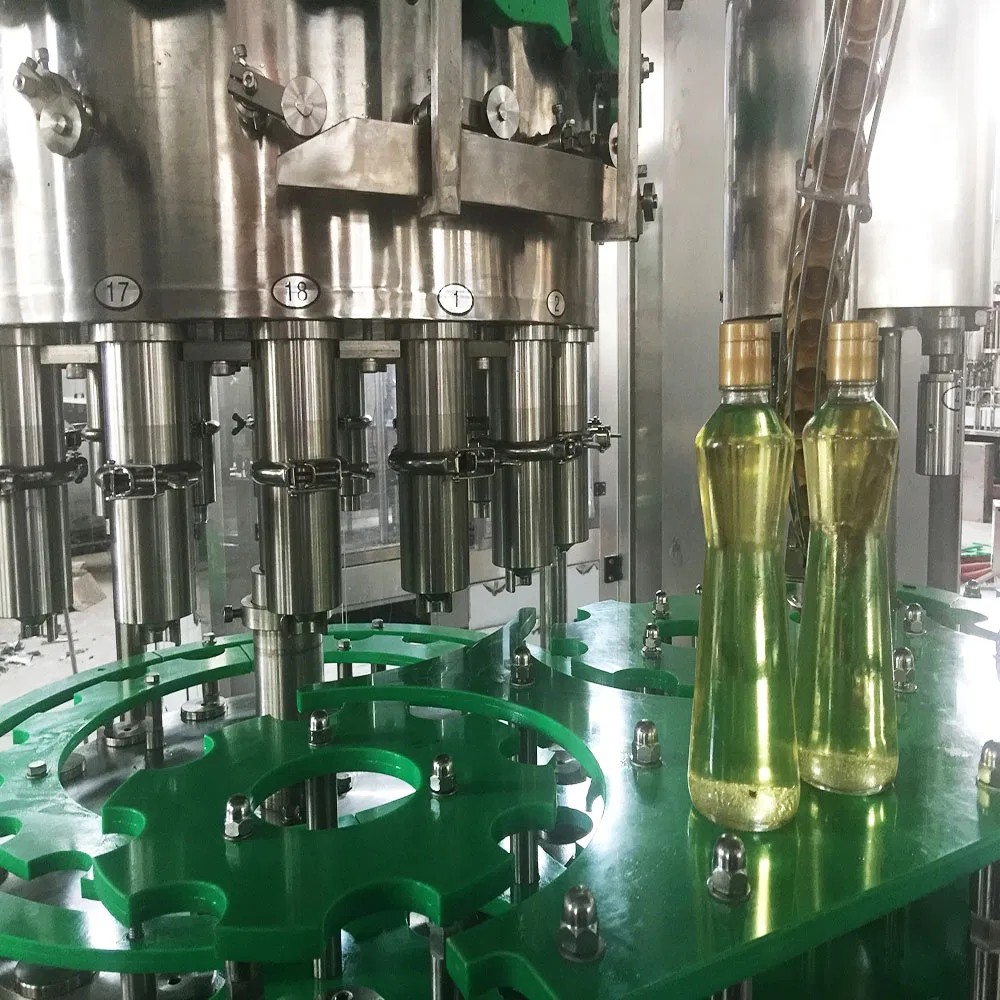

2. Filling Parts

The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck. The filling system has liquid level automatic control. Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it starts to fill.

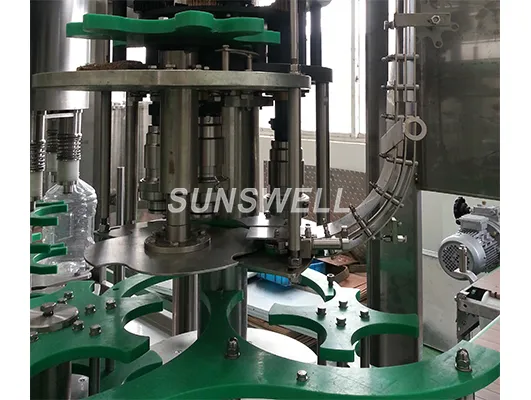

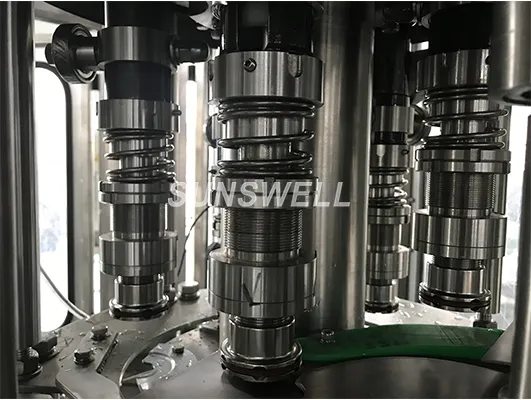

3. Capping Parts

Flip (Press-on) Capper: The capping cam is forged from 45# high quality carbon steel and is cut and machined by the machining center. In order to improve the strength of the guide rail of the cam, after the corresponding heat treatment, the surface is blacked out.

Screw Capper: Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism. Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
