Customization: Available
After-sales Service: Overseas Installing Service
Warranty: 24months
Send Inquiry

Product Description

Basic Specifications
Model NO.
Blow RL-8
Type
Weighing-type Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Structure
Rotary
Capacity
12000bph-48000bph
Bottle Volume
200ml-2000ml
Filling Accuracy
0.5%
Control
PLC+Touch Screen
Material
Pet Preform
Specification
Stainless Steel 304/316
Product Overview

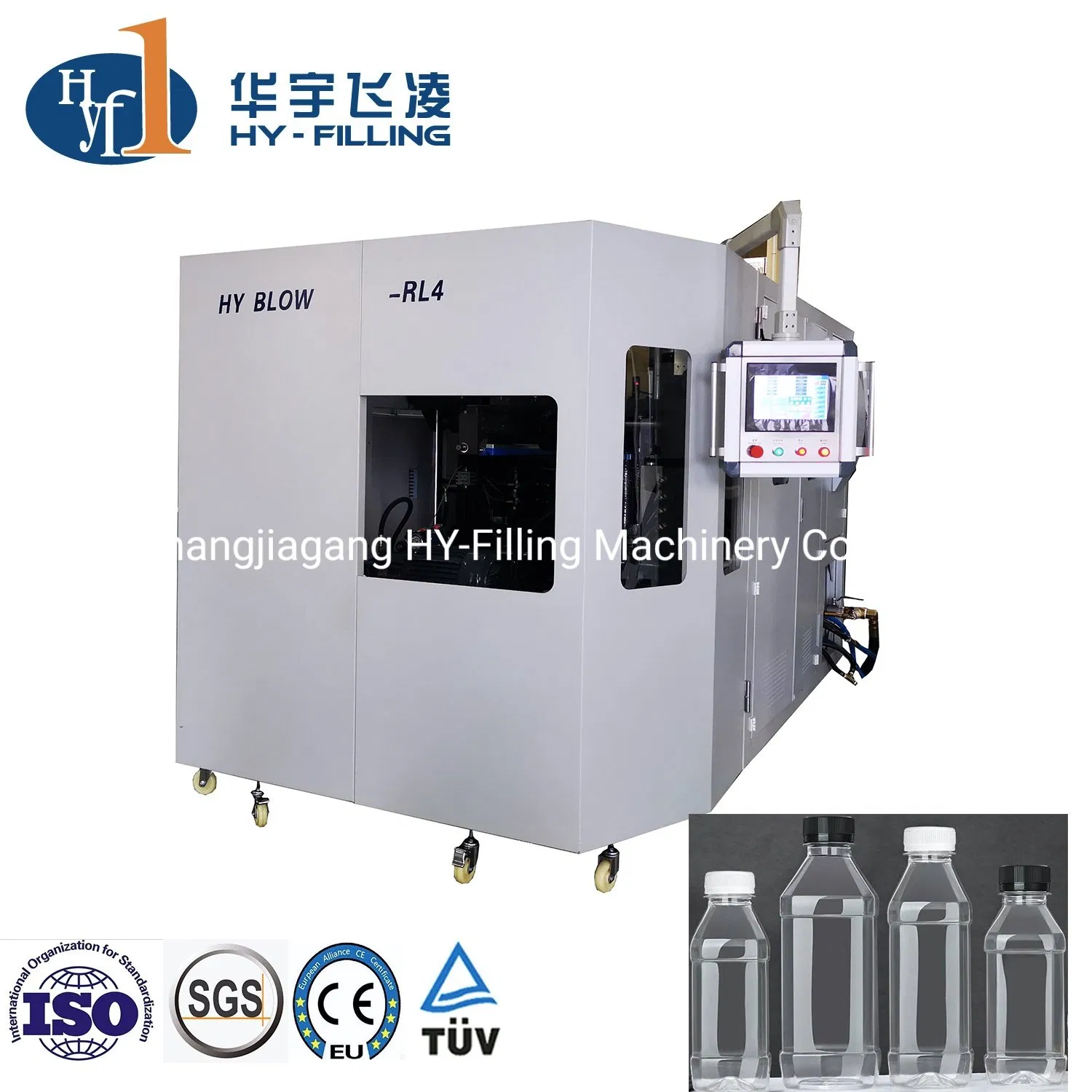

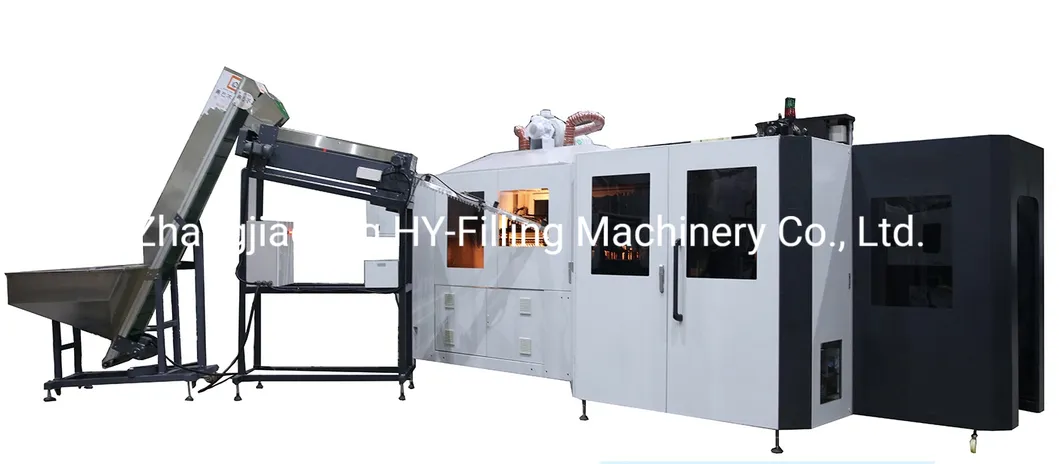

PET Blowing Machine System

The linear blow molder for the production of PET bottles is a highly versatile system, optimized for both output and various bottle types. Utilizing the bi-orientation blow molding principle, this machine ranges from 6 to 12 cavities, ensuring consistent quality and high productivity. All electric driven and continuous motion features guarantee low energy consumption and maximum flexibility.

By making simple modifications, it is possible to produce a wide variety of containers, including standard bottles, customized cosmetic bottles, detergent containers, and lightweight pharmaceutical bottles.

🎯 Key Applications:

Food, oil, carbonated drinks, mineral water, juice, alcohol, cosmetics bottles, tennis ball jars, and high-temperature-resistant bottles.

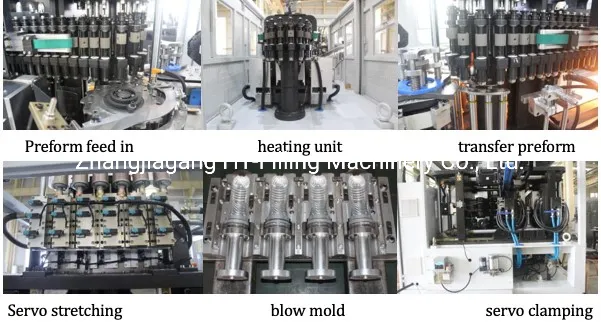

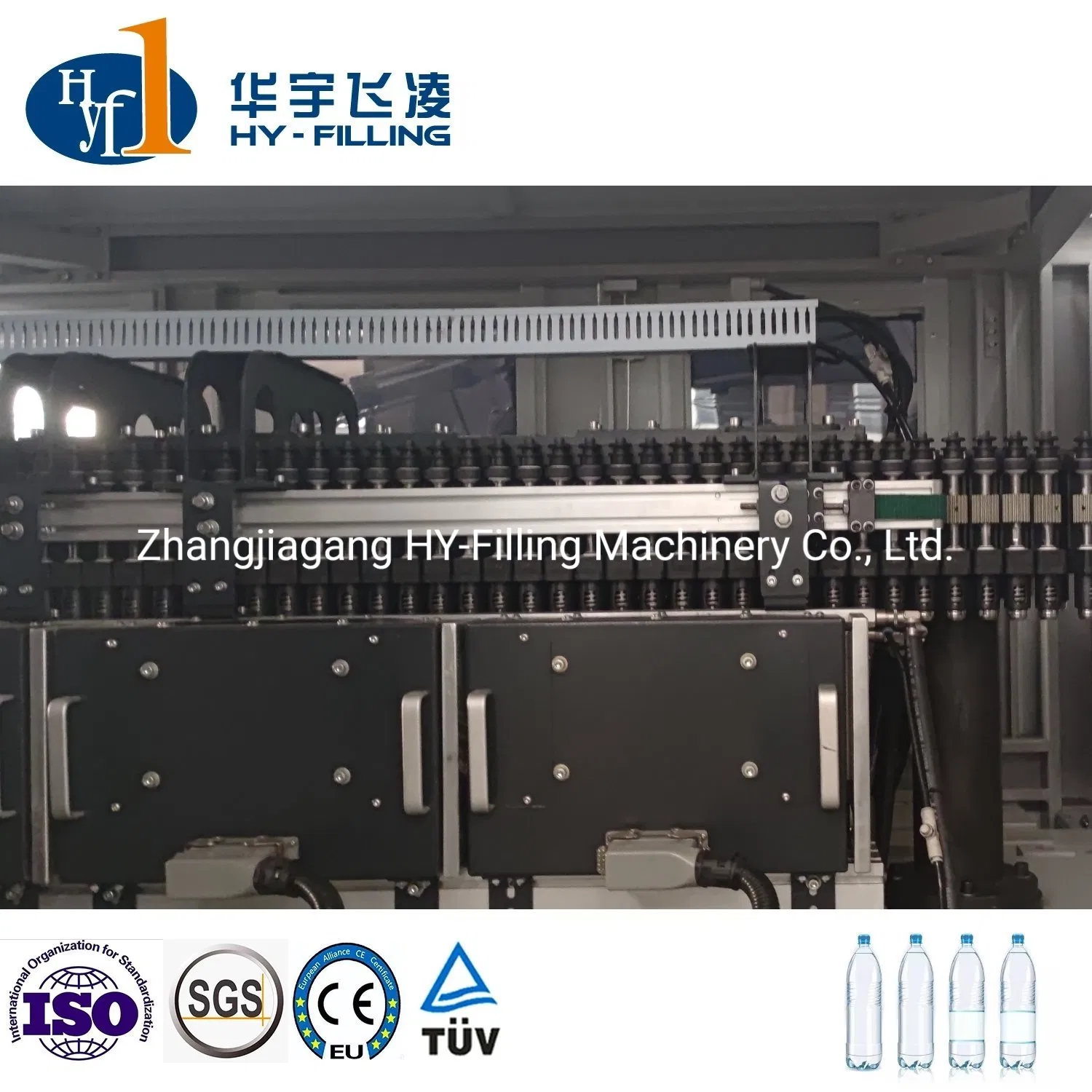

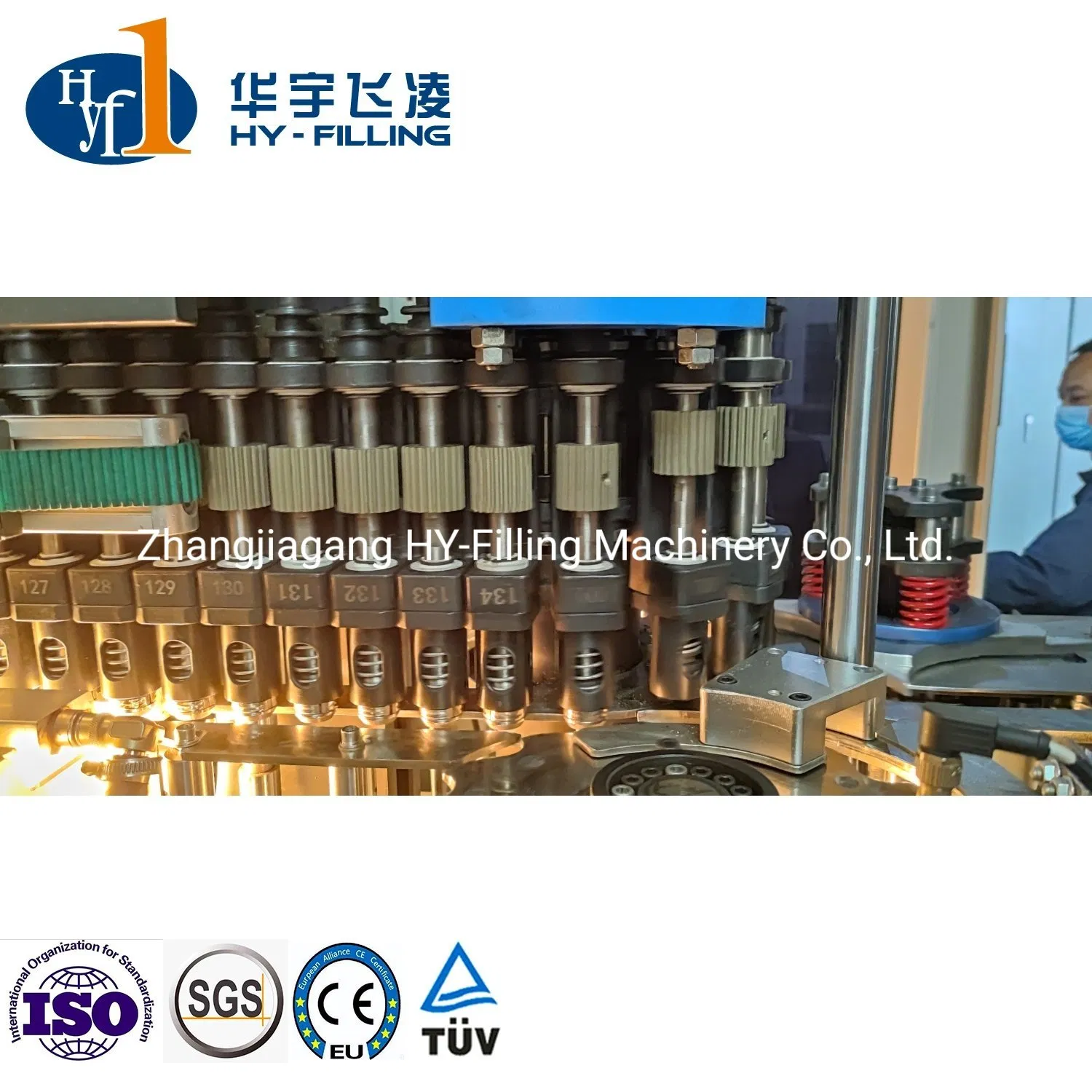

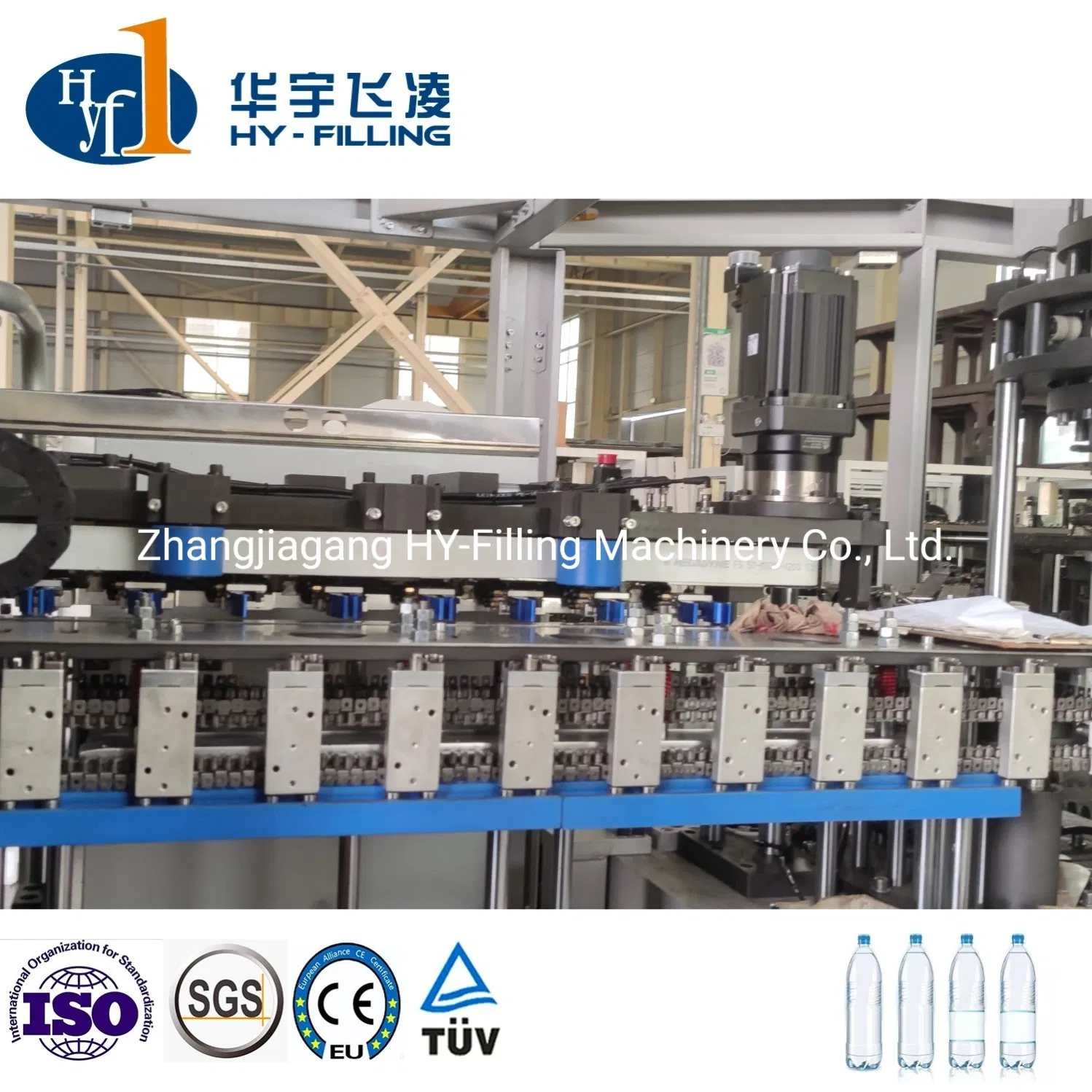

Blowing Machine Detail

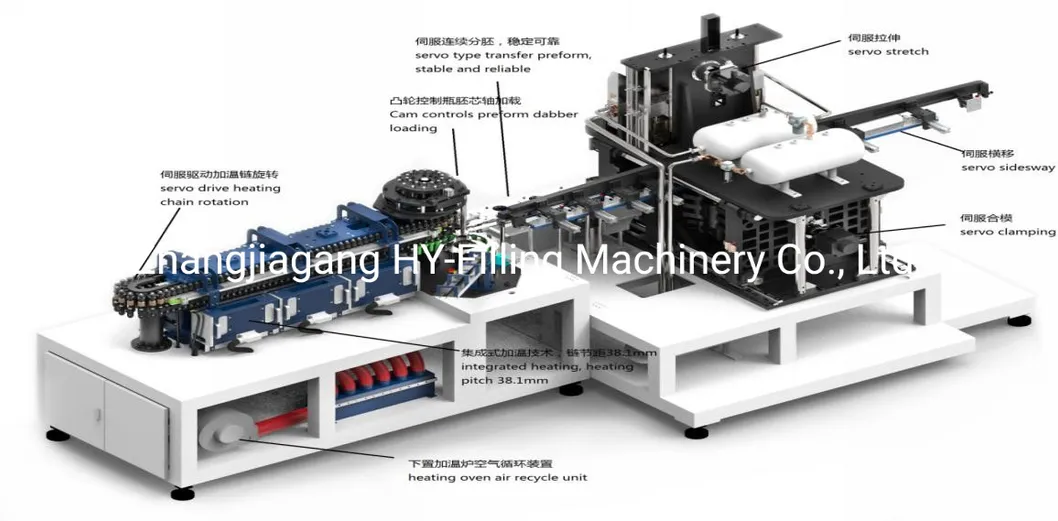

Production Line View
Main Features & Advantages
  • Advanced PLC Control: Stable performance with intuitive interface.
  • Automated Conveying: Pre-forms are handled automatically via conveyor systems.
  • Infrared Pre-heating: Swift and uniform heat distribution with rotating bottle rails.
  • Enhanced Safety: Automatic-locking apparatus for every mechanical action.
  • Eco-Friendly: Air cylinder driven actions reduce contamination and noise compared to oil pumps.
  • High Efficiency: Double bend arm and four rod-clamping structure for strong clamping force.
  • Power Saving: Optimized design to increase operational profits and reduce waste.
Complete Turnkey Solutions

We provide complete turnkey projects for beverage production lines, covering every stage from water treatment to final palletizing:

01. Water Filtration
Full Water Treatment Systems
02. Processing
Mixing Systems for CSD/Juice
03. Molding
Injection Molding for Preforms
04. Blowing
Bottle Making Machines
05. Filling
Rinsing, Filling & Capping
06. Packaging
Labeling, Shrink-wrapping & Palletizing
Auxiliary Equipment

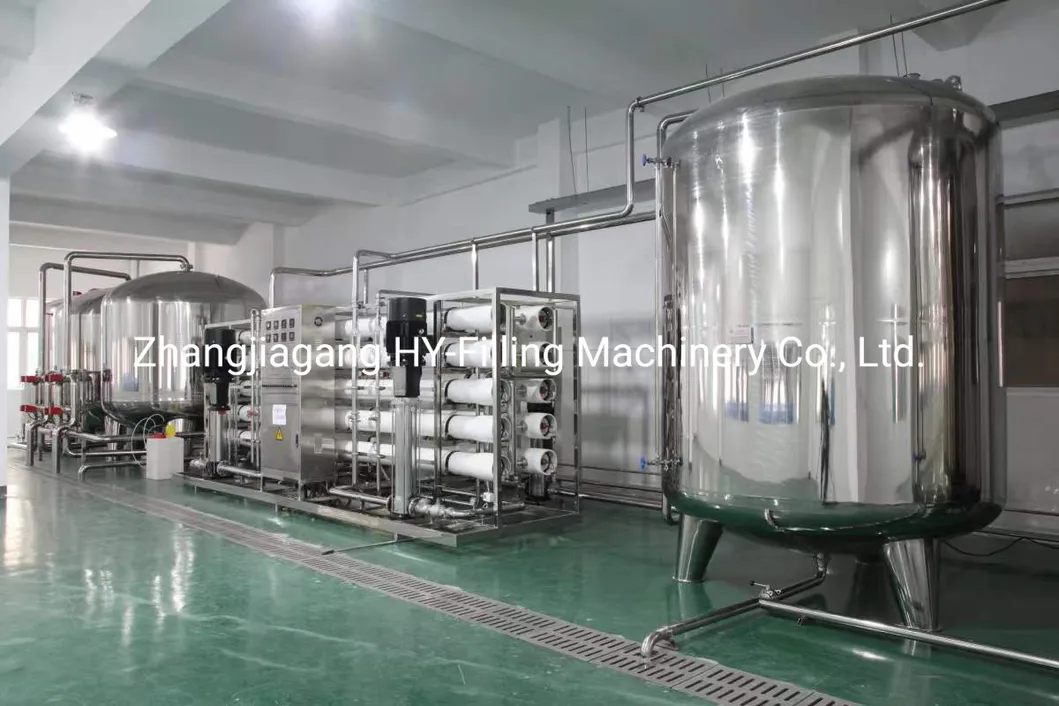

Water Treatment

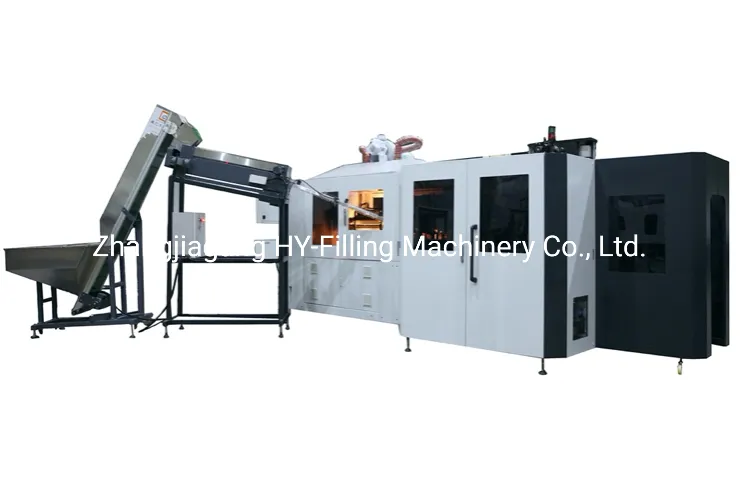

Blowing Unit

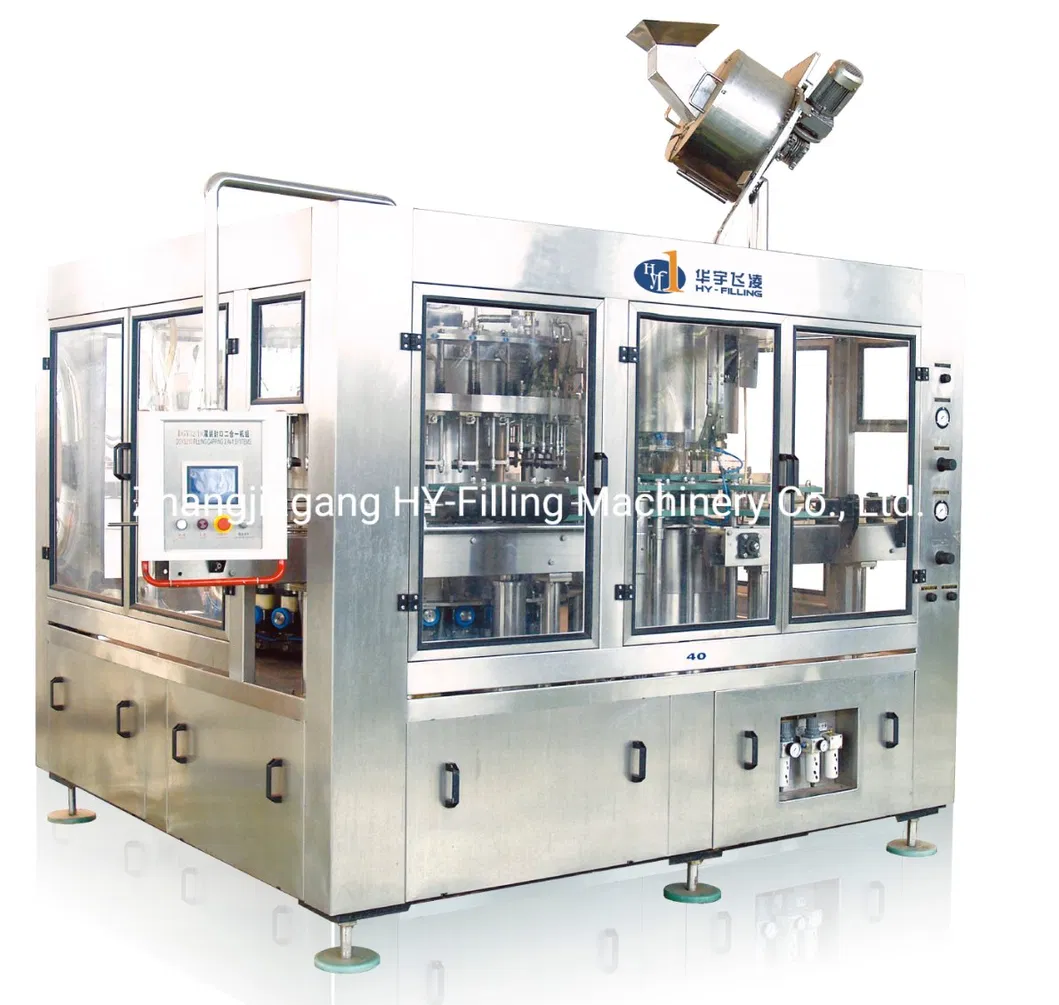

Filling Unit

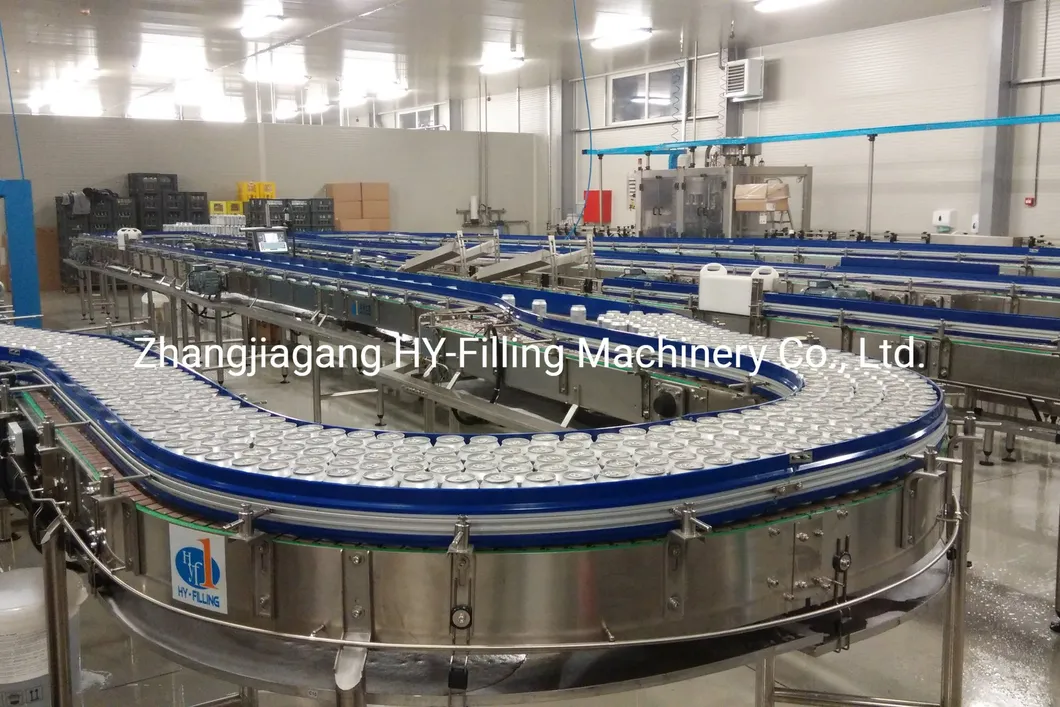

Conveyor System

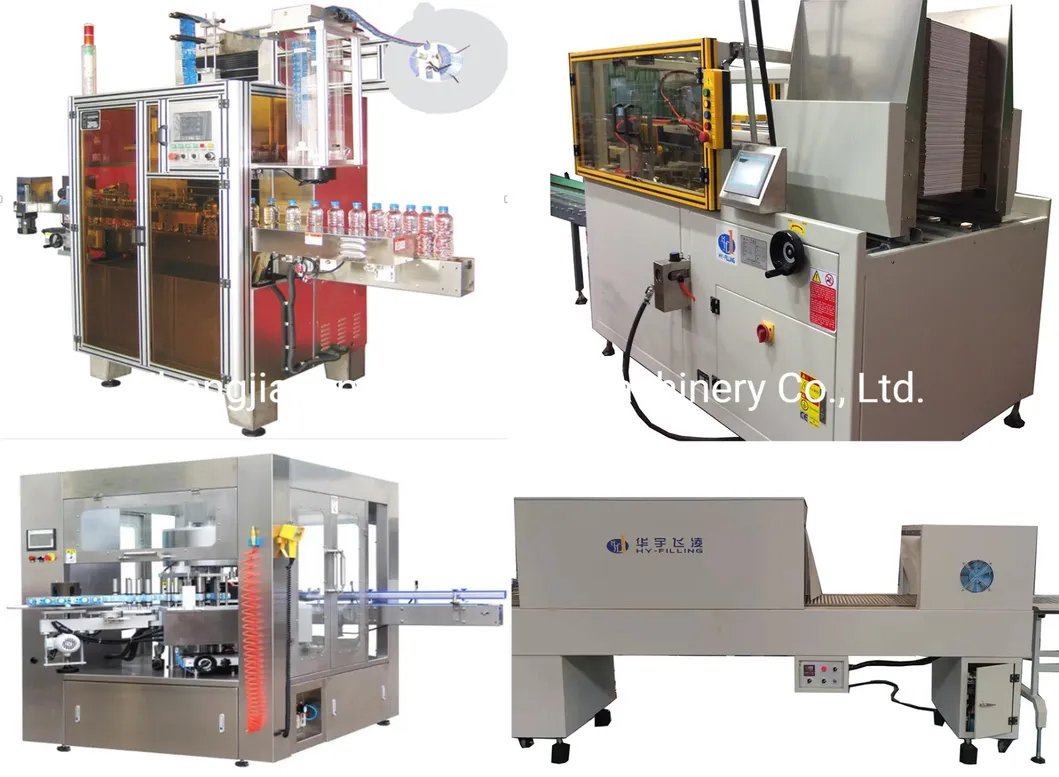

Packaging System

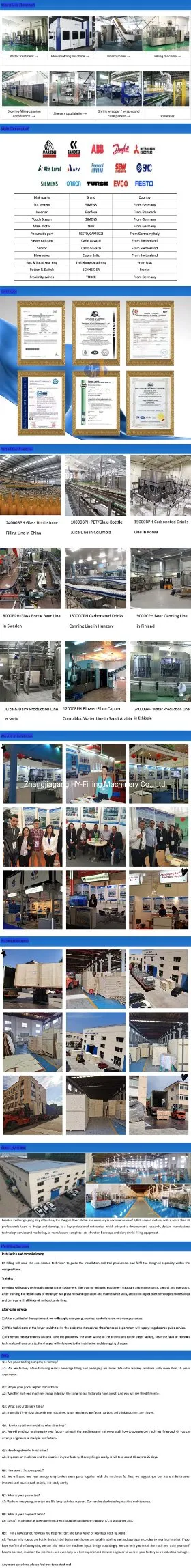

Machine Structure
Frequently Asked Questions
What is the production capacity of the Blow RL-8?
The machine offers a high-speed production range between 12,000 and 48,000 bottles per hour (BPH), depending on the configuration and bottle size.
What bottle sizes can this machine handle?
It is designed to produce PET plastic bottles ranging from 200ml to 2000ml in volume.
Is the machine suitable for non-water products?
Yes, it is highly versatile and suitable for food, oil, carbonated drinks, juices, cosmetics, and even high-temperature-resistant bottles.
How does the machine ensure uniform heating of preforms?
It utilizes NIR (Near-Infrared) intensive heating and a balanced heating mandrel technology, where bottles rotate and revolute simultaneously for optimized heat distribution.
What are the main safety features?
The machine includes security automatic-locking apparatuses for every mechanical action, ensuring the system enters a safe state immediately if a breakdown occurs.
Does the system require a large workforce to operate?
No, thanks to the advanced PLC control and automated conveying systems, one operator is sufficient to manage the machine's operation.
