Basic Information
Model NO.:RCGF
Type:Volumetric Filling Machine
Automatic Grade:Fully Automatic
Material Type:Liquid
Filling Valve Head:Multi-Head
Dosing Device:Capacity Cup
Structure:Rotary
Packaging:Bottle
Packaging Material:Plastic
Product Name:Water Bottling Machine
Material:SUS304 / SUS316L
Filling Accuracy:1% (Filling Level)
Capacity:2000bph - 24000bph
Bottle Volume:0.2L - 2L

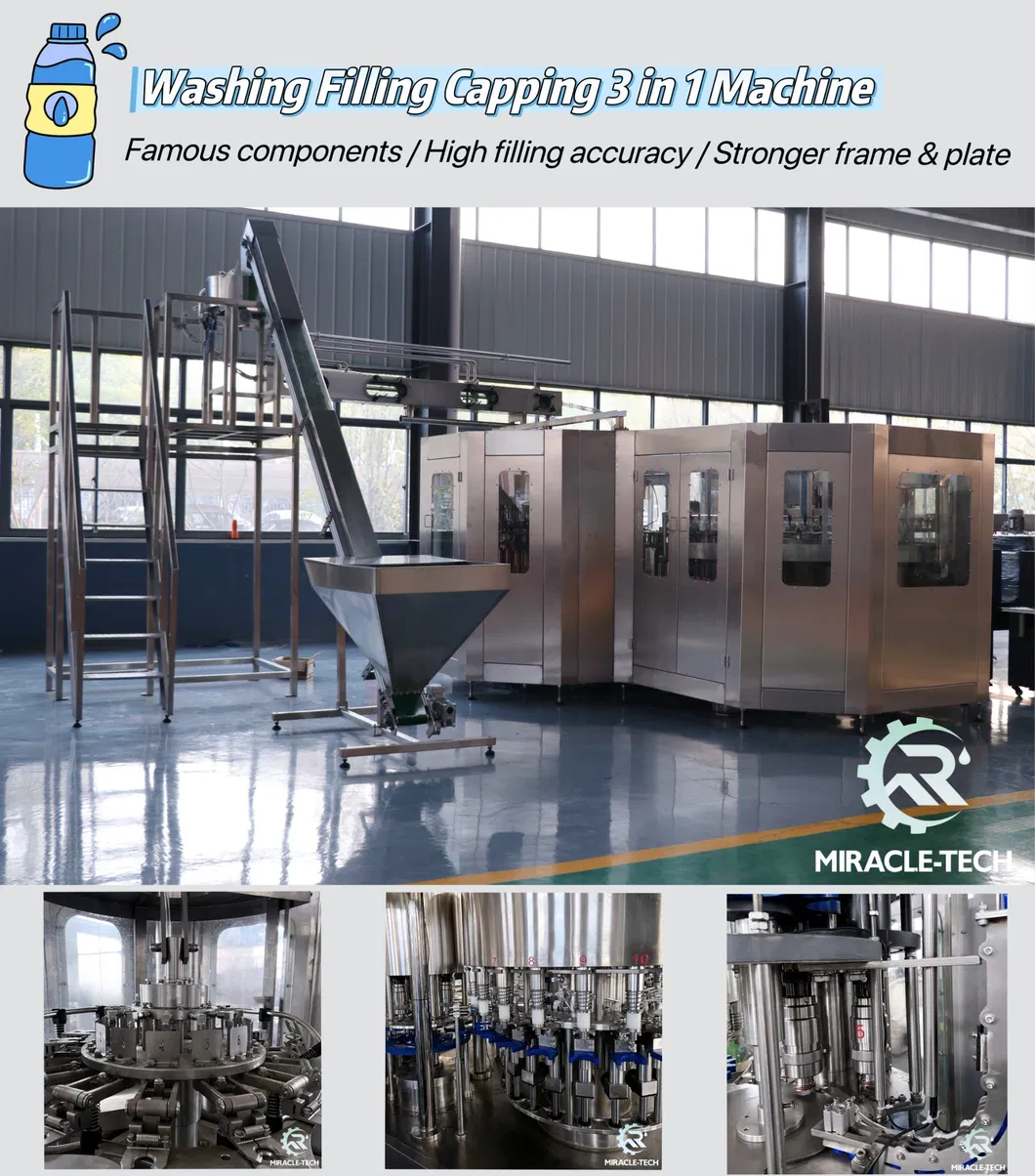

Machine Function:Washing Filling Capping
Control Method:PLC
Product Description
⚙️

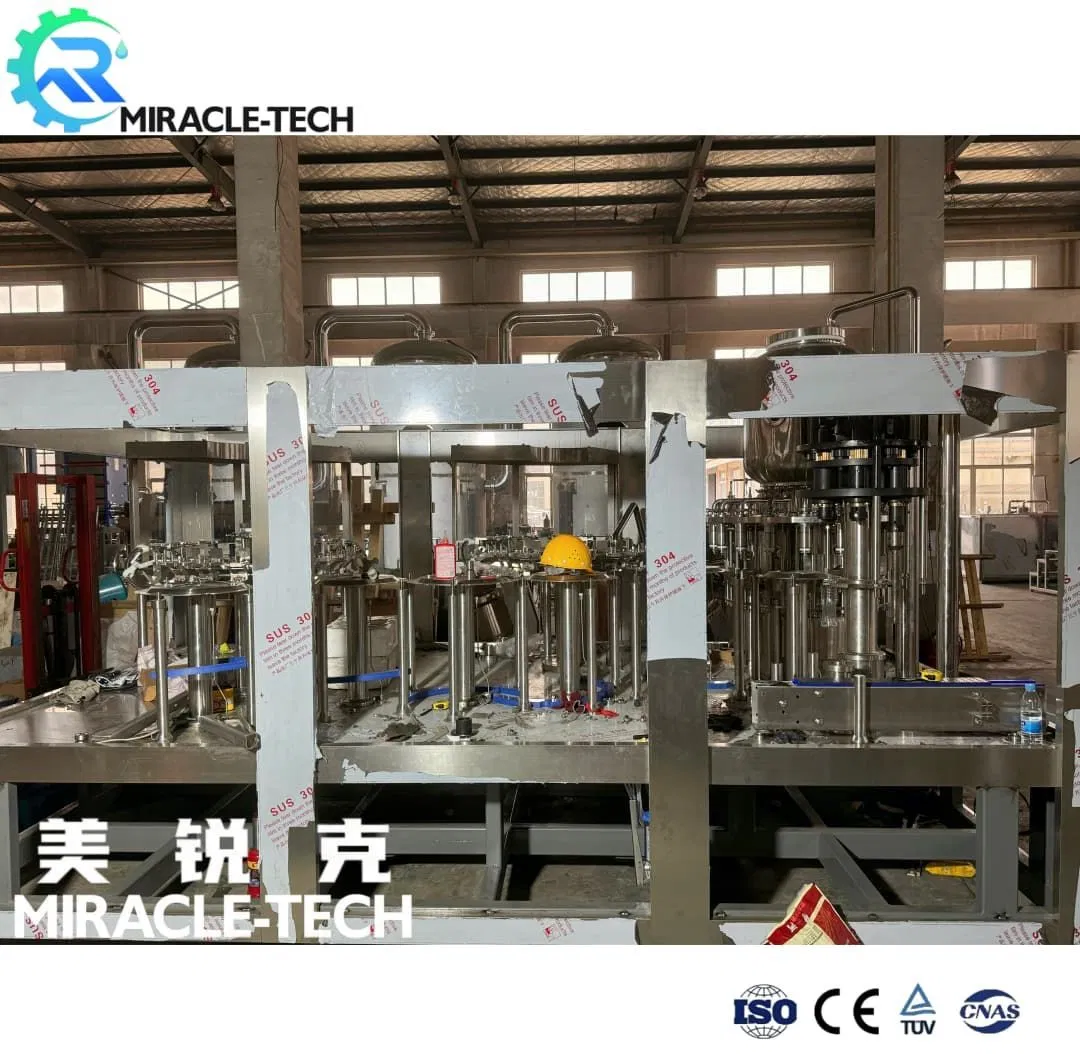

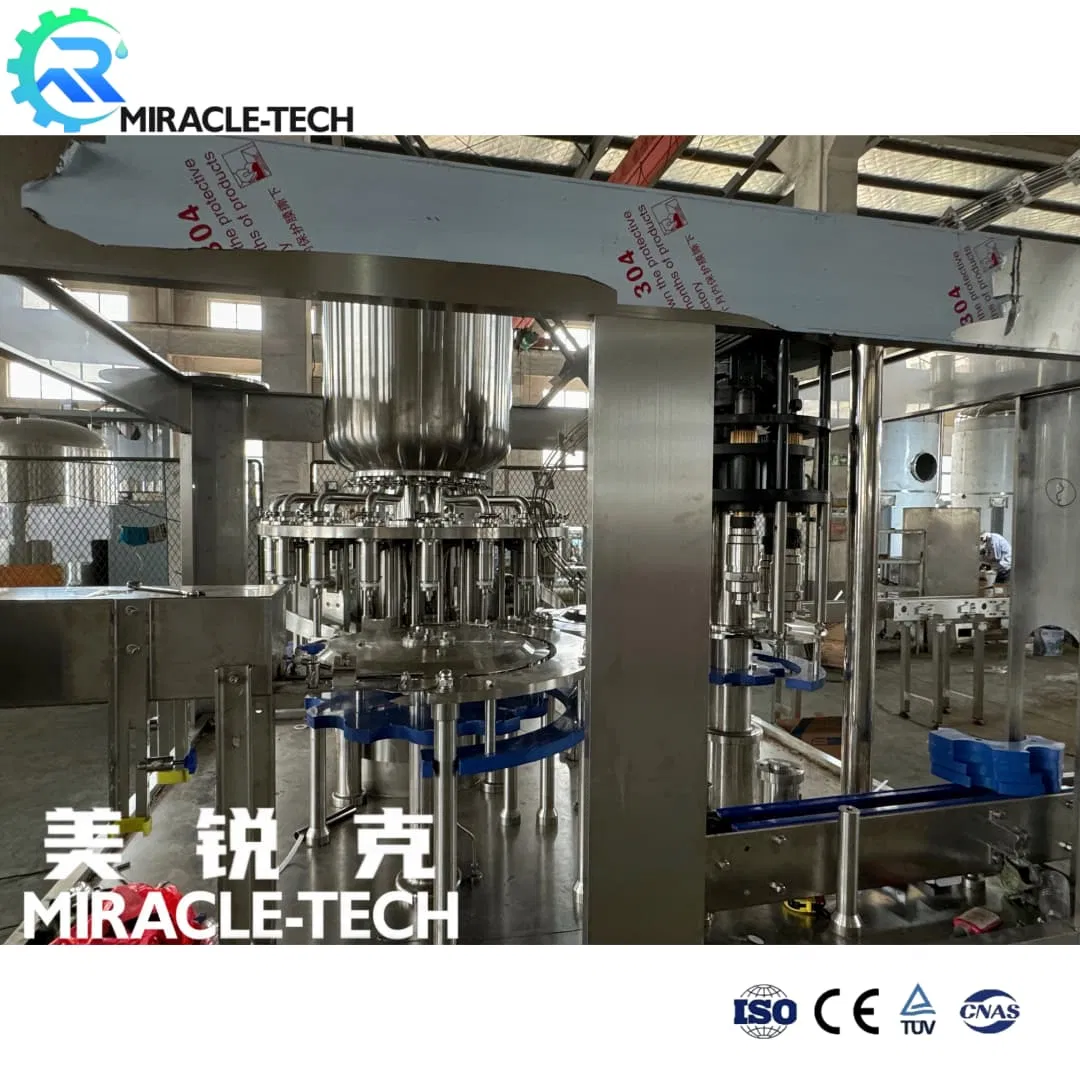

Automatic Drinking Pure / Mineral Water Filling Machine
Professional solution for PET or Glass bottles, integrating washing, filling, and capping into a single automated system.
Technical Parameters
| Model |
CGF8-8-4 |
CGF14-12-5 |
CGF16-16-5 |
CGF24-24-8 |
CGF32-32-10 |
CGF40-40-12 |
CGF50-50-15 |
| Capacity (500ml) |
3000 |
4500-5000 |
7000-8000 |
10000-12000 |
14000-16000 |
18000-20000 |
24000 |
| Bottle Shape |
PET circular or square |
| Bottle Diameter |
φ40-φ120 |
| Bottle Height |
150-350mm |
| Power |
4KW |
4.5KW |
5KW |
5.5KW |
6.2KW |
7.4KW |
8.8KW |
| Weight |
3000KG |
3500KG |
4000KG |
4800KG |
6500KG |
8000KG |
10000KG |

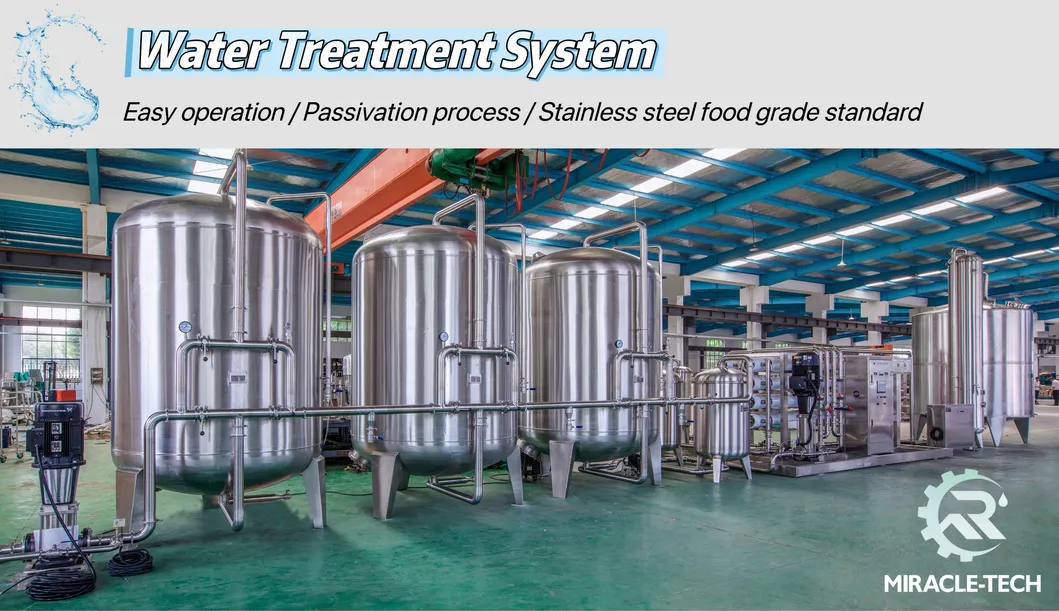

Water Treatment Process Flow
Raw water input → Raw water pump → Silica sand filter → Active carbon filter → Sodium ion exchanger → Precision filter → Reverse osmosis (RO) → UV sterilizer → Pure water tank → Output
Main Features
🔹
Direct Connection Technology: Uses wind conveying channels and moving wheels for easier bottle shape changes.
🔹

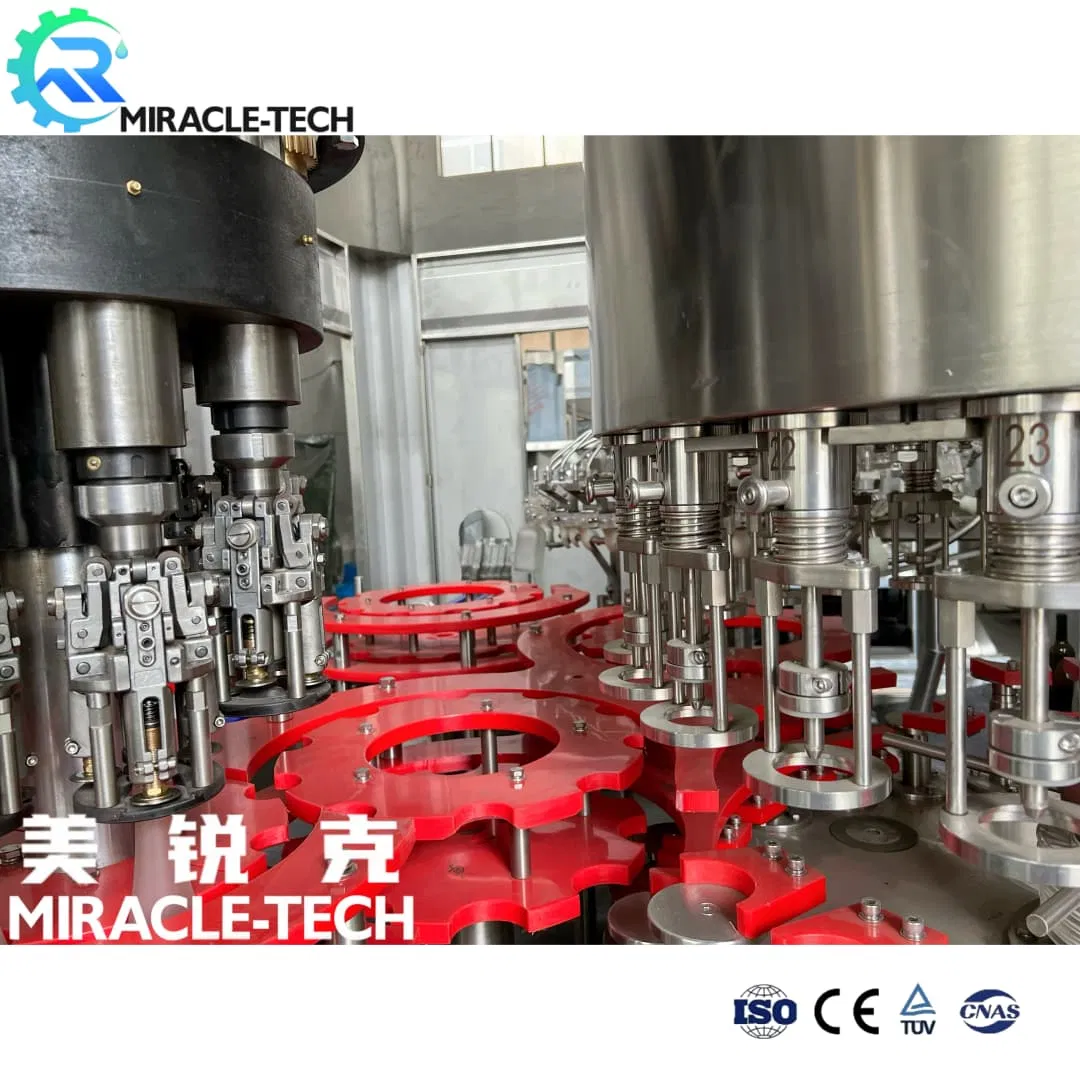

Neck Clamping: Bottle transfer technology that eliminates the need for machine level adjustments during changeovers.
🔹

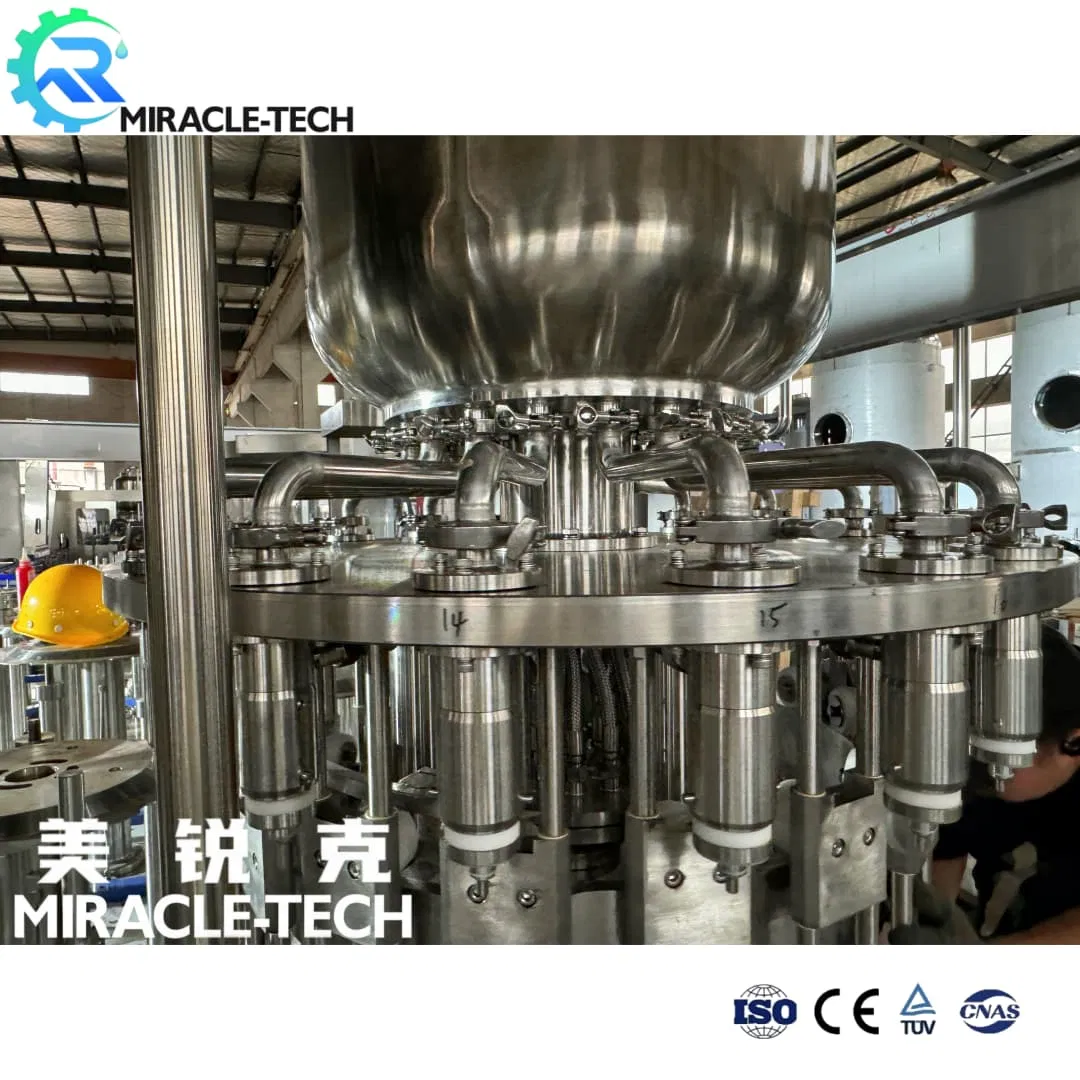

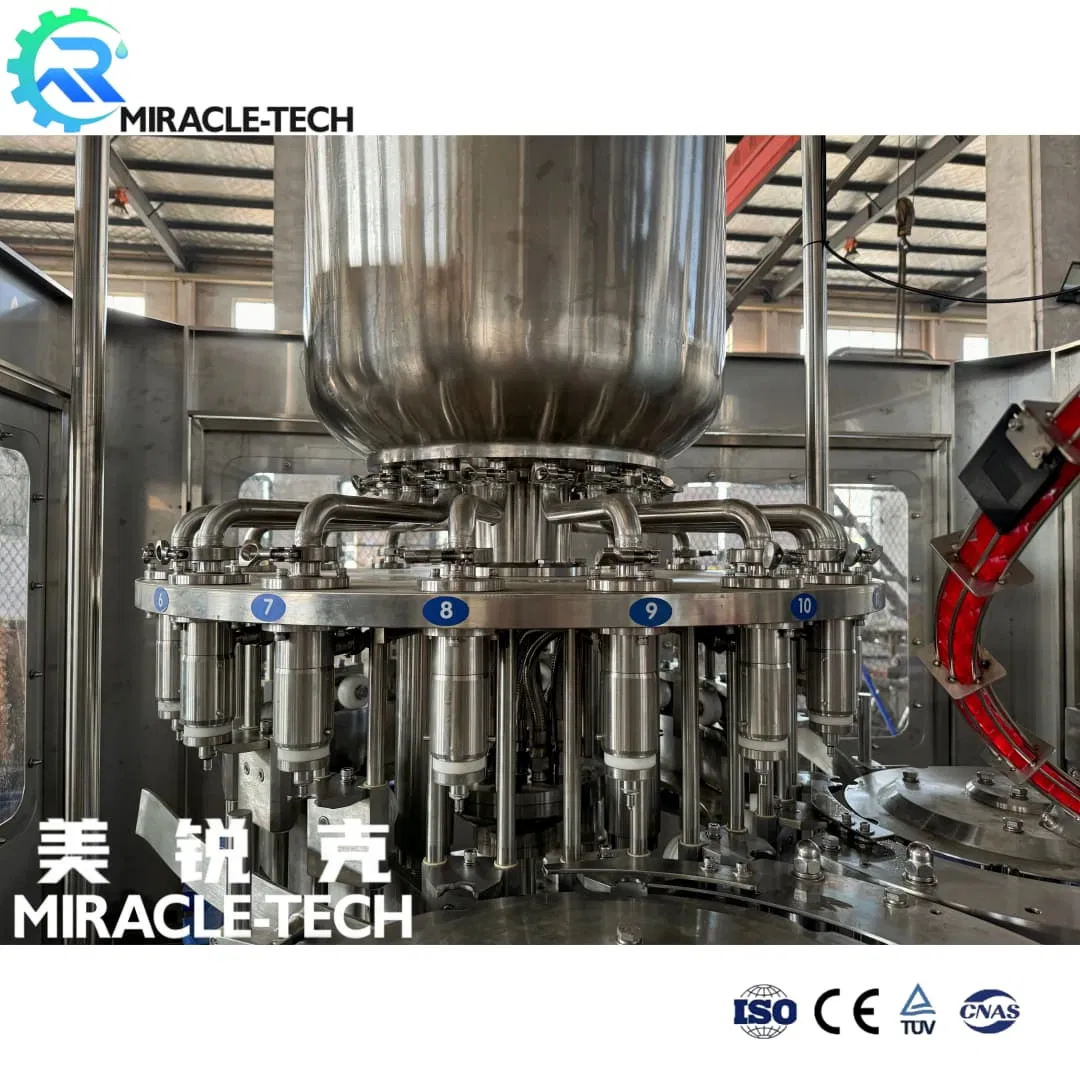

High-Speed Valves: Large gravity flow filling valves ensure fast speed and accurate filling without liquid loss.
🔹

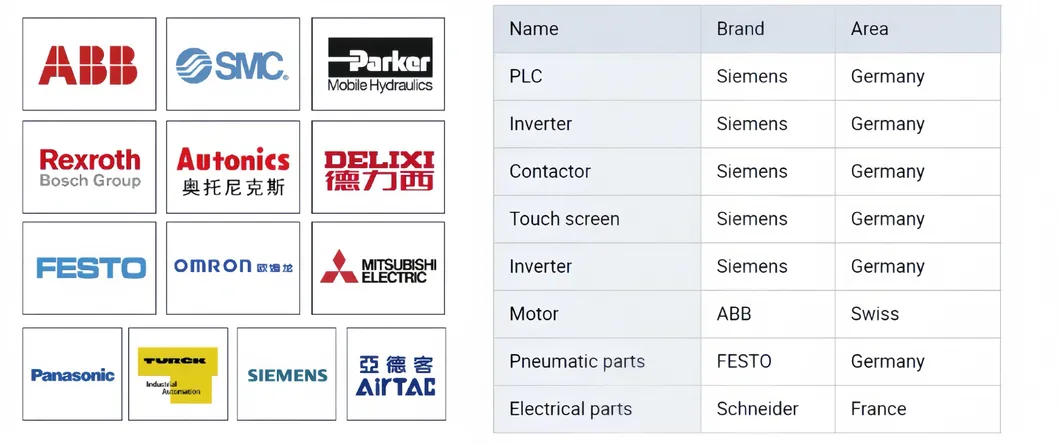

Advanced PLC Control: Equipped with high-end automatic control technology and reliable electrical components.
🔹
Hygienic Design: Stainless steel bottle washer clamps avoid contact with the bottle neck screw position to prevent contamination.

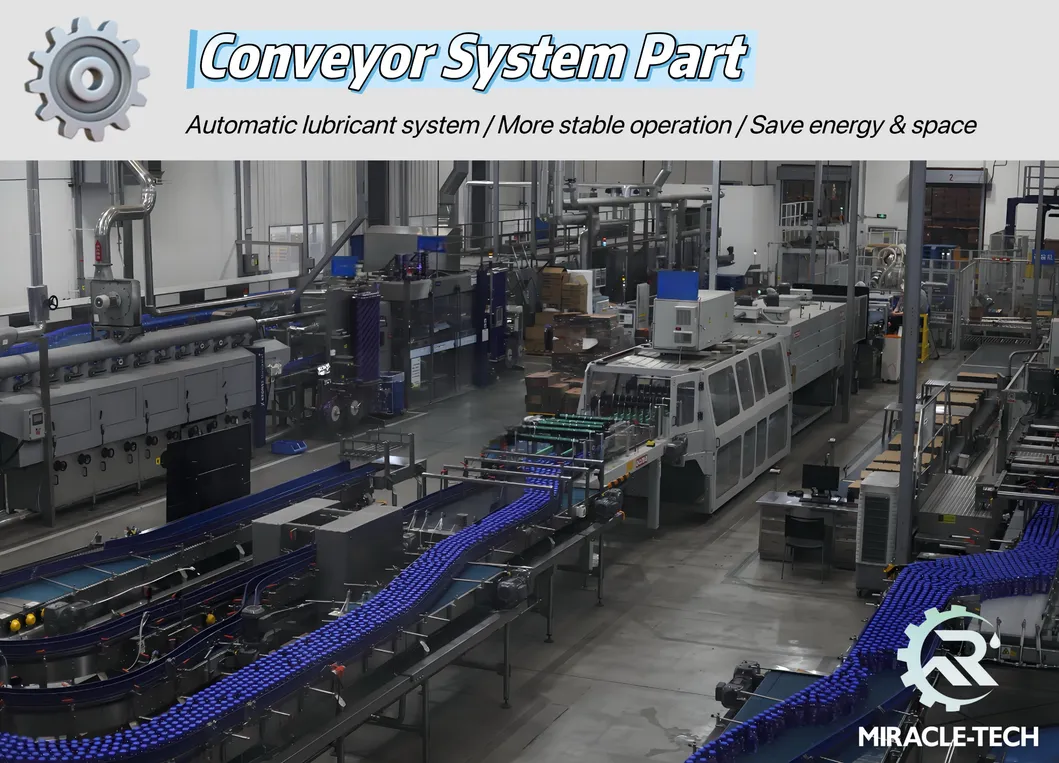

System Components

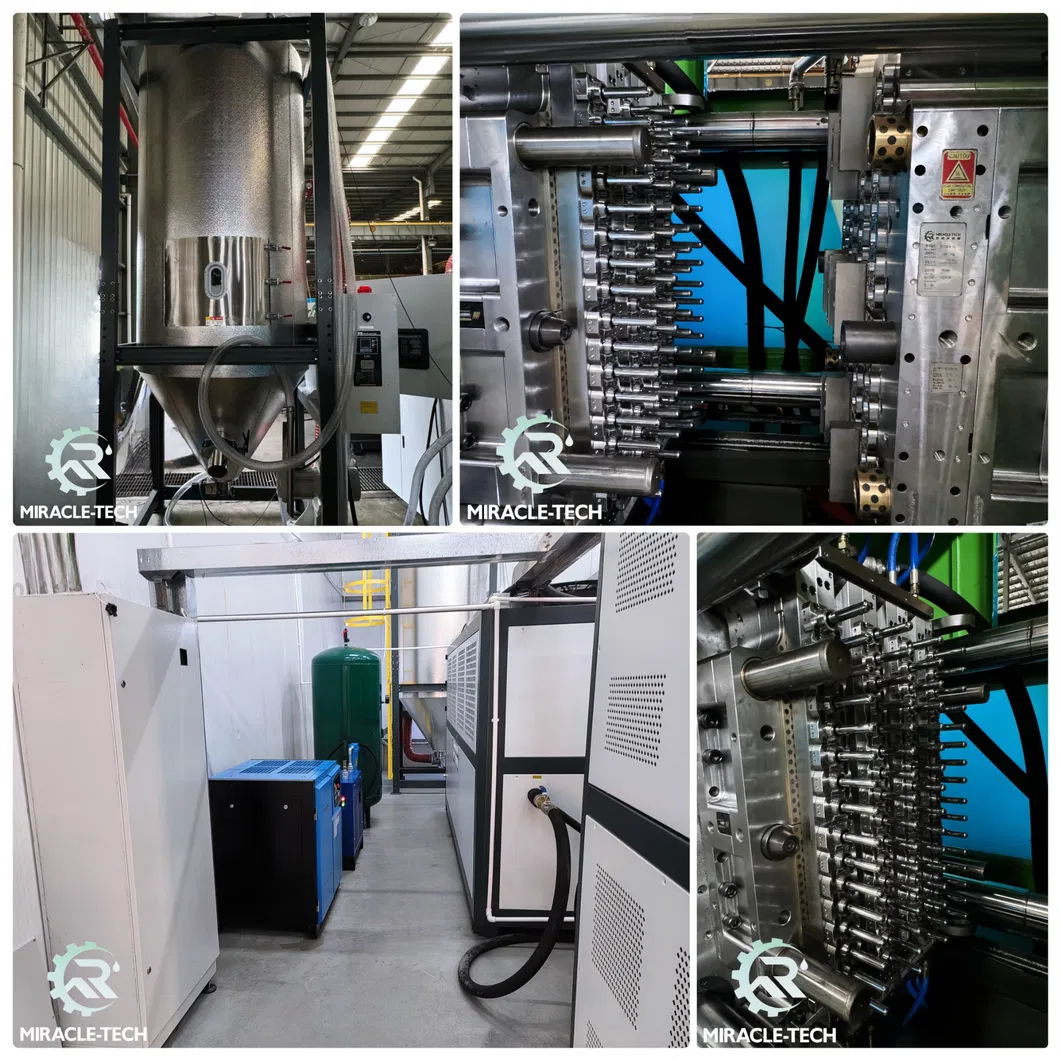

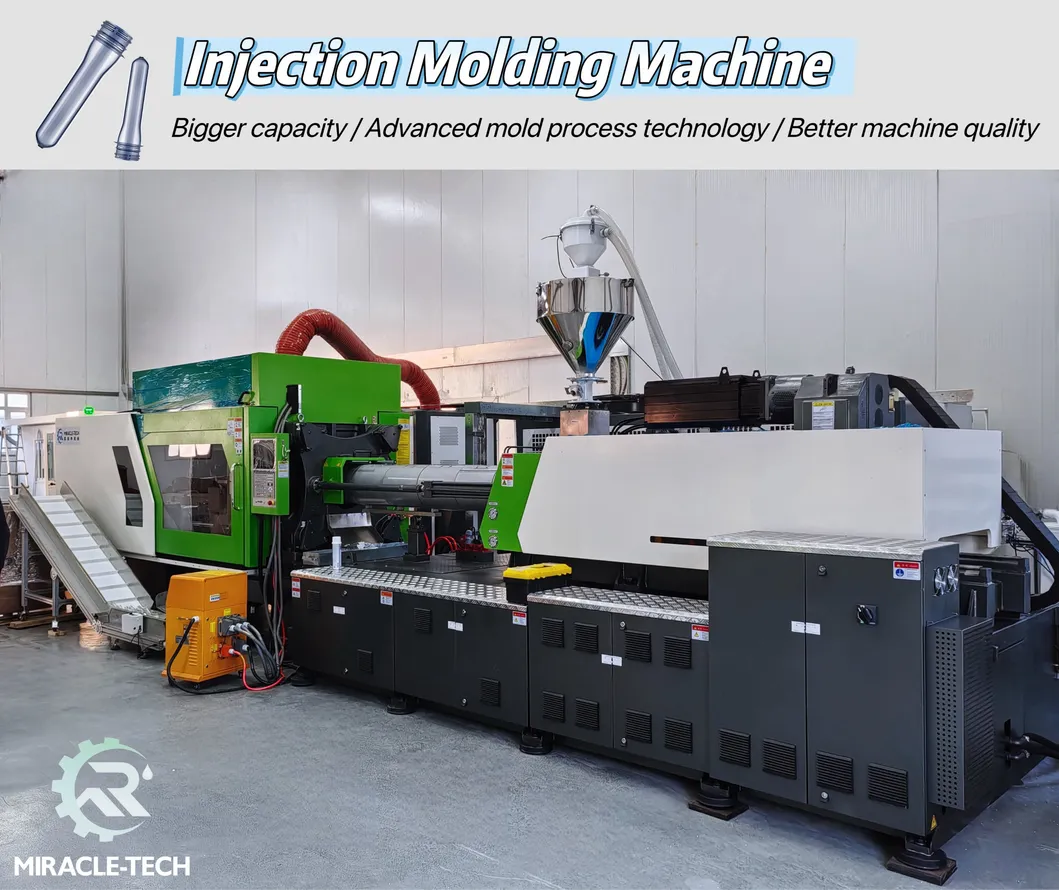

Production Equipment

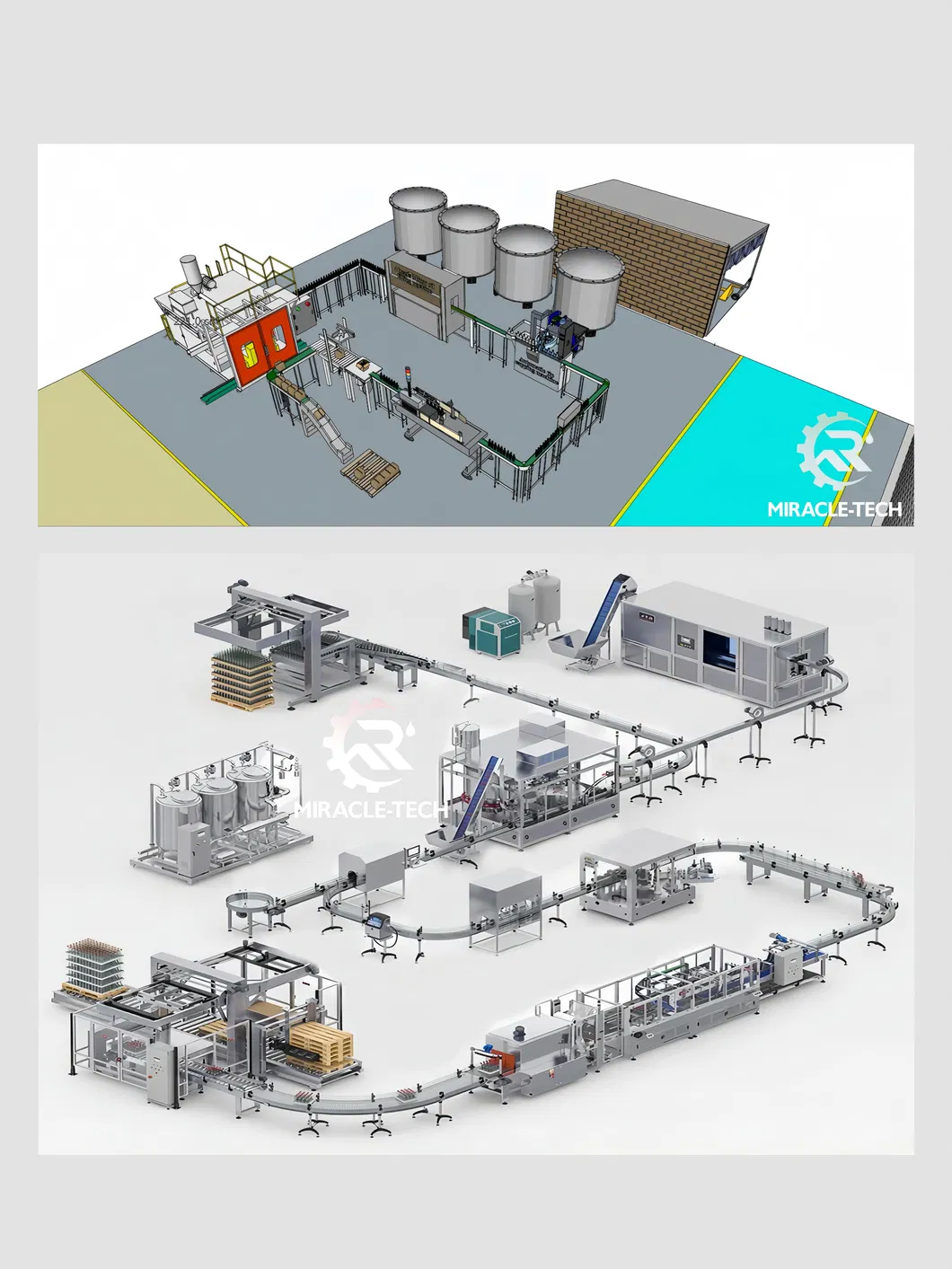

Turnkey Solutions & Layout
Manufacturing Excellence
✅

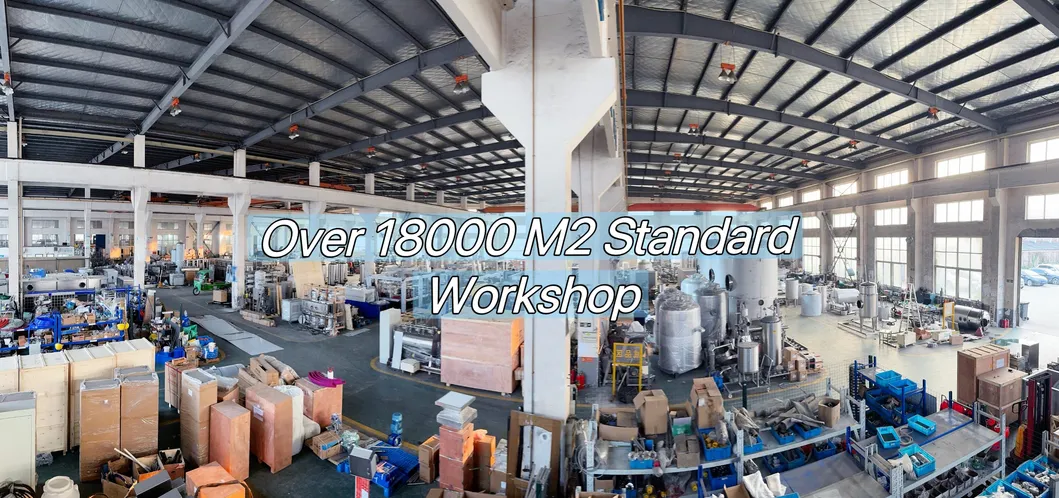

Over 18,000 square meters of standardized factory workshop.
✅
Advanced CNC, laser, and plasma cutting equipment for precision parts.
✅
24-hour pre-factory testing for electrical and mechanical stability.
Frequently Asked Questions
Q1: What types of water can this machine handle?
A: The machine is designed for pure water, mineral water, and other non-carbonated drinking water products.
Q2: What is the production capacity of the RCGF series?
A: Depending on the specific model, the capacity ranges from 2,000 to 24,000 bottles per hour (BPH) for 500ml bottles.
Q3: Does the machine support different bottle sizes?
A: Yes, it is compatible with PET and glass bottles ranging from 0.2L to 2L in volume.
Q4: What material is used for the machine construction?
A: The machine is constructed using high-quality SUS304 or SUS316L stainless steel to ensure food-grade safety and durability.
Q5: How is the filling accuracy maintained?
A: The machine uses high-speed gravity flow valves and PLC automatic control to maintain a filling accuracy of within 1%.

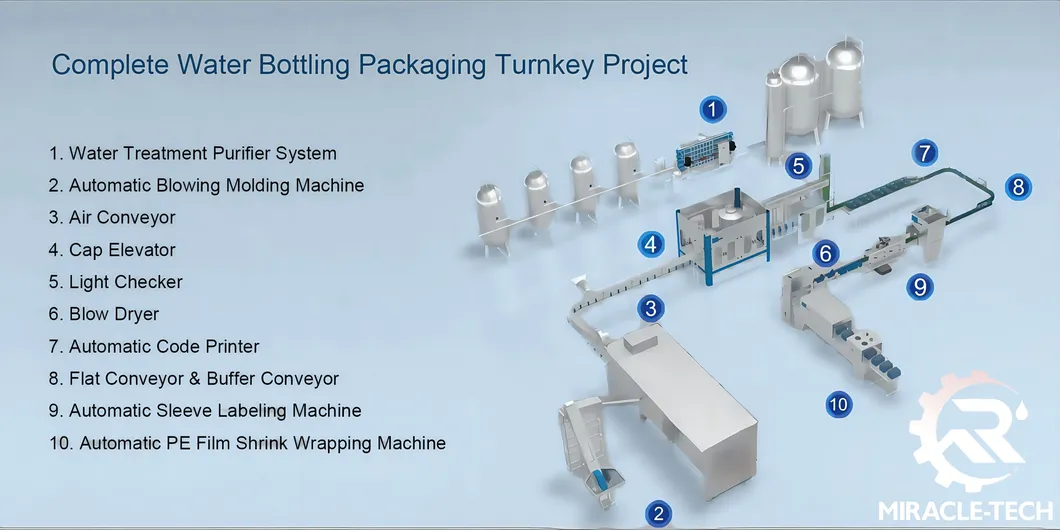

Q6: Is a complete production line solution available?

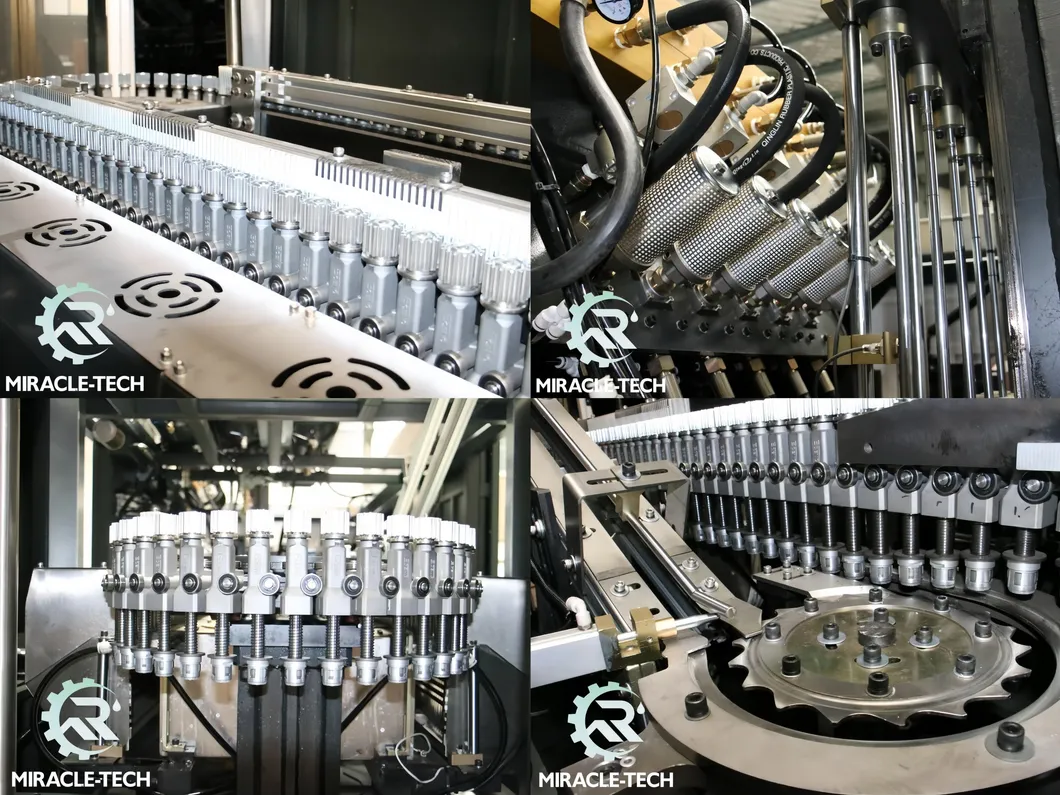

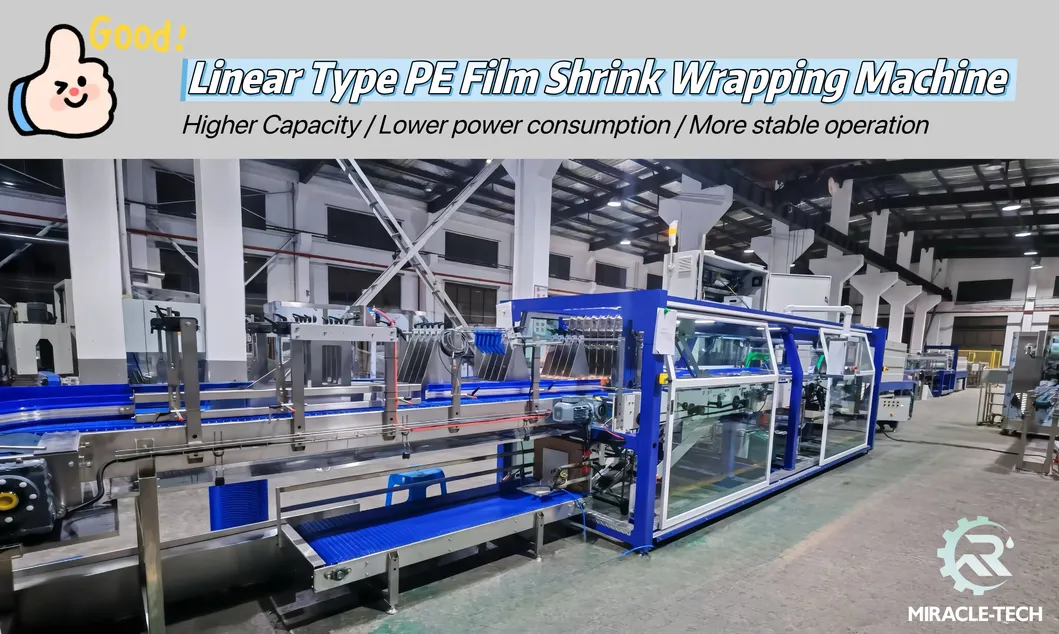

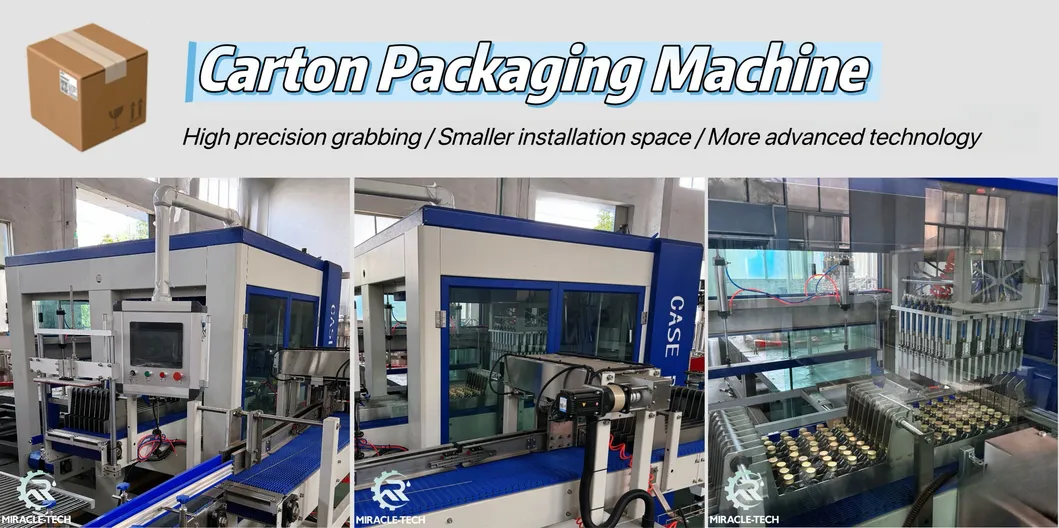

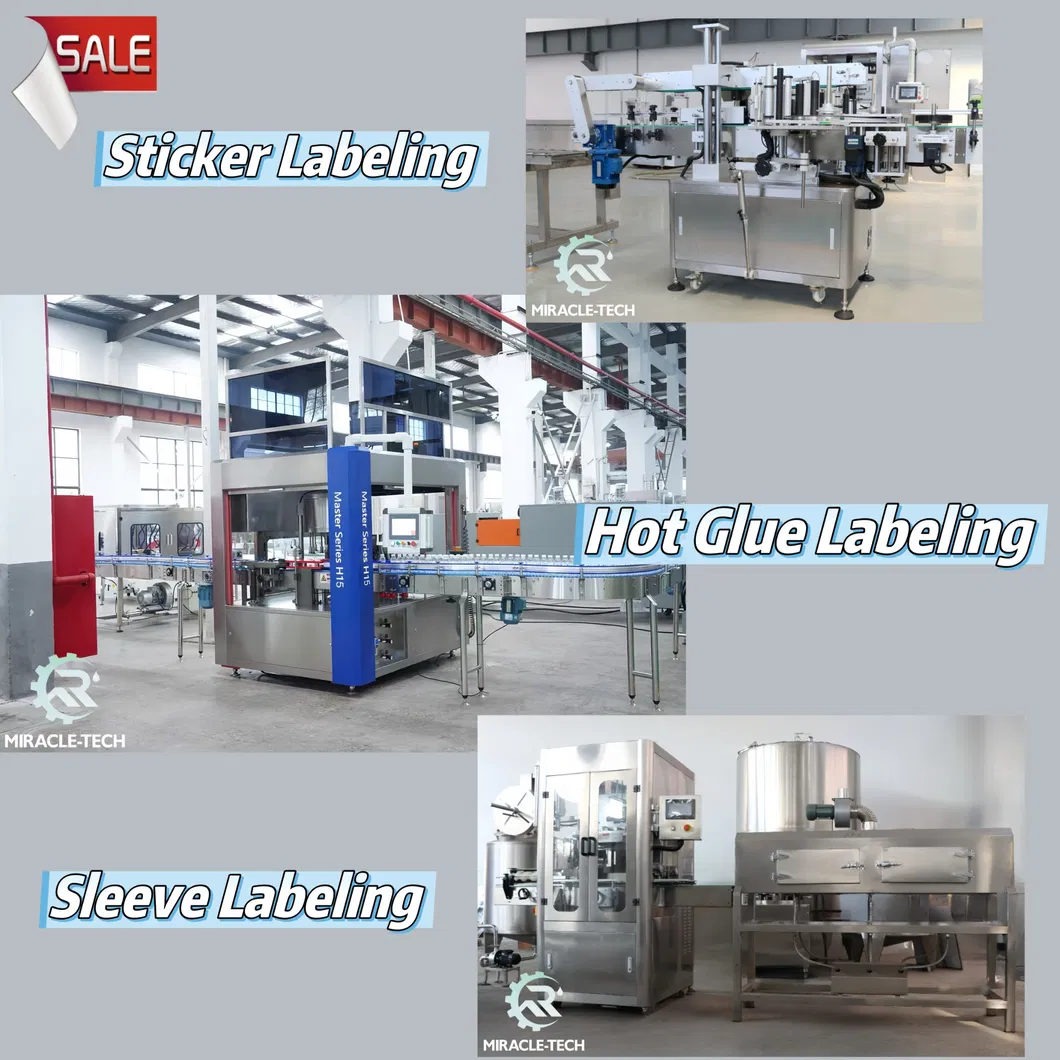

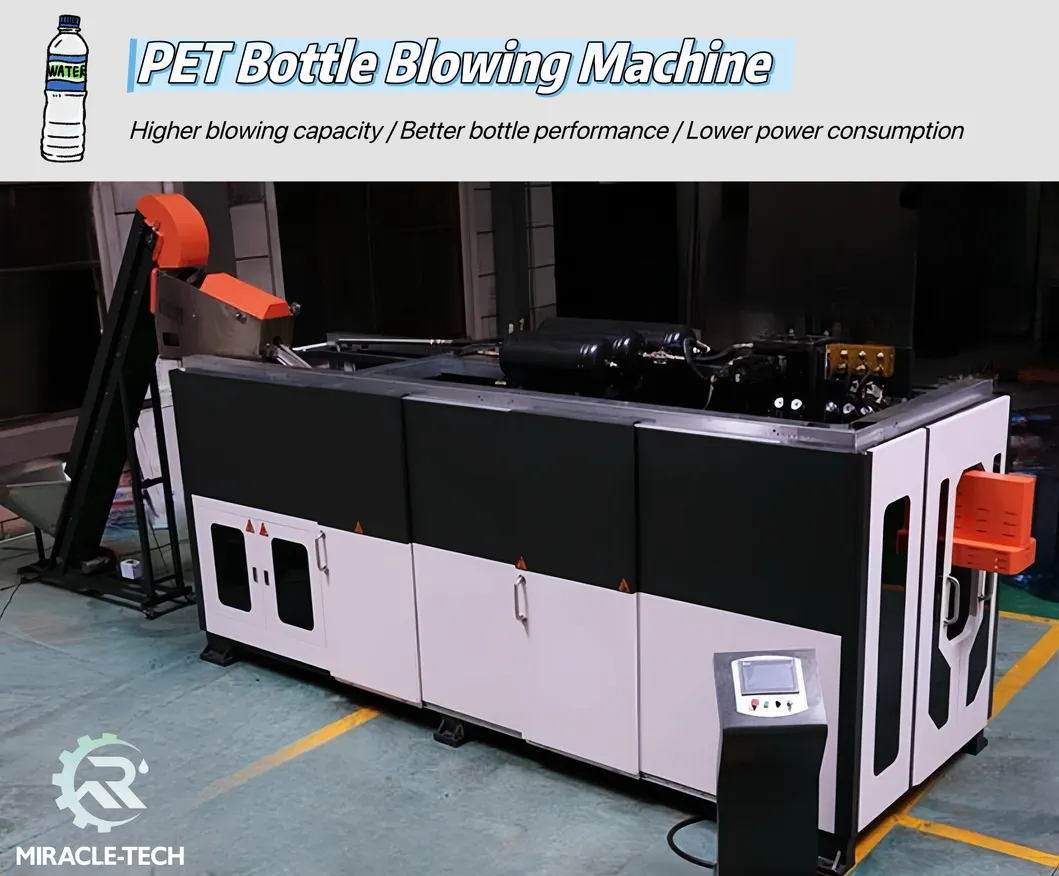

A: Yes, we provide A to Z turnkey projects including water treatment, blowing, filling, labeling, and packing systems.
