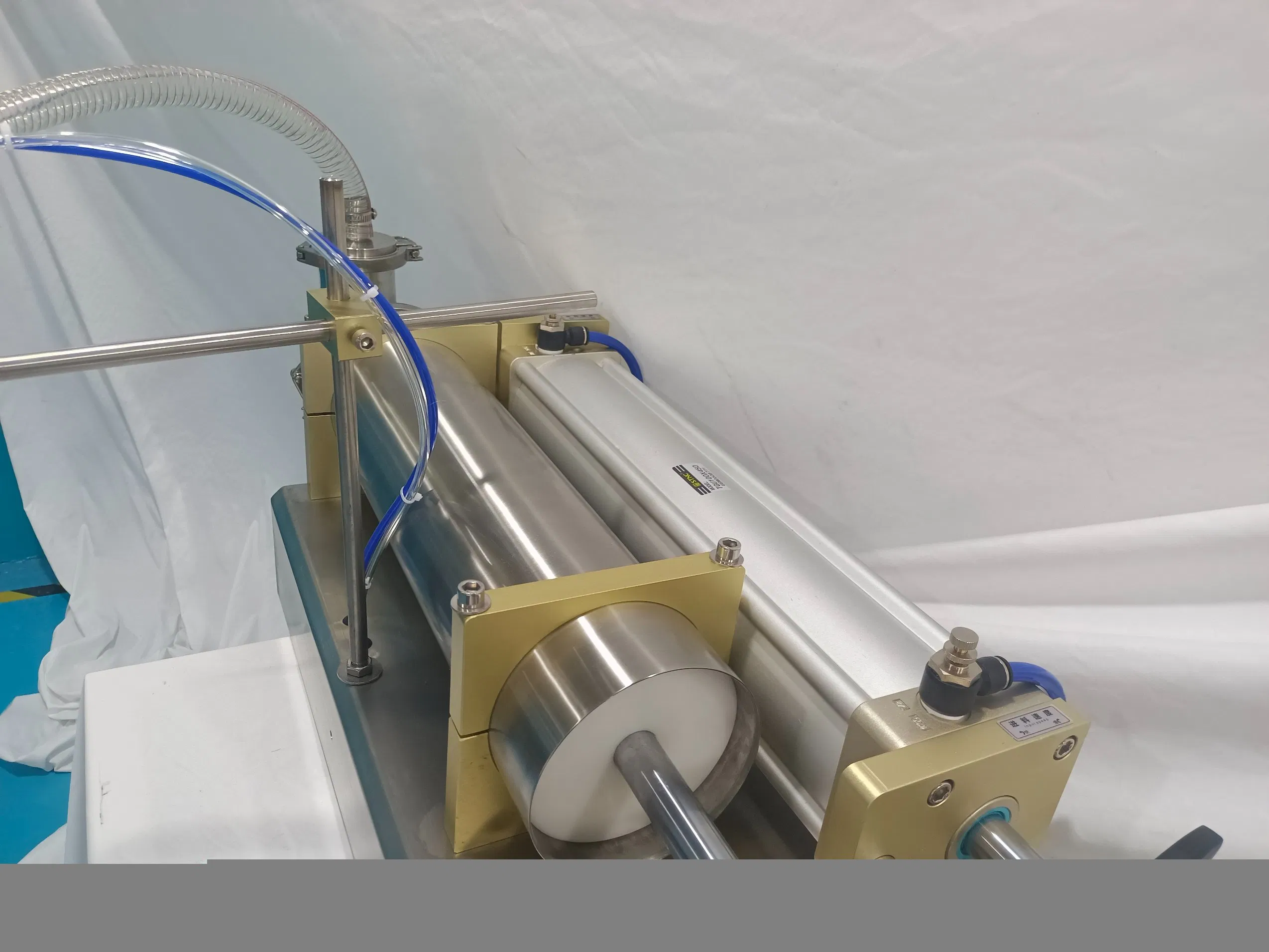

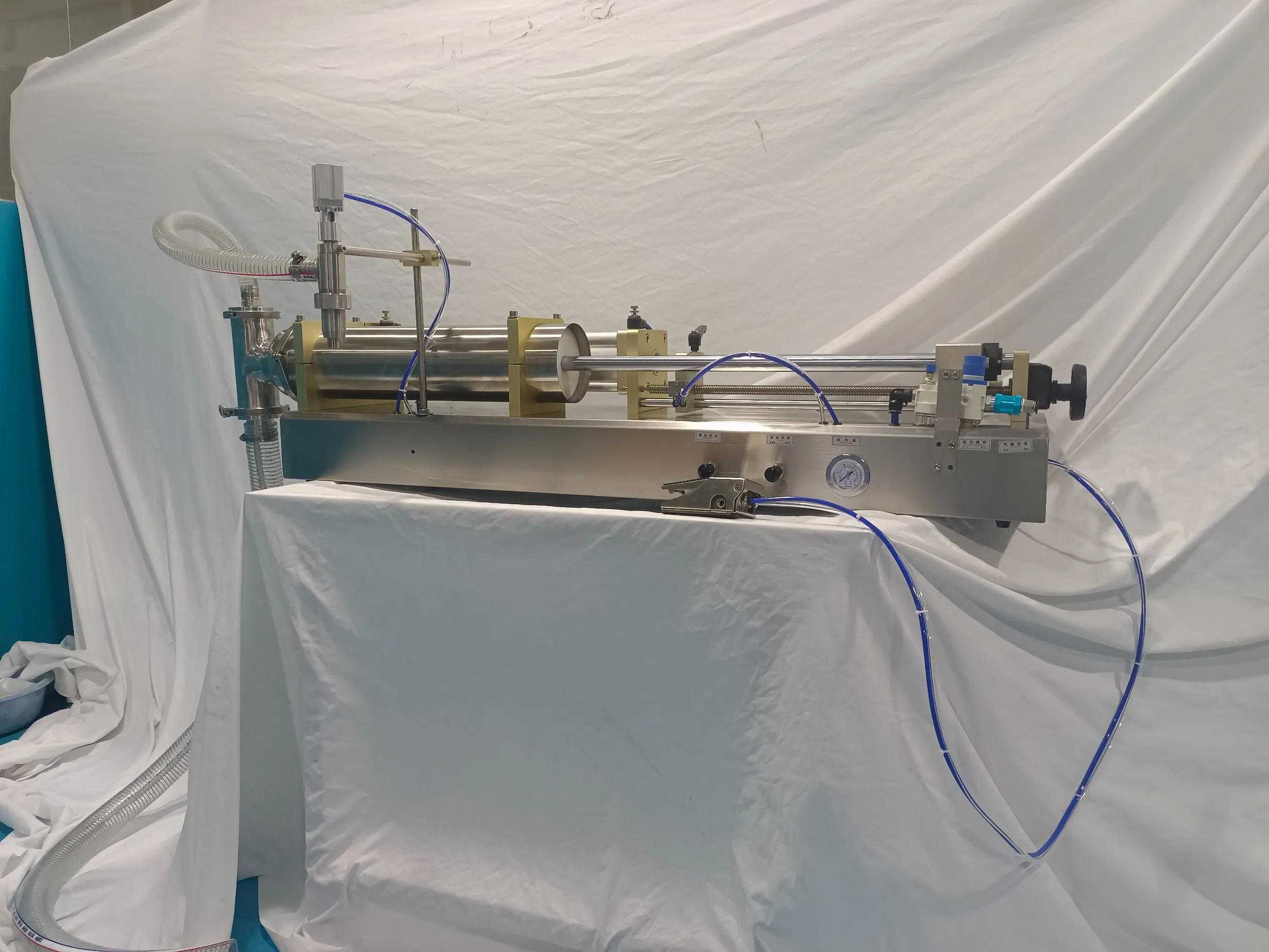

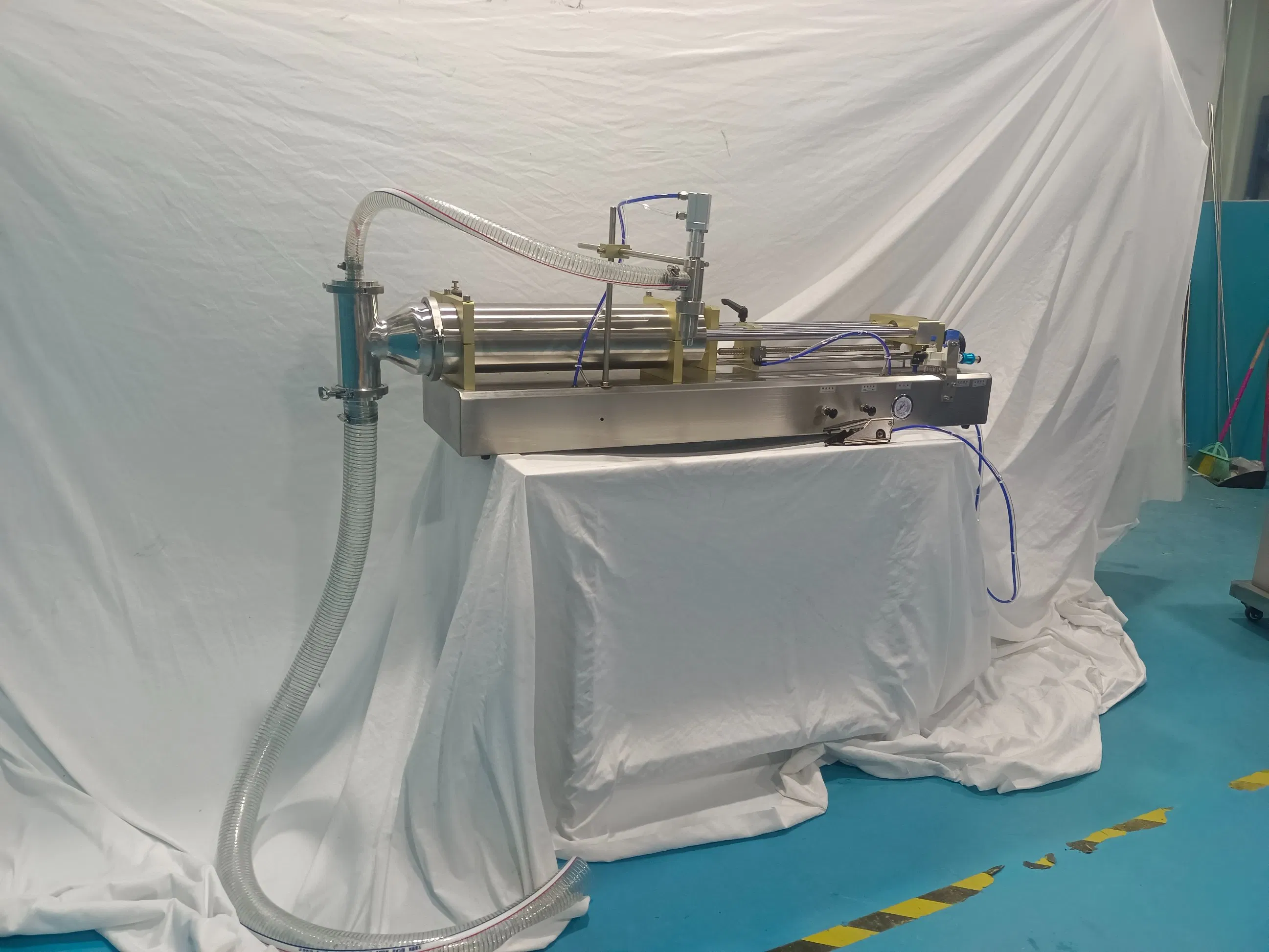

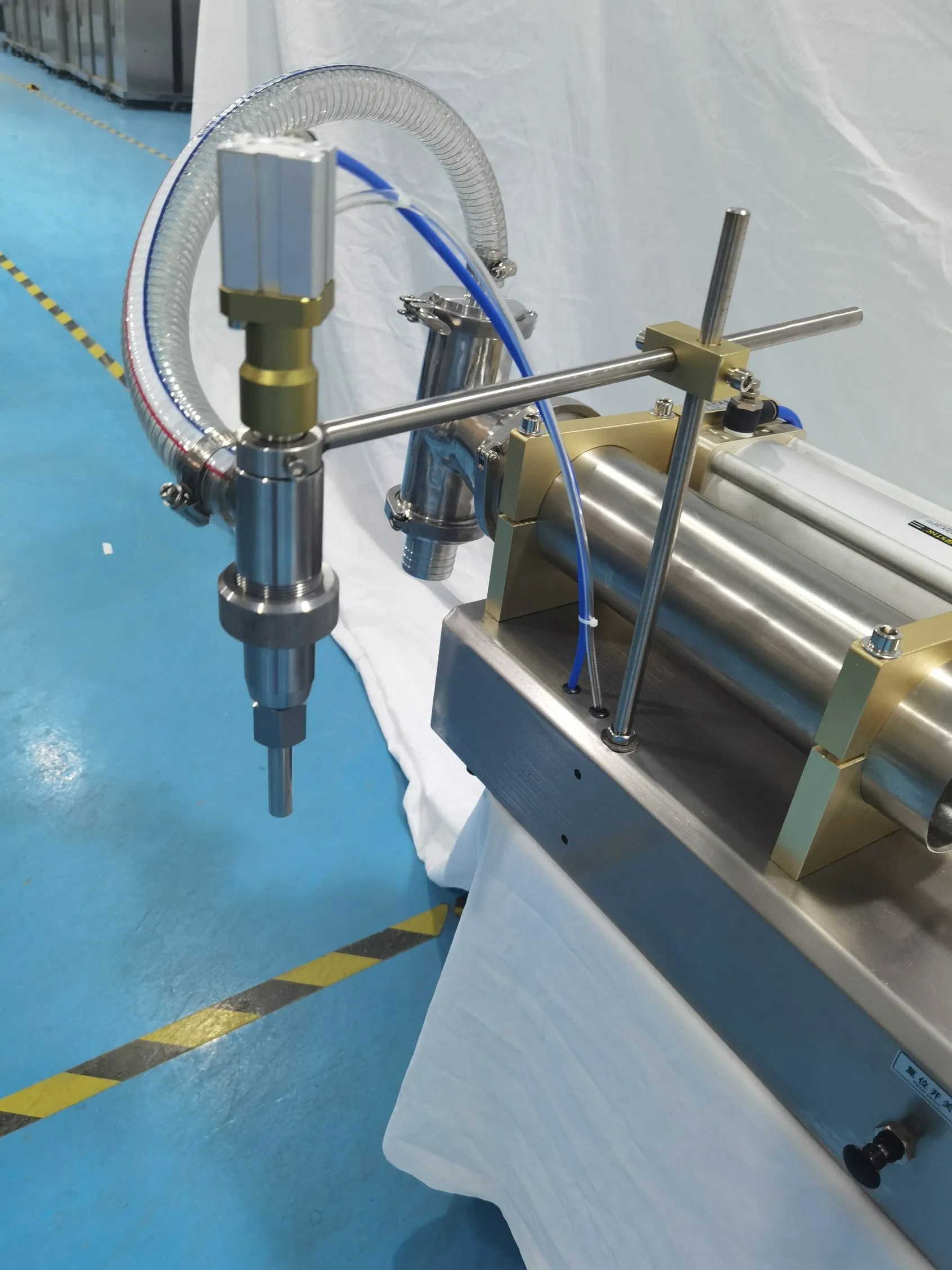

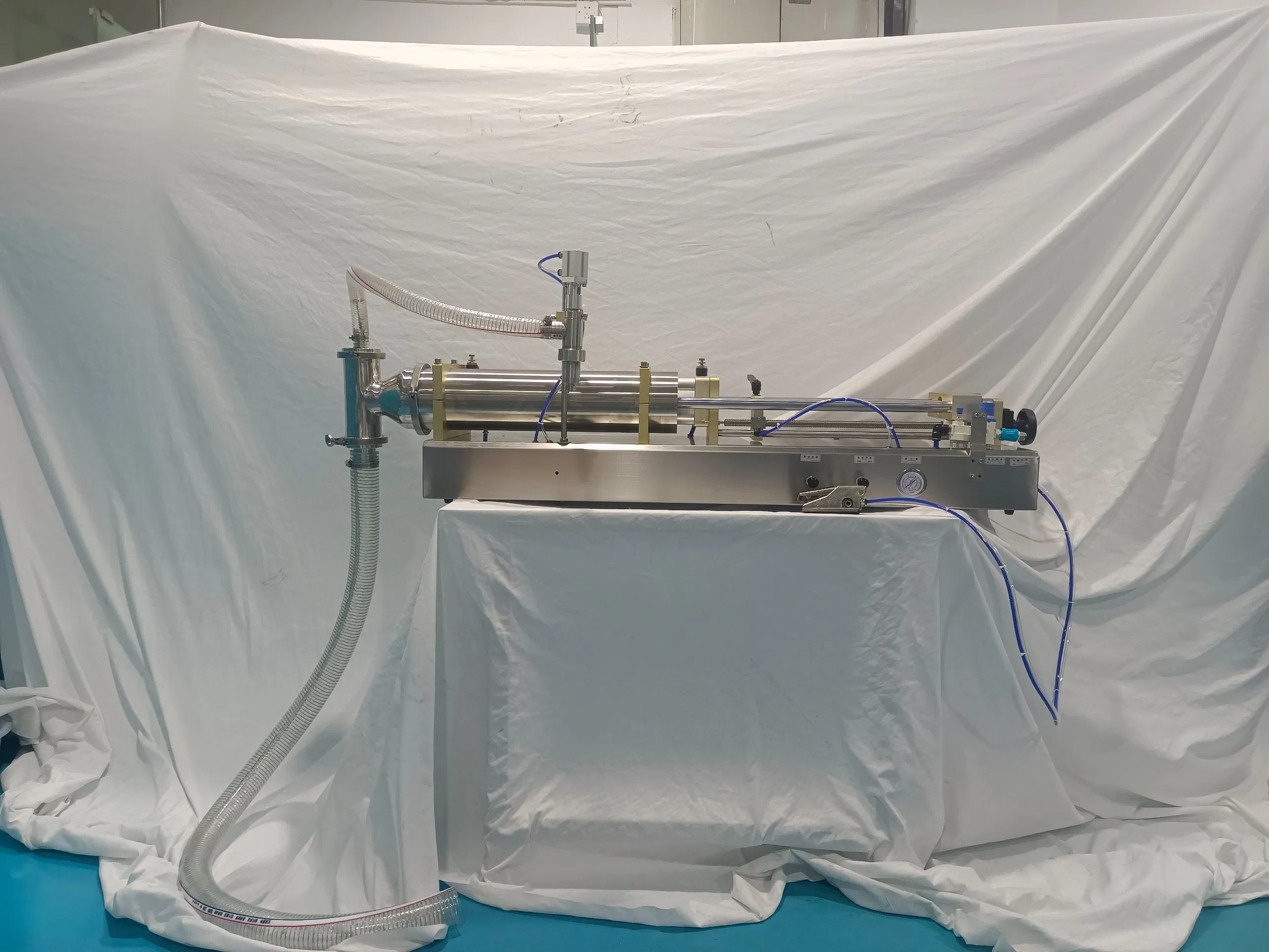

Horizontal Piston Type Paste and Liquid Self-Suction Filling Machine
Horizontal Piston Type Paste and Liquid Self-Suction Filling Machine
Horizontal Piston Type Paste and Liquid Self-Suction Filling Machine
Horizontal Piston Type Paste and Liquid Self-Suction Filling Machine
Horizontal Piston Type Paste and Liquid Self-Suction Filling Machine
1 / 5
Horizontal Piston Type Paste and Liquid Self-Suction Filling Machine
Horizontal Piston Type Paste and Liquid Self-Suction Filling Machine
Horizontal Piston Type Paste and Liquid Self-Suction Filling Machine
Horizontal Piston Type Paste and Liquid Self-Suction Filling Machine
Horizontal Piston Type Paste and Liquid Self-Suction Filling Machine

Horizontal Piston Type Paste and Liquid Self-Suction Filling Machine

Customization: Available
After-sales Service: Lifetime Maintenance
Warranty: One Year
Send Inquiry

Product Description

Basic Information
Model NO.
5-5000
Type
Piston Filling Machine
Automatic Grade
Automatic
Material Type
Paste
Filling Valve Head
Single-Head
Dosing Device
Plunger
Structure
304 Stainless Steel
Production Capacity
2000 bottles/hour
Product Description

Horizontal piston type paste and liquid filling machine

The Horizontal Piston Type Filling Machine is a high-performance filling equipment designed for viscous and semi-viscous materials. Adopting advanced horizontal piston driving technology, this machine realizes precise material extraction and filling through the reciprocating movement of the piston, which is suitable for a wide range of materials including sauces, creams, pastes, shampoos, honey, edible oil, lubricating oil, pharmaceutical ointments and cosmetic emulsions.

Horizontal Piston Type Paste and Liquid Self-Suction Filling Machine

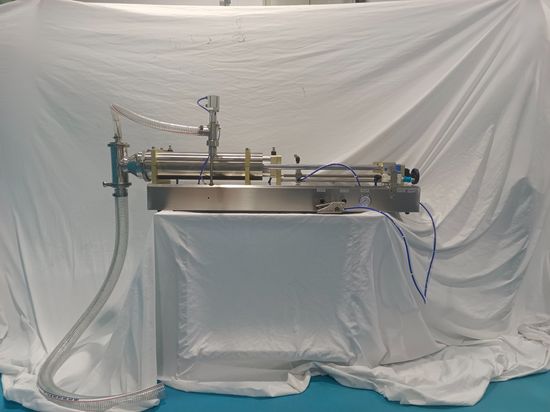

Video Cover
Key Configurations & Applications
  • Wide Material Adaptability: Specialized in filling viscous and high-viscosity materials with adjustable speed.
  • No-Drip Design: Equipped with anti-drip nozzles and automatic cutting devices to eliminate waste.
  • Hygienic Standards: All contact parts are 304/316L stainless steel, compliant with FDA and GMP standards.
  • High Efficiency: Adopts high-quality pneumatic components for stable operation up to 1200 bottles per hour.
Right Elevation
Right Elevation

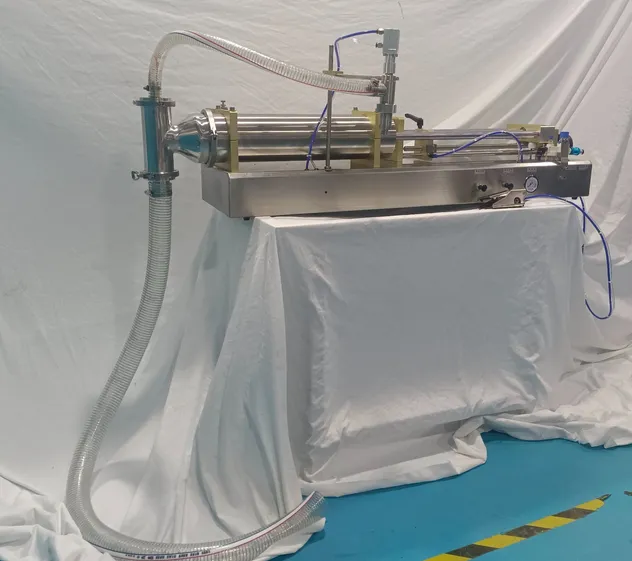

Left Elevation
Left Elevation

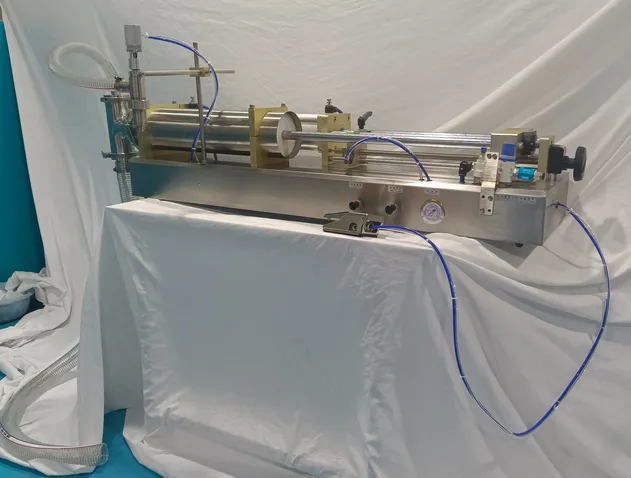

Front Elevation
Front Elevation
Technical Specifications
Name HD150/300/500/1000 HD3000 HD5000
Machine Weight (kg)75kg/80kg/85kg/95kg110kg120kg
Machine Size (mm)500*500*1600mm570*430*1800mm570*430*1800mm
Bucket Capacity (L)40L40L140L
Production Capacity (bpm)15-4010-155-8
Filling Range (ML)5-1000ml300-3000ml500-5000ml
Power ModePure PneumaticPure PneumaticPure Pneumatic

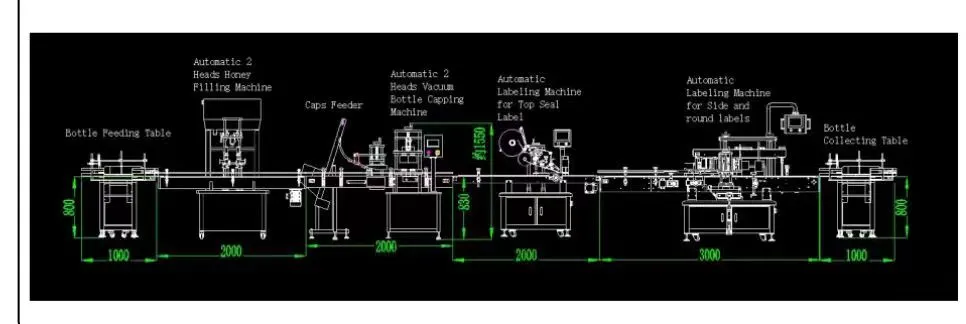

Drawings and Dimensions
Service & Why Choose Us

After Sales Service:

  • Standard Warranty: 12 months or 2,000 operating hours.
  • Global Support: 24/7 technical assistance and spare parts supply.
  • Training: On-site or remote operation and maintenance training.

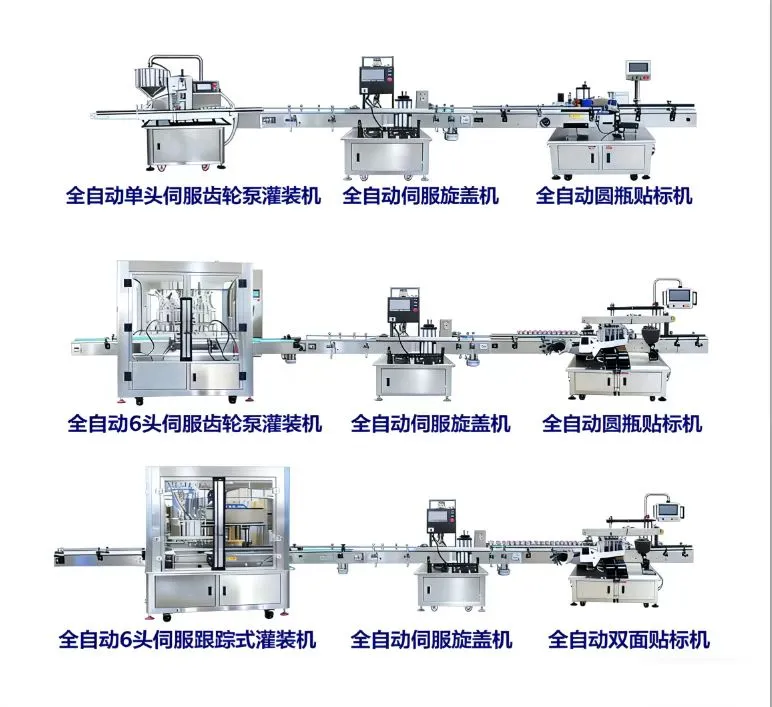

Factory View
Product Range

Our Advantages:

  • OEM/ODM capabilities for customized production lines.
  • Competitive pricing and bulk discounts.
  • Turnkey project solutions for cosmetics, food, and pharmaceuticals.
  • Exported to over 10 countries with global praise.
Frequently Asked Questions
Q: What is the typical lead time for an order?
A: Standard models usually ship within 15–30 days, while customized units require approximately 30–45 days depending on complexity.
Q: Can the filling machine handle high-viscosity pastes?
A: Yes, our horizontal piston technology is specifically designed for viscous and semi-viscous materials like creams, honey, and thick sauces.
Q: Is it possible to customize the bucket or nozzle size?
A: Absolutely. We offer tailored attachments, including special nozzle diameters and customized hopper capacities to meet your production needs.
Q: What materials are used in the construction of the machine?
A: All material contact parts are made of high-quality 304 or 316L stainless steel, ensuring compliance with FDA and GMP hygiene standards.
Q: What kind of after-sales support do you provide?
A: We provide a 12-month standard warranty, 24/7 remote technical assistance, and can arrange on-site training for operation and maintenance.
Q: Do you provide the necessary documentation for international export?
A: Yes, we provide a full export package including Commercial Invoices, Packing Lists, Bills of Lading, and COCs to ensure smooth customs clearance.
