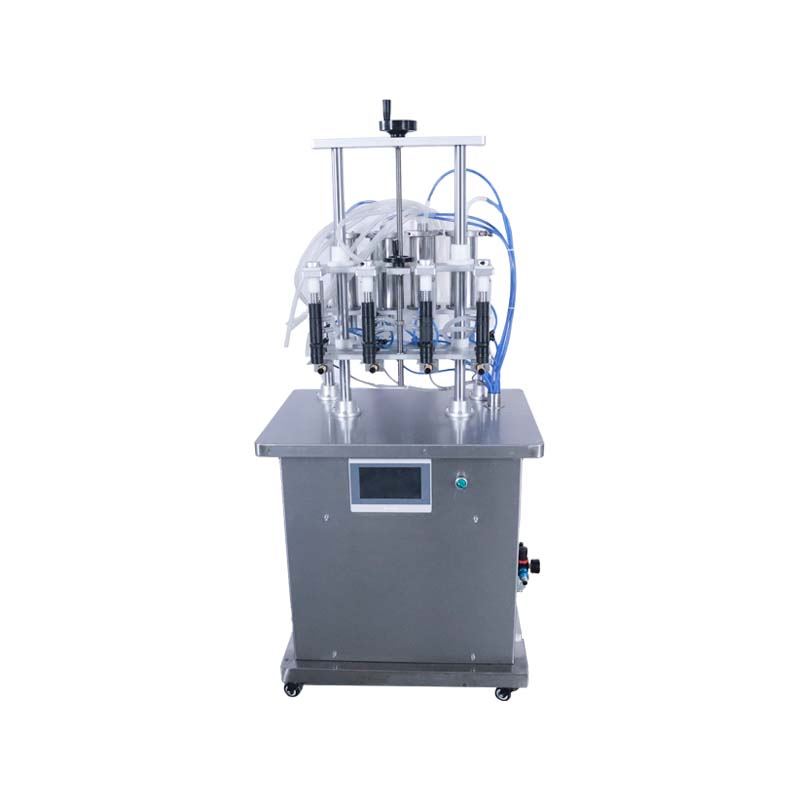

Four-Head Vacuum Negative Glass Bottle Liquid Spray Semi Automatic Perfume Filling Machine

Customization: Available
After-sales Service: Online or Overseas Services
Warranty: 1 Years

Product Description

Basic Specifications
Model NO.
GZJR-XG04
Applicable Industry
Food, Medical, Chemical
Material Type
Liquid
Packaging
Bottles
Automatic Grade
Automatic
Working Principle
Negative Pressure
Driven Type
Pneumatic
Filling Range
2-1000ml
Filling Speed
20-40 Sticks /Min
Filling Precision
Liquid Surface ±1mm
Product Description

The Four-Head Vacuum Negative Perfume Glass Bottle Liquid Spray Semi Automatic Perfume Filling Machine is a high-efficiency solution designed for precision liquid packaging. Utilizing a pure pneumatic vacuum generator and PLC control, this machine allows for both manual and automatic operation of each filling head independently.

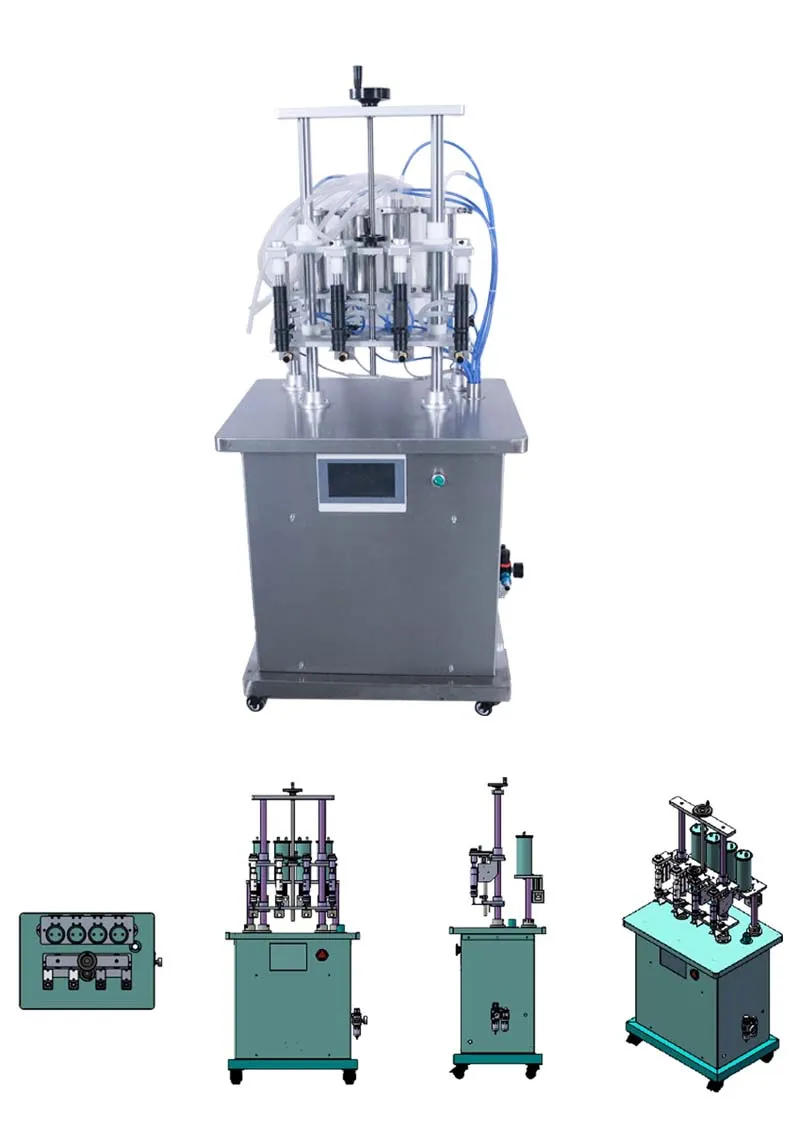

Four-Head Vacuum Perfume Filling Machine
Core Principle: The machine adopts electronic control and a vacuum constant liquid system, ensuring high filling accuracy (within 0.5% based on maximum volume).
Key Features
  • High Precision: Accuracy controlled within 0.5% using vacuum constant liquid technology.
  • Automatic Drainage: Configured with an integrated automatic drainage system for efficiency.
  • Versatile Application: No strict requirements for bottle shape or consistency; works with various containers.
  • Material Recovery: Features back suction for excess material to save raw materials.
  • Safety First: Equipped with digital displays and emergency stop buttons for secure operation.
Technical Parameters
Parameter Value
Machine VoltageAC220V 50/60HZ
Machine Power120W
Filling Range2-1000ml
Filling Speed20-40 sticks /min
Filling PrecisionLiquid surface ±1mm
Machine Weight50KG
Machine Dimension720*500*1270mm
Quantity of Filling Heads4
Filling Head DiameterExternal 8mm/4mm, Internal 6mm/2mm
Scope of Application

Ideal for pharmaceutical, chemical, food, and light industries. It is specifically designed for vacuum negative pressure and self-priming filling of glass, plastic, and metal containers. Perfect for products such as:

  • Oral liquid plastic bottles
  • Wind oil essence and eye drop bottles
  • Cosmetics and perfume bottling
Application Scope
Product Details

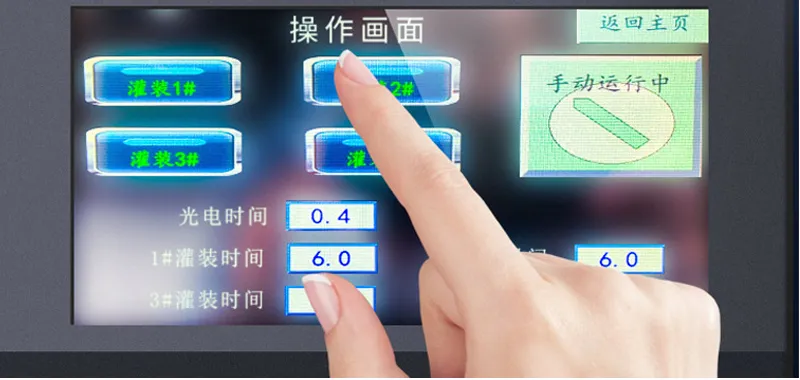

Digital Display

Digital display and emergency stop buttons for safe operation.

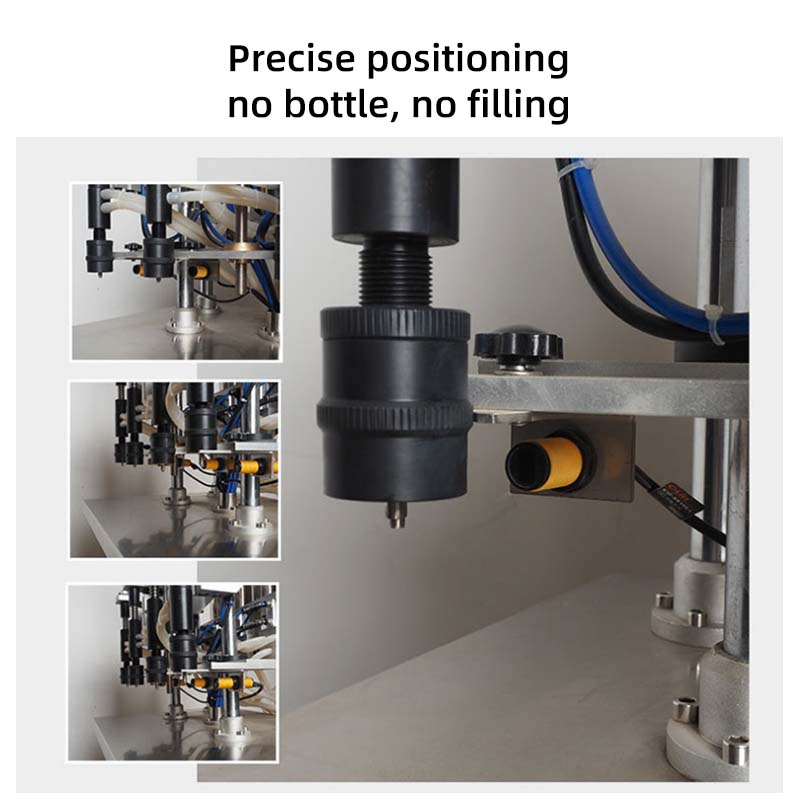

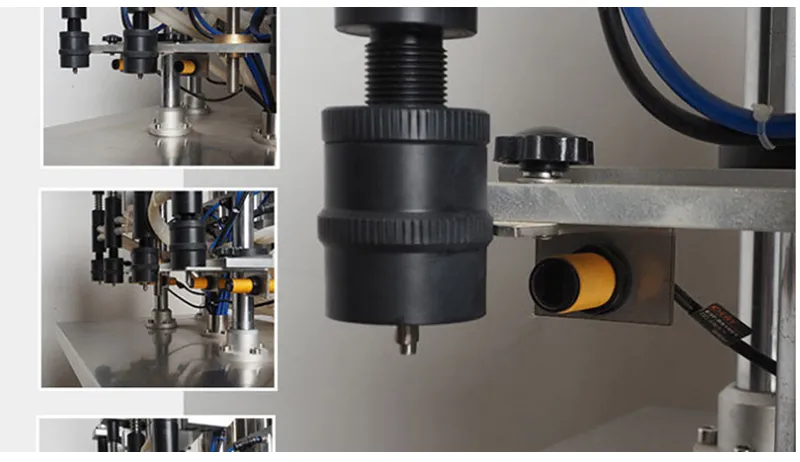

Electric Eye Induction

Electric eye induction: Accurate positioning, no bottle no filling.

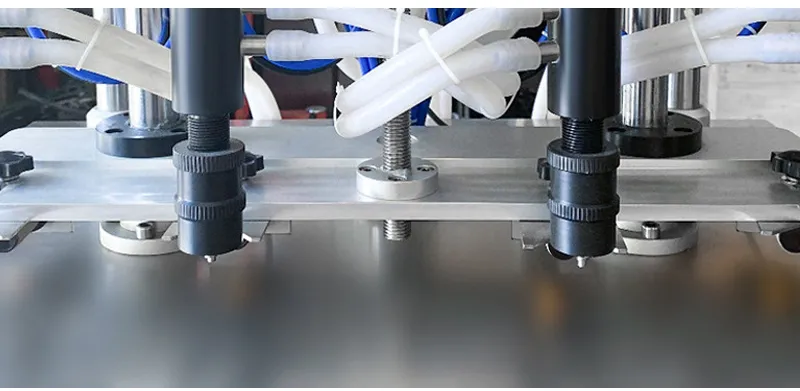

Negative Pressure Filling

Advanced negative pressure filling system.

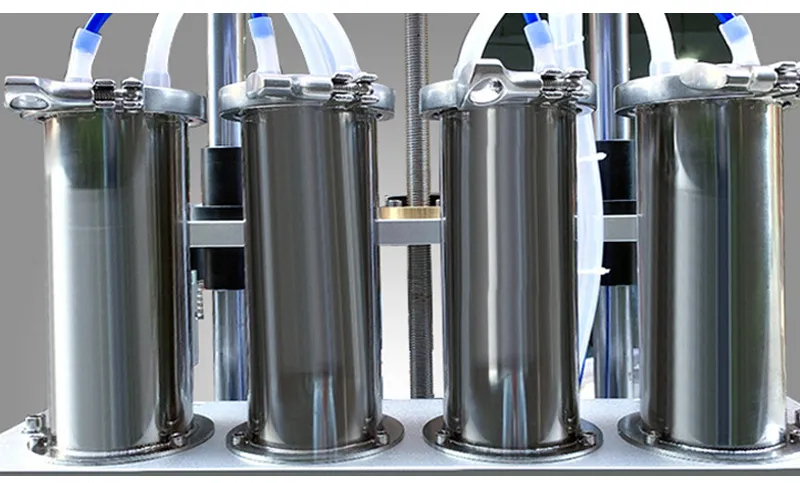

Material Back Suction

Excess material back suction to minimize waste.

Packaging & Service

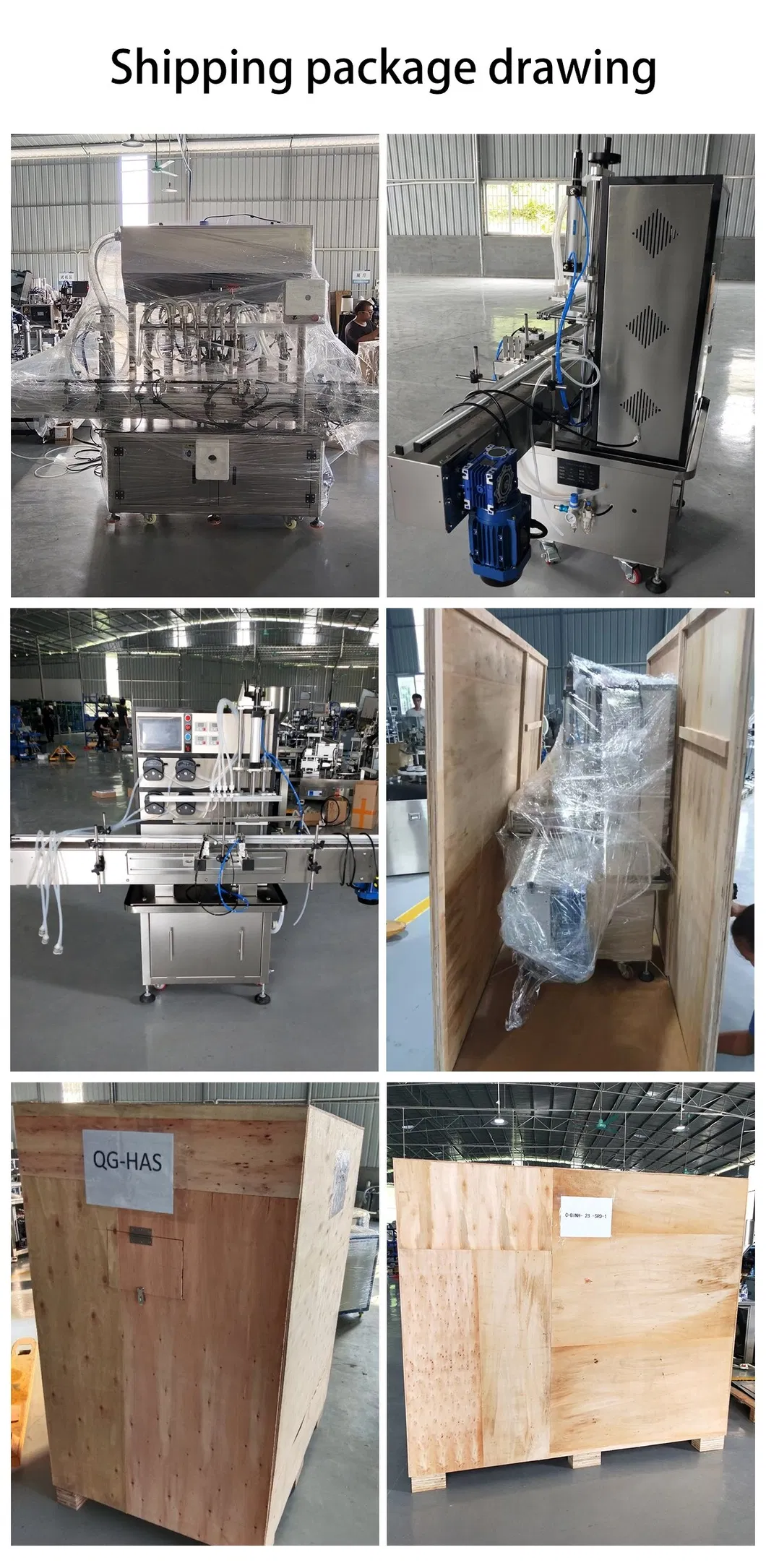

Transport Package
Package Size
82.00cm * 61.00cm * 174.00cm
Gross Weight
121.000kg
Lead Time
5 days (1-2 Pieces)
Our Service
  • Professional sales team for timely communication.
  • Regular production progress videos provided.
  • English operation manuals and videos included.
  • Professional after-sales maintenance engineers available.
  • Optional door-to-door service upon request.
Factory View
Certificates
Frequently Asked Questions
What is the filling range of this machine?
The machine supports a wide filling range from 2ml to 1000ml, making it suitable for various bottle sizes.
What types of liquids can be filled?
It is designed for low-viscosity liquids such as perfumes, oral liquids, eye drops, and other cosmetic or pharmaceutical fluids.
How does the "no bottle no filling" feature work?
The machine uses electric eye induction to detect the presence of a bottle. If no bottle is detected at the station, the filling head will not trigger, preventing waste.
What is the standard lead time for an order?
For 1-2 pieces, the lead time is generally 5 days if in stock. Larger quantities are subject to negotiation, typically 15-20 days.
What kind of warranty do you provide?
We offer a 1-year warranty. All machine parts can be replaced for free within this period if they break (excluding man-made damage).
Is the machine easy to operate for beginners?
Yes, the machine features a user-friendly PLC control and digital display. We also provide an English operation manual and instructional videos.
