📊 Basic Information
| Model NO. | TH-25-1231 |
| Automatic Grade | Manual |
| Material Type | Liquid |
| Filling Valve Head | Single-Head |
| Filling Principle | Pressure |
| Packaging Material | Plastic, Glass, Metal, Wood |
| Filling Accuracy | ≥ 99.7% |
| Application | Beer, Milk, Water, Oil, Juice |
| Transport Package | Wooden Case |
🔍 Product Description

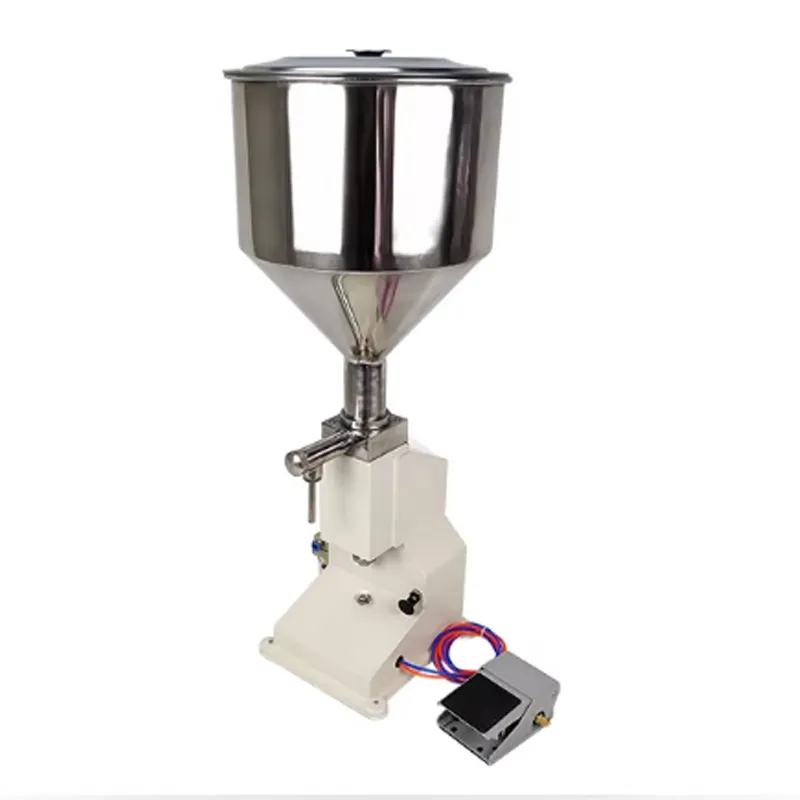

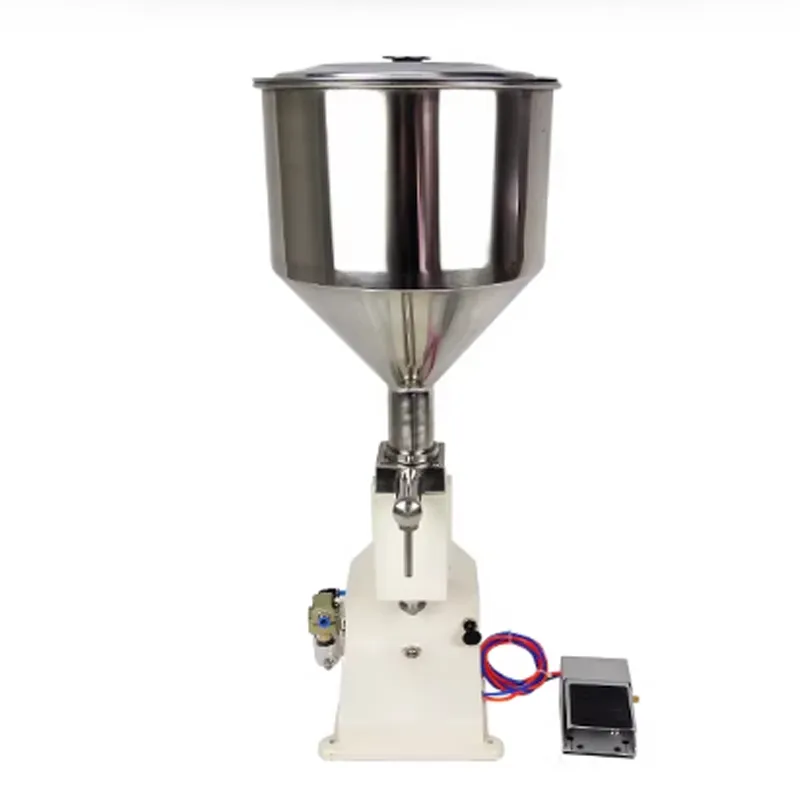

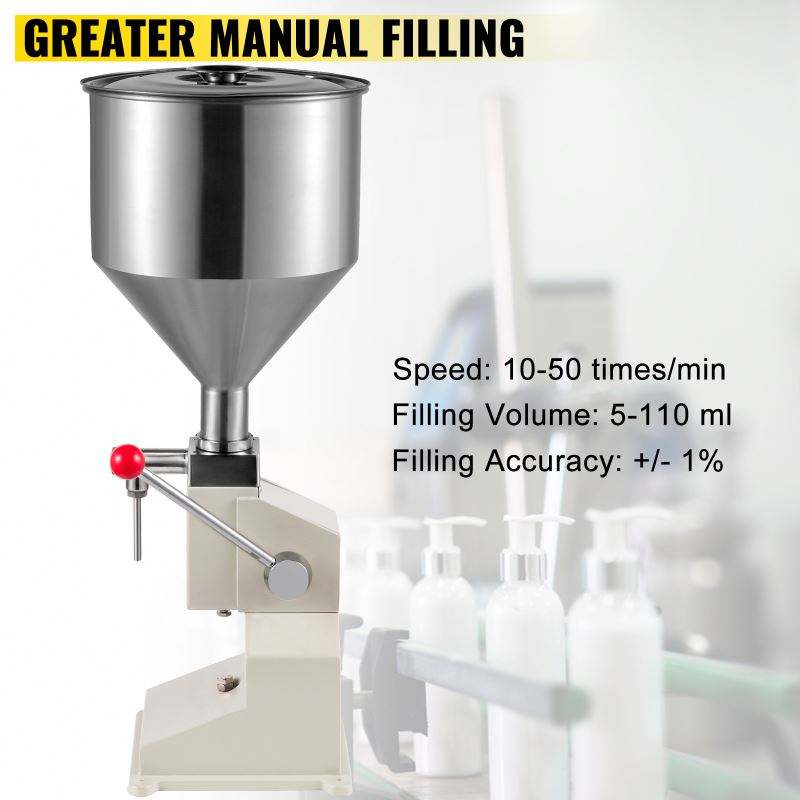

This manual filling machine has been especially designed for medium or small size enterprises including laboratories, hospitals, and beauty parlors. Its design is compact, efficient, and easy to use. All parts of the machine that touch the material being filled are Made of stainless steel and Polyfluoroethylene.
On average the machine can fill 40 bottles per minute (depending on operation speed, product density, draw length, and fill speed). Stainless steel construction, a rugged rotary valve system, and a completely pneumatic operation design serve to extend service life.
The silica gel O-ring system can withstand 392° Fahrenheit heat. Piston feed speed is adjustable and a no-drip option is included. The machine is extremely accurate (+/- 1%) and simple to operate. It is also very easy to clean and maintain thanks to sanitary stainless steel quick disconnect fittings.
⚙️ Product Parameters
Key Features:
- Simple and reasonable structure

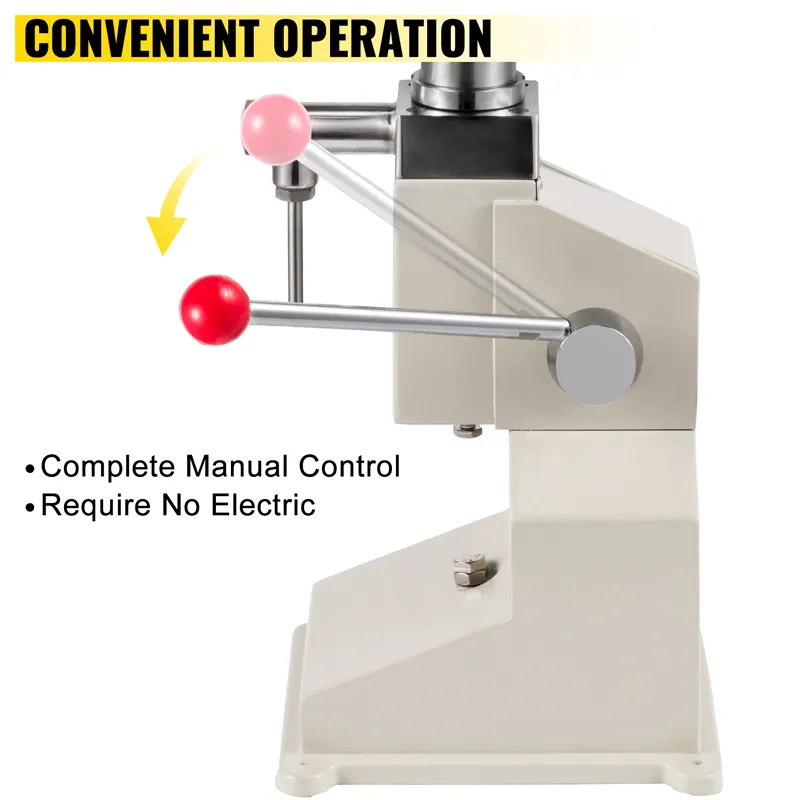

- Convenient manual operation without external energy

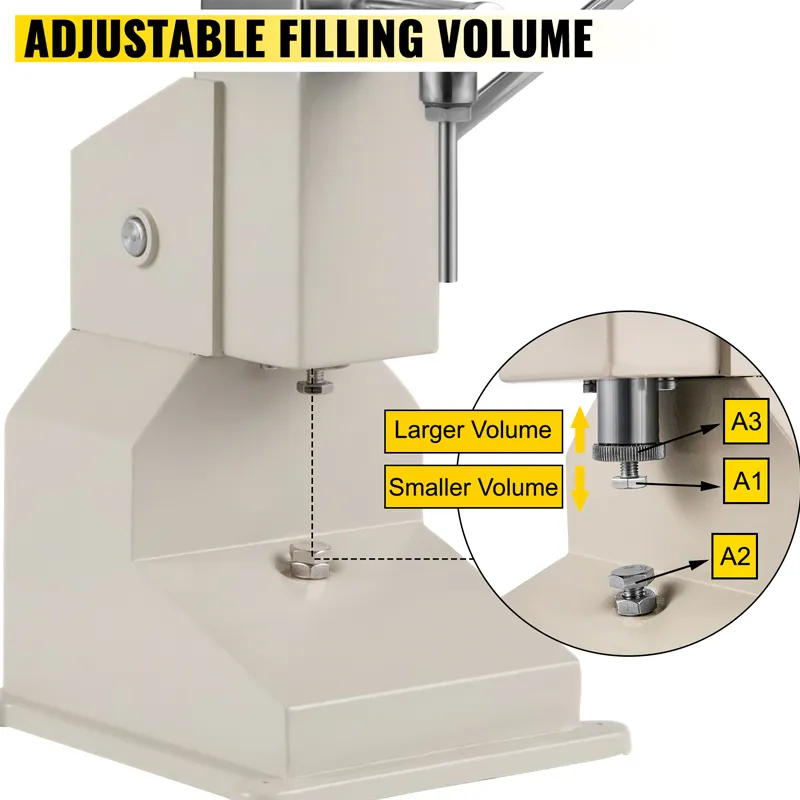

- Filling volume regulator knob for quantitative discharging
- Stainless steel contact parts for acidic medium compatibility

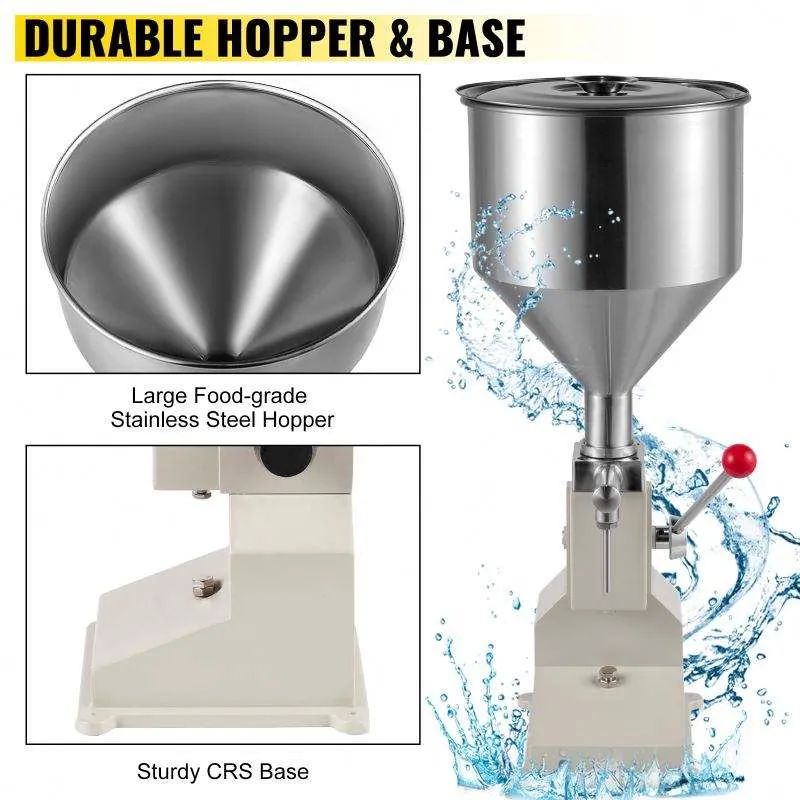

- 10 kg hopper capacity
| Filling Range | 5-50ml |
| Capacity of Hopper | 22lbs/10kg |
| Height Range | 7.87"/200mm |
| Bottle Diameter Range | 3-15 mm |
| Filling Accuracy | ±1% |
| Machine Size | 270 x 270 x 710 mm |
| Net Weight | 28.5lbs/13 kg |
💡 Product Application

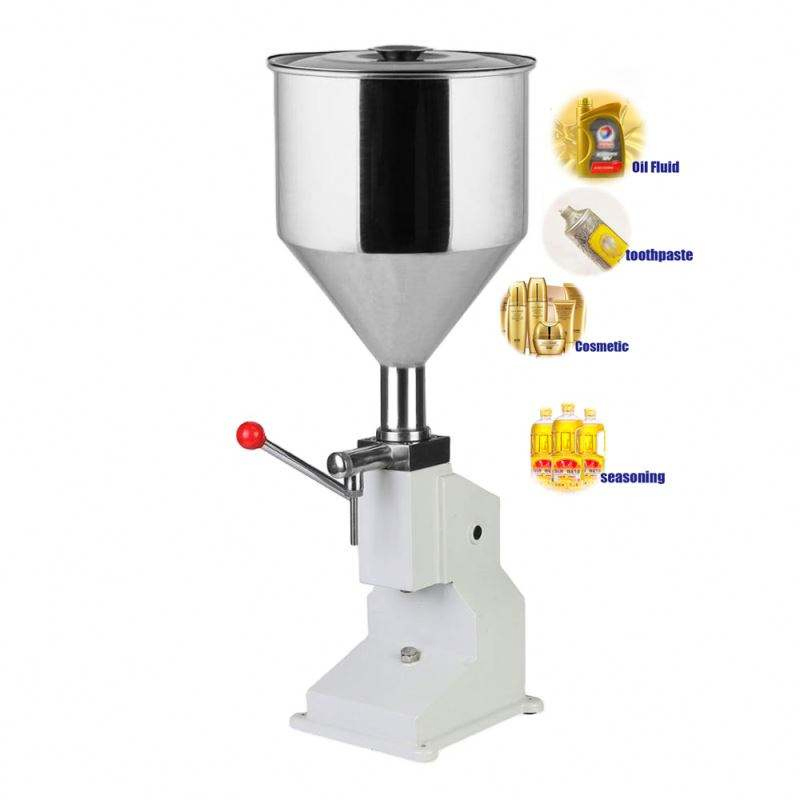

Our Innovative manual filling machine adopts a piston type structure, designed for 0-50g quantitative filling. This product is ideal for liquids with good liquidity. It is widely applicable to cosmetic, pesticide, and special industries, and can also be used for sealing hoses with quantitative filling requirements.
🏢 Company Profile

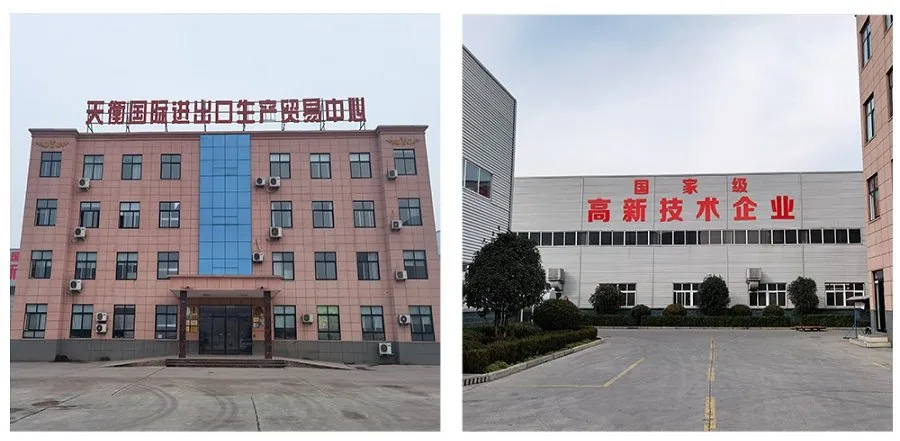

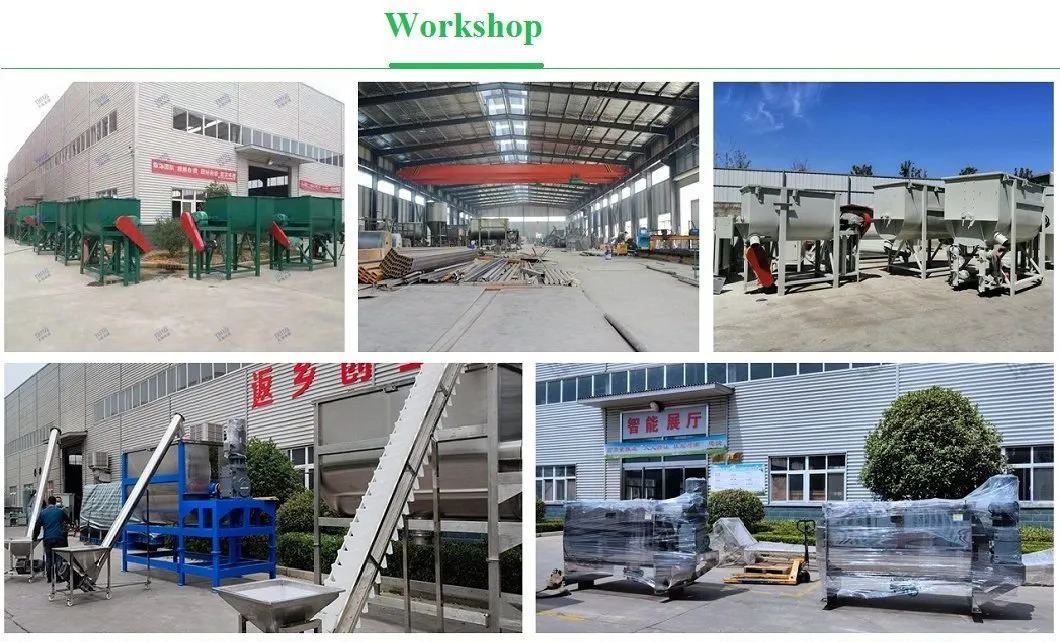

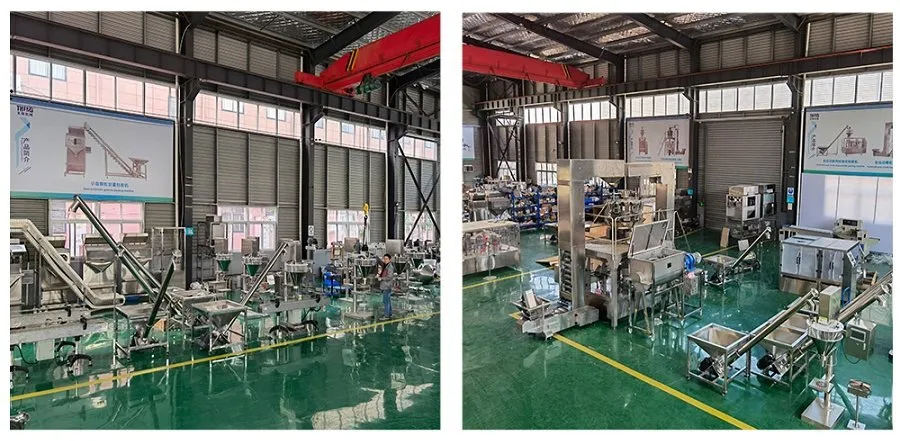

Established in 2014, we are located in a renowned food industry hub. We specialize in mixers, packing machines, conveyors, and pellet machinery. With a focus on high-quality design and competitive pricing, we provide satisfactory services and products to global clients.
🛠️ After Sales Service
- Multi-language consultation support (English, Chinese, etc.).
- 24-hour online service for technical advice.
- English manuals and schematic drawings provided for core equipment.
- Production process follow-up and technical documentation.
- One-year warranty for the machine and core components.
- Professional engineering team available for training.
❓ Frequently Asked Questions
Q1: What types of liquids can this machine fill?
A: It is designed for liquids with good liquidity, such as water, oil, milk, juice, and thin sauces or cosmetics.
Q2: Is the filling volume adjustable?
A: Yes, the filling range is adjustable between 5ml and 50ml using the manual regulator knob.
Q3: Does this machine require electricity or compressed air?
A: This specific model is a manual operation machine, meaning it does not require external power or energy to operate.
Q4: How accurate is the filling process?
A: The machine is highly accurate with a filling accuracy of ±1% or better (up to 99.7%).
Q5: Is the machine easy to clean for food-grade use?
A: Yes, all contact parts are made of high-quality stainless steel and feature quick-disconnect fittings for easy cleaning and maintenance.
Q6: What is the warranty period for this filler?
A: We provide a 12-month warranty from the date of arrival at the buyer's facility, covering the machine and core components.
