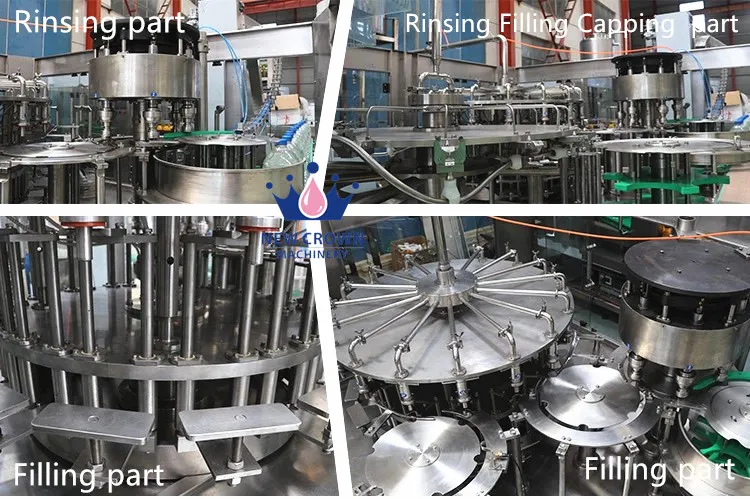

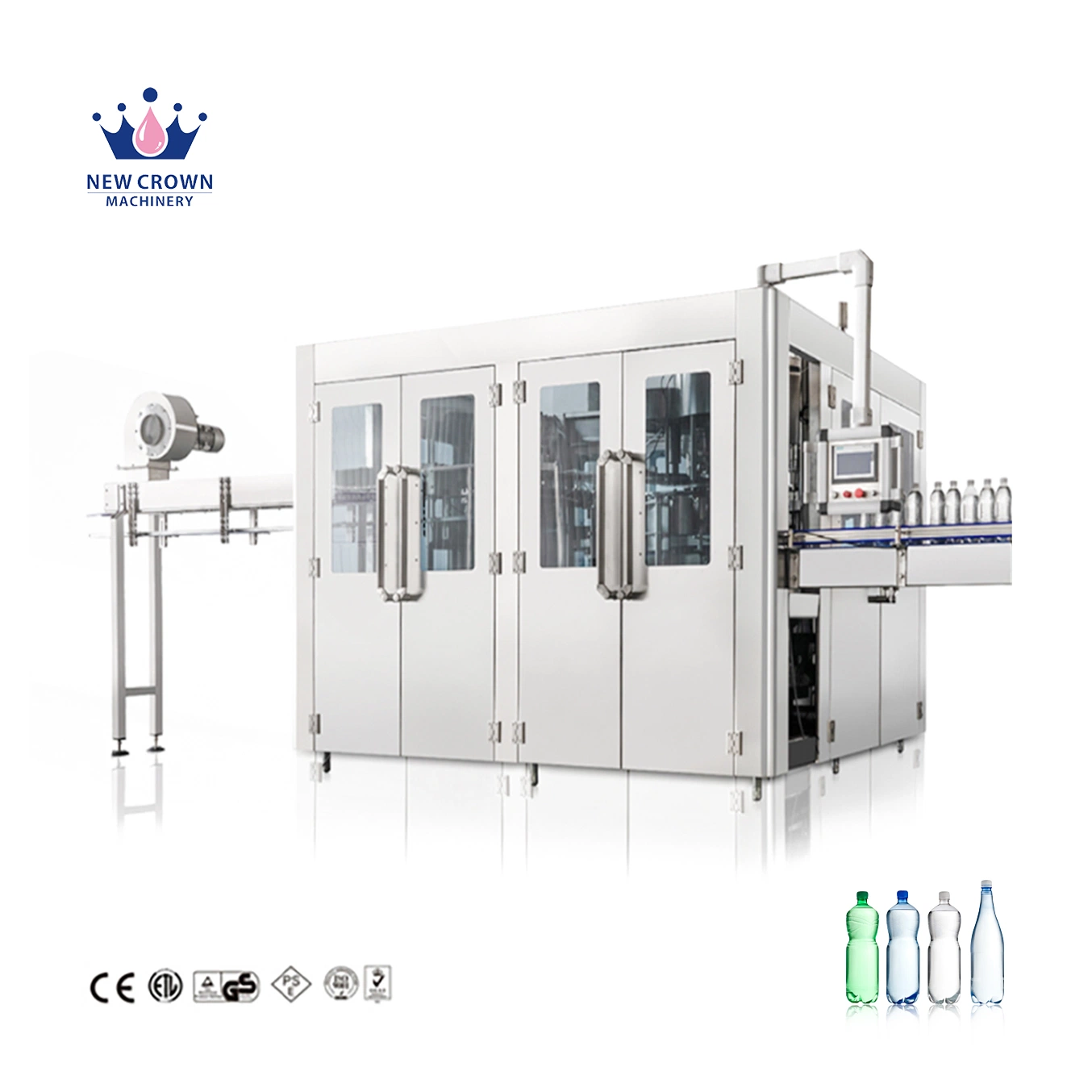

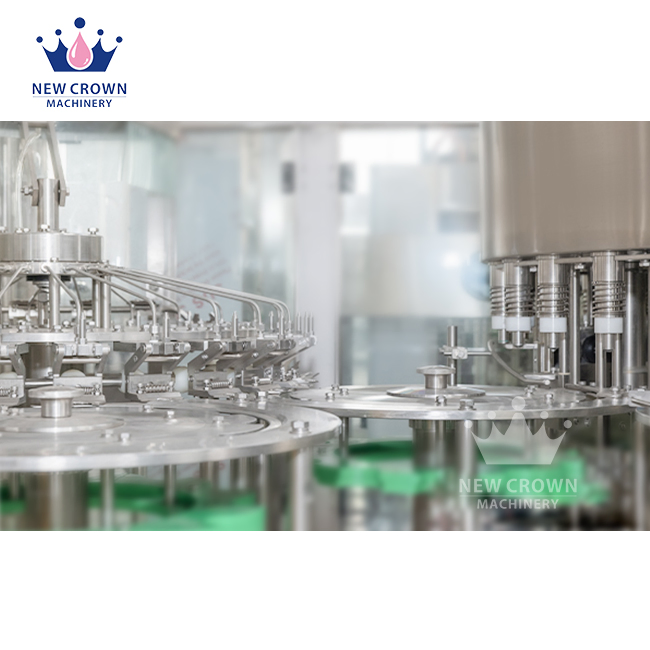

The monoblock filling machine integrates washing, filling, and capping functions into a single frame. This streamlined design utilizes a step-by-step driving system, ensuring highly stable production speeds and efficient operation.
Our monoblock solutions are customized based on:
| Technical Parameters | ||||
|---|---|---|---|---|
| Model | CGF12-12-4 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
| Capacity (BPH) | 3000-4000 | 5000-6000 | 8000-10000 | 10000-14000 |
| Applicable Bottle | Plastic bottle 500ml-1.5L / Plastic screw cap | |||
| Filling Content | Mineral water, wine, non-carbonated water | |||
| Washing/Filling/Capping | 12/12/4 | 18/18/6 | 24/24/8 | 32/32/10 |
| Main Power (kw) | 2.2kw | 2.5kw | ||
| Dimensions (mm) | 2350*1850*2450 | 2700*2100*2450 | 2800*2400*2450 | 3200*2800*2450 |
A monoblock machine integrates the washing, filling, and capping processes into a single compact unit, sharing one driving system for better synchronization and efficiency.
Yes, as long as the bottle neck diameter remains the same, different bottle volumes and shapes can be processed by changing a few parts.
Yes, the filling level can be easily adjusted to meet your specific packaging requirements for different liquid products.

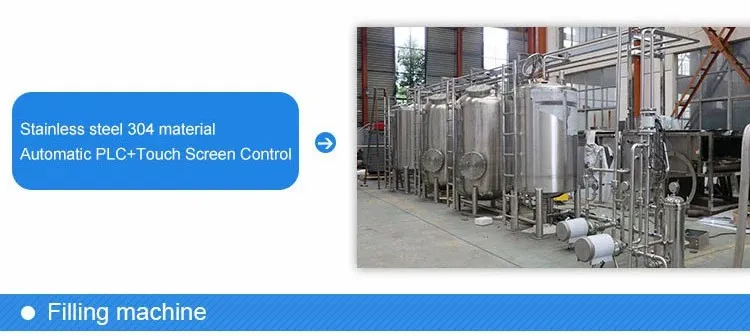

All parts that come into contact with the liquid, including the tank and valves, are made of high-quality SUS304 stainless steel for anti-corrosion and hygiene.

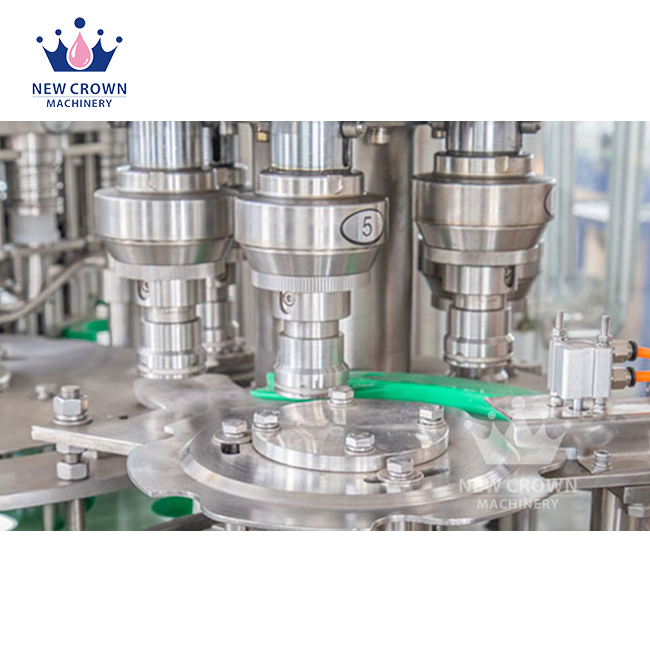

Absolutely. It includes a "No Bottle - No Filling" sensor, anti-rotary blades for capping stability, and a PLC-controlled emergency stop system.
Depending on the model (from CGF12 to CGF32), the capacity ranges from 3,000 to 14,000 bottles per hour (BPH).
