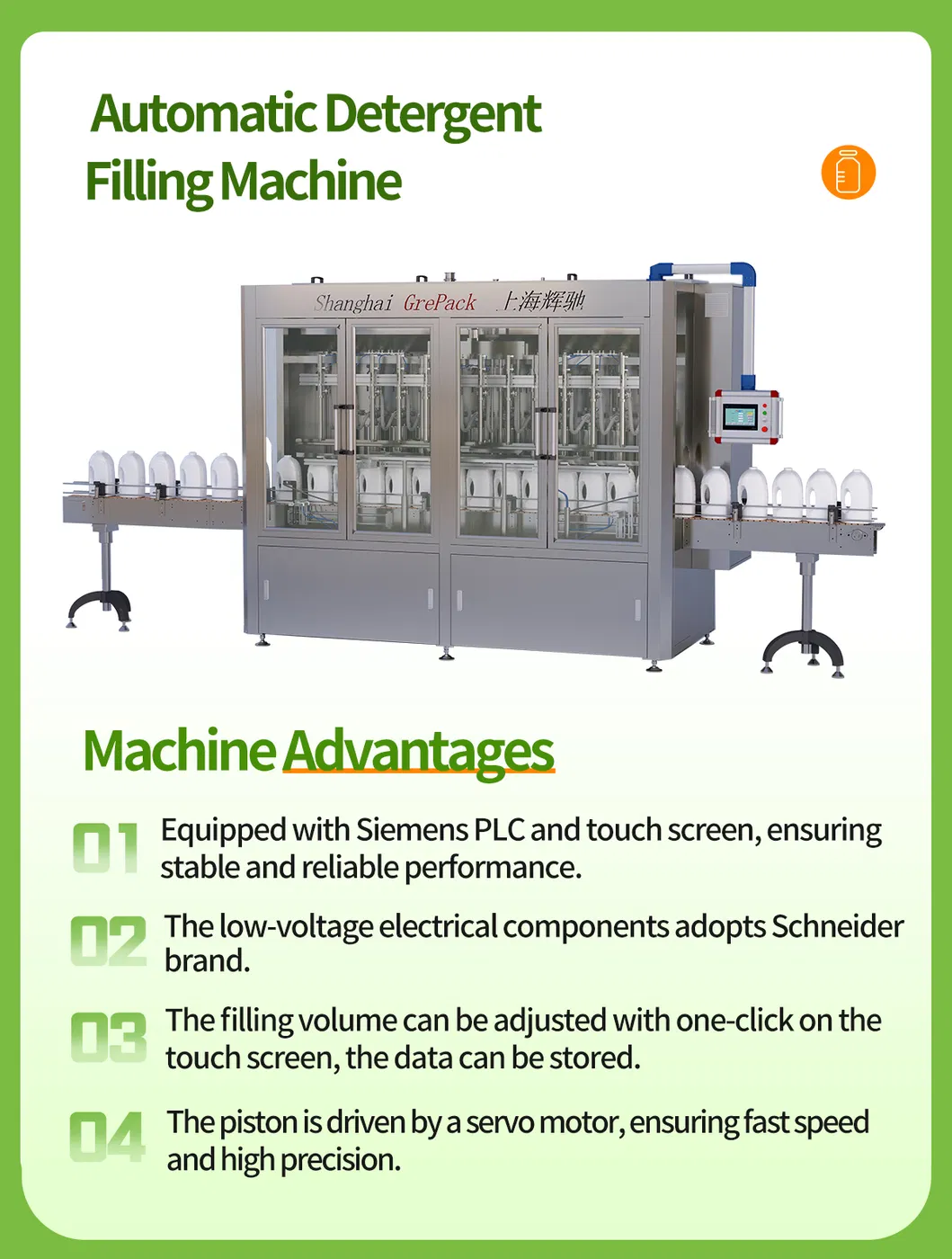

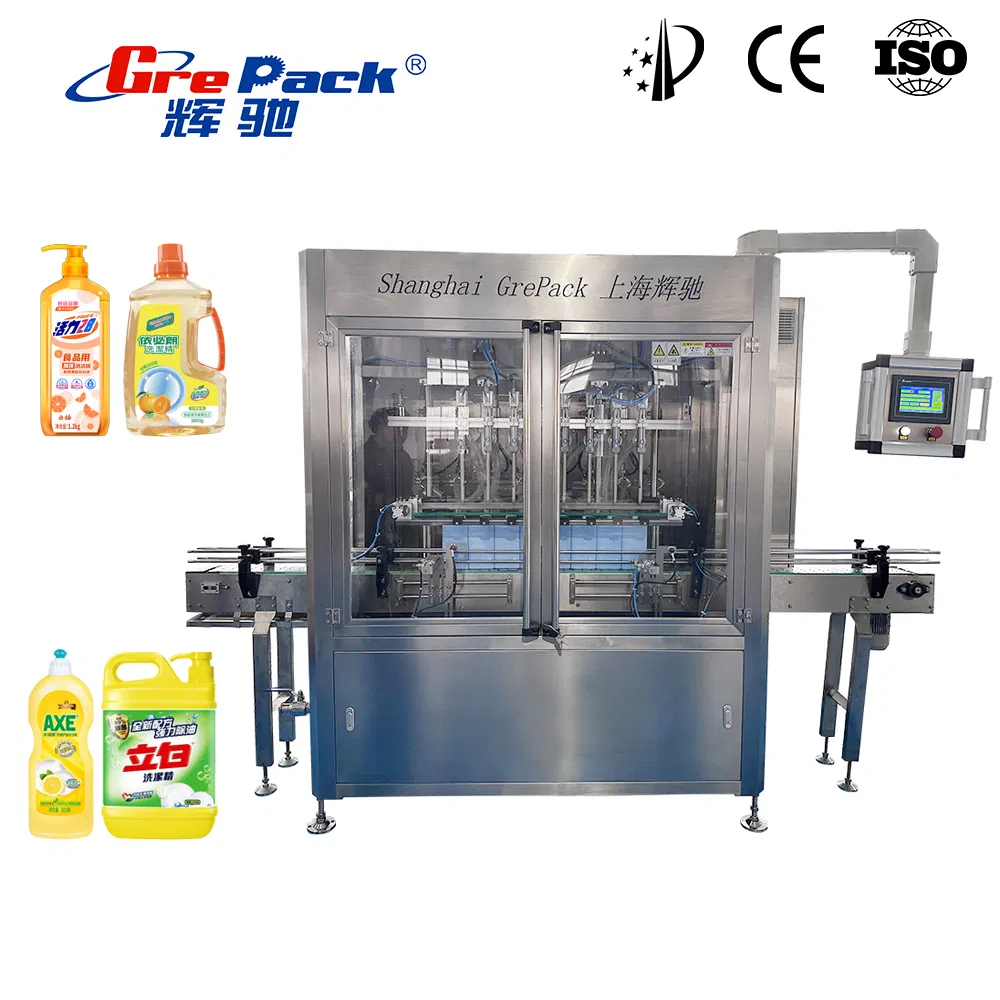

Automatic Hand Washing Liquid Shampoo Cleaning Detergent Sanitizer Plastic Bottle Volumetric Piston Filling Bottling Capping Machine

Customization: Available
After-sales Service: Oversea Sale Service
Warranty: 1 Year

Product Description

Basic Specifications

Model NO.
GP125/500/1000/3000/5000 series
Type
Piston Filling Machine
Automatic Grade
Fully Automatic
Material Type
Paste
Filling Valve Head
Multi-Head
Dosing Device
Plunger
Filling Principle
Pressure
Structure
Linear
Packaging
Bottle
Packaging Material
Plastic
Weight
800 Kg
Driven Type
Electric
Quantitative Error
0.5%
Source Voltage
AC220V 380V
Production Capacity
800-6000bph

Packaging & Delivery

Package Size
180.00cm * 115.00cm * 210.00cm
Gross Weight
800.000kg
Transport Package
Plywood Case

Product Description

Model GP125 / GP500 / GP1000 / GP3000 / GP5000 Series
Filling Range 30-125ml, 50-500ml, 100-1000ml, 500-3000ml, 1000-5000ml

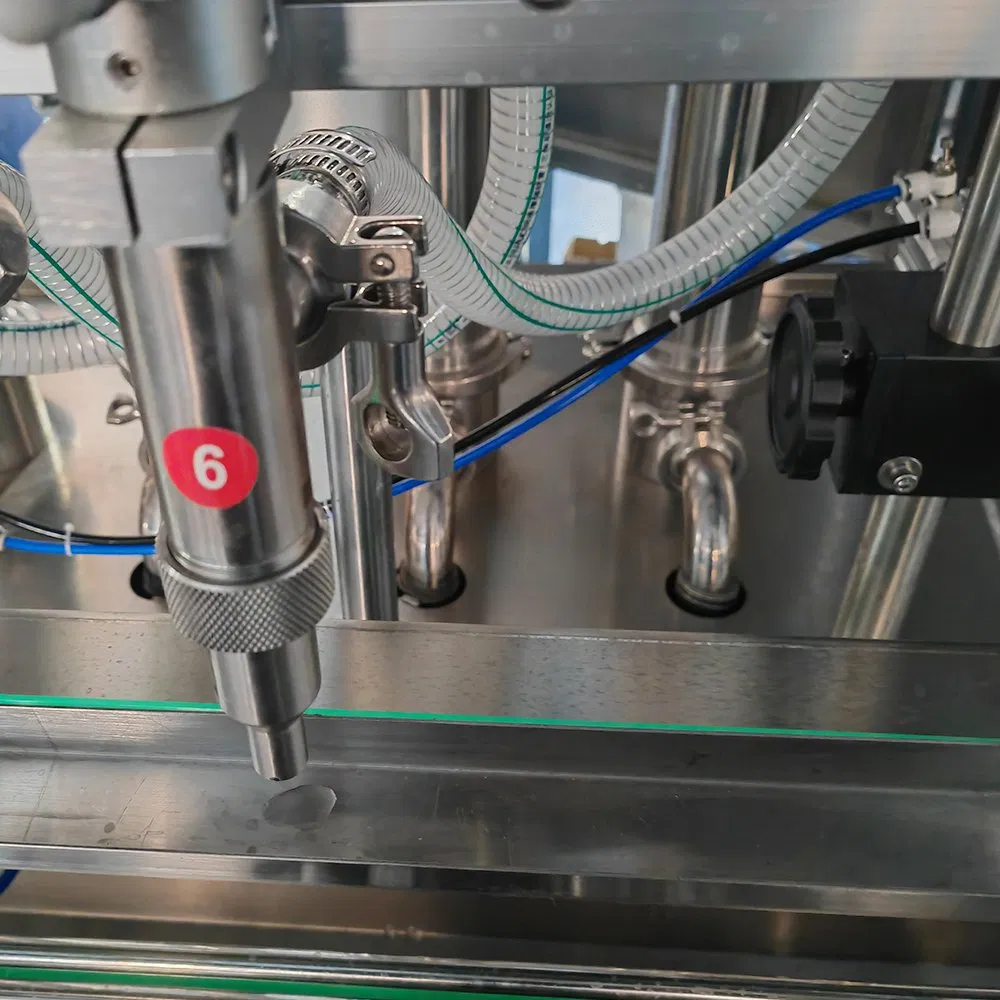

Filling Nozzle 4 6 8 10 12
Capacity (1000ml) ≤ 1200 bph ≤ 1800 bph ≤ 2400 bph ≤ 3000 bph ≤ 3600 bph
Filling Accuracy ≤±0.5%
Voltage AC220V/380V 50-60HZ (Customizable)
Power 2.0-3.5KW 2.0-4.0KW 2.5-4.5KW 3.0-5.5KW 3.0-6.5KW
Air Pressure 0.5-0.8Mpa

This professional packaging machinery solution has been exported to over 80 countries, helping thousands of customers boost production efficiency. The product line specializes in bottle filling production, including bottle unscramblers, filling machines, capping machines, sealing machines, and labeling machines.

The system is highly versatile, applicable to various products such as powders, liquids, and granules. With a core focus on customer needs, these machines provide perfect packaging solutions for industries ranging from cosmetics to household chemicals.

Frequently Asked Questions

1. What materials can this piston filling machine handle?
The machine is specifically designed for paste and liquid materials, such as hand wash, shampoo, cleaning detergents, and sanitizers.
2. What is the filling accuracy of the GP series?

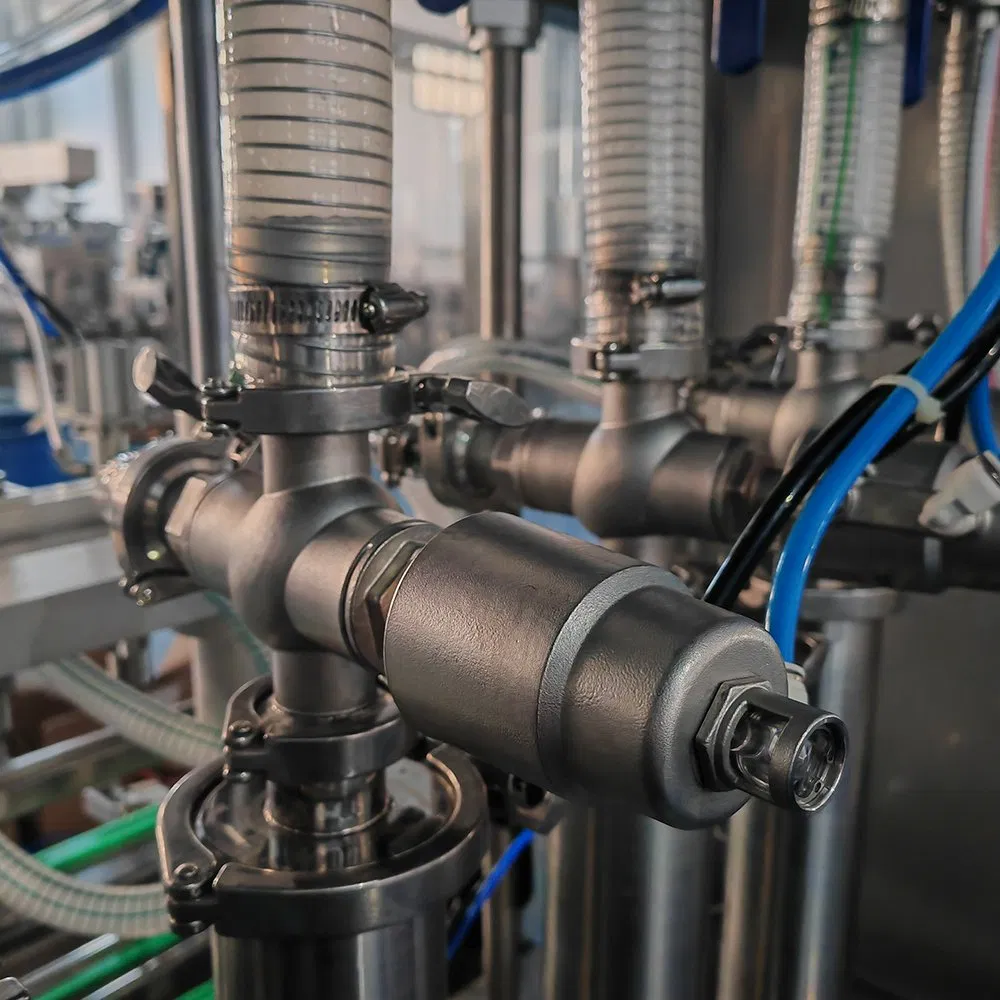

The machine utilizes a high-precision plunger dosing device, ensuring a quantitative error of less than or equal to ±0.5%.
3. Can the filling capacity be adjusted for different production needs?
Yes, the production capacity ranges from 800 to 6000 bottles per hour, depending on the number of nozzles (4 to 12) and the bottle size.
4. Is the machine compatible with different bottle sizes?
The linear structure and pneumatic lifting system allow the machine to adapt to various plastic bottle sizes and shapes within the specified filling range (30ml to 5000ml).
5. What are the power and air pressure requirements?
The machine operates on AC220V/380V (50-60HZ) and requires an air pressure of 0.5-0.8Mpa for optimal performance.
6. Is the machine fully automatic?
Yes, it is a fully automatic grade machine featuring PLC controls and level sensors in the buffer tank for seamless operation.
