Basic Information
Filling Valve Head
Multi-Head
Feed Cylinder
Single-Room Feeding
Dosing Device
Capacity Cup
Filling Principle
Pressure
Application
Sticky Corrosive Liquid
Material
Stronger PP Plate
Cylinder Brand
Airtac From Taiwan
Machine Tank
Top Mounted, Approx 200L
Packaging & Delivery
Package Size
2000.00cm * 1000.00cm * 2200.00cm
Product Description

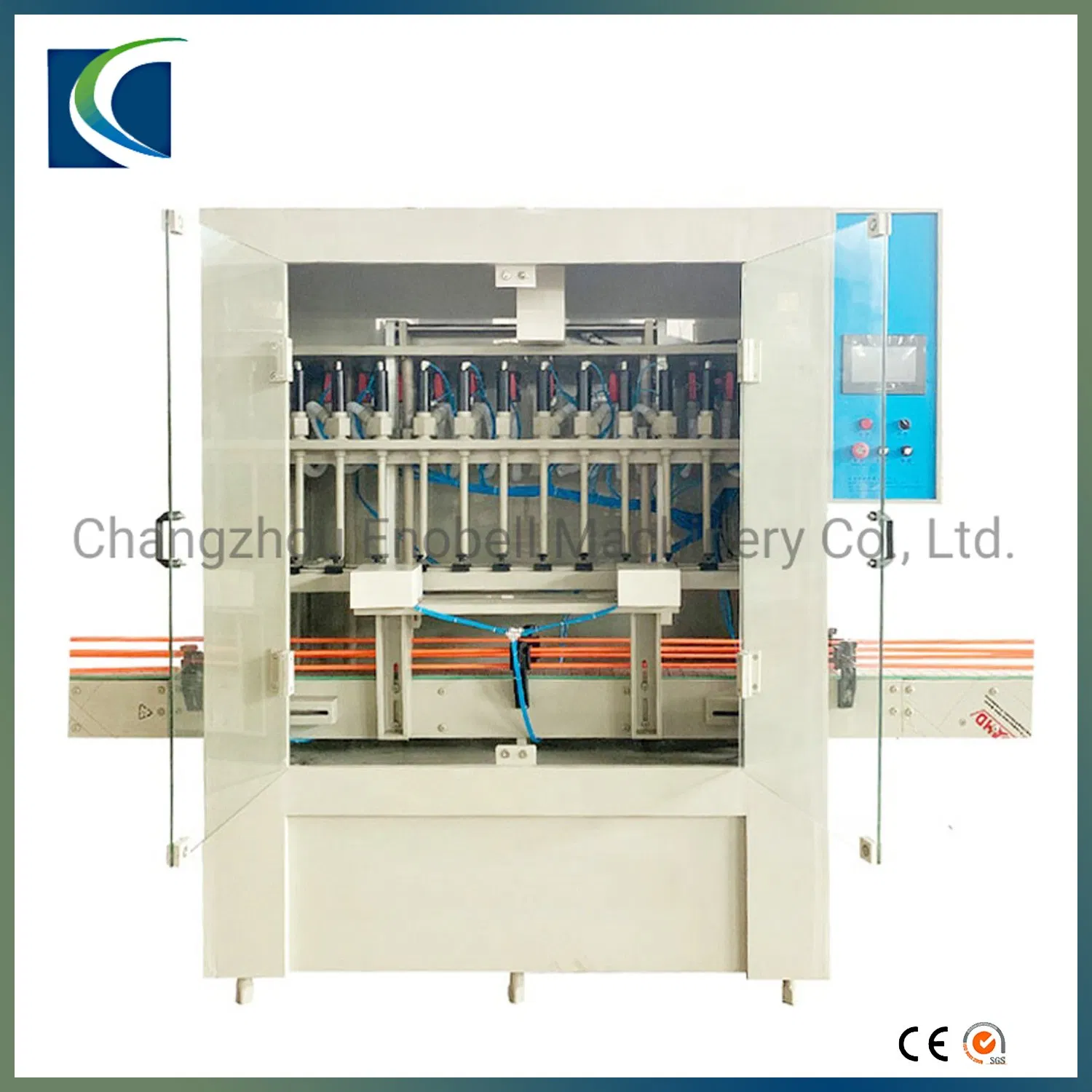

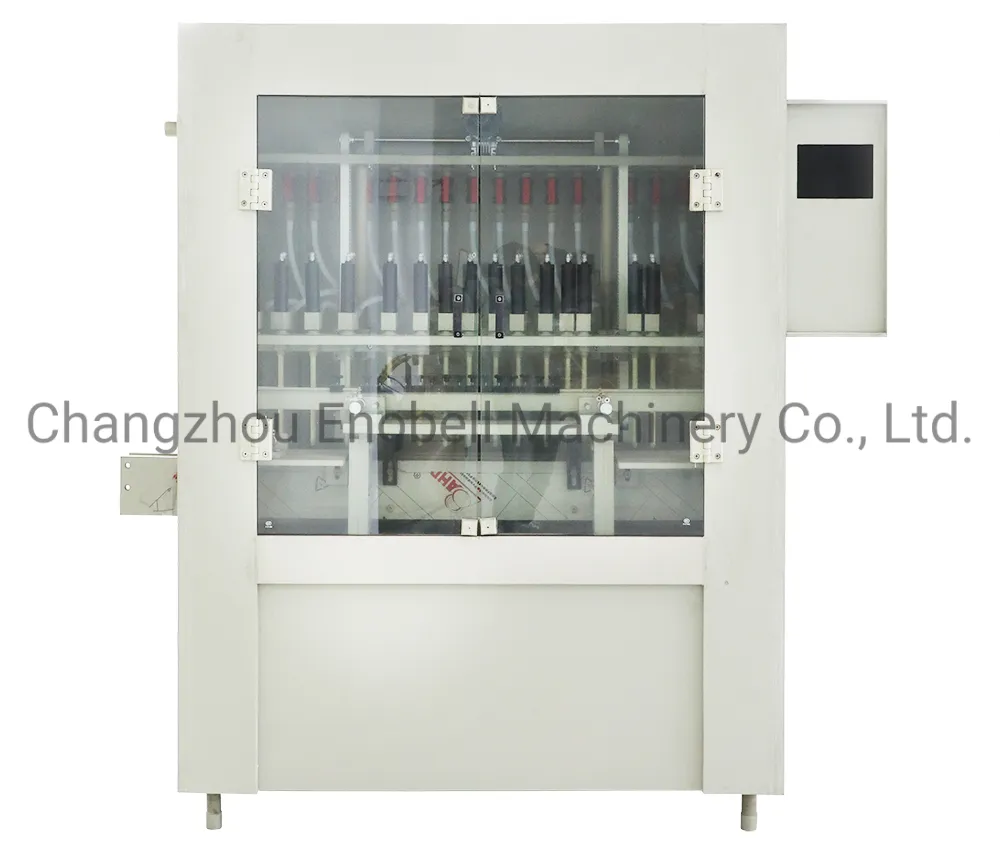

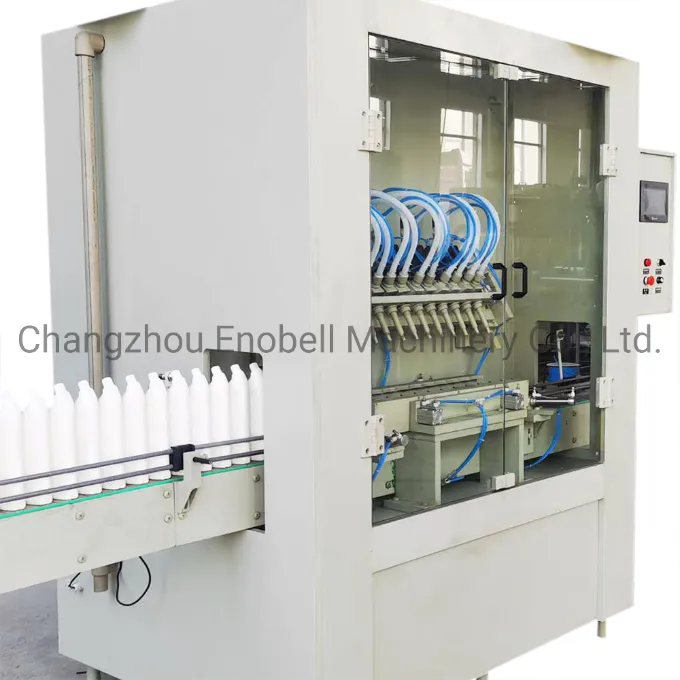

Anti-Corrosive PP Piston Bottle Liquid Filling Machine
The YPZ16-F2 is specifically engineered to fill corrosive sticky liquids into bottles with high precision and durability.
Technical Characters
★
Advanced PP Material: The entire machine is constructed using PP material, providing superior anti-corrosive performance compared to standard stainless steel.
★

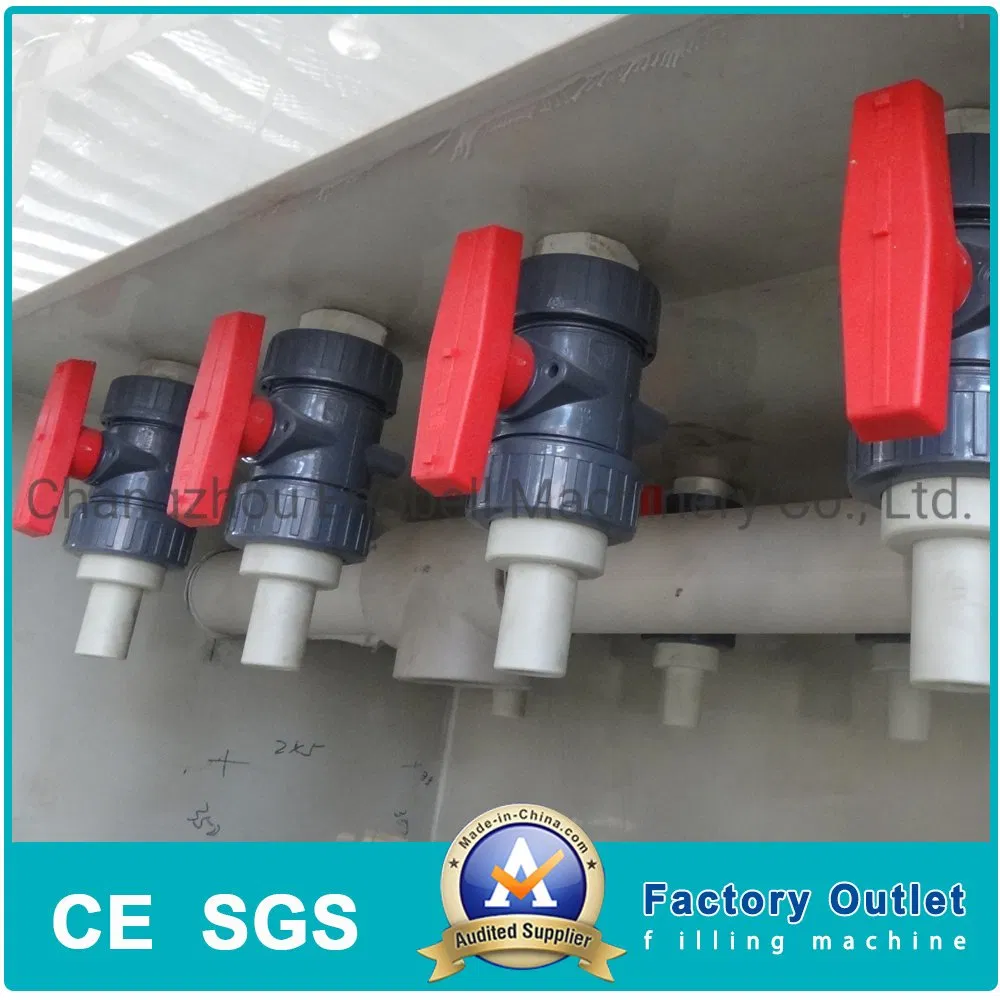

Isolated Valve Design: Three-way valves are installed separately in an isolated room at the back of the machine, protecting them from corrosive liquids and air.
★

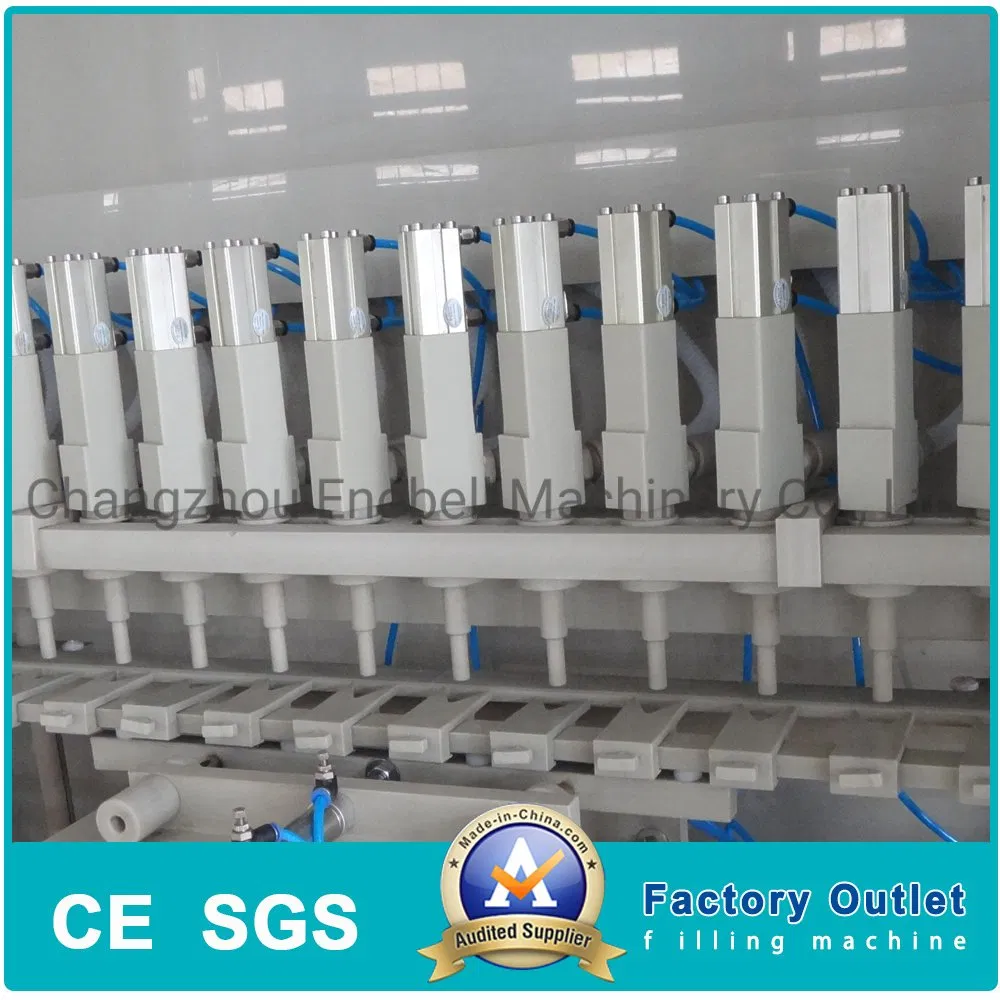

Leak-Proof Piston System: Piston cylinders are tailor-designed for anti-corrosion with dual sealing rings, guaranteeing 100% zero leaking and dripping even after years of operation.
★
Glass Piston Cylinders: High-quality glass cylinders feature ultra-smooth inner walls, reducing resistance on sealing rings for a longer service life.
★
F4 Material Valves: Specially-designed drawing valves are made of durable F4 material for maximum chemical resistance.
Production Capacity

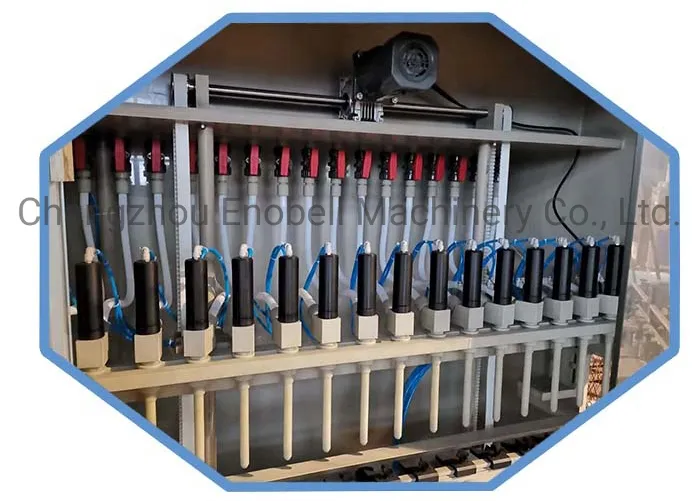

Equipped with 16 filling heads, the YPZ16-F2 can complete 3 cycles per minute for volumes ranging from 100ml to 1000ml.
For angle neck bottles, a newly-designed capping machine is available which can automatically feed the inner mouth before capping.
Frequently Asked Questions
What materials are used to ensure the machine is anti-corrosive?
The machine is primarily constructed from high-quality PP (Polypropylene) material, which offers significantly better resistance to corrosive liquids and air than traditional stainless steel.
How does the machine prevent leaking during the filling process?
The piston cylinders use dual sealing rings and a specialized design that ensures 100% no leaking or dripping. Even if sealing rings wear down over time, the design prevents fluid escape.
What is the production speed of the YPZ16-F2?
With 16 filling heads, the machine can process approximately 3 cycles per minute for bottle sizes between 100ml and 1000ml.
Can this machine handle highly viscous or sticky liquids?
Yes, the YPZ16-F2 is specifically designed for sticky corrosive liquids, utilizing a pressure-based filling principle and robust piston cylinders.
Are the internal components protected from corrosive fumes?
Yes, critical components like the three-way valves are housed in an isolated chamber at the back of the machine to prevent contact with corrosive air and liquid.
Is it possible to fill angle neck bottles with this system?
Yes, we have developed a compatible capping machine specifically for angle neck bottles that automatically manages the inner mouth feeding process.
