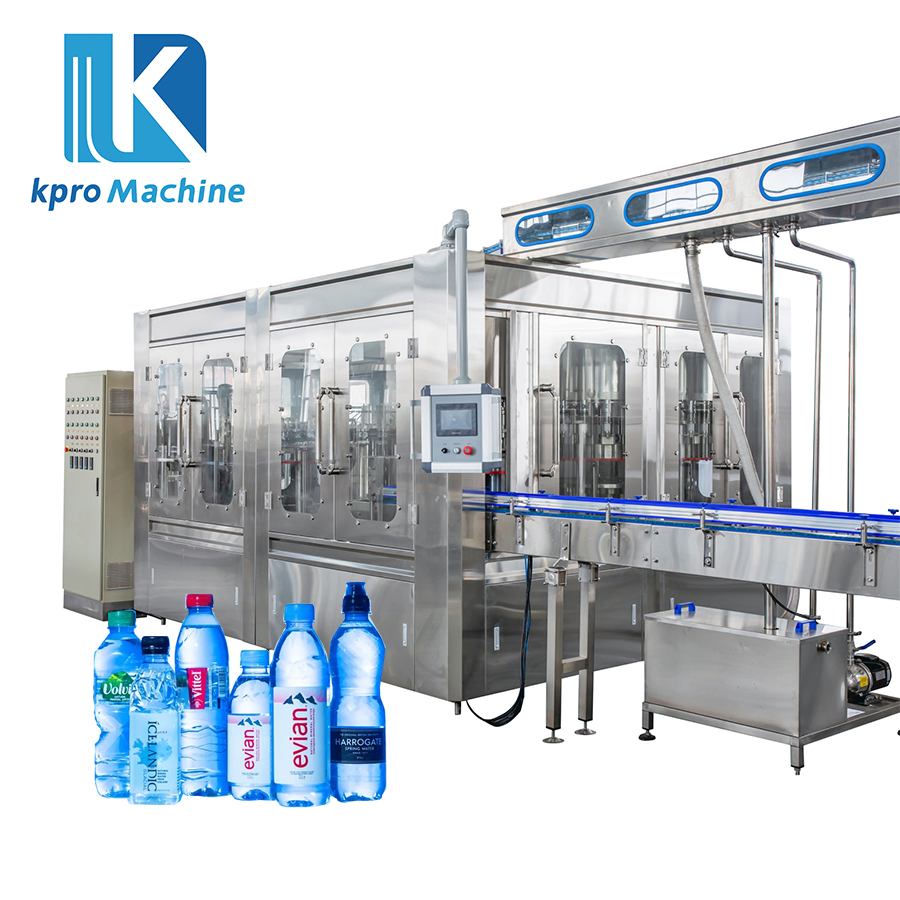

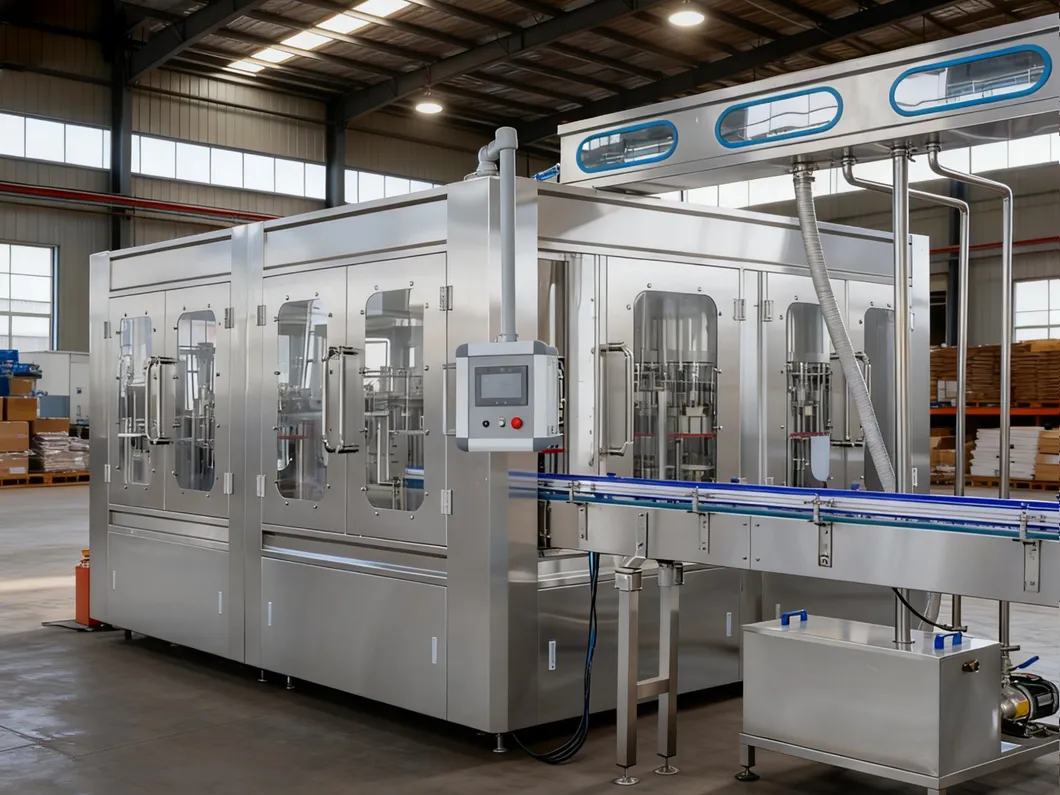

Automatic Mineral Pure Bottle Drinking Water Washing Filling Bottling Capping Machine
Our machine is designed for the production of bottled mineral water, purified water, alcoholic beverages, and other non-gas liquids. This complete water bottling plant is compatible with PET and PE plastic bottles ranging from 200ml to 2000ml with minimal changeover required. Different models satisfy output requirements from 1,000 to 24,000 bottles per hour.
This model is ideal for low to middle capacity factories, offering low investment costs, low utility consumption, and a compact footprint. It integrates washing, filling, and capping functions seamlessly, utilizing an advanced Mitsubishi PLC and frequency converters for stable, reliable, and highly automated operation.

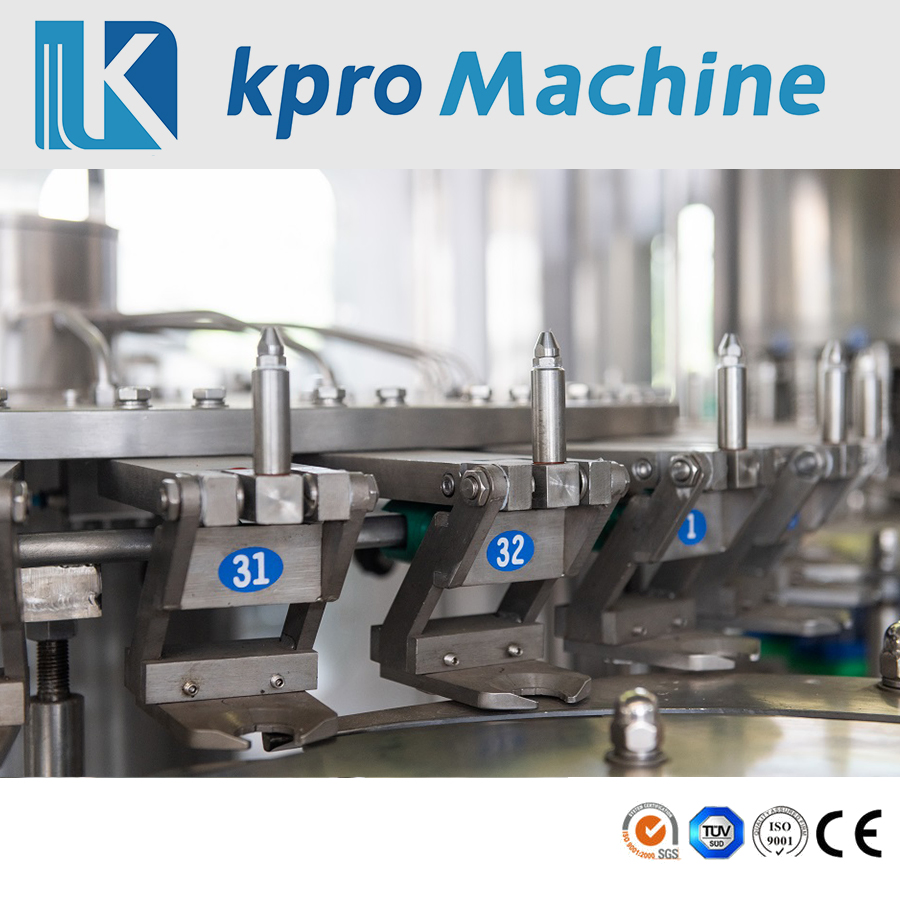

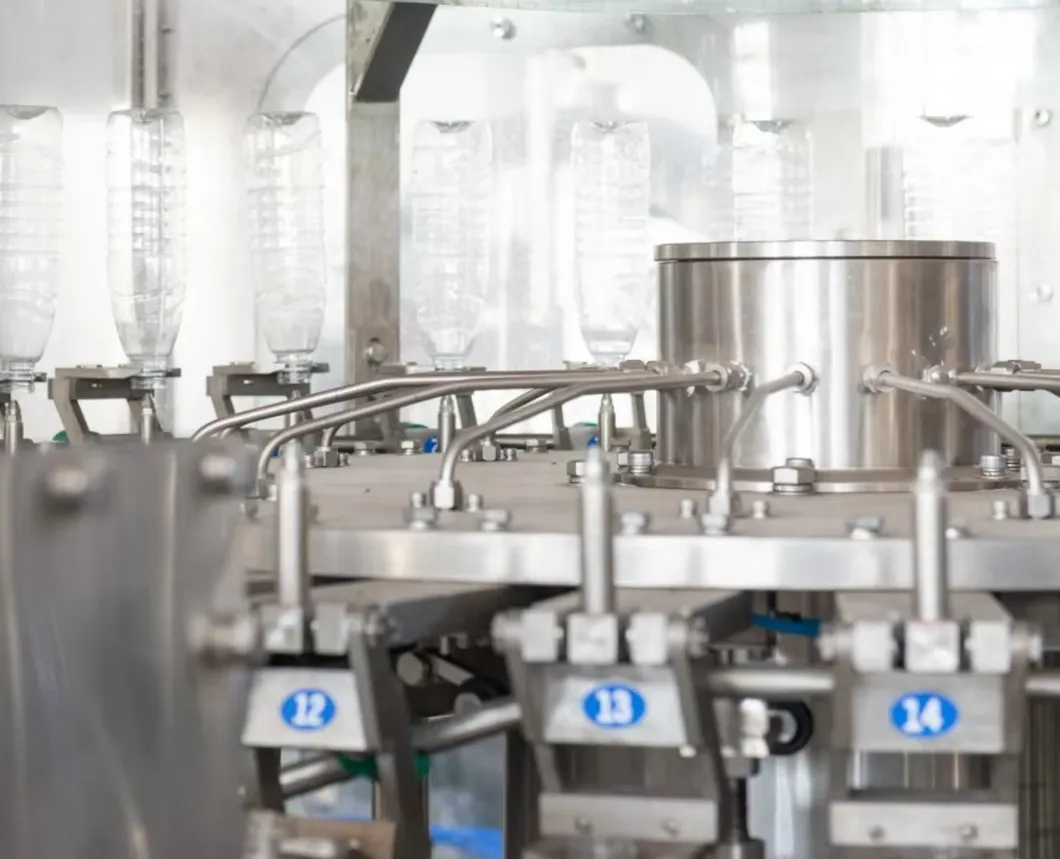

Rinsing Part

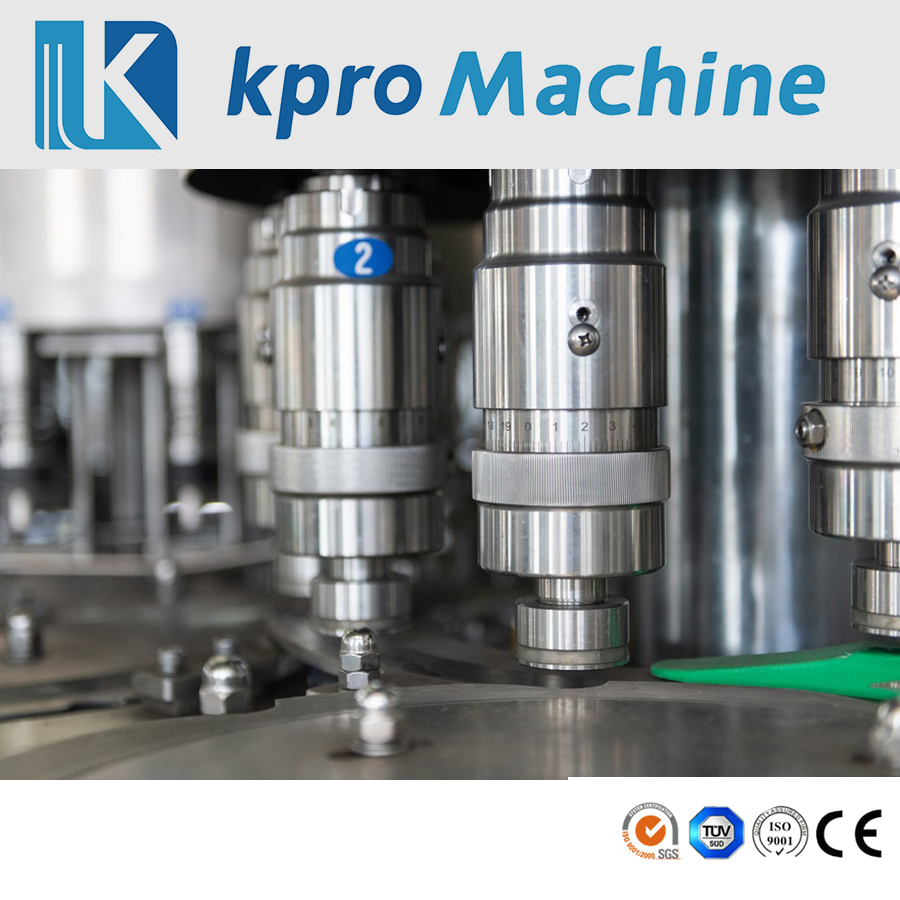

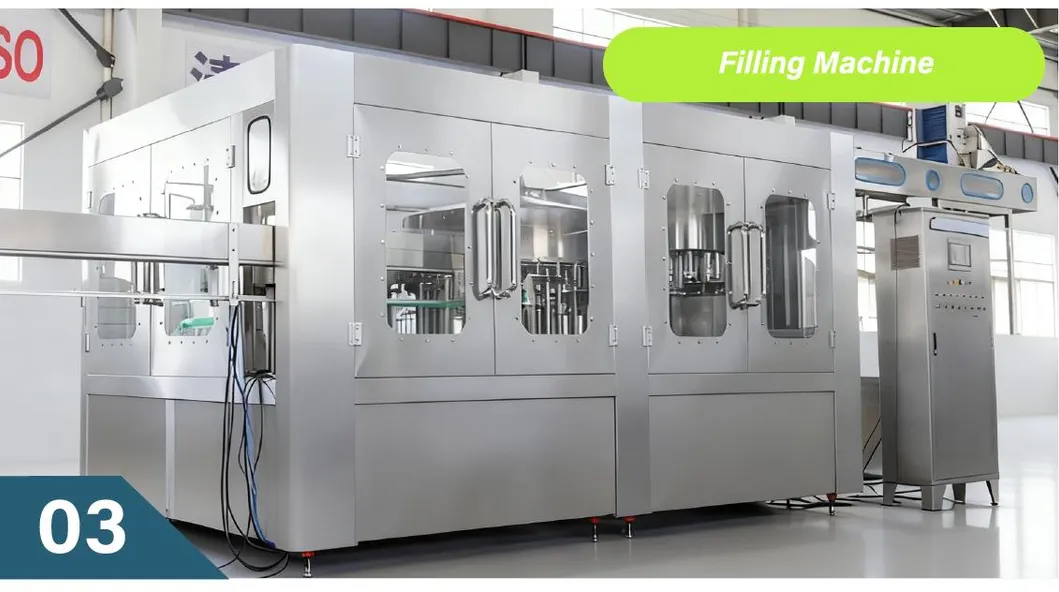

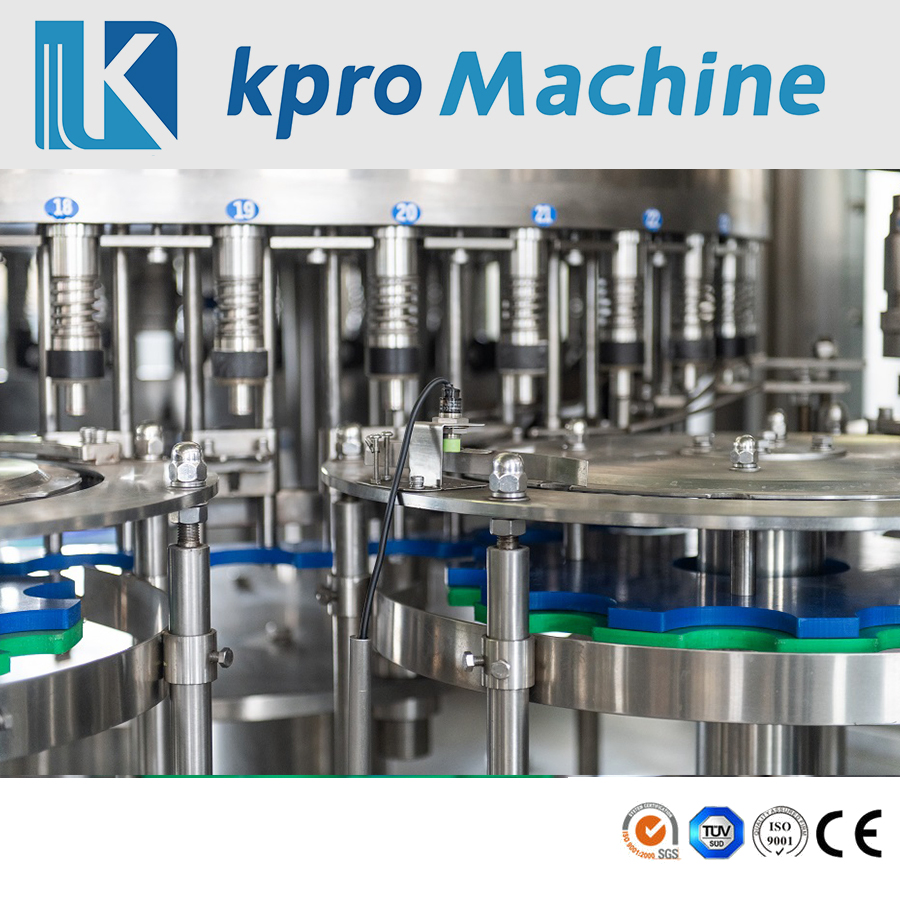

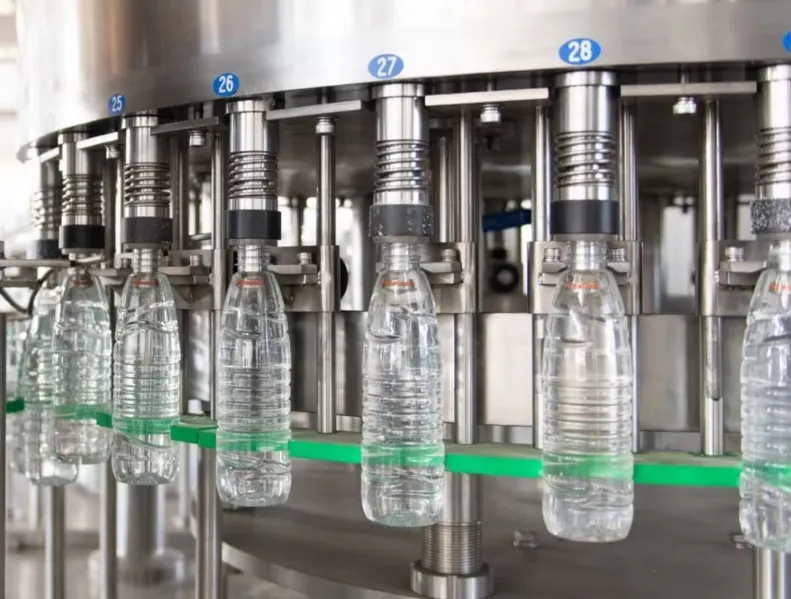

Filling Part

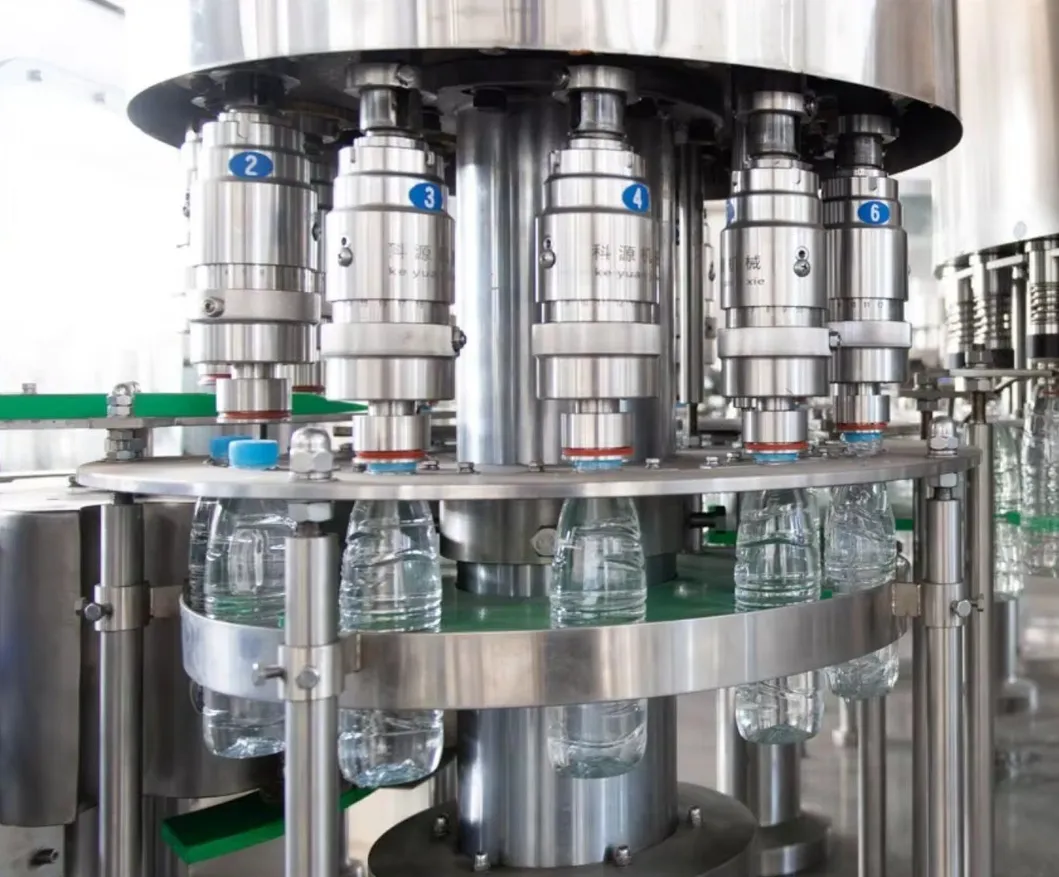

Capping Part
| Model | CGF8-8-3 | CGF14-12-4 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 |
|---|---|---|---|---|---|---|
| Rinsing Heads | 8 | 14 | 18 | 24 | 32 | 40 |
| Filling Heads | 8 | 12 | 18 | 24 | 32 | 40 |
| Capping Heads | 3 | 4 | 6 | 8 | 10 | 12 |
| Capacity (500ml) | 3000 | 4000-5000 | 6000-8000 | 8000-12000 | 12000-16000 | 16000-20000 |
| Power (KW) | 3 | 3.5 | 4 | 4.8 | 7.6 | 8.3 |
1) Water Purification System: Source water tank → Filter systems → Reverse Osmosis → Ozone sterilizer → Pure water tank.

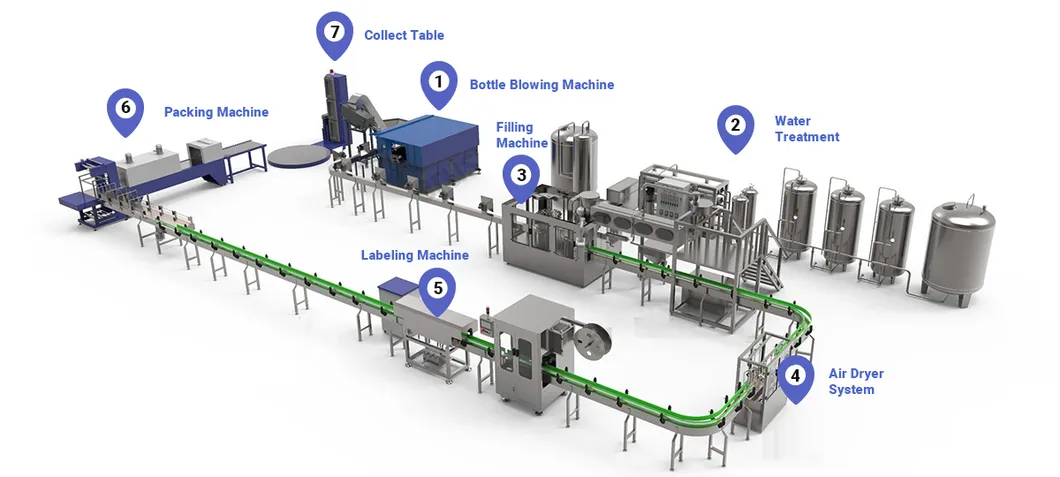

2) Filling & Packing System: Bottle blower → Air conveyor → 3-in-1 Filling machine → Labeling → Ink jet → Packing.
3) Bottle Making System: PET preform → Autoloader → Reheater → Molding → Finished bottles.

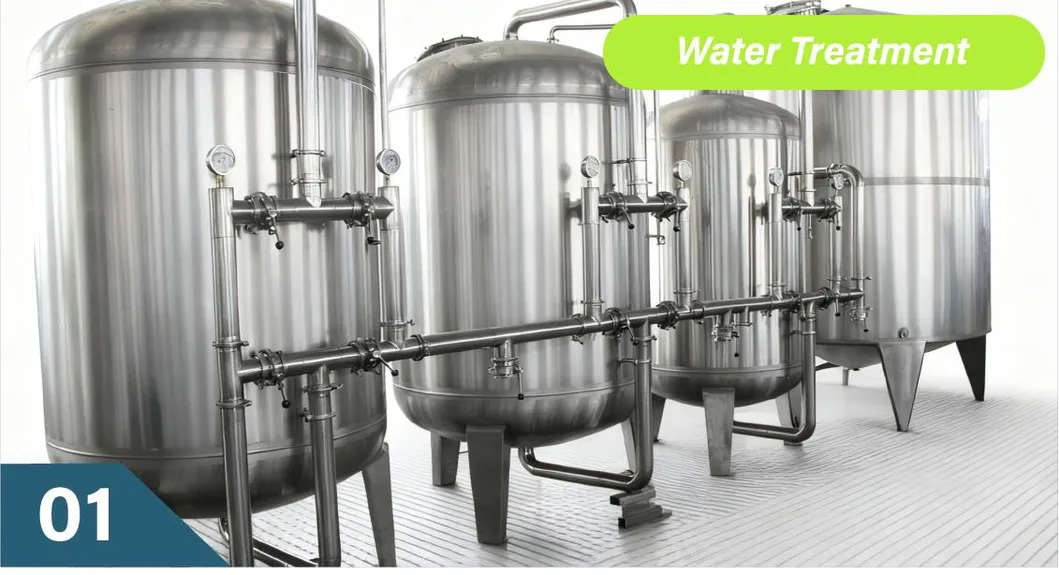

Water Treatment System

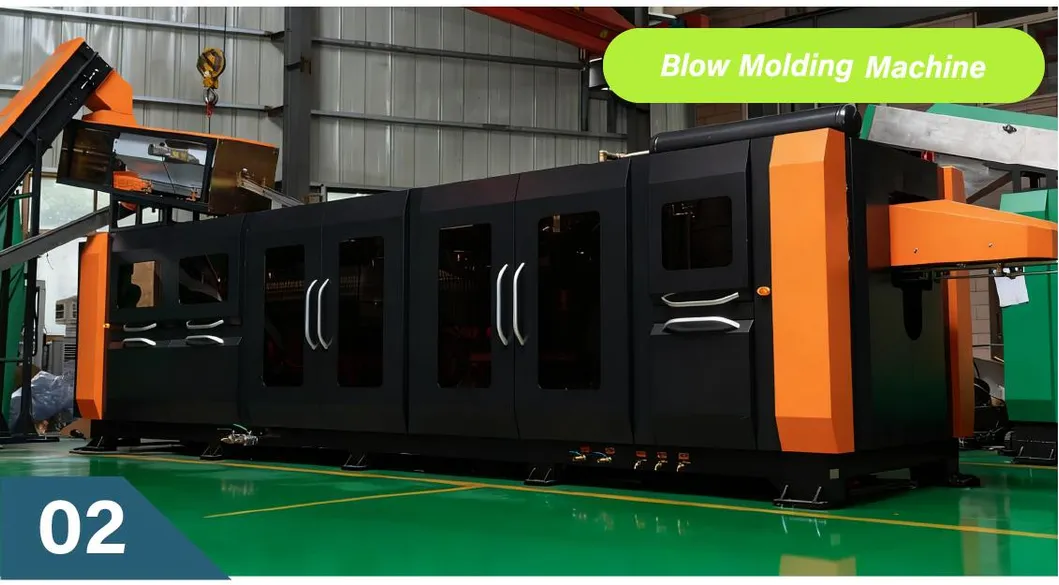

Bottle Blow Molding
Labeling Solutions

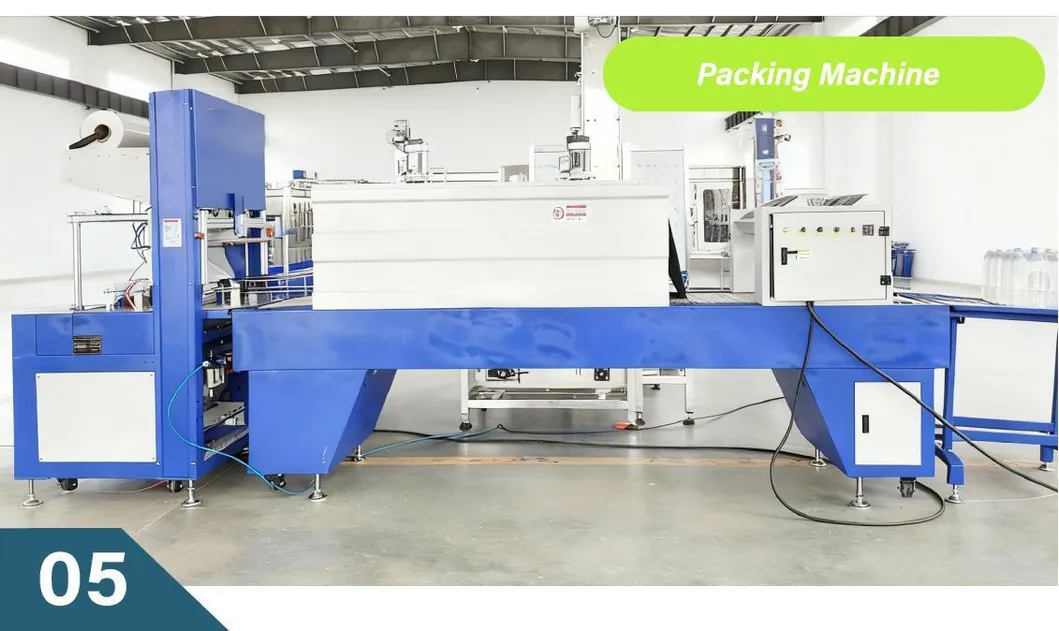

Bottle Packing Machine
Sample & Visit Service
We provide running videos of our machines and welcome factory visits to see operations firsthand. Arrangements can be made for airport or station pickups.
Customized Design
Machines are designed according to your specific requirements (material, power, filling type, bottle shapes) along with professional factory layout suggestions.
After-Sales Support
We provide a one-year warranty with free spare parts. Our engineers are available for overseas installation, testing, and staff training.
