Home > High Viscosity Liquid Filling Machine > Hzpk Table Top 2 Head High Viscosity Honey Piston Filling Machine for Thick Liquid Makeup Zhejiang

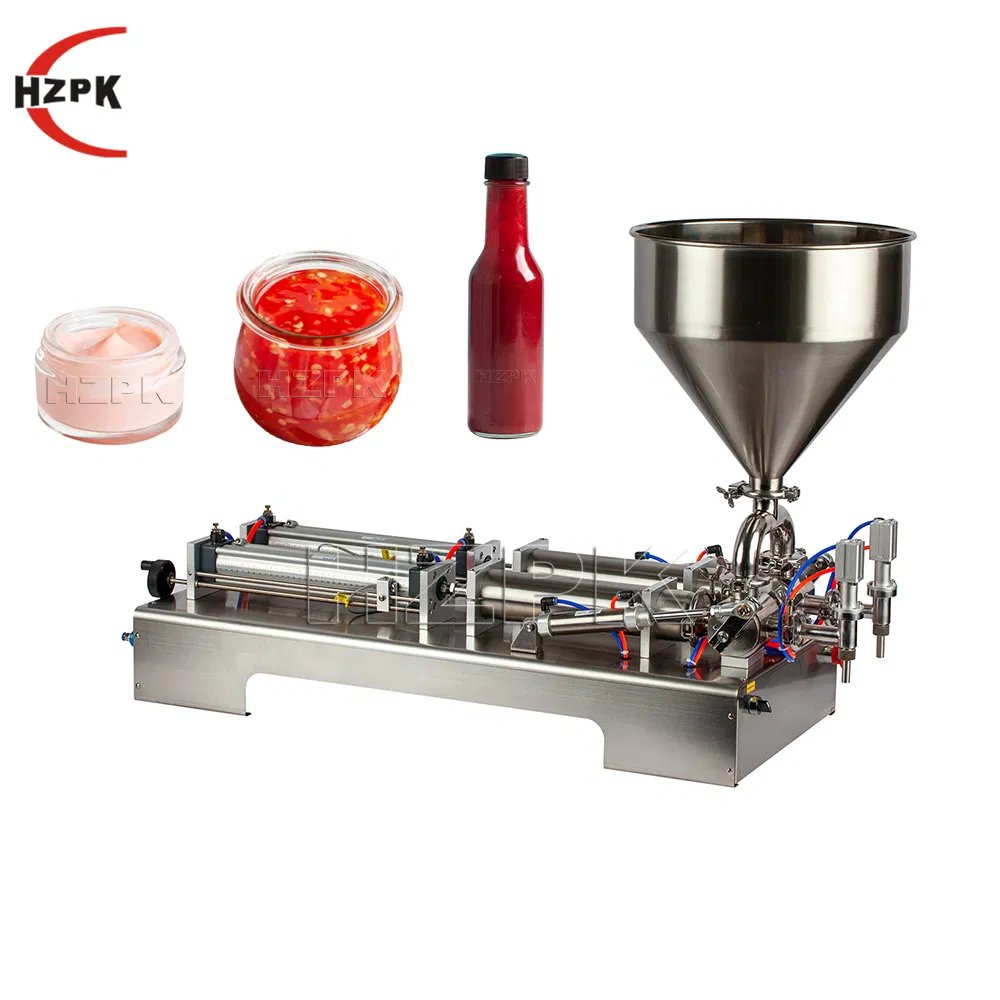

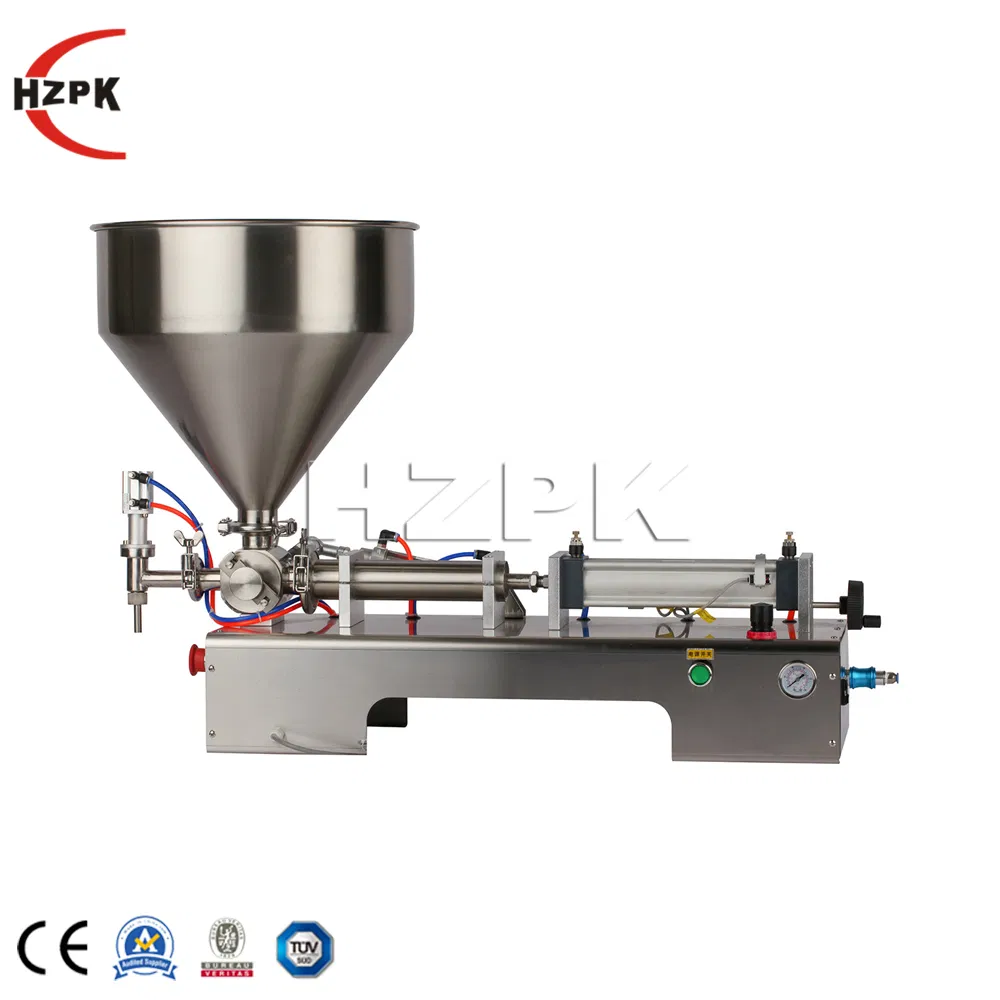

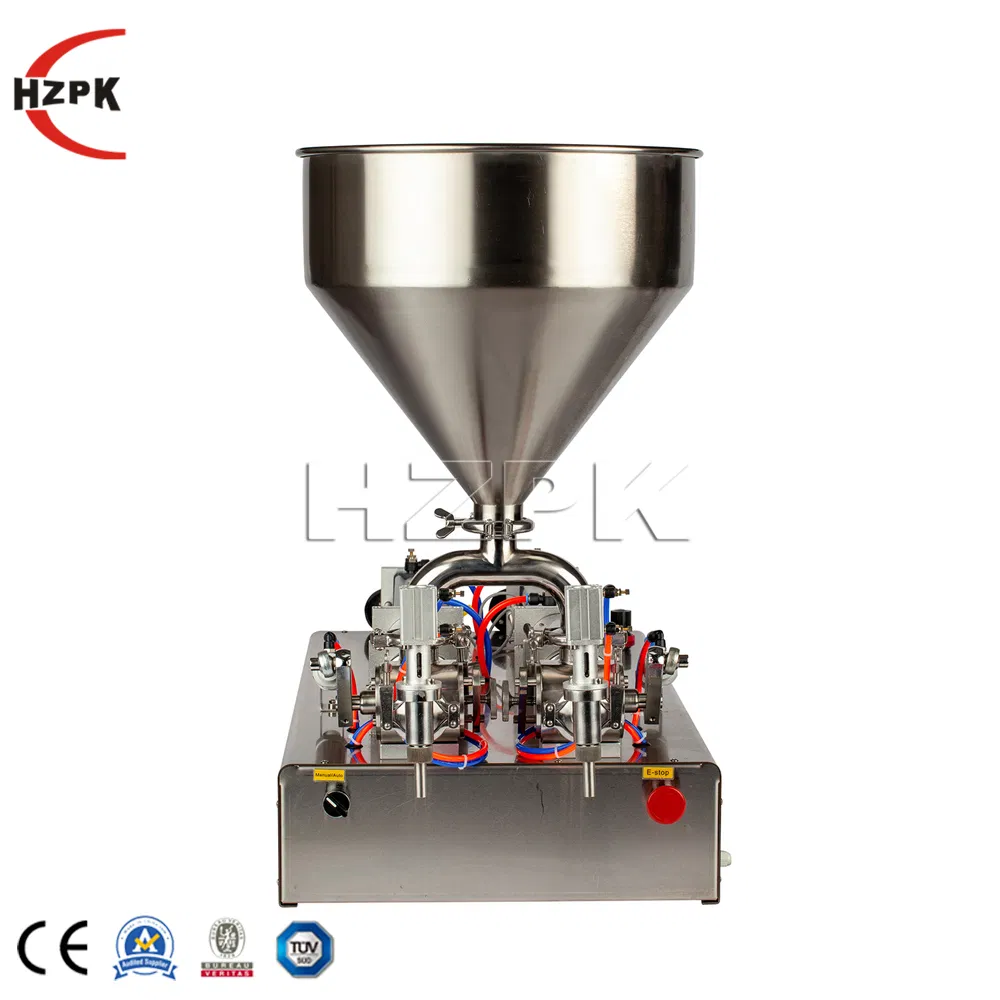

Hzpk Table Top 2 Head High Viscosity Honey Piston Filling Machine for Thick Liquid Makeup Zhejiang
Hzpk Table Top 2 Head High Viscosity Honey Piston Filling Machine for Thick Liquid Makeup Zhejiang
Hzpk Table Top 2 Head High Viscosity Honey Piston Filling Machine for Thick Liquid Makeup Zhejiang
Hzpk Table Top 2 Head High Viscosity Honey Piston Filling Machine for Thick Liquid Makeup Zhejiang
Hzpk Table Top 2 Head High Viscosity Honey Piston Filling Machine for Thick Liquid Makeup Zhejiang
1 / 5
Hzpk Table Top 2 Head High Viscosity Honey Piston Filling Machine for Thick Liquid Makeup Zhejiang
Hzpk Table Top 2 Head High Viscosity Honey Piston Filling Machine for Thick Liquid Makeup Zhejiang
Hzpk Table Top 2 Head High Viscosity Honey Piston Filling Machine for Thick Liquid Makeup Zhejiang
Hzpk Table Top 2 Head High Viscosity Honey Piston Filling Machine for Thick Liquid Makeup Zhejiang
Hzpk Table Top 2 Head High Viscosity Honey Piston Filling Machine for Thick Liquid Makeup Zhejiang

Hzpk Table Top 2 Head High Viscosity Honey Piston Filling Machine for Thick Liquid Makeup Zhejiang

Customization: Available
After-sales Service: Online Support, Video Technical Support, Free Spar
Warranty: 1 Year
Send Inquiry

Product Description

High Viscosity Piston Filling Machine
Basic Information
Model NO.
G2WGD
Type
Piston Filling Machine
Automatic Grade
Semi-Automatic
Material Type
Paste
Filling Valve Head
Double Heads
Dosing Device
Plunger
Structure
Tabletop
Hopper Size
40L
Filling Volume
50-500ml
Specification
CE
Capacity
20 Units Per Week
Product Overview
  • More than 20 years manufacture experience in packing machines
  • 100% QC inspection before shipment
  • 12 months warranty provided
  • Product fully certificated by CE

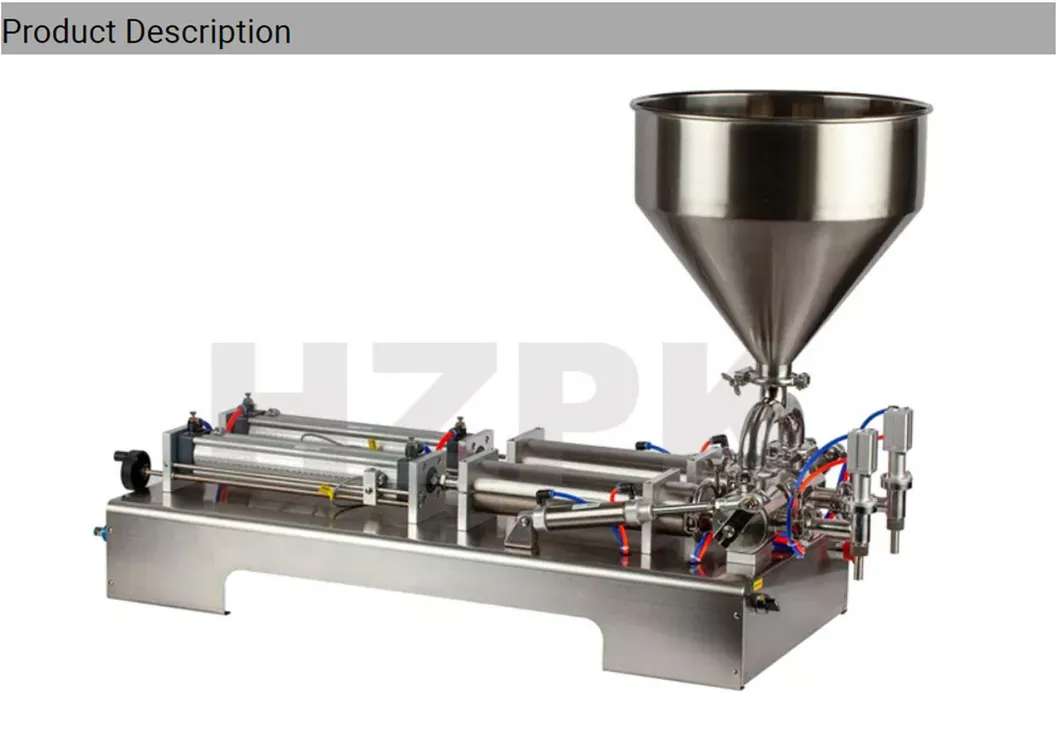

Machine Details

Introduction: This machine is the ideal equipment for filling high viscosity fluids and pastes. It is widely applicable to cosmetic, food, pesticide, and special industries. This series is available in single head, double head, and explosion-proof models.

Key Features
  • Two pneumatic filling modes: manual foot pedal and automatic switching.
  • Constructed with full stainless steel for durability and GMP standard compliance.
  • Reasonable structure design, compact size, and easy to operate.
  • High precision filling with adjustable volume handle and filling speed.
  • Customizable filling nozzles with anti-drip and lifting structures.
  • Filling range options: 10-100ml, 30-300ml, 50-500ml, 100-1000ml, 200-1500ml, 300-2500ml, 1000-5000ml.
Technical Parameters
Parameter Specification
ModelG2WGD-500
VoltageAC220/110V 50-60HZ
Power40W
Filling Accuracy±1%
Air Pressure0.4-0.6MPa
Required Air Compressor≥3KW 100L
Product Gallery

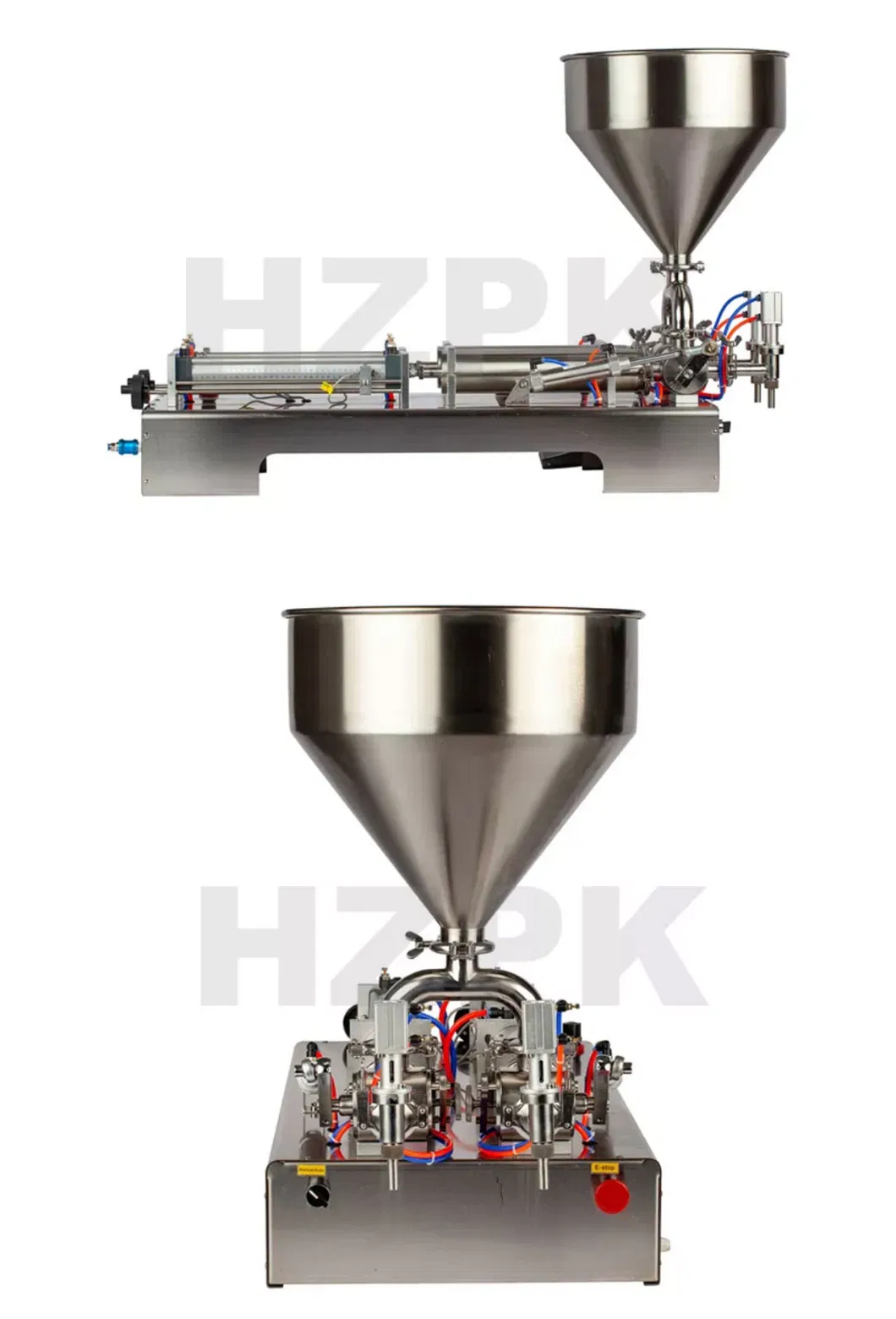

Filling Machine Front

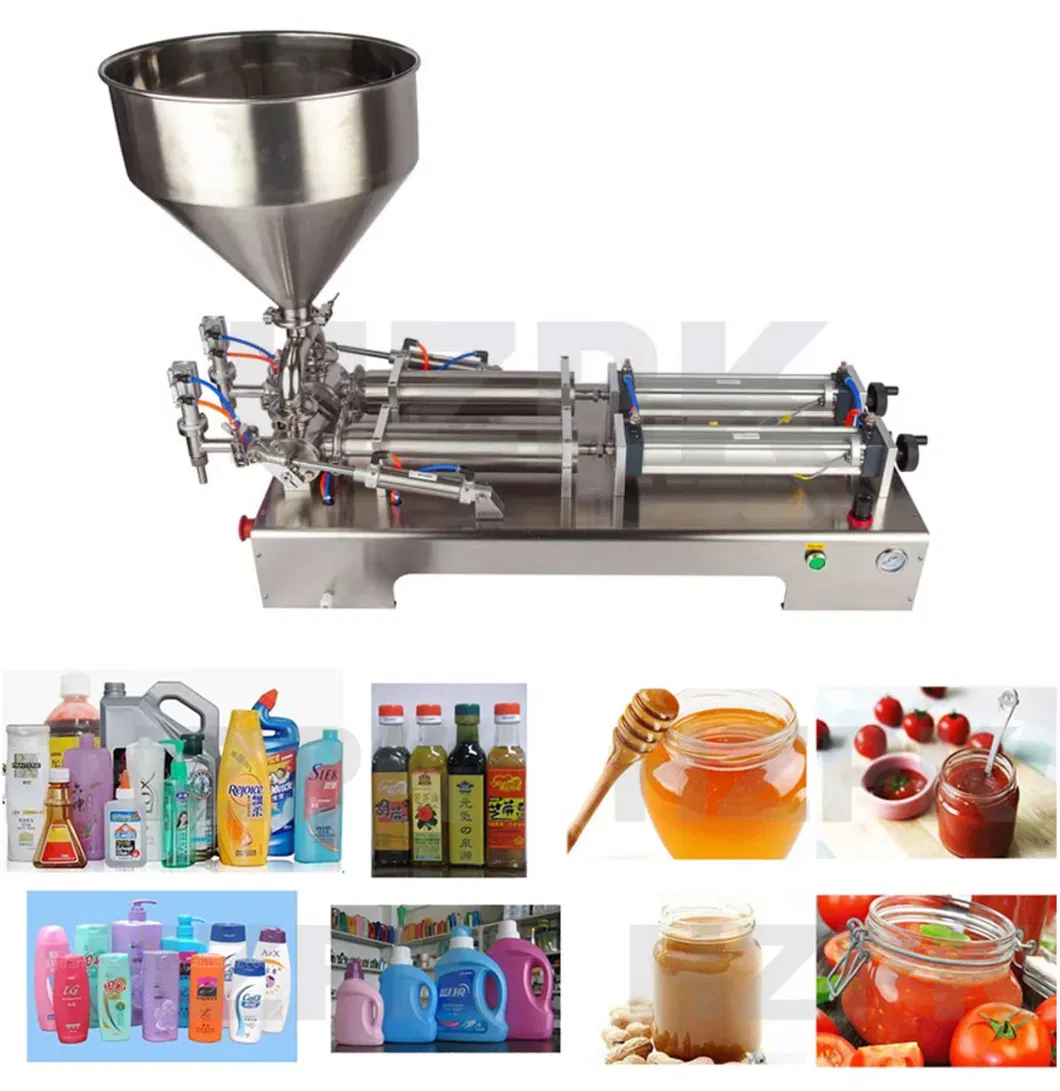

Filling Machine Side

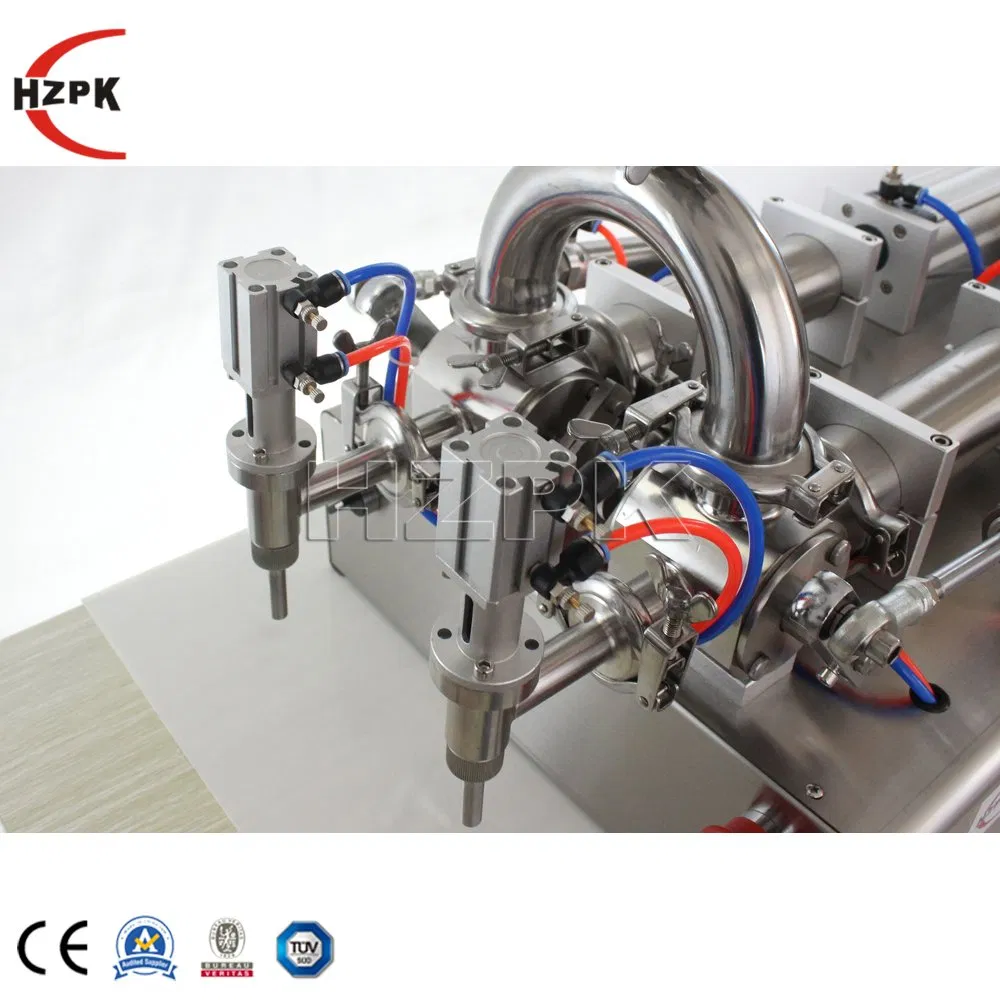

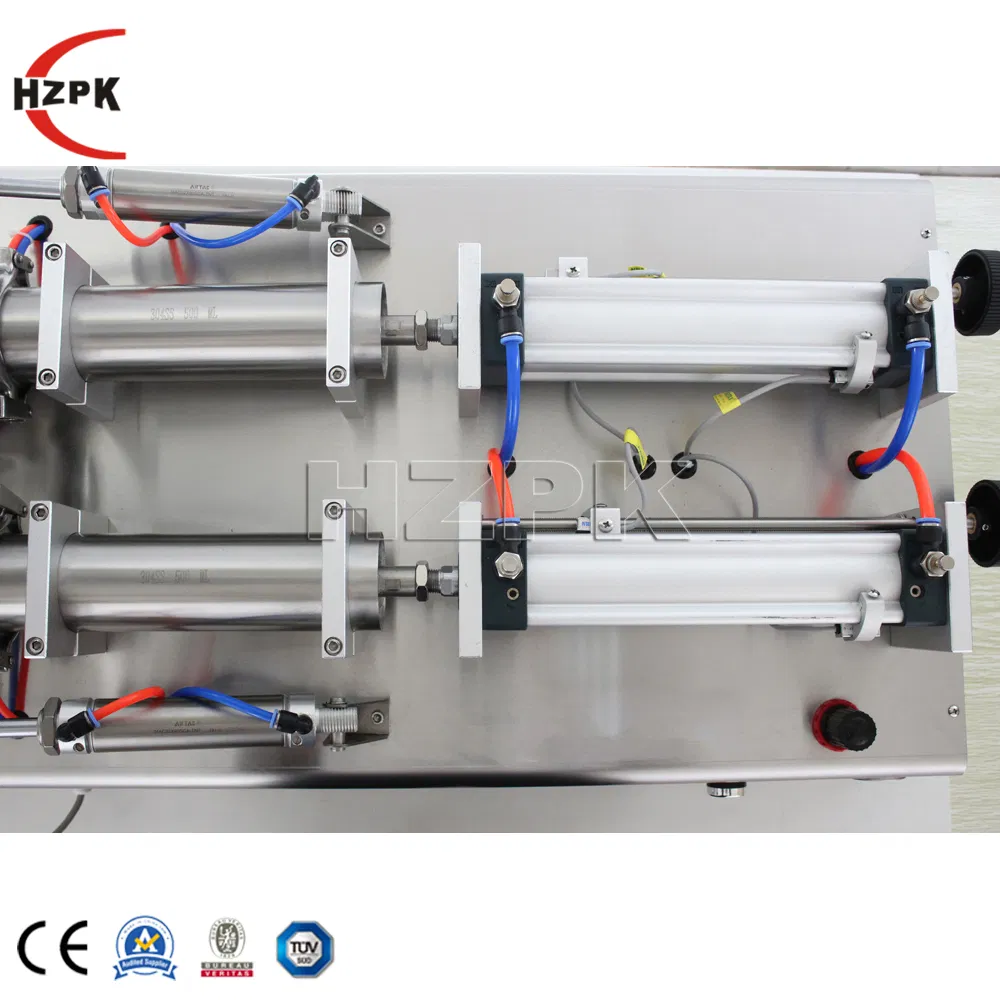

Filling Mechanism

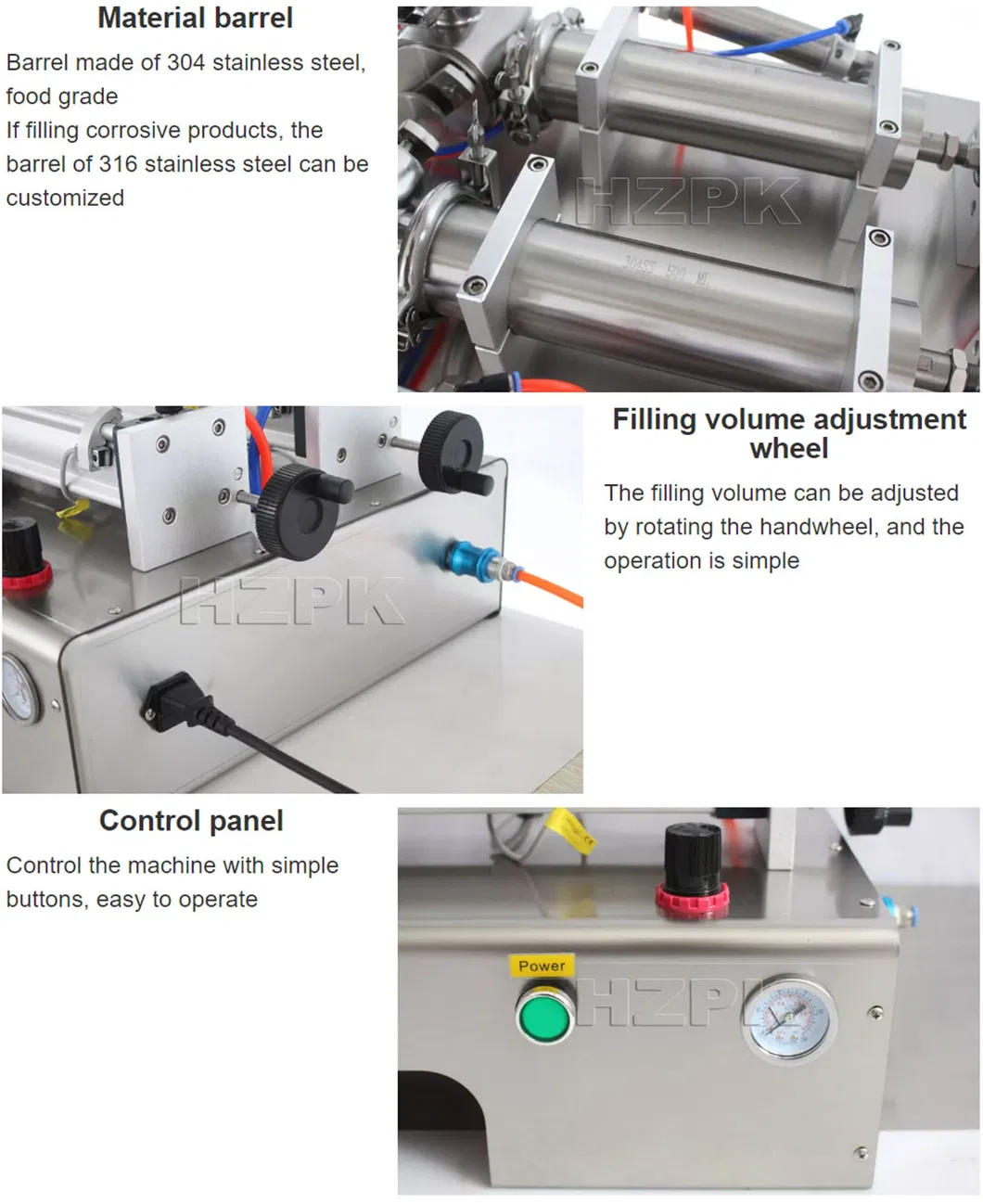

Control Panel
Stainless Steel Components
Double Head Design
Inner Structure
Application Sample
FAQ
What materials can this piston filling machine handle?
This machine is specifically designed for high viscosity fluids and pastes, such as cosmetics, creams, sauces, honey, and pesticides.
Can the filling volume be adjusted?
Yes, the filling volume is easily adjustable via a handle. The standard range for this model is 50-500ml, with other range options available upon request.
Is the machine compliant with hygiene standards?
Absolutely. The machine is made of full stainless steel and its design meets GMP standard levels, making it suitable for food and cosmetic production.
Does this machine require an air compressor?
Yes, since it is a pneumatic filling machine, it requires an air compressor with at least 3KW power and a 100L tank capacity.
What is the difference between manual and automatic modes?
In manual mode, the filling is triggered by a foot pedal. In automatic mode, the machine fills continuously at set intervals, which can be switched randomly based on your needs.
What is the filling accuracy of this machine?
The machine offers a high filling accuracy of ±1%, ensuring consistent product volume for each cycle.
