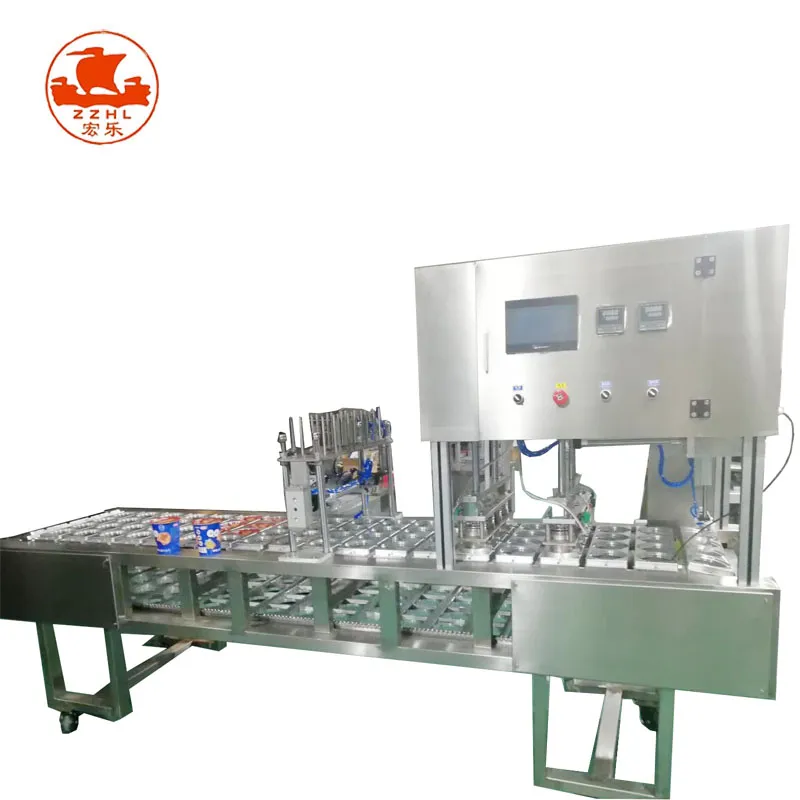

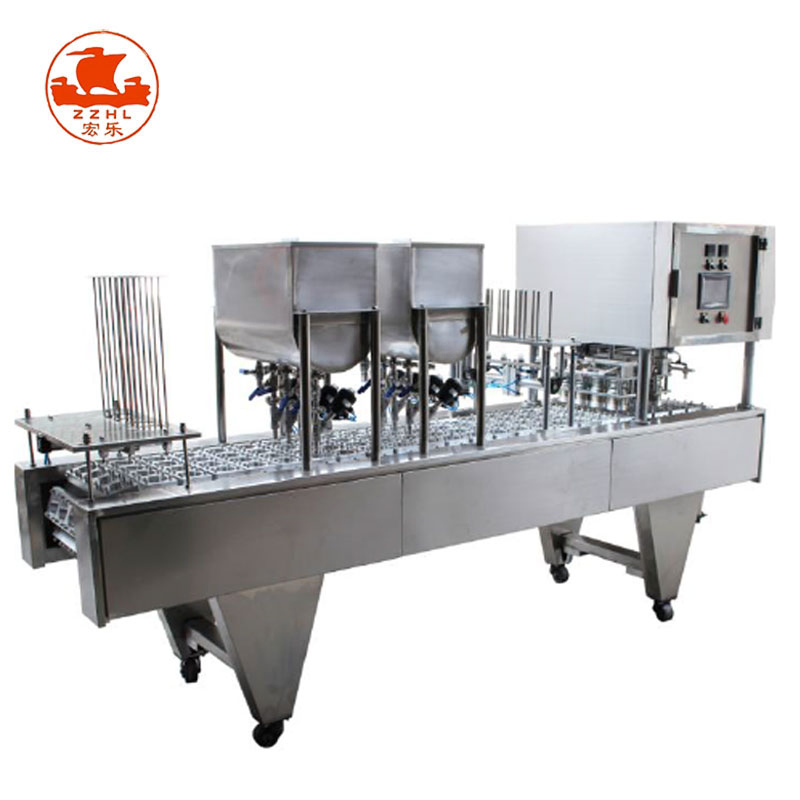

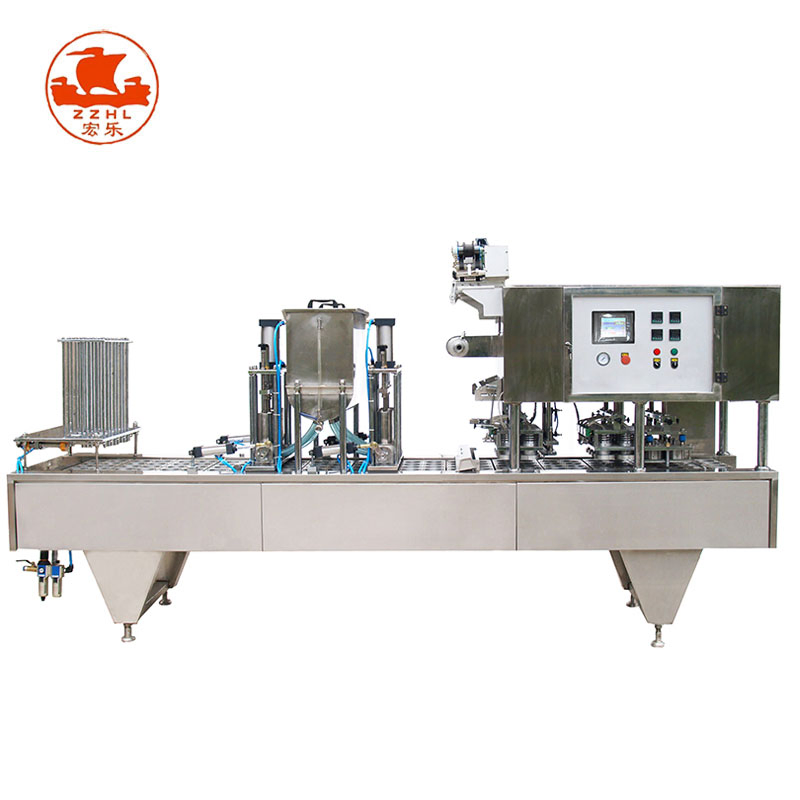

Automatic High Viscosity Liquid Yogurt Cup Filling Machine Coffee Water Cup Nitrogen Filling and Sealing Machine

1 / 5

Automatic High Viscosity Liquid Yogurt Cup Filling Machine Coffee Water Cup Nitrogen Filling and Sealing Machine

Customization:	Available
After-sales Service:	Video Technical Support
Warranty:	1year

Send Inquiry

Product Description

Basic Information

Model NO.

HLBG-4

Type

Weighing-type Filling Machine

Automatic Grade

Fully Automatic

Material Type

Liquid

Filling Valve Head

Multi-Head

Dosing Device

Plunger

Material

SS304

Voltage

220/380V

Power

5kw

Capacity

3500-4000cups/H

Air Pressure

0.5-0.8MPa

Function

Filling and Sealing

Product Description

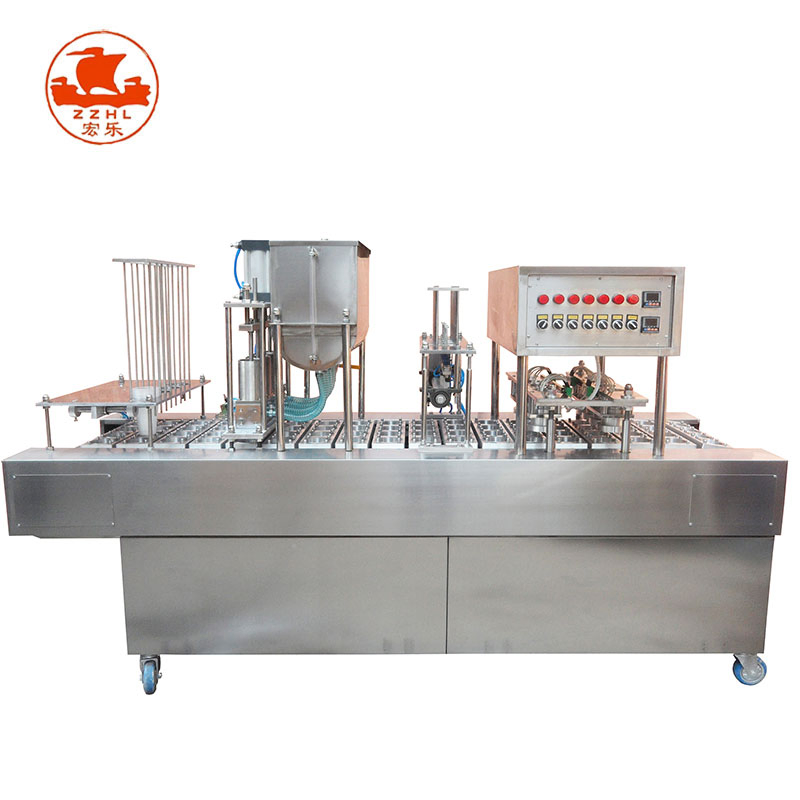

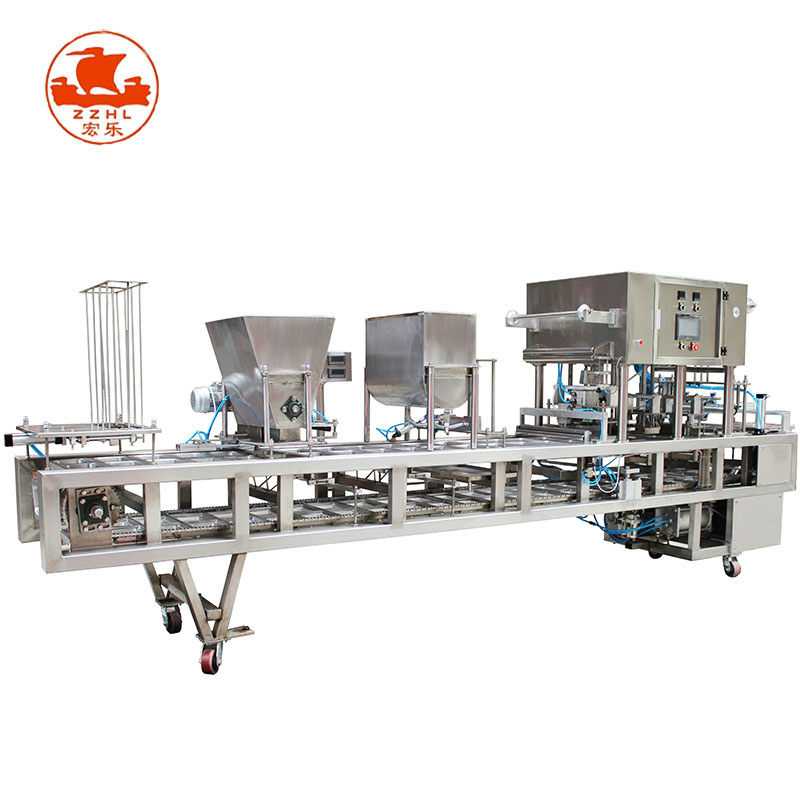

Automatic High Viscosity Liquid Yogurt Cup Filling Machine Coffee Water Cup Nitrogen Filling And Sealing Machine

This machine is made of food-grade stainless steel, suitable for filling, sealing, and trimming containers of different specifications. It is highly versatile, handling powders, pastes, liquids, and solids. It can be equipped with various filling systems, including self-flow, measuring cup, negative pressure, and screw filling to match specific product requirements.

Key Features:

Adopts Japanese Omron programmable logic controller (PLC).
Features pneumatic control elements and an intelligent digital display control system.
High sealing strength and low failure rate.

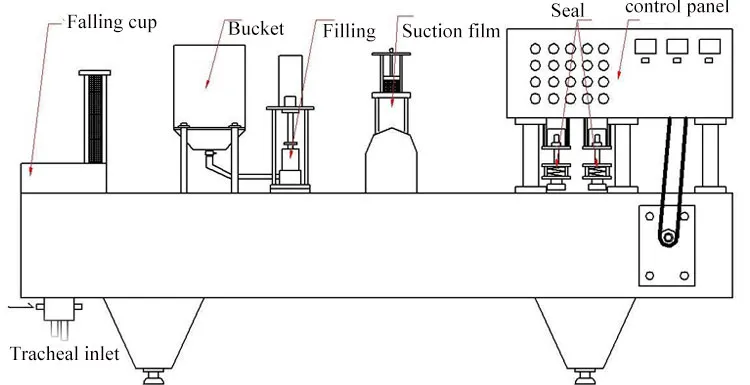

Functional Process: Automatic cup drop, automatic filling, film feeding, sealing, and cup discharge.
Customizable according to specific container shapes and capacities.

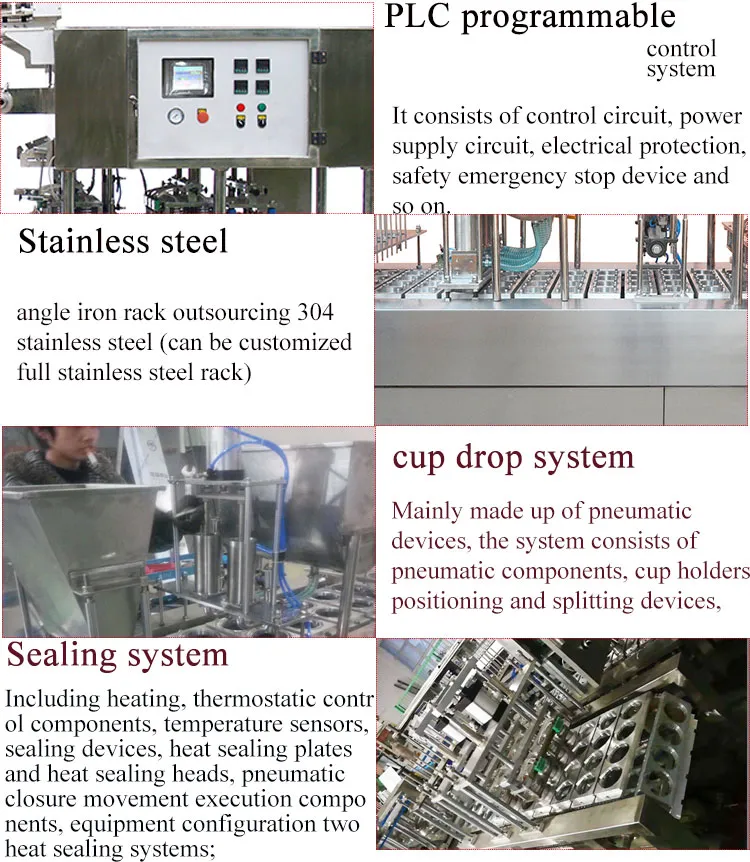

Standard Configurations:

PLC Control: Omron
Touch Screen: Taiwan Wei Lun
Electrical Contactor: Schneider
Pneumatic Components: Asia Off
Molds: Acid-resistance Aluminum

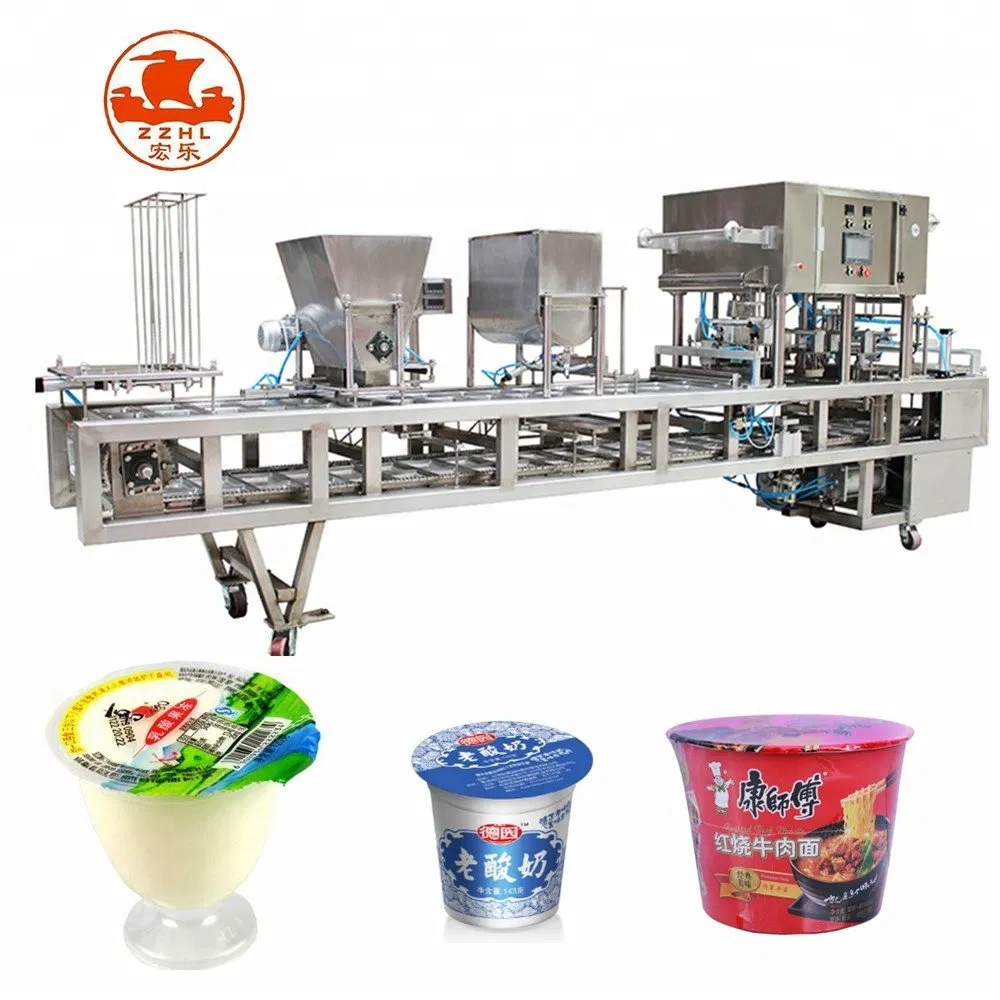

Detailed Photos

Product Parameters

Model	Material	Voltage	Power	Capacity	Air Consumption	Size
HLBG-2	SS304	220V/50HZ	1KW	1200-1500 cups/h	0.6m³/s	30005001600mm
HLBG-3	SS304	380V/50HZ	4KW	2000-2500 pcs/h	-	30007001600mm

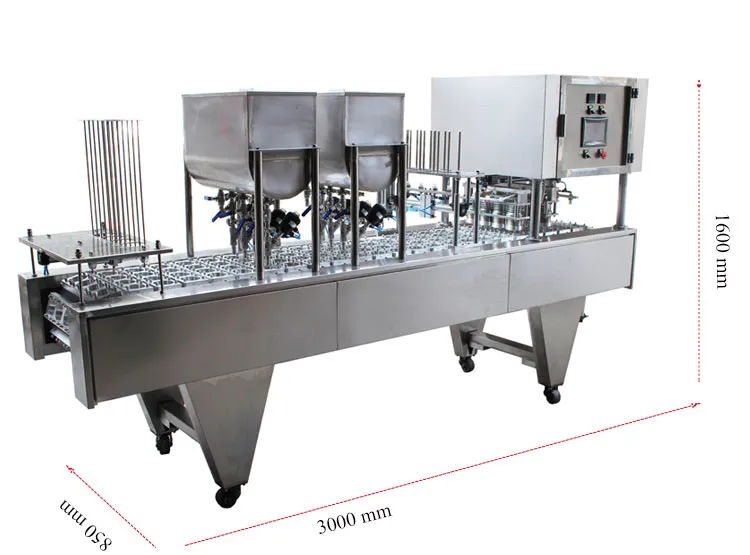

HLBG-4	SS304	380V/50HZ	5kw	3500-4000 cups/h	-	30008501600mm
HLBG-6	SS304	380V/50HZ	7.5KW	5000-5500 cups/h	-	300010501600mm
HLBG-8	SS304	380V/50HZ	9KW	6500-7000 cups/h	-	300012501600mm

Certifications

Packaging & Shipping

After Sales Service

Frequently Asked Questions

Q1: What types of products can this machine fill?

A: The machine is suitable for filling and sealing various products including high-viscosity liquids, powders, pastes, and solids such as yogurt, milk, coffee, and water.

Q2: What material is used for the machine's construction?

A: The entire machine is constructed from food-grade SS304 stainless steel to ensure hygiene and durability.

Q3: Can the machine handle different cup shapes and sizes?

A: Yes, the machine can be designed and customized to accommodate containers of different shapes, specifications, and capabilities according to customer requirements.

Q4: What control system does the filling machine use?

A: It uses a high-quality Japanese Omron programmable logic controller (PLC) and an intelligent digital display control system.

Q5: What is the maximum production capacity of the HLBG-4 model?

A: The HLBG-4 model has a production capacity of approximately 3500 to 4000 cups per hour.

Q6: What are the main functional steps of the automatic process?

A: The process includes automatic cup dropping, automatic filling, automatic film feeding, automatic sealing, and automatic cup discharge.
