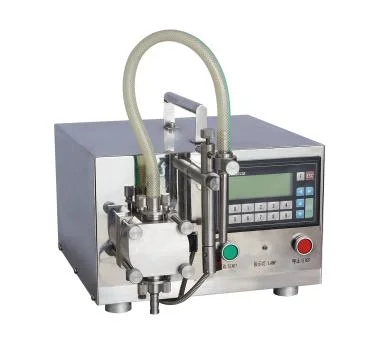

Gear Pump Liquid Filling Machine, Digital Filler Model: CLG66
Gear pump filling machine adopts massive integrated circuit. Realize man-machine conversation through microcomputer. Be able to input multiple setting by text displayer. Easily operate. Fill liquid or colloidal solution precisely.
Machine is equipped with coding wheel at the back end of filling motor. One round of coding wheel is 32 times. Signal that accumulated by photo electricity will be sent to PLC. Set parameter to control rotating round and angle. It is widely used in many industries such as medicine, food, cosmetics, pesticide, health products etc.
| Specifications | CLG66 Details |
|---|---|
| Supply Voltage | 220 V |
| Supply Frequency | 50 Hz |
| Power | < 300 W |
| Motor Speed | 1400r/min |
| Filling Volume | > 50ml or < 50ml |
| Filling Precision | 0.5 % |
| Filling Speed | 0~full speed (frequency conversion) |
| Dimension | 416mm × 355mm × 303mm |
| Weight | 25kg |
| Note: Machines can be linked together for higher capacity. | |

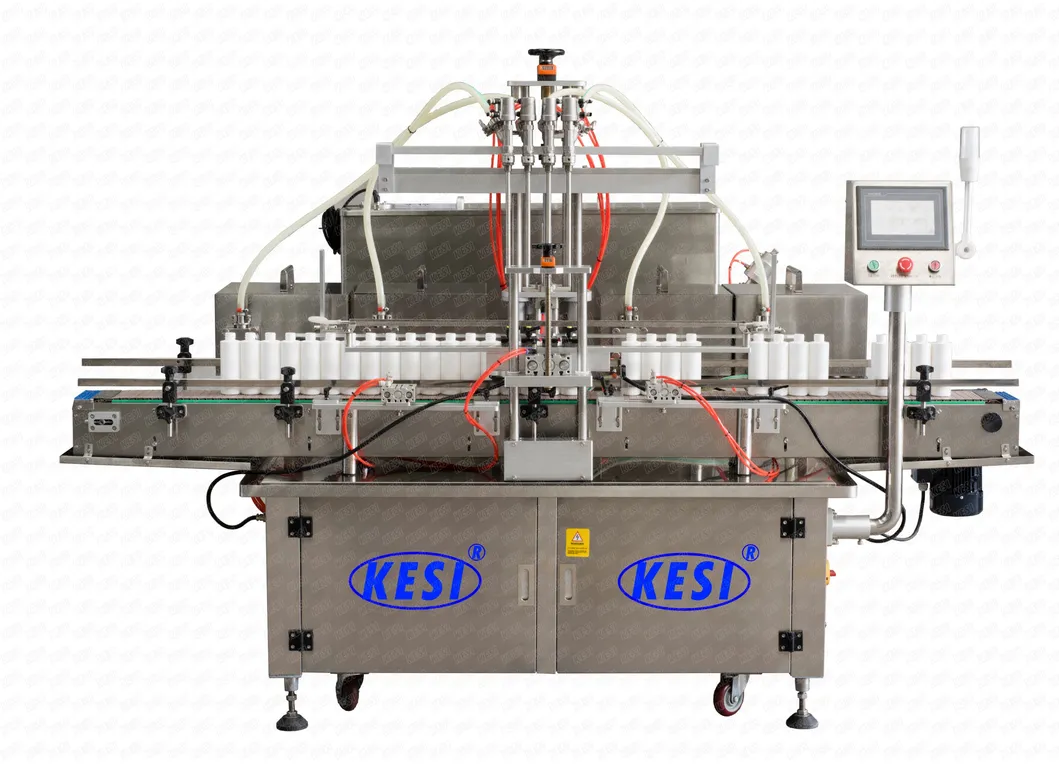

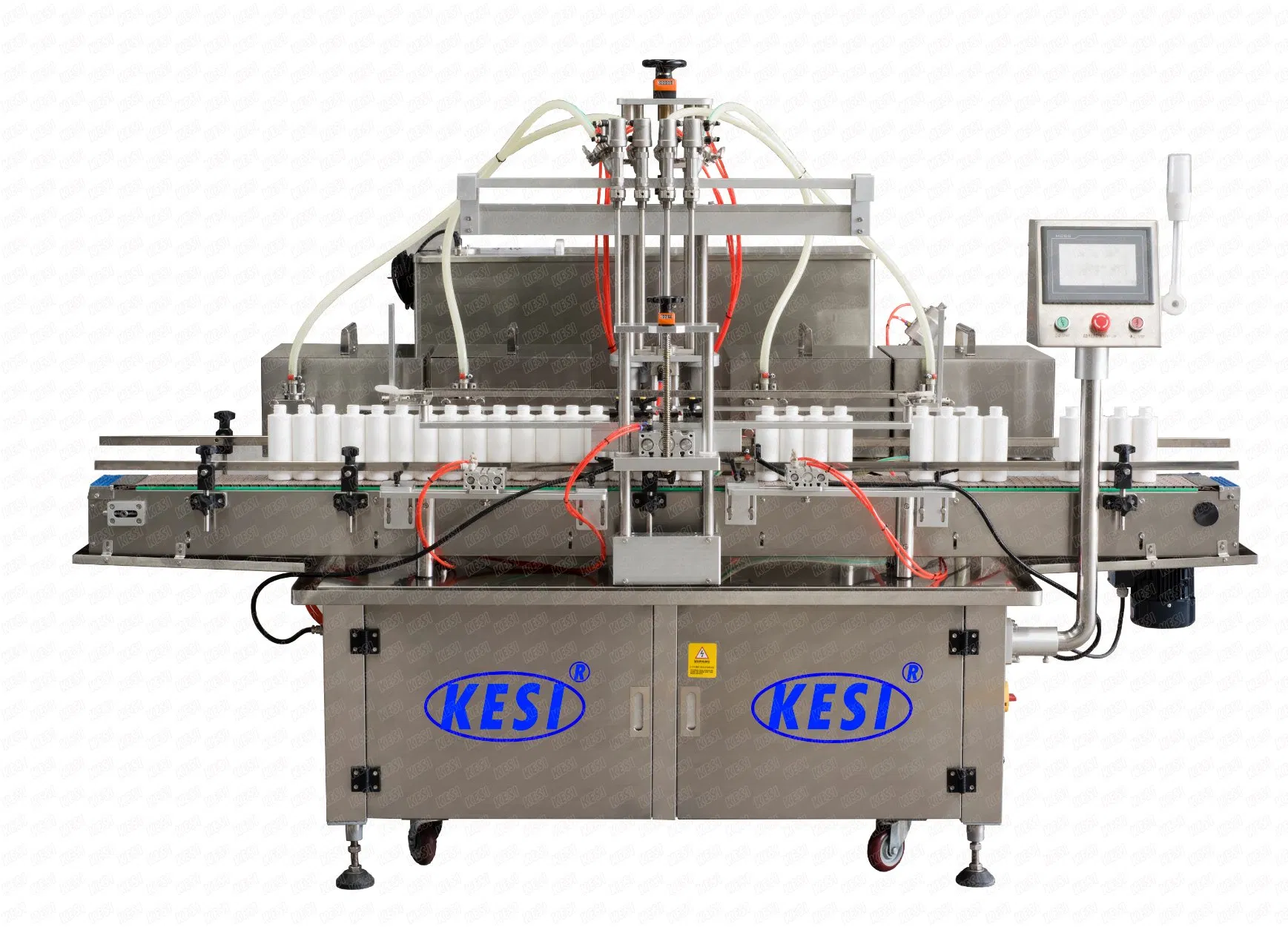

Multiple machines can be linked together as follows:
