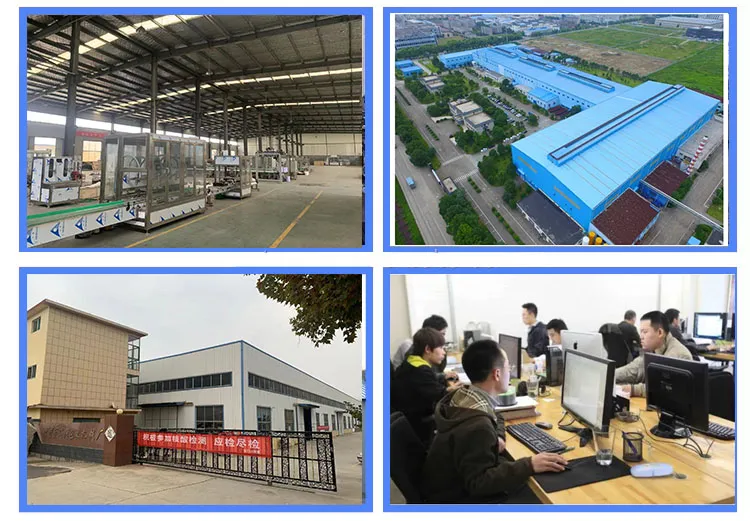

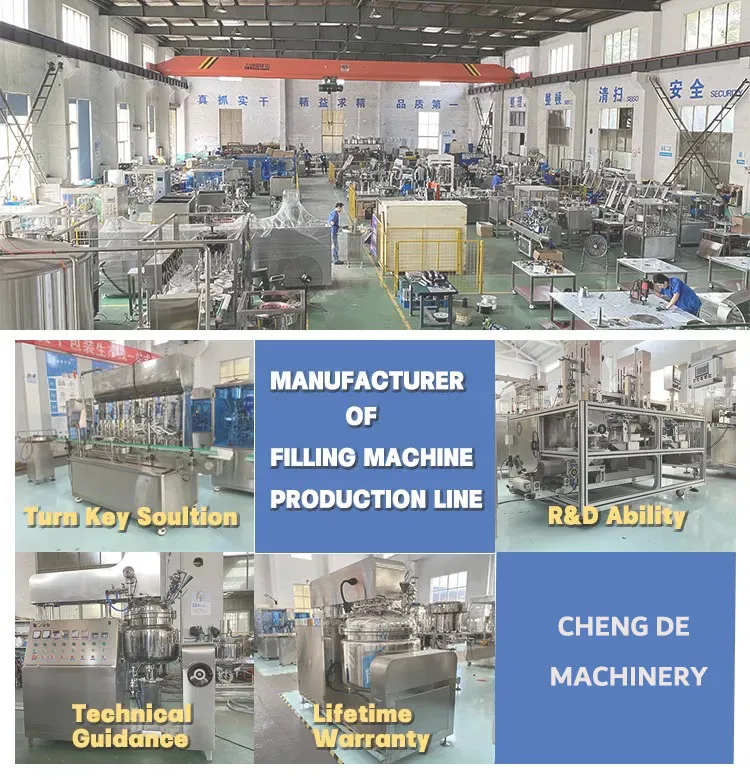

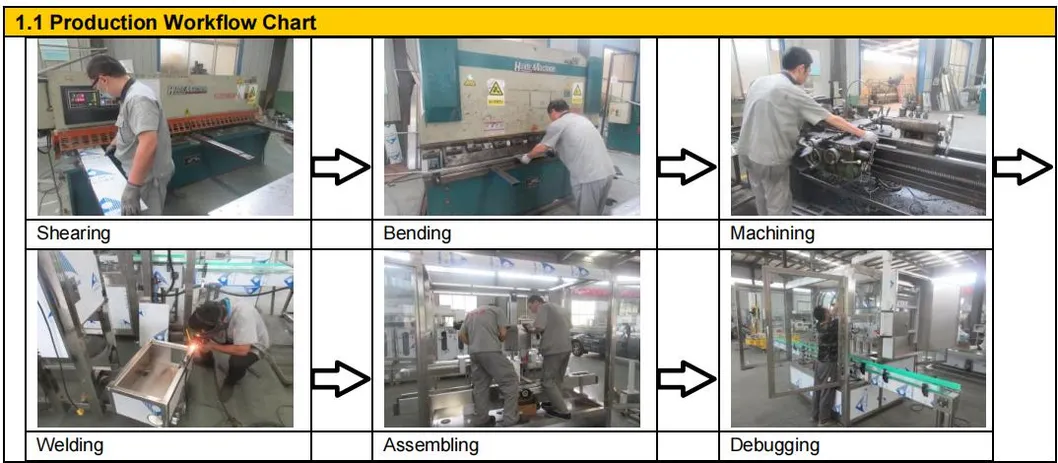

Our manufacturing facility was founded in 1998 and is one of the early filling machinery enterprises, covering an area of 6,000 square meters. To better serve the intelligent packaging needs of various industries, our team undergoes regular training to constantly improve technical standards. The workshop features newly invested CNC machine tools and large cutting machines to expand production capacity and service levels.

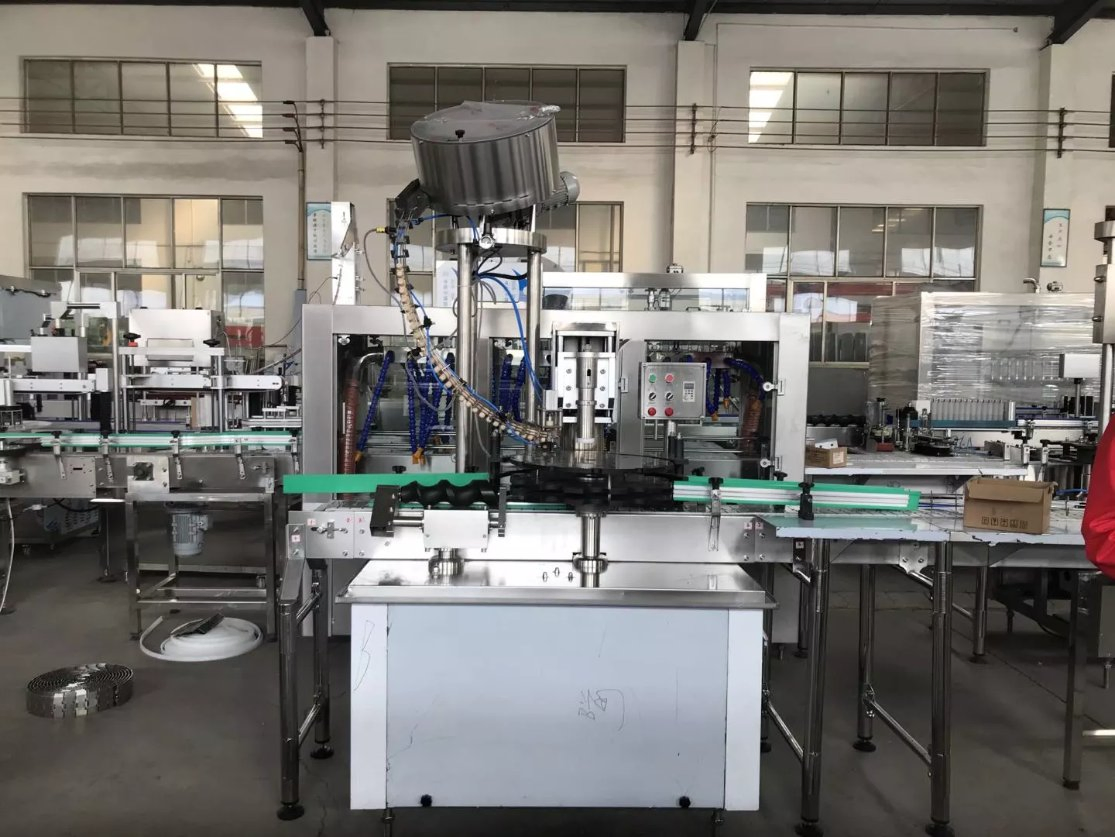

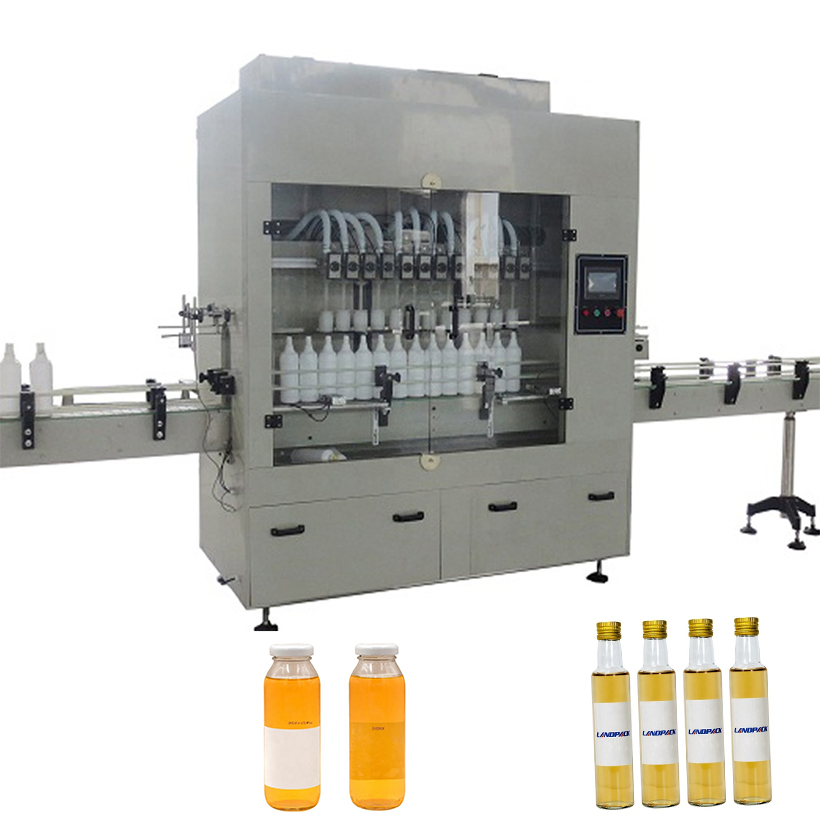

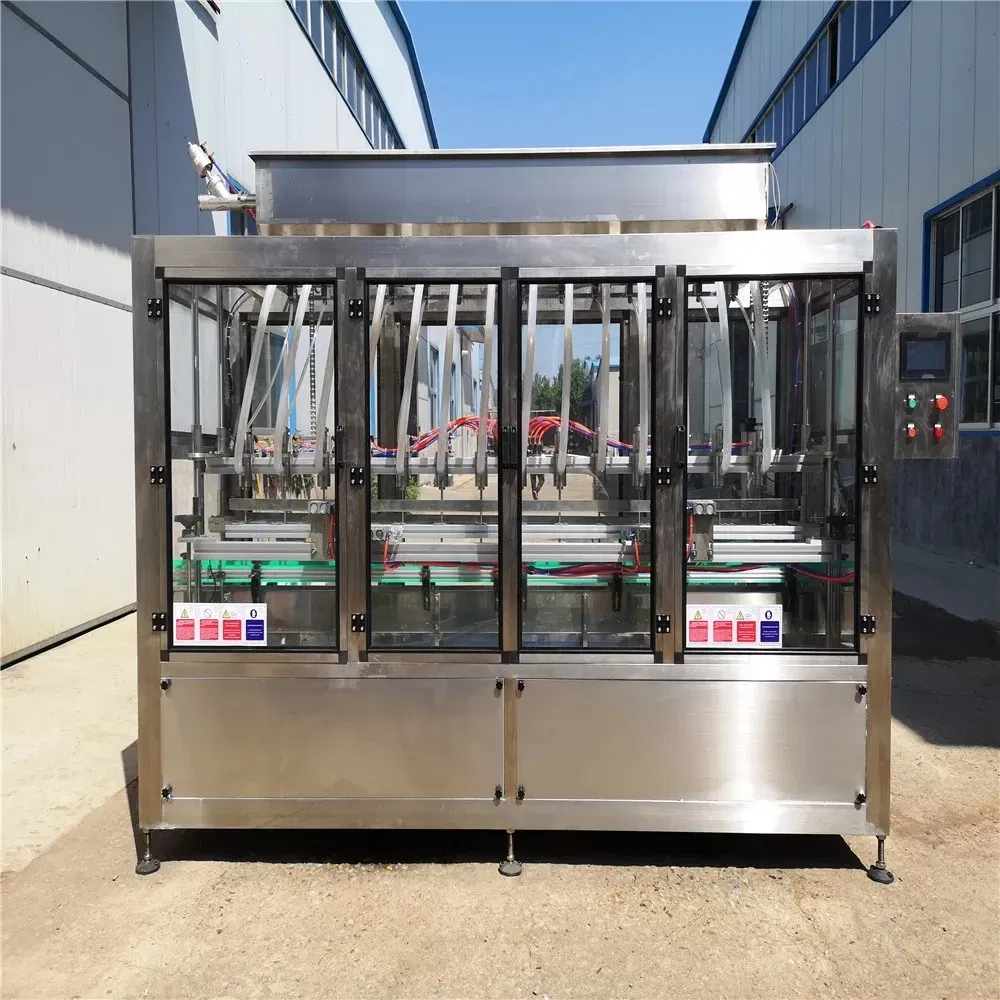

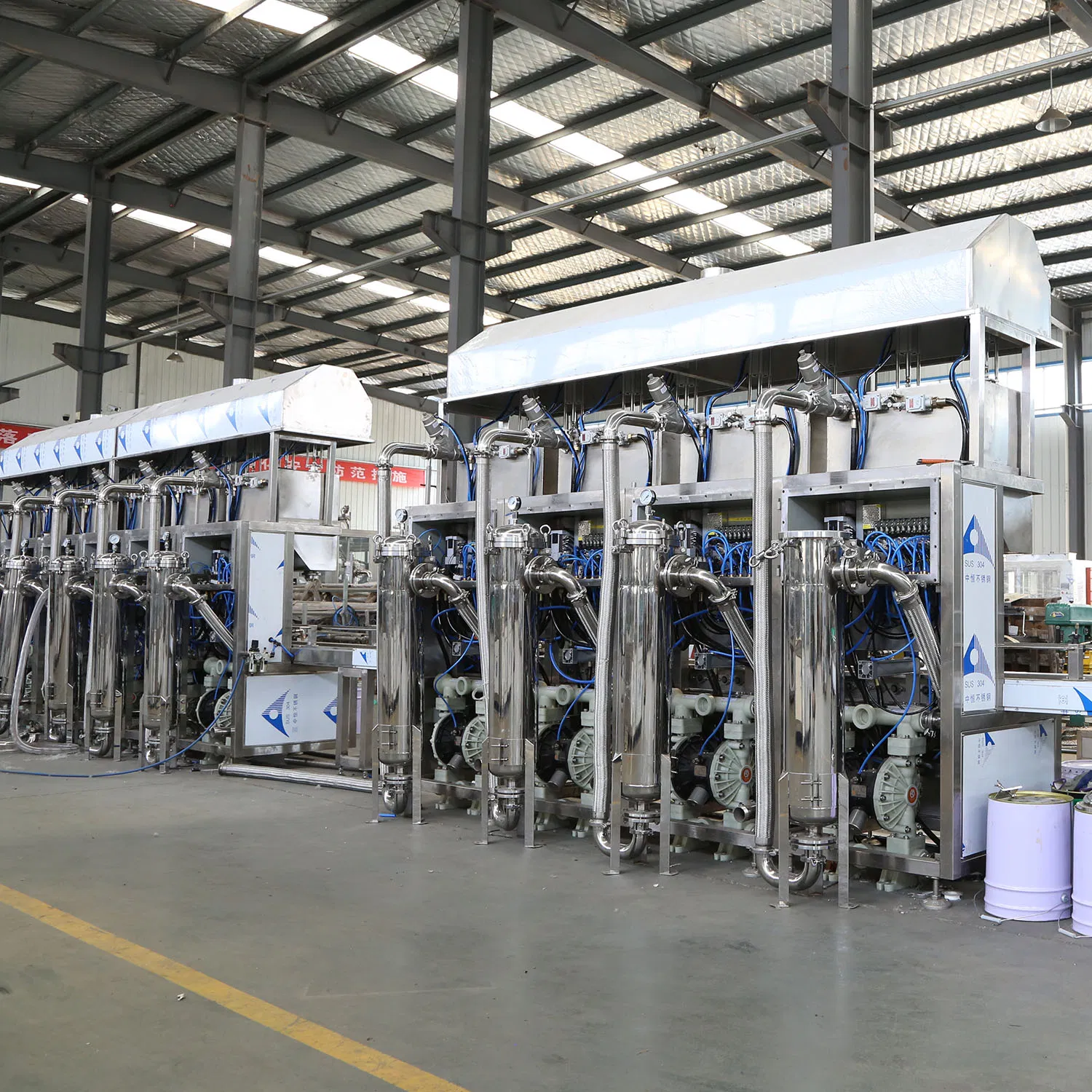

This Automatic Gravity Filling Machine is suitable for all kinds of non-viscous liquid filling, such as alcohol, glass water, antifreeze, urea, and other liquids. It is designed for filling liquids into round glass bottles and plastic bottles.
💡 Key Technology: Controlled by microcomputer PLC programmable system, equipped with photoelectric instructions and pneumatic action. It adopts a servo control system to ensure pistons reach constant positions, preventing spills and pollution by slowing down near the target capacity.
| Parameter | Specification |
|---|---|

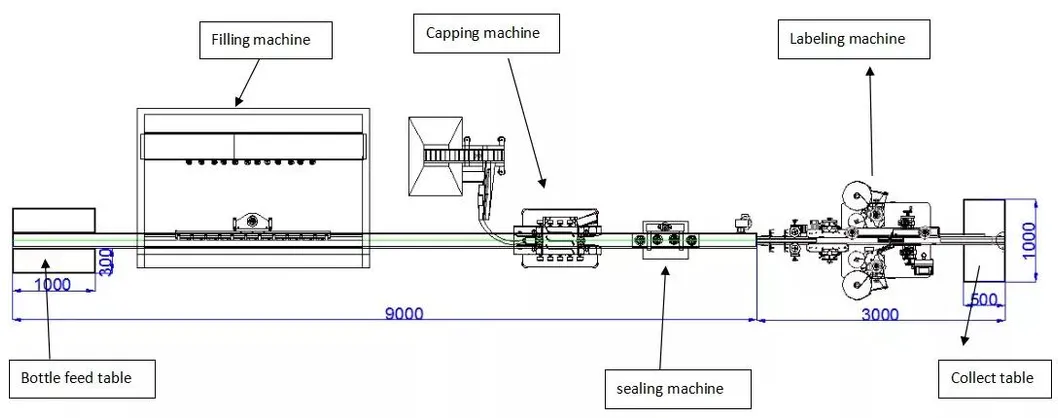

| Bottling Line | Linear Liquid Filling Production Line |
| Filling Nozzles | 4~12 |
| Production Capacity | 600~2000 bph |
| Applicable Bottle Height | 160~360mm (Customizable) |
| Applicable Bottle Diameter | Φ50-Φ100 (Customizable) |
| Filling Volume | 100~5000ml (Customizable) |
| Filling Accuracy | ±0.01% |
| Overall Size (L*W*H) | 3000*1500*2200 mm |

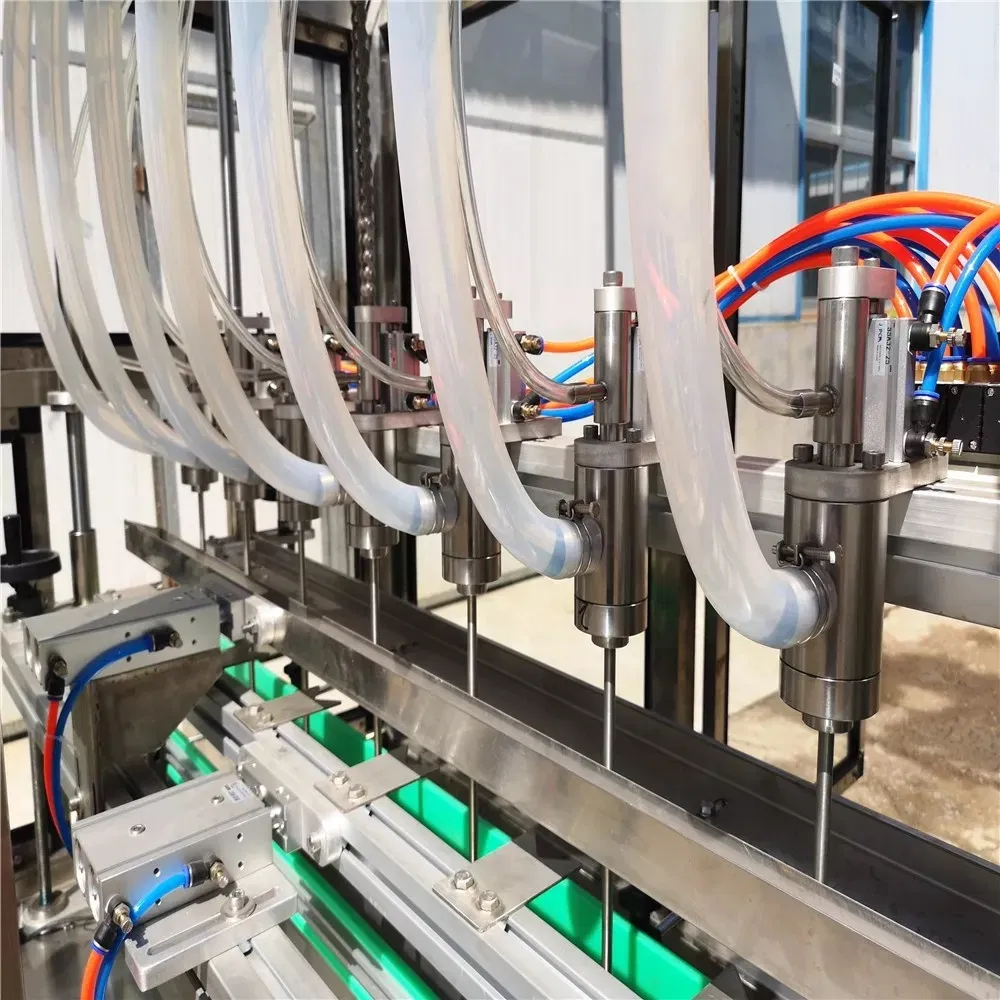

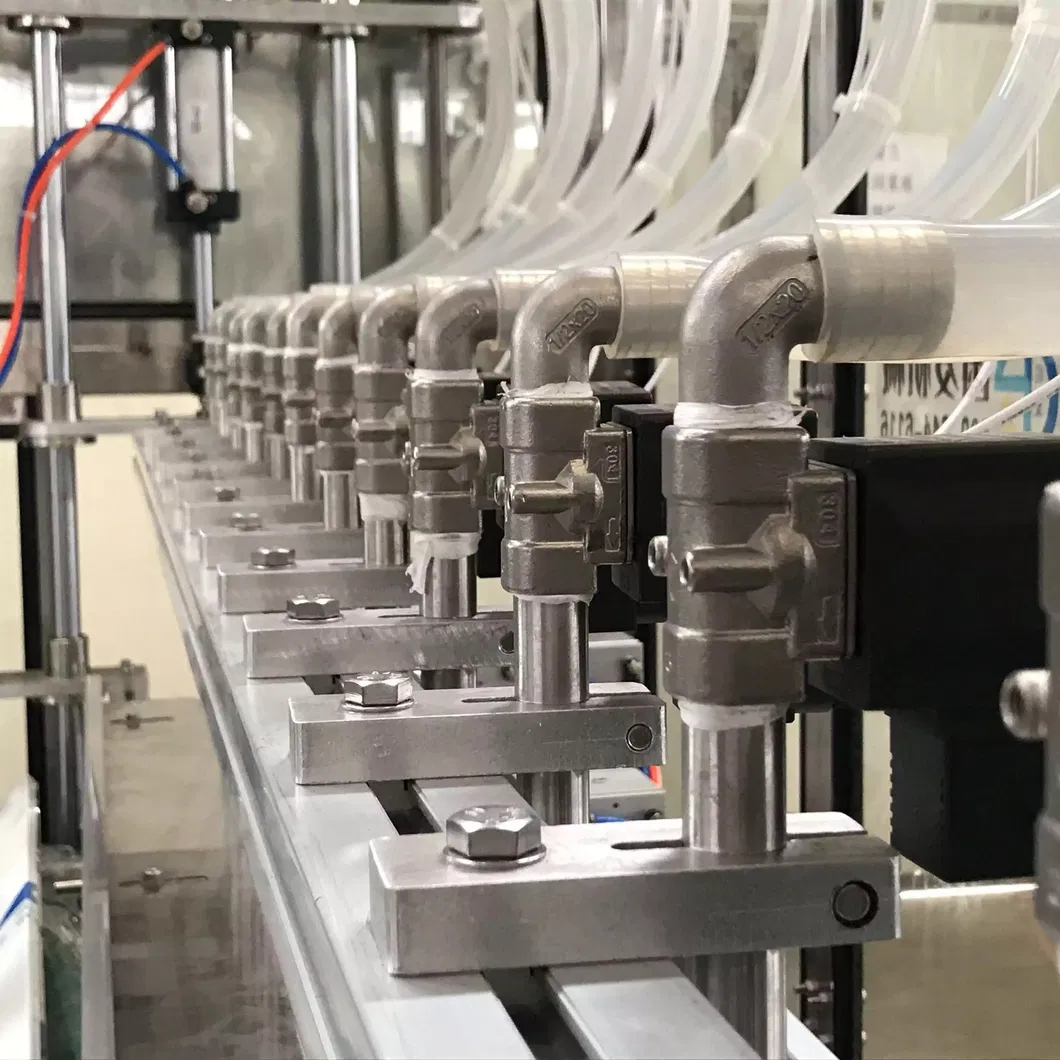

Features linear arrangement for easy volume adjustment, professional solenoid valves, and stainless steel nozzles for accurate, rust-resistant operation.

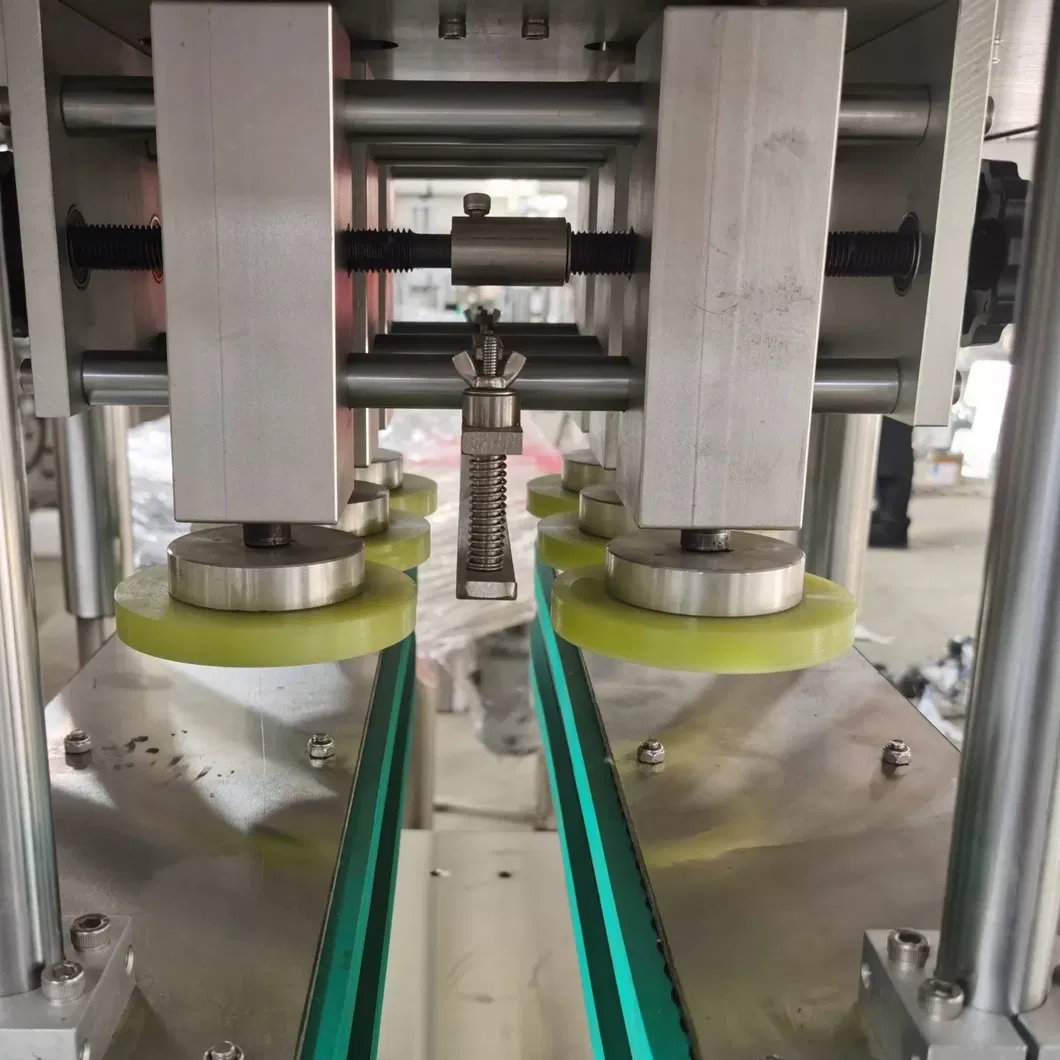

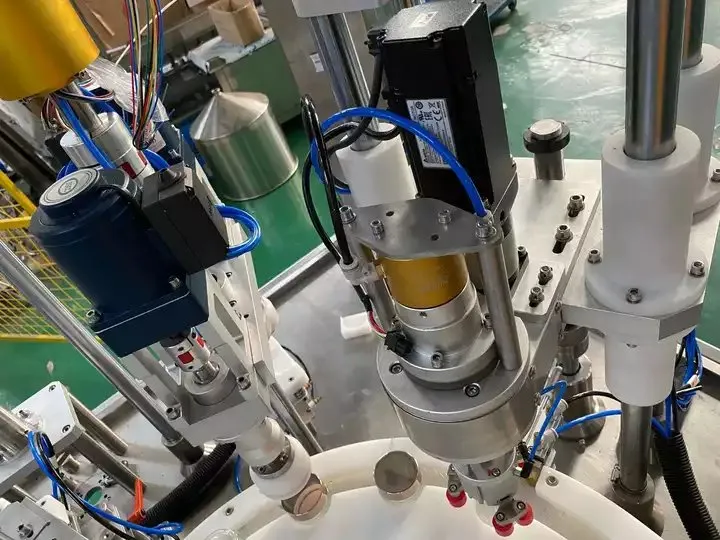

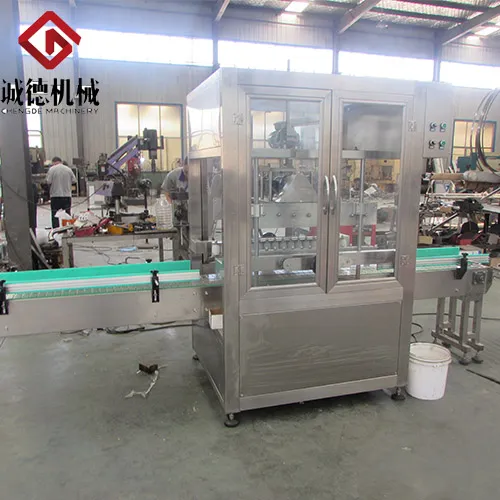

Intelligent touch screen control with automatic induction screw capping, suitable for various bottle types with no leakage.

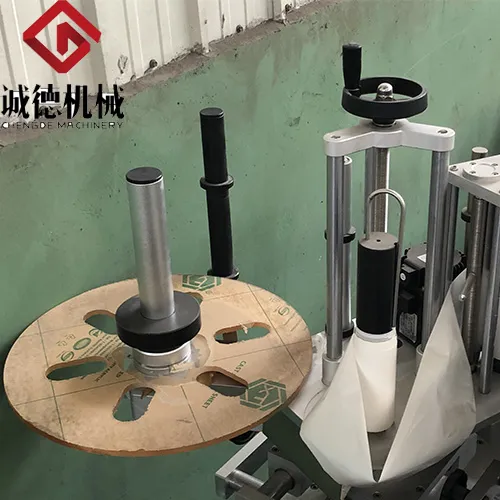

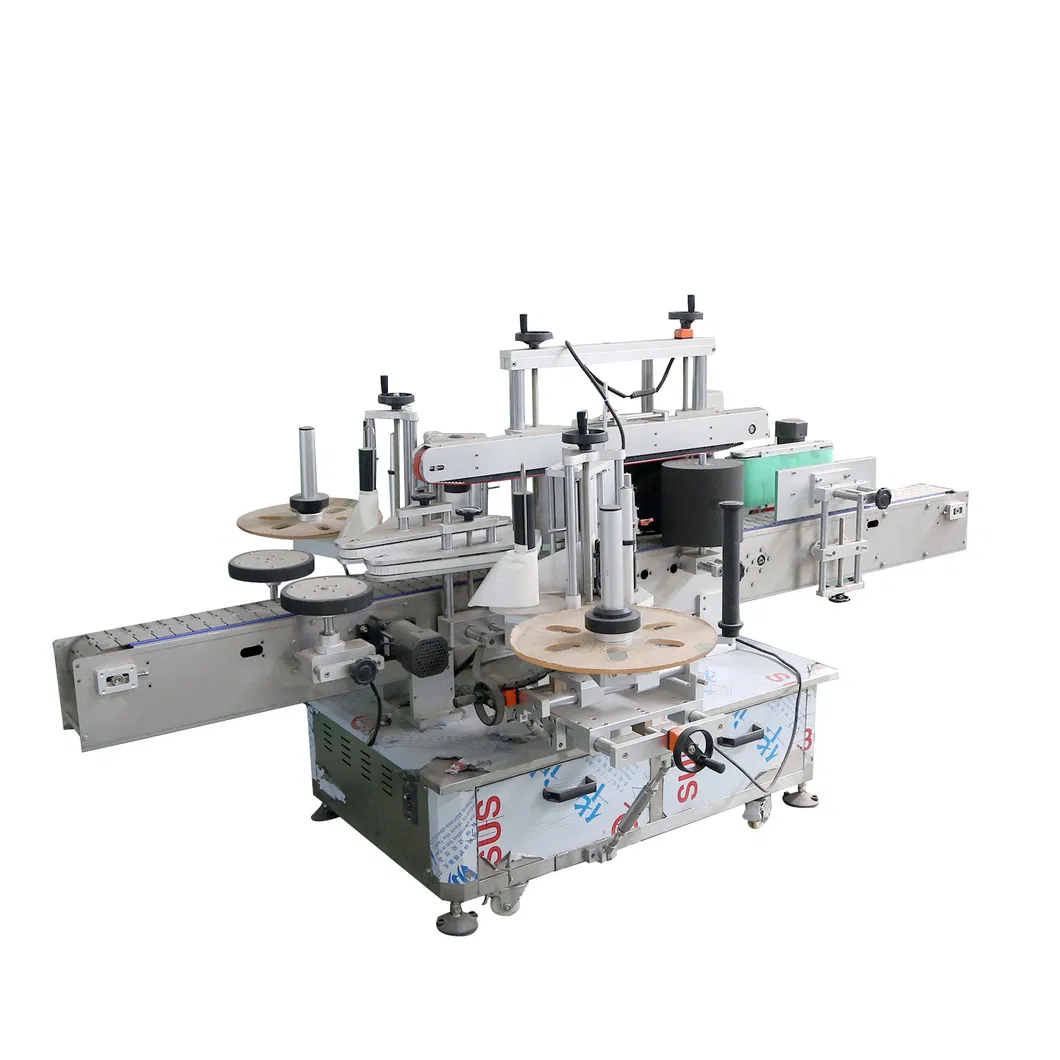

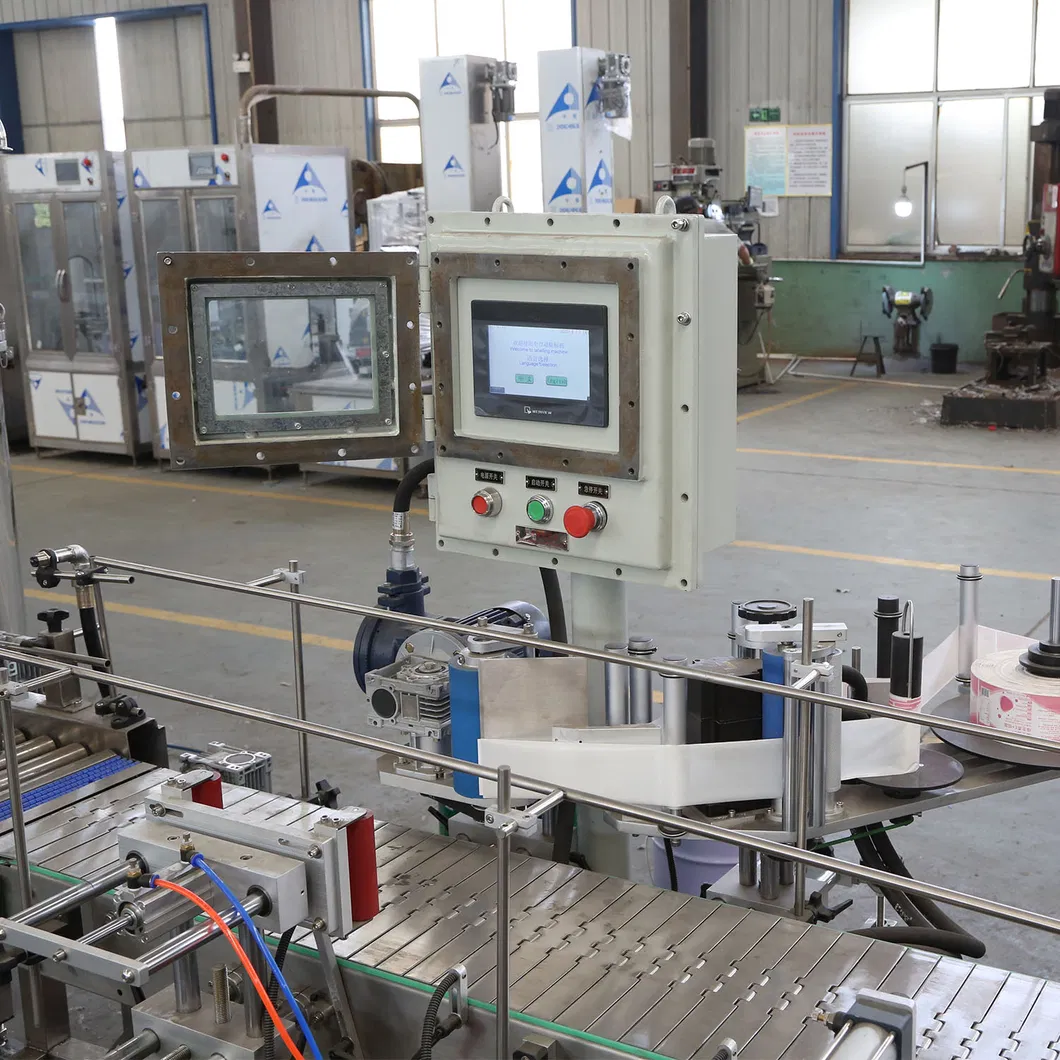

PLC control with memory for multiple labeling parameters. Made of high-level stainless steel and anodized aluminum, meeting GMP standards.

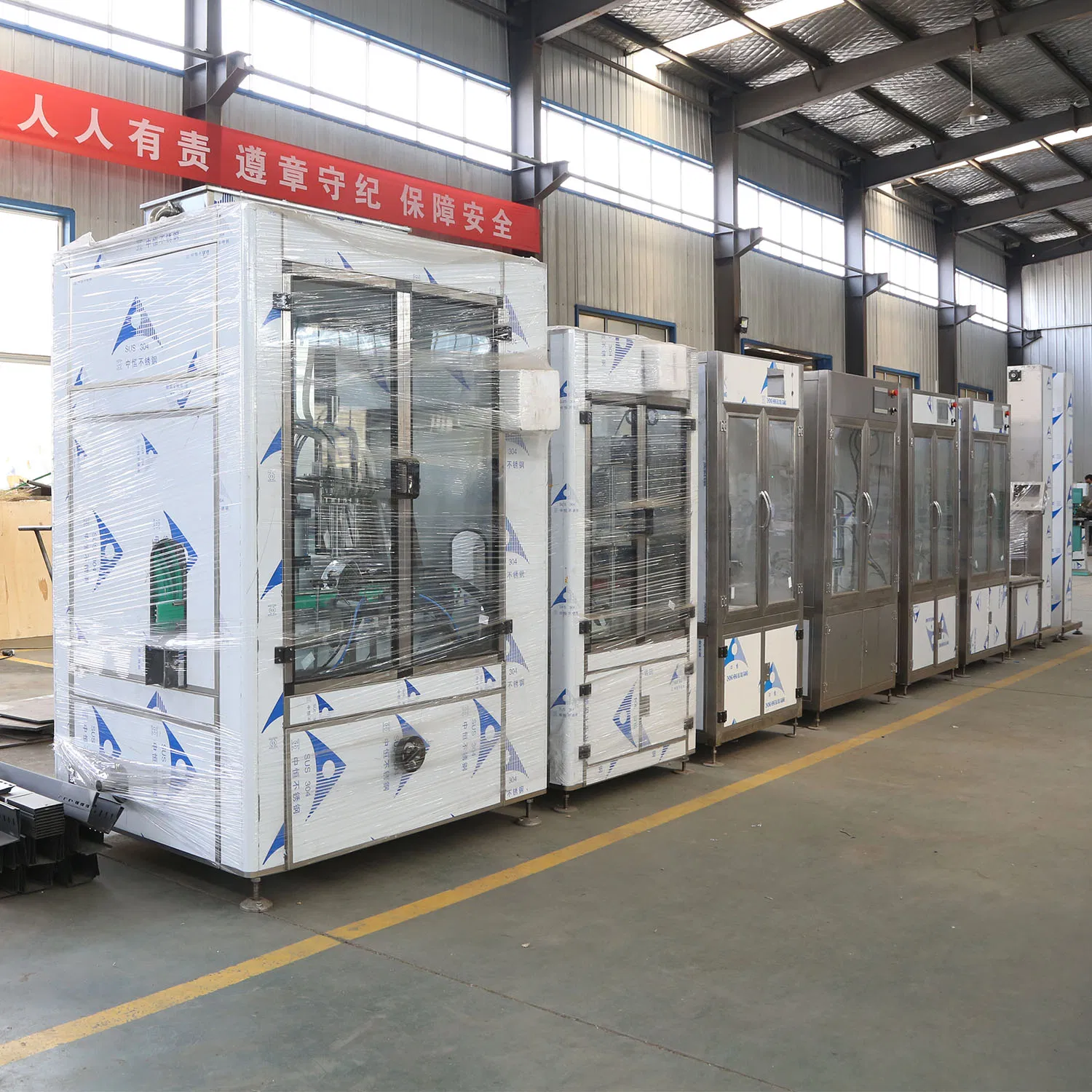

Packing: PE film wrapped, then exported wooden case.
Delivery: Within 20-25 days upon payment.
Support: Free sample testing, professional suggestions, one-year warranty with free spare parts, and installation guidance.
