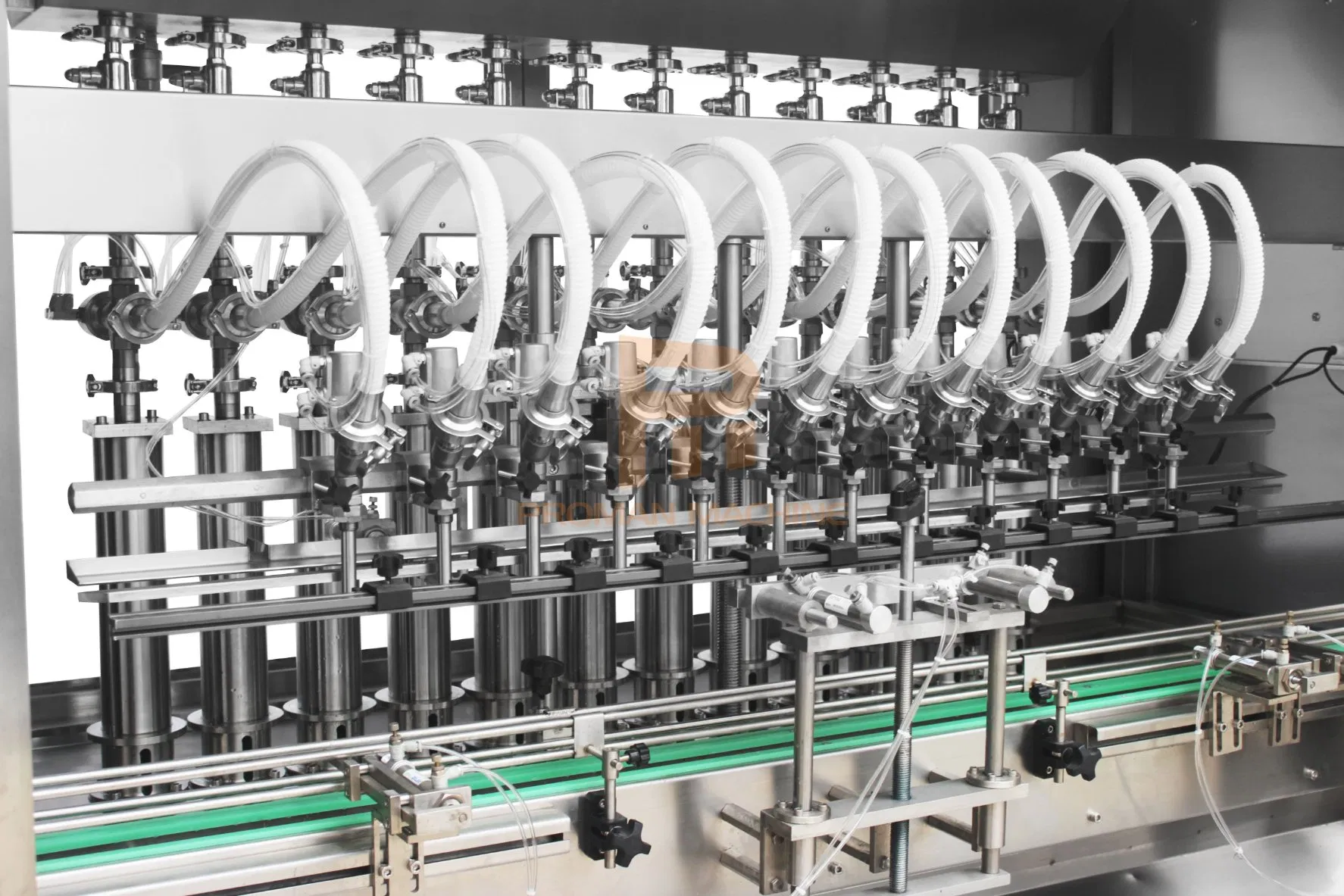

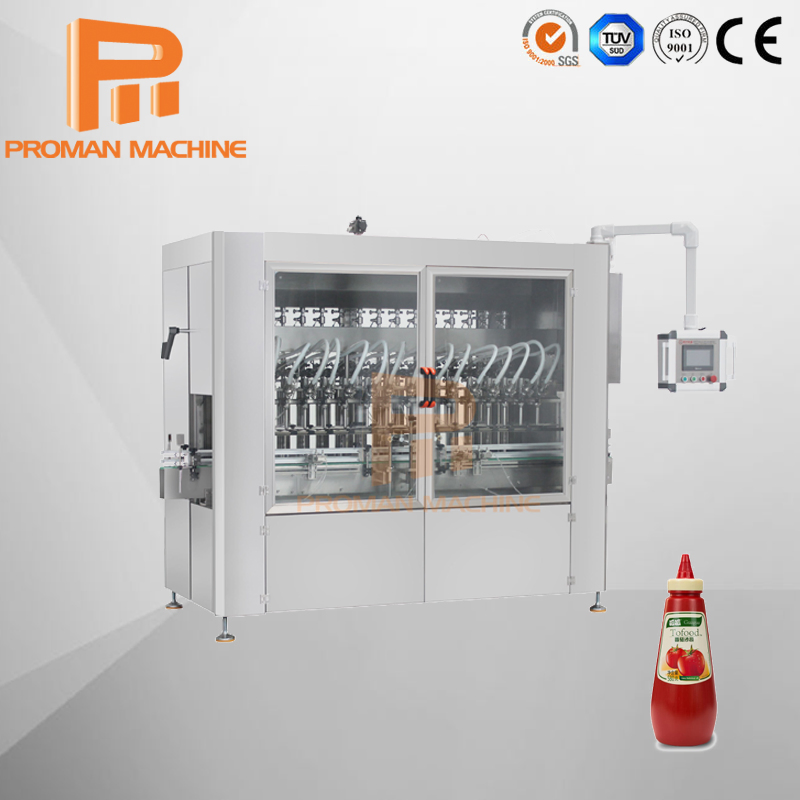

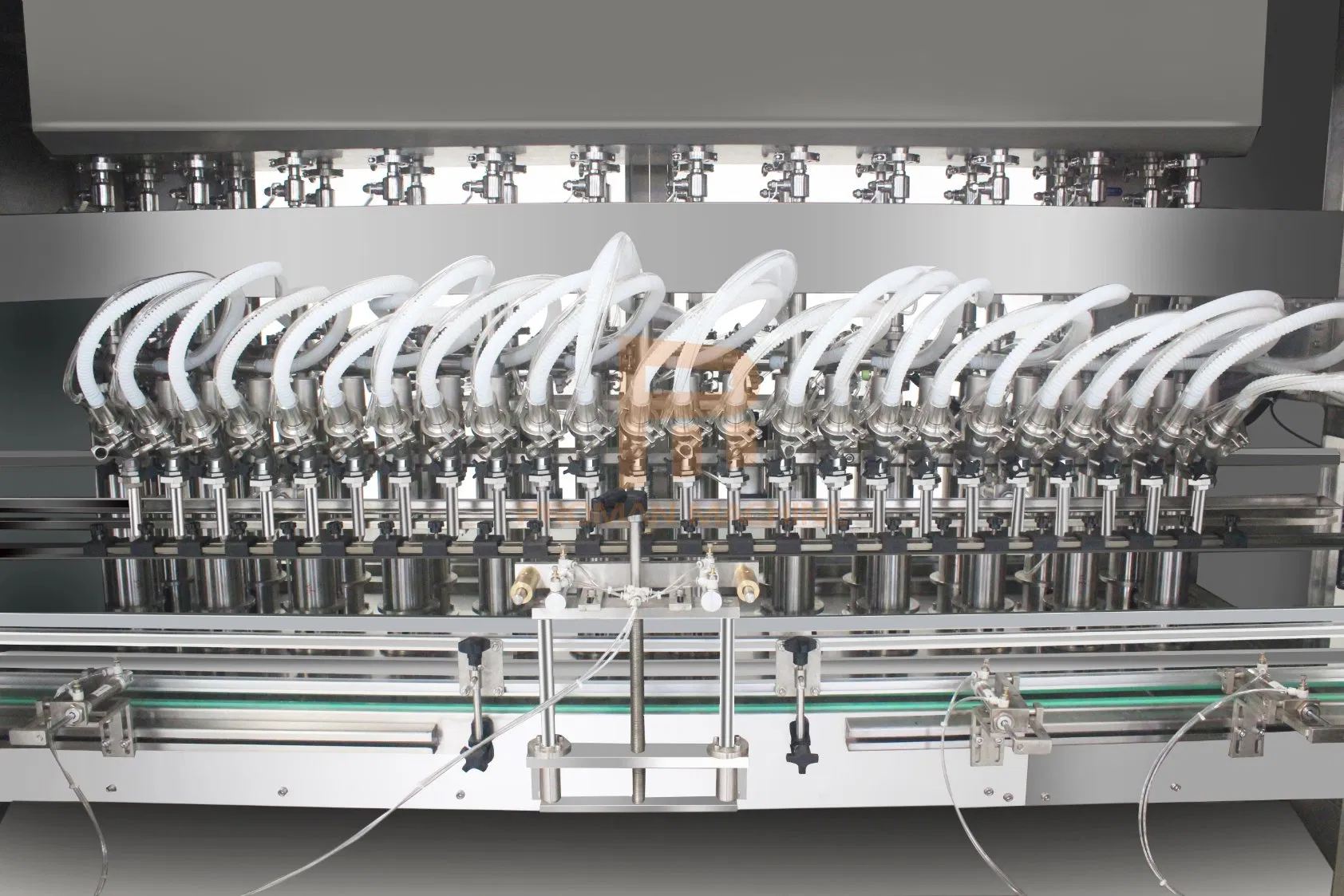

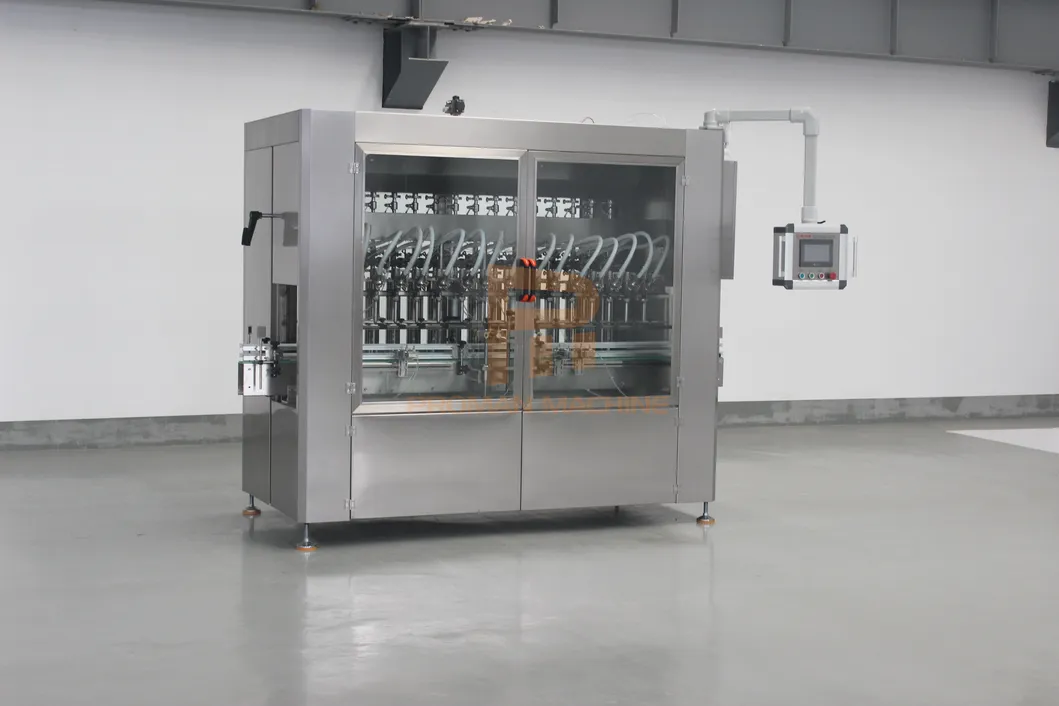

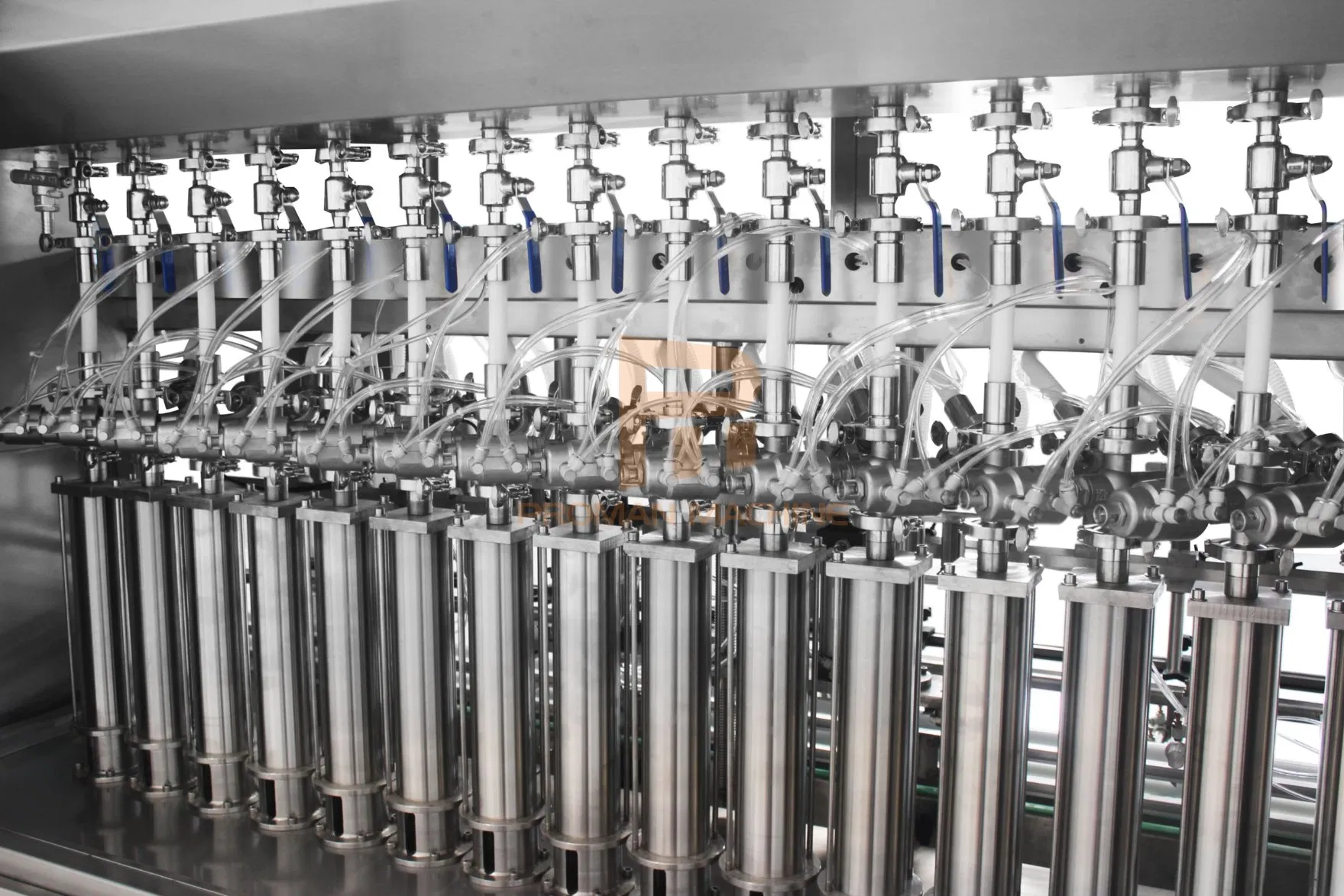

Automatic Liquid Filling Machine Piston Filling High Viscosity Ketchup Bottle Filling Machine
This model filling machine is suitable for various viscous, non-viscous, and corrosive liquids. It is widely used in plant oil, chemical liquids, and the daily chemical industry for quantitative small packing filling. Featuring linear filling and electromechanical integration control, it offers convenient species replacement, unique design, and superior performance in conformity with international machinery standards.
Equipped with a German SIEMENS PLC and touch screen control, the system includes intelligent protection functions and a vacuum drip device to ensure no leakage during production. It utilizes frequency conversion control and German TUPK photoelectric detection for high precision.

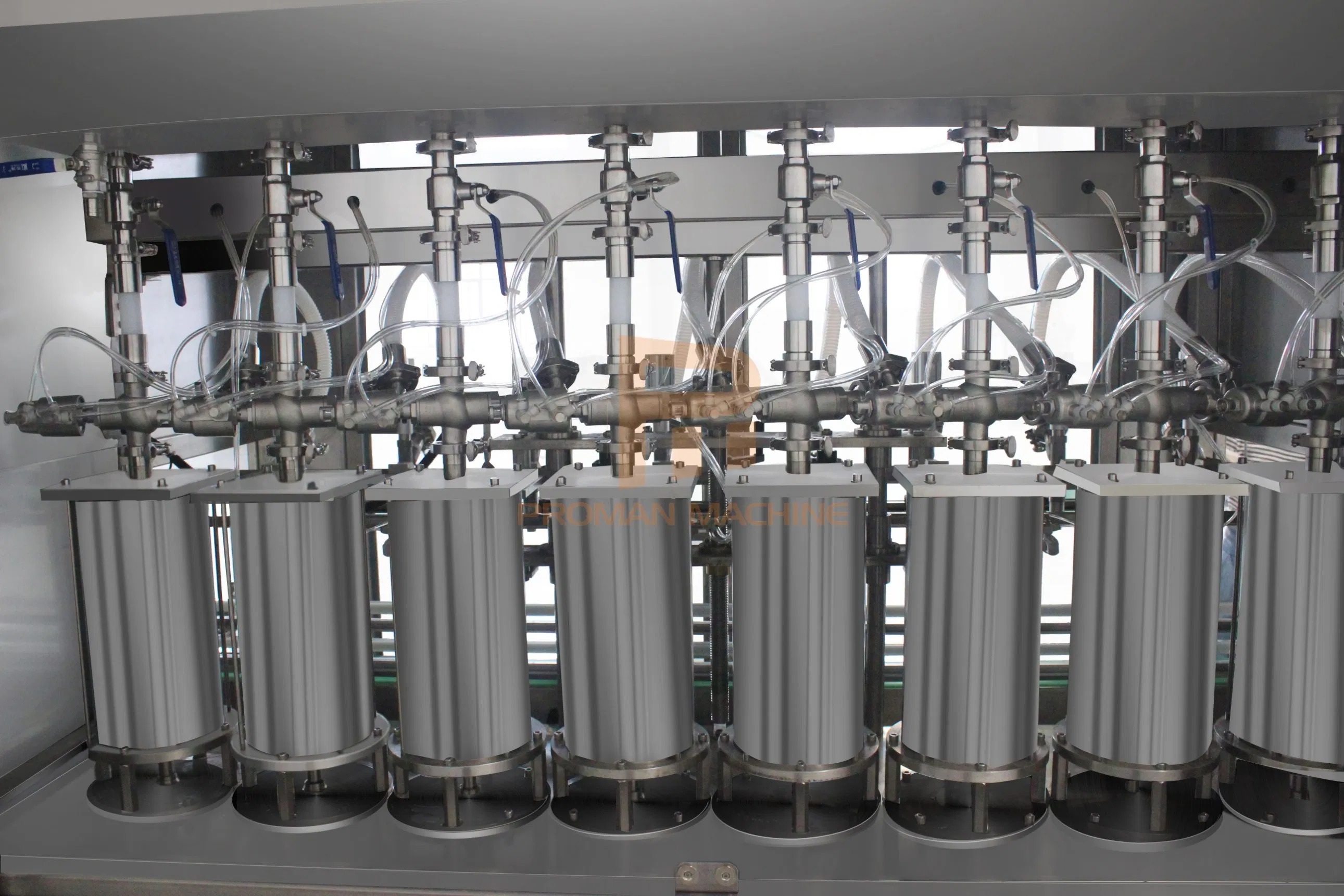

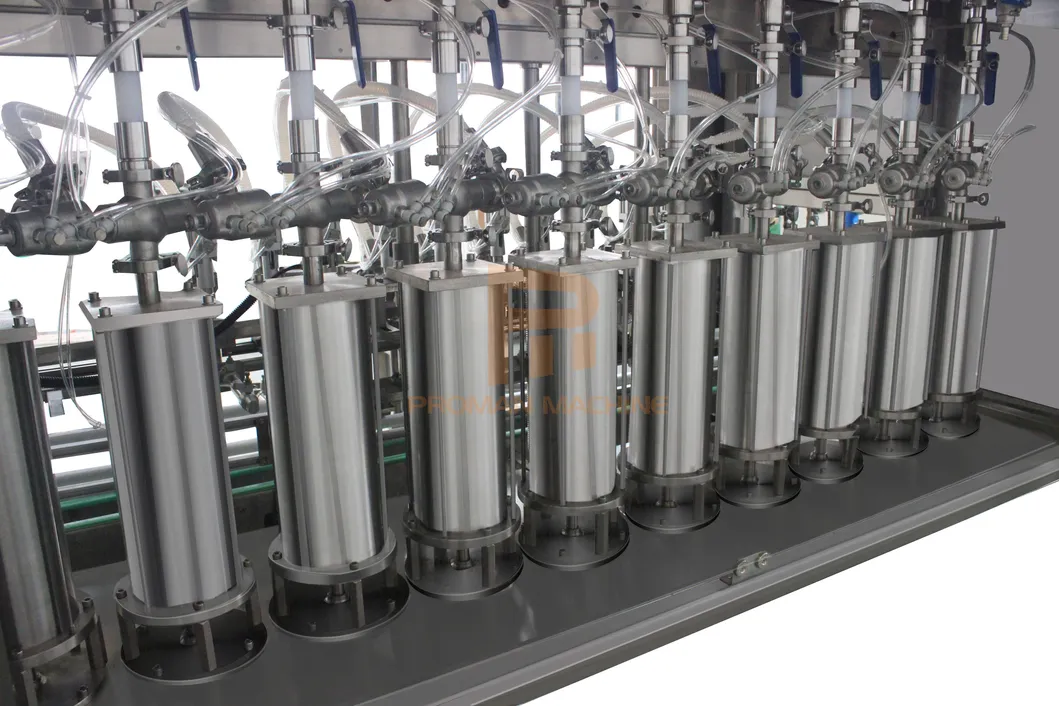

Adopts a servo control system to ensure the piston consistently reaches the constant position for high precision.
Realizes slow filling when approaching target capacity to prevent liquid spills and bottle mouth pollution.
Change specifications directly via the touch screen. Parameters and doses can be fine-tuned easily.
Features Mitsubishi PLC, Omron photoelectric sensors, and Taiwan-made touch screens for long-term performance.
| Model | PM-01 | PM-02 | PM-04 | PM-06 | PM-07 |
| Filling Heads | 2 | 4 | 8 | 12 | 14 |
| Suitable Volume (L) | 0.5-6 | 0.5-6 | 0.5-6 | 0.5-6 | 0.5-6 |
| Productivity (BPH) | 350-500 | 700-1000 | 1500-2200 | 2000-3000 | 3000-4000 |
| Work Pressure (MPa) | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 |
| Power Consumption | ≤1.0kw | ≤1.1kw | ≤1.5kw | ≤2.0kw | ≤2.0kw |
| No. | Component | Brand | Origin |
| 1 | Servo Motor | Panasonic | Japan |
| 2 | Touch Screen | WEINVIEW | Taiwan |
| 3 | PLC | Mitsubishi | Japan |
| 4 | Cylinder | AIRTAC | Taiwan |
| 5 | Sensor | Sick | Germany |
| 6 | Button/Relay | Schneider | France |
Professional engineers provide on-site installation, manual guidance, and employee training until proficient operation is achieved.
Design machines according to specific requirements (material, power, filling type, bottle shapes) with professional industry suggestions.
12 months guarantee, life-long technical support, and 24-hour engineer response for any technical inquiries.
Dedicated quality department ensures raw material integrity and smooth machine operation through rigorous testing.
