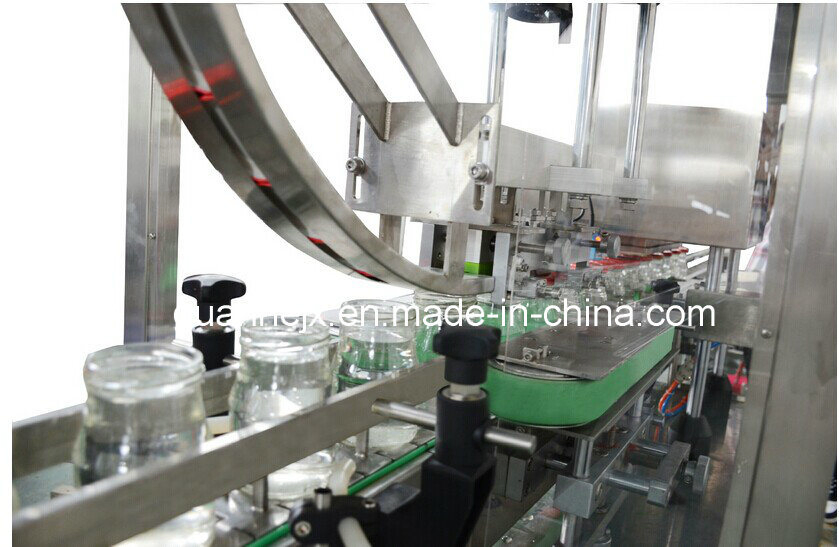

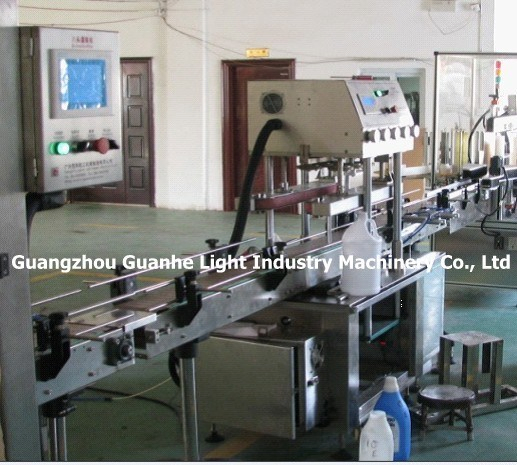

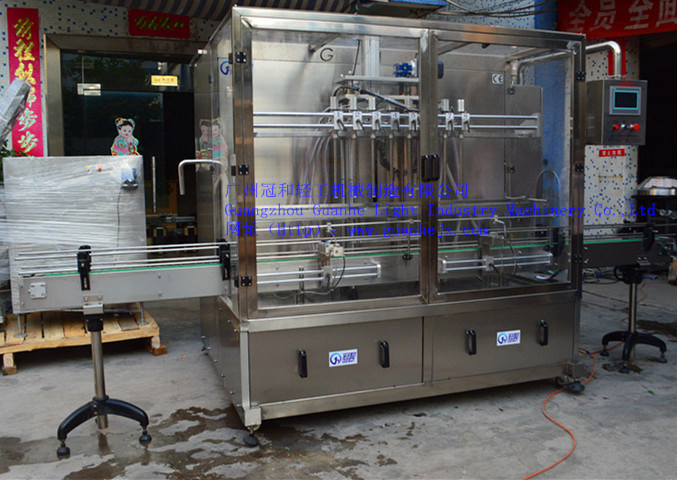

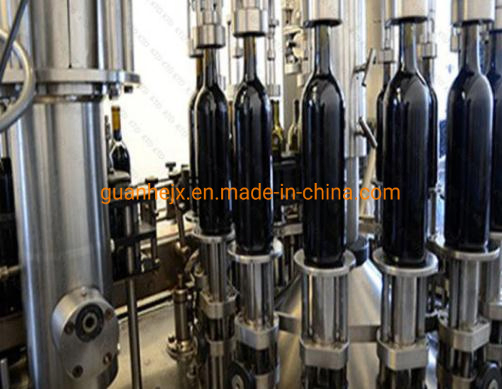

Automatic 3 in 1 Glass Bottle Whiskey Filling Machine
Automatic 3 in 1 Glass Bottle Whiskey Filling Machine
Automatic 3 in 1 Glass Bottle Whiskey Filling Machine
Automatic 3 in 1 Glass Bottle Whiskey Filling Machine
Automatic 3 in 1 Glass Bottle Whiskey Filling Machine
1 / 5
Automatic 3 in 1 Glass Bottle Whiskey Filling Machine
Automatic 3 in 1 Glass Bottle Whiskey Filling Machine
Automatic 3 in 1 Glass Bottle Whiskey Filling Machine
Automatic 3 in 1 Glass Bottle Whiskey Filling Machine
Automatic 3 in 1 Glass Bottle Whiskey Filling Machine

Automatic 3 in 1 Glass Bottle Whiskey Filling Machine

Customization: Available
Type: Volumetric Filling Machine
Automatic Grade: Automatic
Send Inquiry

Product Description

Basic Information
Material Type
Liquid & Paste
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Multi-Room Feeding
Dosing Device
Plunger/Rotor/Weighing
Filling Principle
Pressure
Packaging Lifting
Pneumatic Lifting
Structure
Linear
Packaging
Bottles, Jars, Barrels
Filling Control
Servo Motor Controlling
Filling Type
Piston Filling
Certificate
CE UL RoHS
HS Code
8422301090
Production Capacity
30 Sets/Month
Product Introduction
This series of automatic filling machines are suitable for bottle packaging of various liquids, cream, sauce or butter, widely used in food, pharmaceutics, cosmetics, and chemicals.
Humanized design allows for quick adjustments to meet different bottle and liquid specifications within minutes without tools.
Adopting pneumatic piston booster and volume measurement for extremely high filling precision, controlled by servo motors or cylinders.
Linear bottle-in and bottle-out system suitable for various bottle shapes, including alien-shaped containers.
Equipped with PLC system and touch screen for easy operation and maintenance.
Constructed with high-quality SUS304 or SUS316 stainless steel, fully compliant with GMP requirements and CE standards.

We provide various filler types: rotor-pump, piston, gravity, weighing, defoaming, and flowmeter fillers. Professionally customized designs to match your specific production needs!

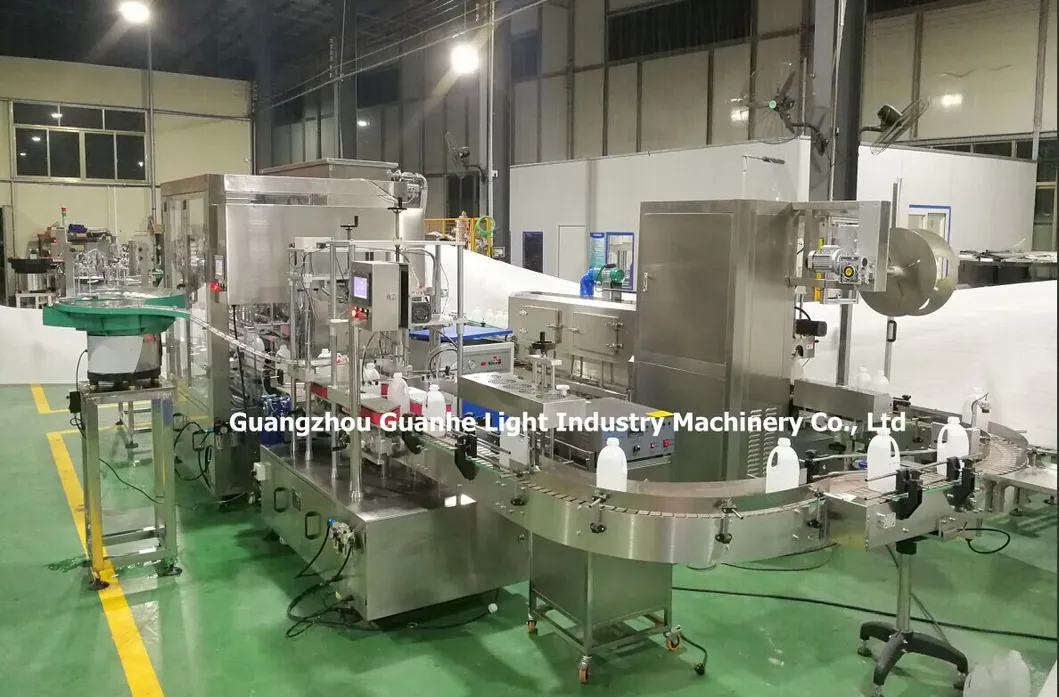

Automatic Filling Machine System
Main Parameters (Piston-Type)
Item GHAPF-4 GHAPF-6 GHAPF-8 GHAPF-12 GHAPF-16
Filling nozzles4681216
Filling scope20-5000ml (customized)
Ideal scope20-100ml / 50-250ml / 100-500ml / 200-1000ml / 500-2500ml / 1000-5000ml
Capacity (100ml)40-60BPM60-80BPM70-90BPM80-100BPM90-120BPM
Filling error20-1000ml: ≤±1% | 1000-5000ml: ≤±0.5%
Air pressure0.4~0.6MPa
Voltage220V 50/60Hz
Power0.75kw0.75kw1.2kw2.2kw2.2kw
Gross weight550kg600kg700kg800kg900kg
Factory and Equipment Showcase
Factory Production
Machine Detail

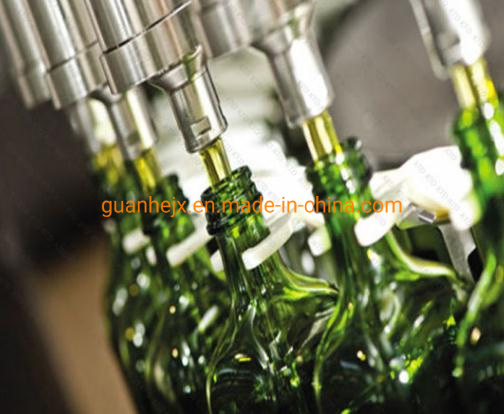

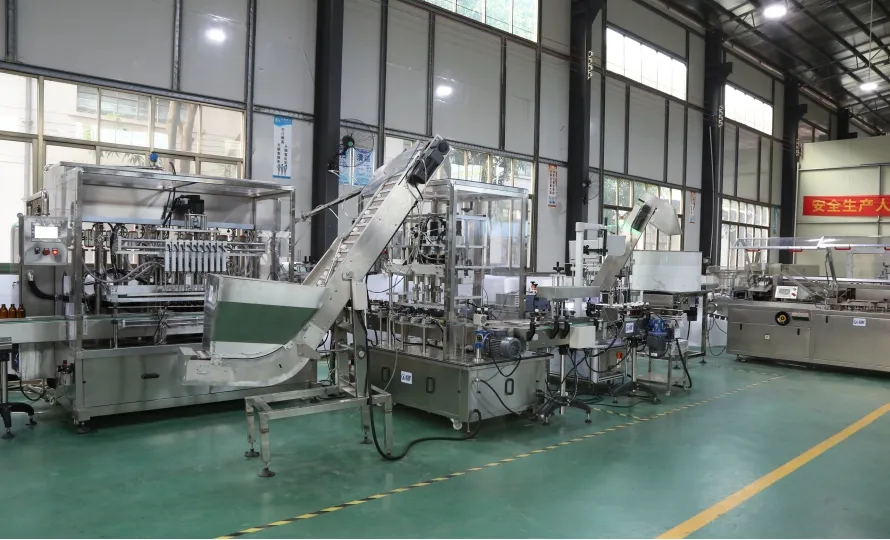

Filling System

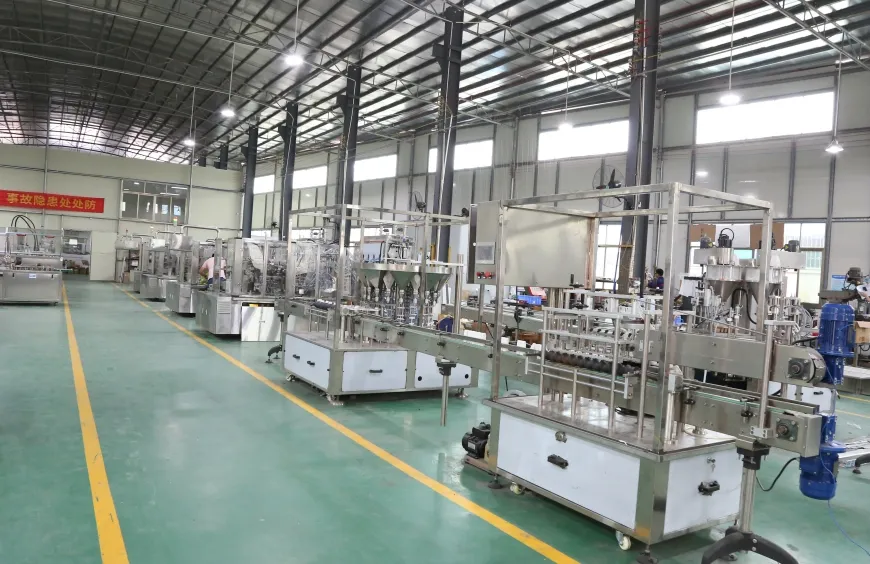

Packaging Line
Frequently Asked Questions
What materials can this machine handle?
The machine is versatile and can fill various liquids, creams, sauces, and butters across the food, pharmaceutical, and chemical industries.
How accurate is the filling process?
Using pneumatic piston technology and servo motor control, the filling error is ≤±1% for volumes under 1000ml and ≤±0.5% for volumes up to 5000ml.
Is the machine easy to adjust for different bottle sizes?
Yes, the humanized linear design allows for adjustments within minutes without requiring specialized tools, making it ideal for various bottle shapes.
Does the machine meet hygiene standards?
Absolutely. The machine is made from high-quality SUS304 or SUS316 stainless steel and is built in total accordance with GMP and CE requirements.
Can this machine be integrated into a full production line?
Yes, it can operate independently or be linked to an automated line including bottle unscrambling, capping, labeling, and packaging systems.
What control system is used?
The machine utilizes a high-performance PLC system combined with a user-friendly touch screen for seamless operation and maintenance.
